DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

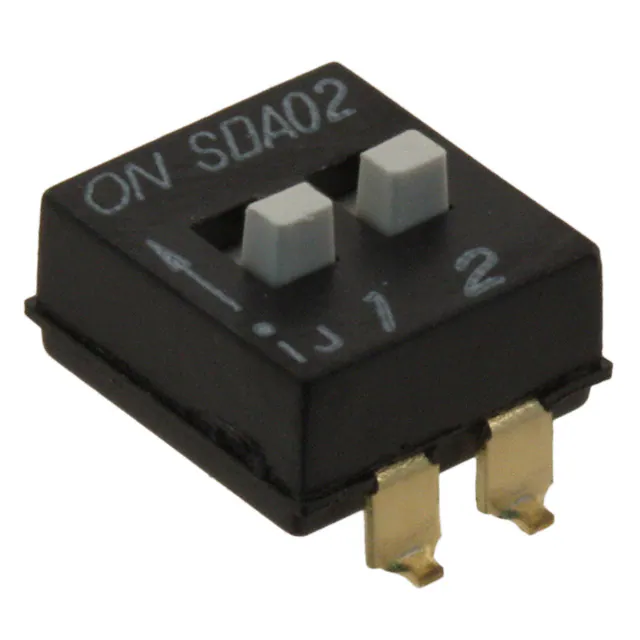

SDA02H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
21,316 |
|
Datasheet |
SDA | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0603TBSWITCH SLIDE DIP SPST 0.1A 6V |
288 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
7814J-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
208 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | -55°C ~ 125°C | - | - | No |
|
DS05-127-2-08BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
238 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
DM02SWITCH SLIDE DIP SPST 0.025A 24V |
3,444 |
|
Datasheet |
DM | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS05-127-2-04BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
5,191 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
193-8MSSWITCH PIANO DIP SPST 0.05A 24V |
666 |
|
Datasheet |
193 | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
1571999-1SWITCH PIANO DIP SPST 0.025A 24V |
11,556 |
|
Datasheet |
ADP | Bulk | Active | SPST | 2 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
206-124STSWITCH SLIDE DIP SPDT 0.05A 24V |
1,105 |
|
Datasheet |
206 | Tube | Active | SPDT | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
A6S-4101-PHSWITCH SLIDE DIP SPST 0.025A 24V |
1,338 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-2104-HSWITCH SLIDE DIP SPST 0.025A 24V |
5,449 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

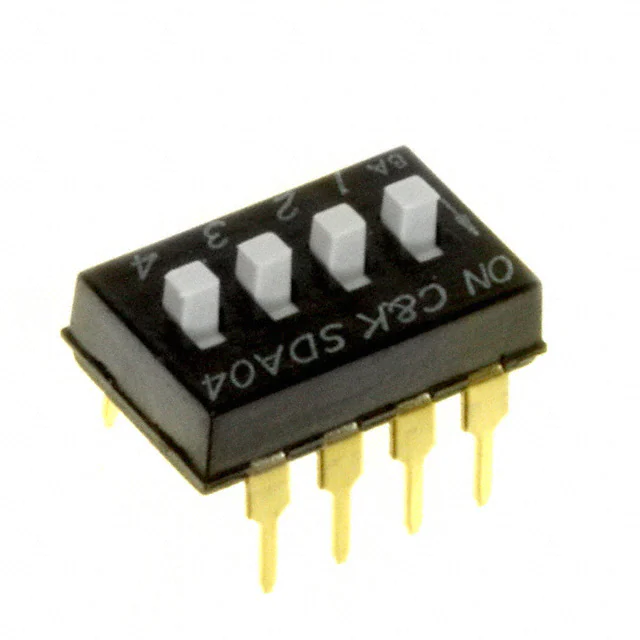

SDA04H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
44,137 |
|
Datasheet |
SDA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

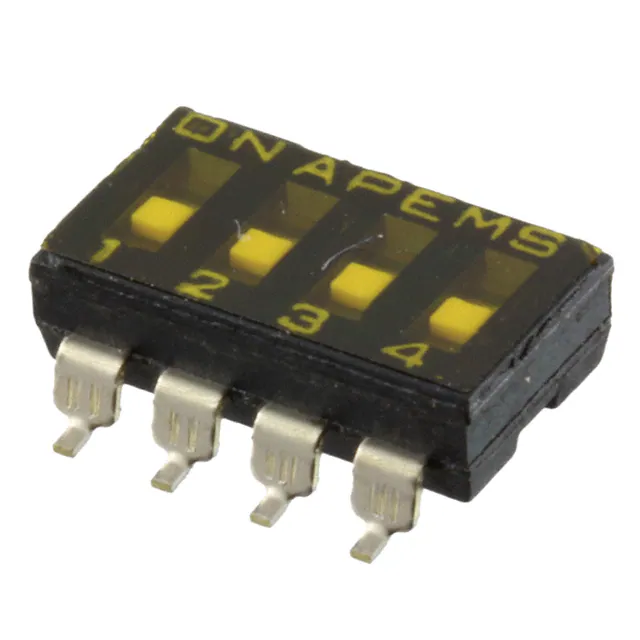

DMR04TTRSWITCH SLIDE DIP SPST 0.025A 24V |
12,049 |
|
Datasheet |
DM | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
76RSB08STSWITCH ROCKER DIP SPST 0.15A 30V |
5,027 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-4102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
726 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
ADE08A04SWITCH SLIDE DIP SPST 0.1A 24V |
773 |
|
Datasheet |
ADE | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
7813J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
7,555 |
|
Datasheet |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.087" (2.20mm) | Surface Mount | J Lead | -55°C ~ 125°C | - | - | No |
|
7814J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
4,815 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | -55°C ~ 125°C | - | - | No |
|
A6FR-8104SWITCH PIANO DIP SPST 0.025A 24V |
2,080 |
|
Datasheet |
A6FR | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

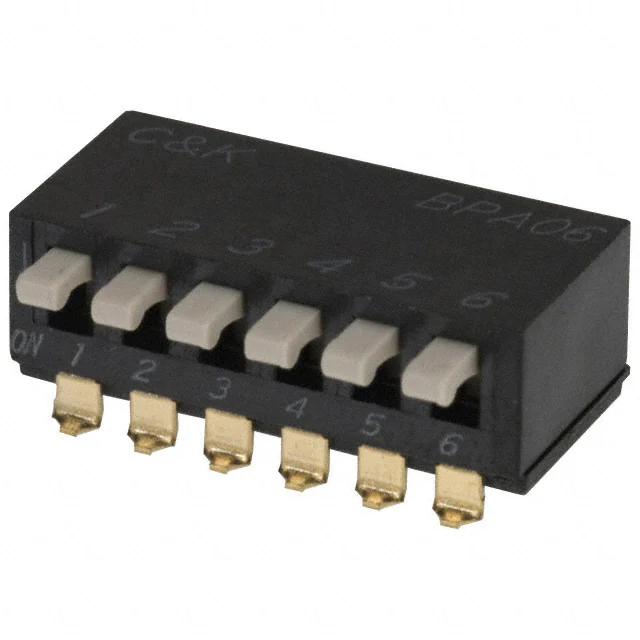

BPA06SBRSWITCH PIANO DIP SPST 0.1A 5V |
1,618 |
|
Datasheet |
BPA | Tape & Reel (TR) | Active | SPST | 6 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
