DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6RV-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
583 |
|
Datasheet |
A6RV | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|
A6RV-101RFSWITCH ROTARY DIP BCD 0.025A 24V |
423 |
|
Datasheet |
A6RV | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|
97C02STSWITCH SLIDE DIP SPST 0.025A 24V |
6,885 |
|
Datasheet |
97 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
FR01FR10H-SSWITCH ROTARY DIP BCD 0.1A 5V |
8,059 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
90HBW02PTSWITCH SLIDE DIP SPST 0.025A 24V |
3,669 |
|
Datasheet |
90HB | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

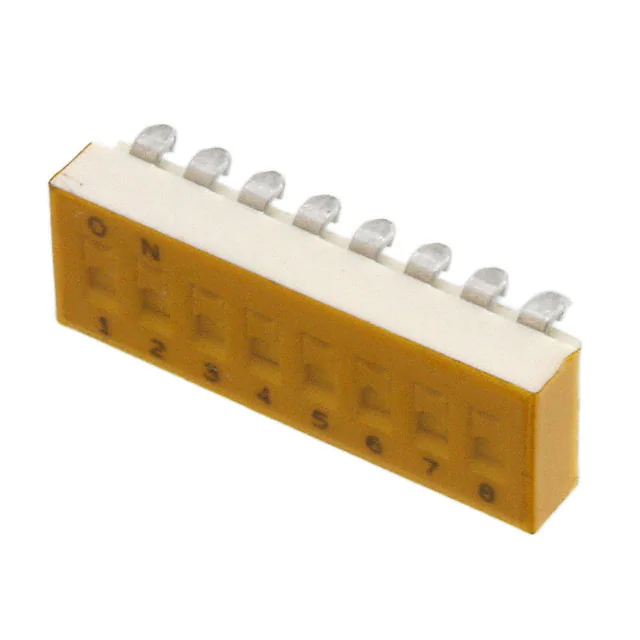

90HBJ08PTSWITCH SLIDE DIP SPST 0.025A 24V |
2,402 |
|
Datasheet |
90HB | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
97C04STSWITCH SLIDE DIP SPST 0.025A 24V |
4,060 |
|
Datasheet |
97 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
97R04STSWITCH SLIDE DIP SPST 0.025A 24V |
2,480 |
|
Datasheet |
97 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
78J01TSWITCH SLIDE DIP SPDT 0.15A 30V |
3,873 |
|
Datasheet |
78 | Tube | Active | SPDT | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
TDA10H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
27,977 |
|
Datasheet |
TDA | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

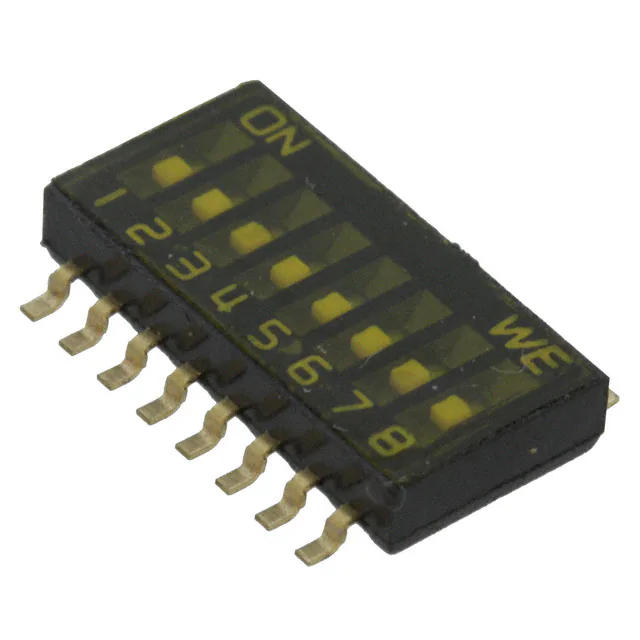

416131160808SWITCH SLIDE DIP SPST 0.025A 24V |
5,938 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
90HBW03PTSWITCH SLIDE DIP SPST 0.025A 24V |
5,583 |
|
Datasheet |
90HB | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
97C06STSWITCH SLIDE DIP SPST 0.025A 24V |
5,101 |
|
Datasheet |
97 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
A6RV-161RFSWITCH ROTARY DIP HEX 0.025A 24V |
1,832 |
|
Datasheet |
A6RV | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|
94HAB16WRTSWITCH ROTARY DIP HEX 0.1A 50V |
8,438 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
RTE1010N14SWITCH ROTARY DIP BCD 0.1A 30V |
2,515 |
|
Datasheet |
RTE | Tube | Active | BCD | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
97C08STSWITCH SLIDE DIP SPST 0.025A 24V |
6,347 |
|
Datasheet |
97 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

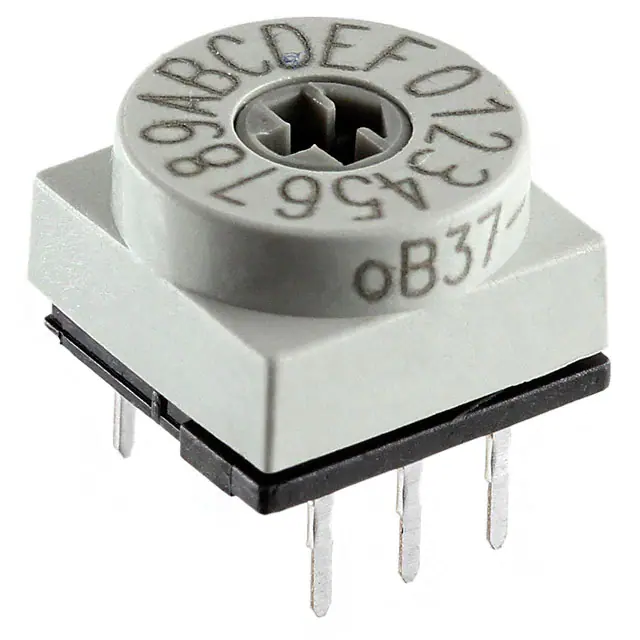

PT65703SWITCH ROTARY DIP HEX 0.15A 24V |
3,079 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

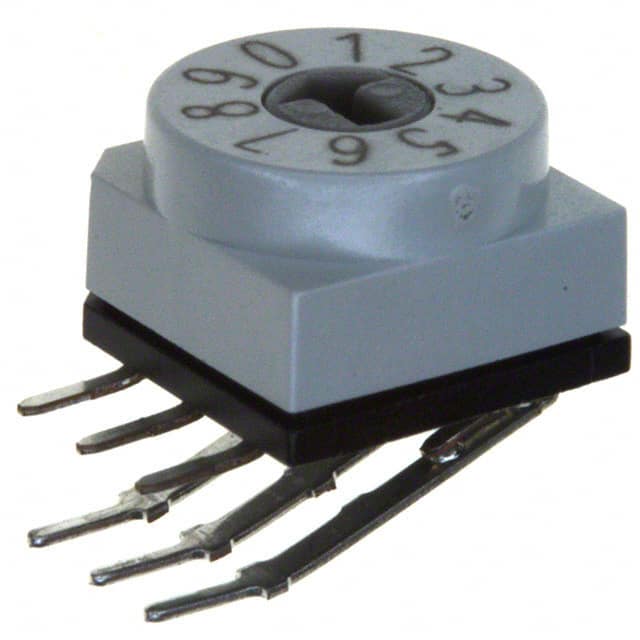

PT65101L254SWITCH ROTARY DIP BCD 0.15A 24V |
11,632 |
|
Datasheet |
PT65 | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

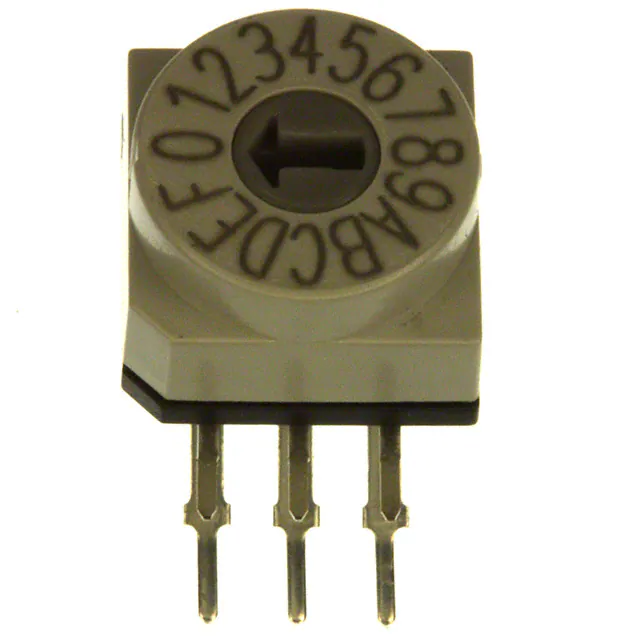

PT65103L508SWITCH ROTARY DIP HEX 0.15A 24V |
433 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
