DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76SB04TSWITCH ROCKER DIP SPST 0.15A 30V |
7,042 |
|
Datasheet |
76 | Tube | Active | SPST | 4 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

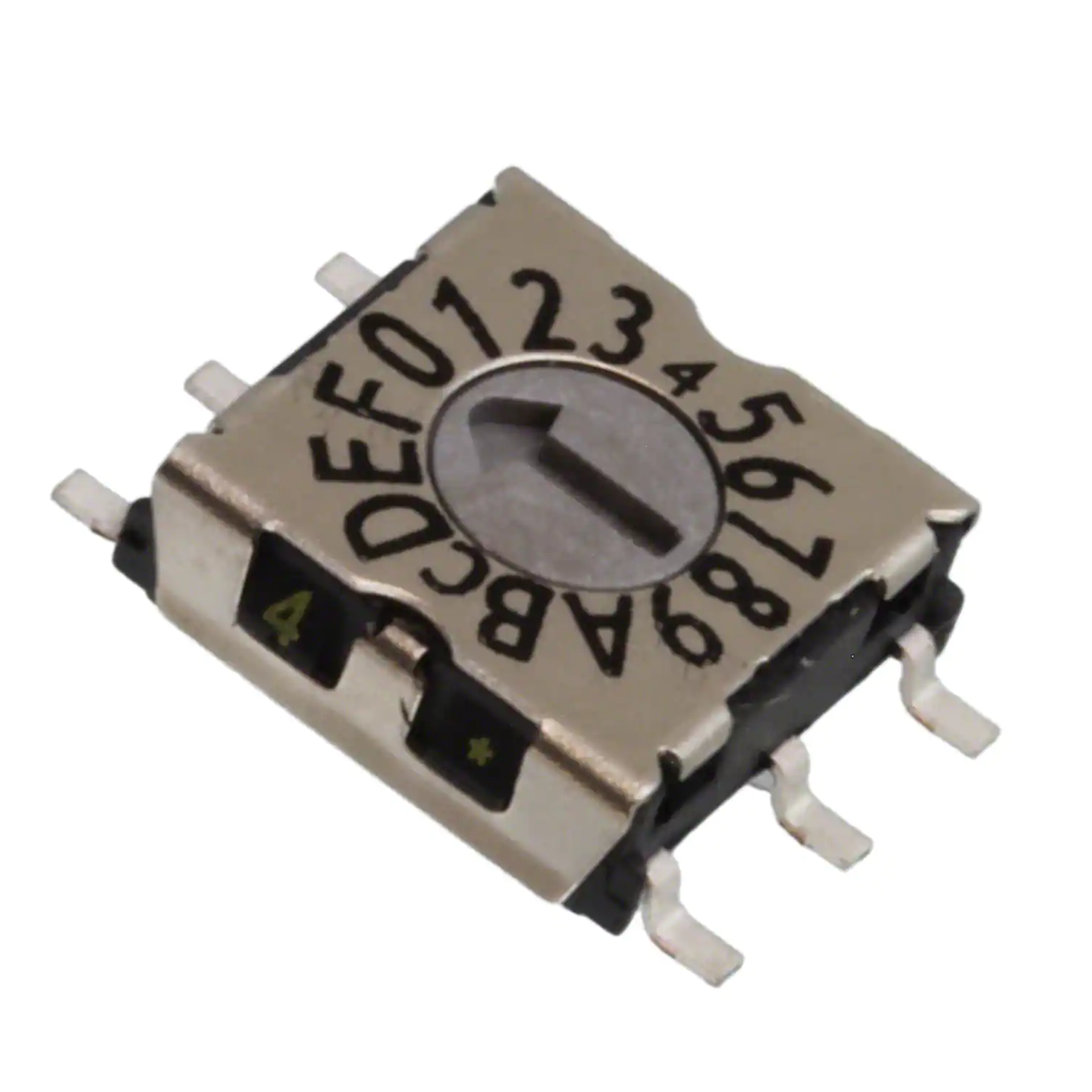

P25SMT103TRSWITCH ROTARY DIP HEX 0.1A 42V |
5,240 |
|
Datasheet |
P25 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
1-1825007-1SW ROTARY DIP HEX COMP 0.4VA 20V |
14,773 |
|
Datasheet |
DRD | Tube | Active | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

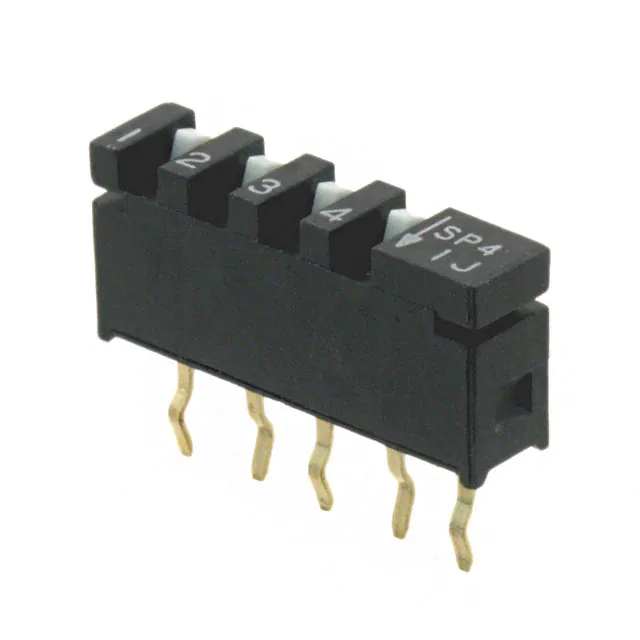

SPA04BSWITCH SLIDE DIP SPST 0.01A 20V |
12,237 |
|
Datasheet |
SPA | Tube | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 10mA | Beryllium Copper | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | -30°C ~ 60°C | 0.100" (2.54mm), Full | - | Yes |
|

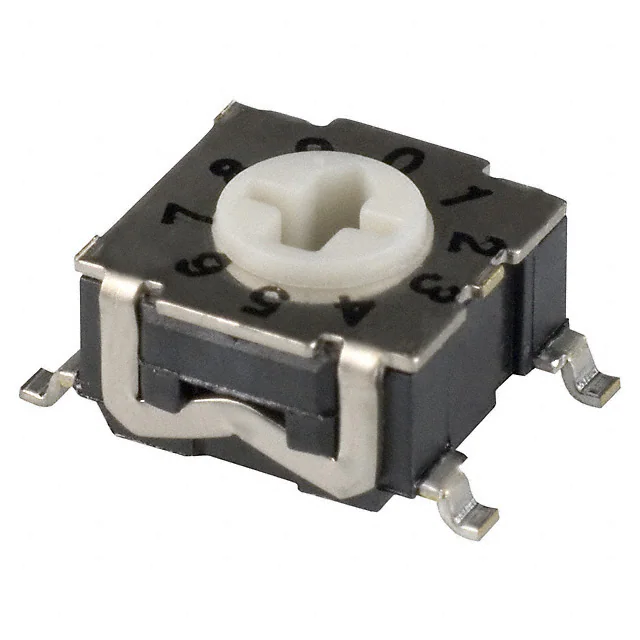

RTE1000G14SWITCH ROTARY DIP BCD 0.1A 30V |
4,454 |
|
Datasheet |
RTE | Tape & Reel (TR) | Active | BCD | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

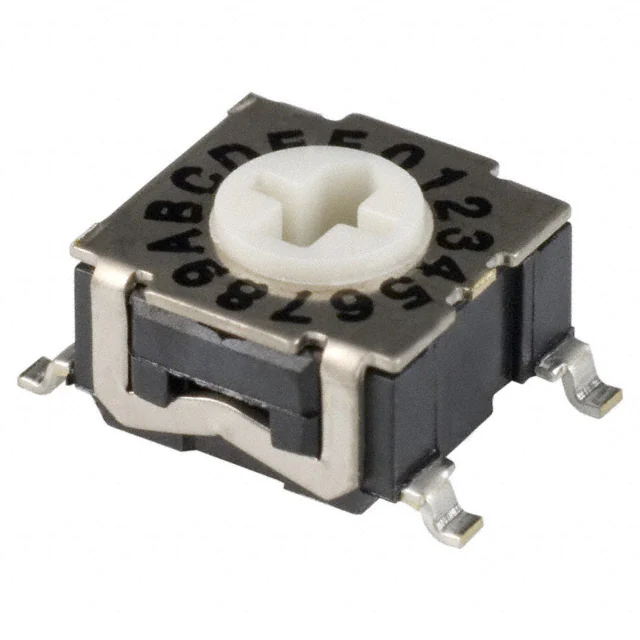

RTE1600G44SWITCH ROTARY DIP HEX 0.1A 30V |
2,147 |
|
Datasheet |
RTE | Tape & Reel (TR) | Active | Hexadecimal | 16 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
428542320816SWITCH ROTARY DIP HEX 0.1A 42V |
1,751 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|

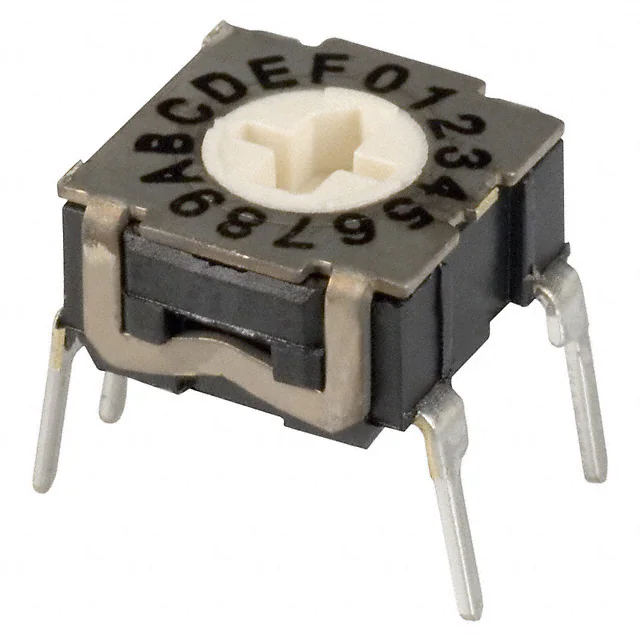

RTE1600N44SWITCH ROTARY DIP HEX 0.1A 30V |
13,536 |
|
Datasheet |
RTE | Tube | Active | Hexadecimal | 16 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78B04STSWITCH SLIDE DIP SPST 0.15A 30V |
7,816 |
|
Datasheet |
78 | Tube | Active | SPST | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

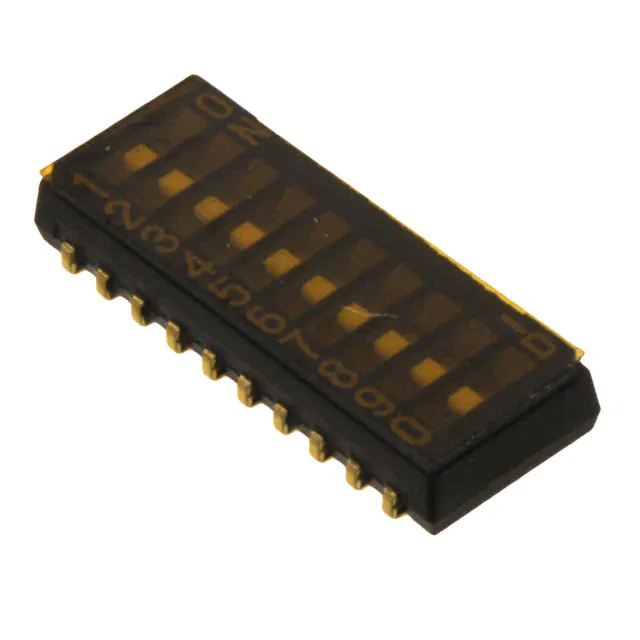

CHS-10TASWITCH SLIDE DIP SPST 0.1A 6V |
31,763 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
97C04SRTSWITCH SLIDE DIP SPST 0.025A 24V |
17,030 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

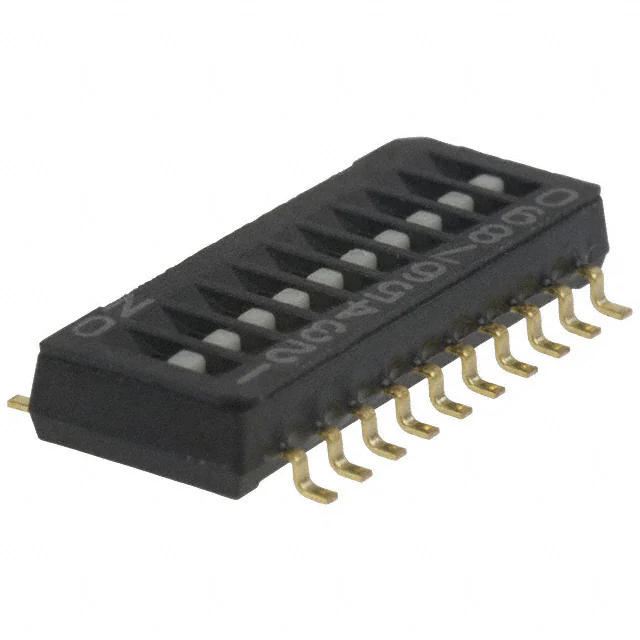

CHS-10TBSWITCH SLIDE DIP SPST 0.1A 6V |
5,690 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
TDA08H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
7,851 |
|
Datasheet |
TDA | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
76SB04STSWITCH ROCKER DIP SPST 0.15A 30V |
8,410 |
|
Datasheet |
76 | Tube | Active | SPST | 4 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
97C06SRTSWITCH SLIDE DIP SPST 0.025A 24V |
7,180 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

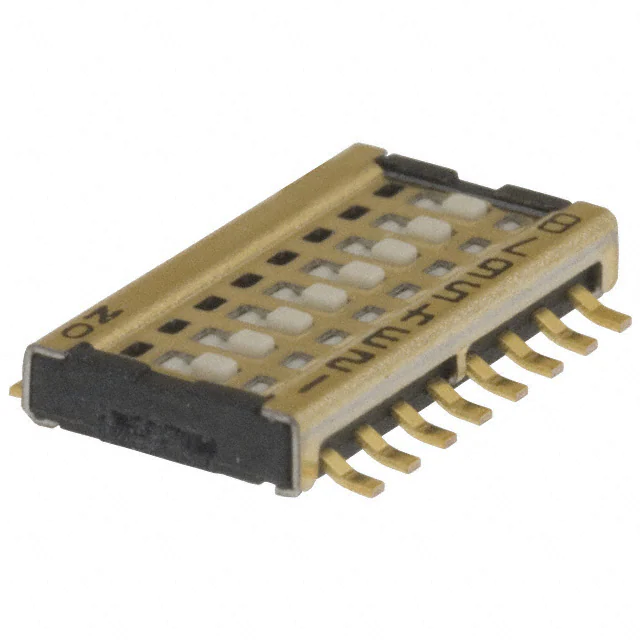

CVS-08TBSWITCH SLIDE DIP SPST 0.1A 6V |
1,598 |
|
Datasheet |
CVS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Raised | 100mA | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.039" (1.00mm) | - | No |
|
1-1571983-1SWITCH SLIDE DIP SPST 0.025A 24V |
54,124 |
|
Datasheet |
GDH | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
97C08SRTSWITCH SLIDE DIP SPST 0.025A 24V |
9,120 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

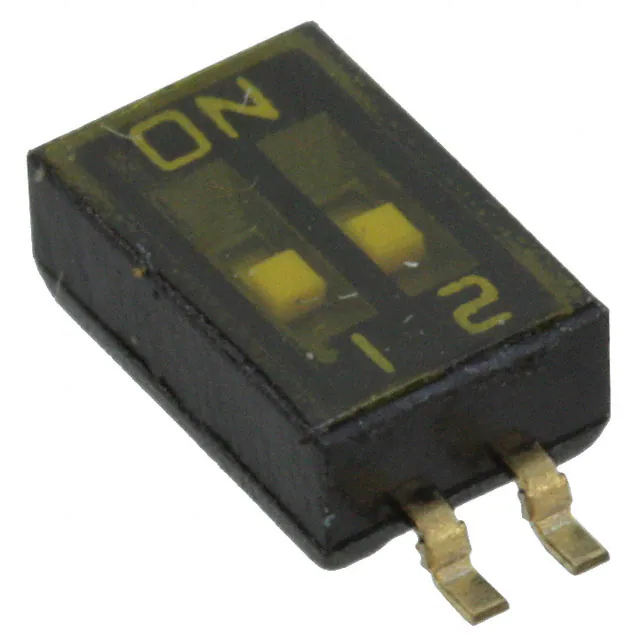

416131160802SWITCH SLIDE DIP SPST 0.025A 24V |
1,484 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
97R08SRTSWITCH SLIDE DIP SPST 0.025A 24V |
4,832 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
