DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

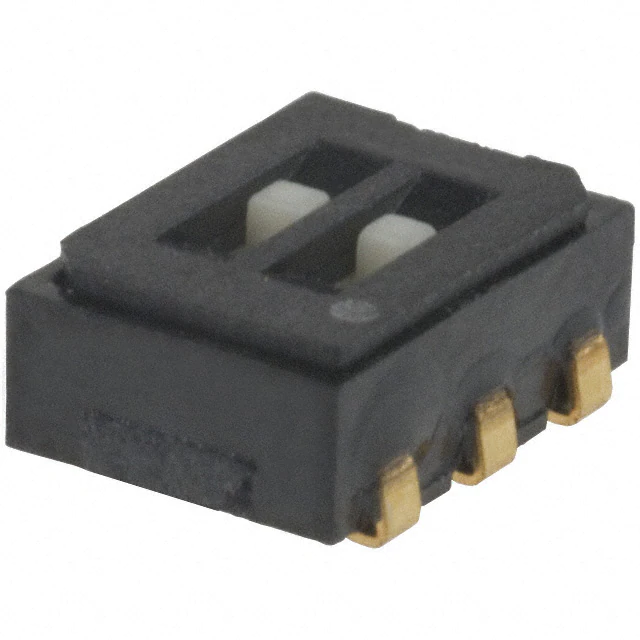

CAS-D20TASWITCH SLIDE SPDTX2 100MA 6V |
23,117 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | Tape Seal | - |
|

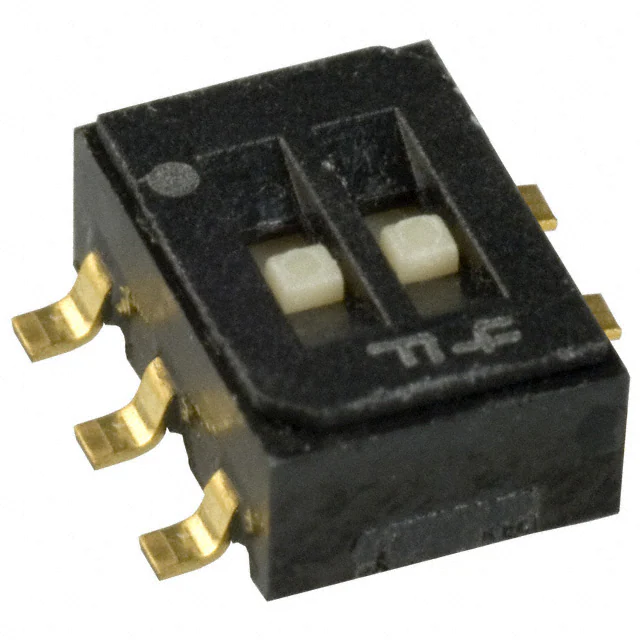

CAS-D20TBSWITCH SLIDE SPDTX2 100MA 6V |
6,807 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | Tape Seal | - |
|

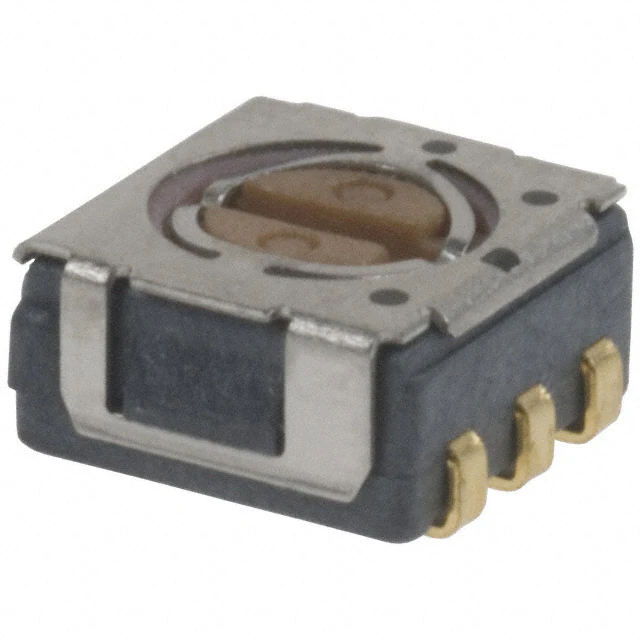

CS-4-14NTASWITCH ROTARY DIP SP4T 0.1A 16V |
1,762 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SP4T | 4 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | -25°C ~ 70°C | 0.051" (1.30mm) | - | Yes |
|
2-1825058-5SWITCH SLIDE DIP SPST 0.1A 24V |
2,826 |
|
Datasheet |
ADE | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
S-1031ASW ROTARY DIP HEX COMP 0.1A 5V |
8,844 |
|
Datasheet |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6D-8100SWITCH SLIDE DIP SPST 0.03A 30V |
400 |
|
Datasheet |
A6D | Tube | Active | SPST | 8 | 30VDC | Slide (Standard) | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|

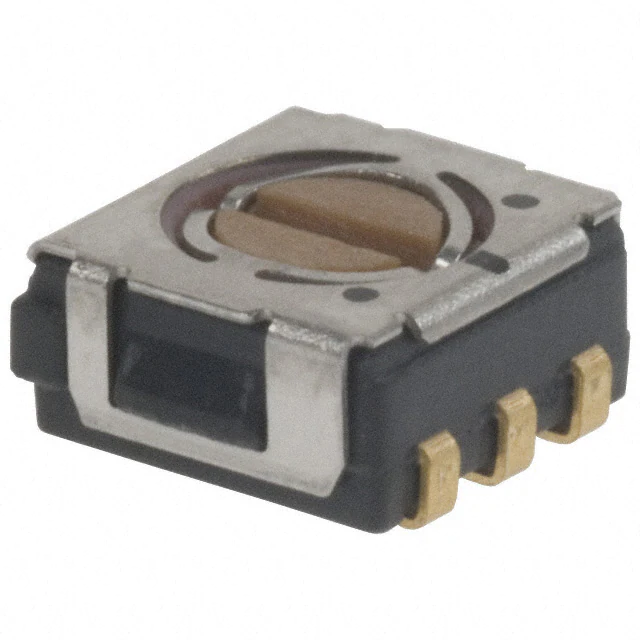

CS-4-22YTASWITCH ROTARY DIP DPDT 0.1A 16V |
6,207 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | DPDT | 2 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | -25°C ~ 70°C | 0.051" (1.30mm) | - | Yes |
|

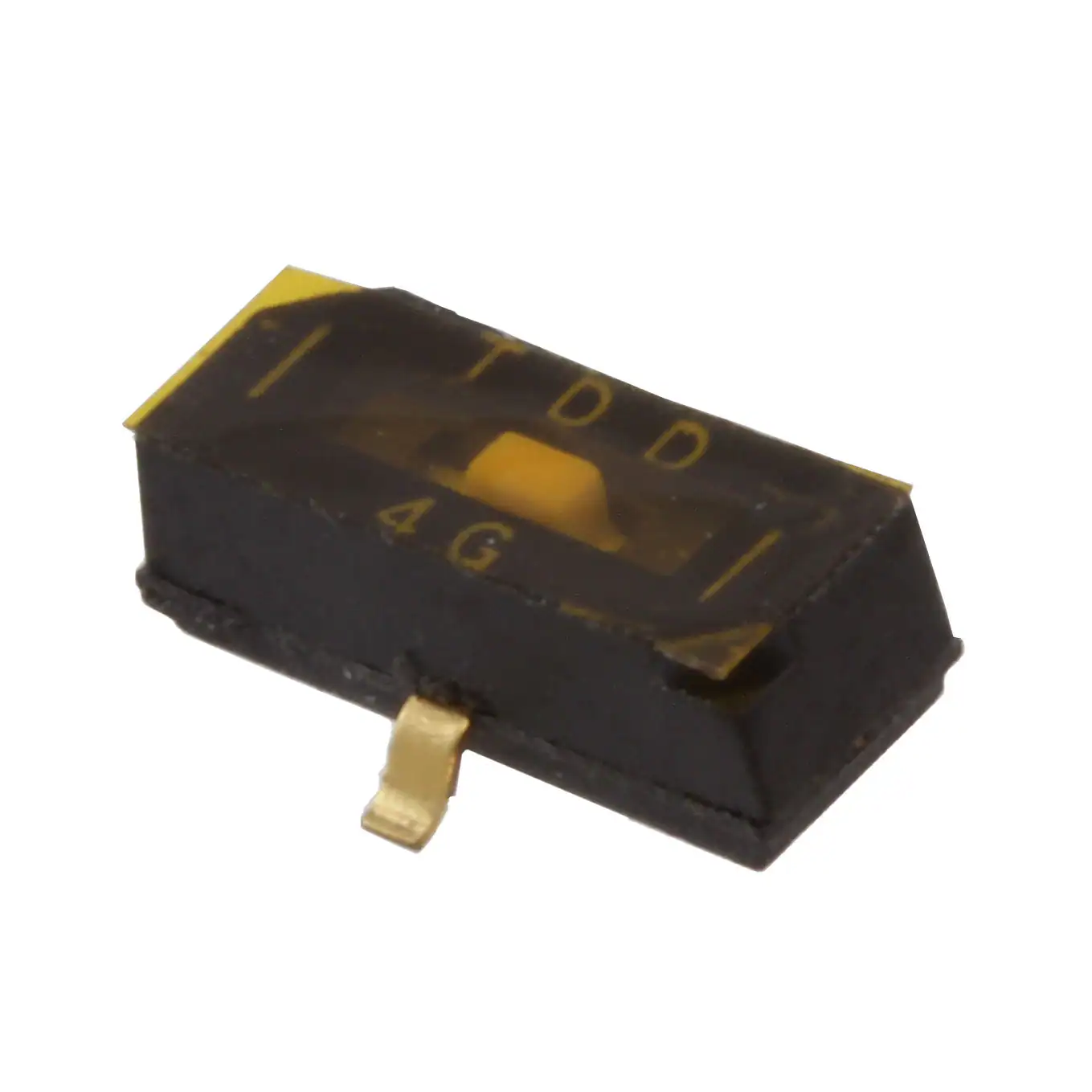

TDD01H0SB1RSWITCH SLIDE DIP SPDT 0.025A 24V |
28,422 |
|
Datasheet |
TDD | Tape & Reel (TR) | Active | SPDT | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | - | Tape Seal | Yes |
|
TDA01H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
13,689 |
|
Datasheet |
TDA | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

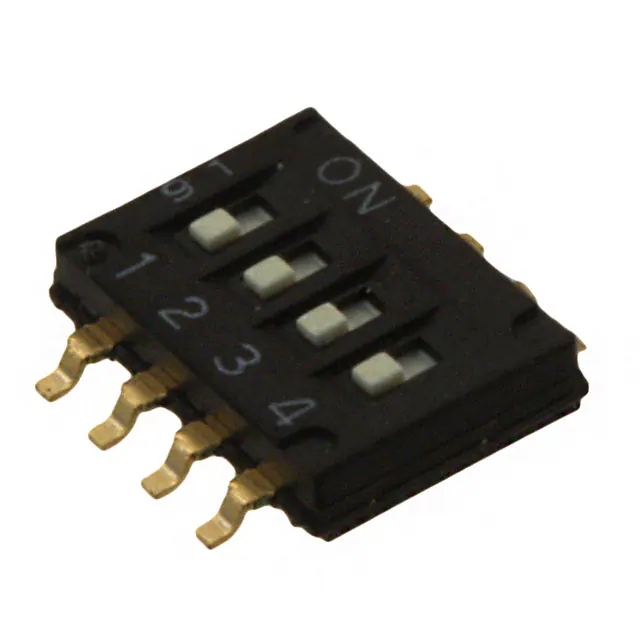

A6H-4101SWITCH SLIDE DIP SPST 0.025A 24V |
21,607 |
|
Datasheet |
A6H | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | - | No |
|

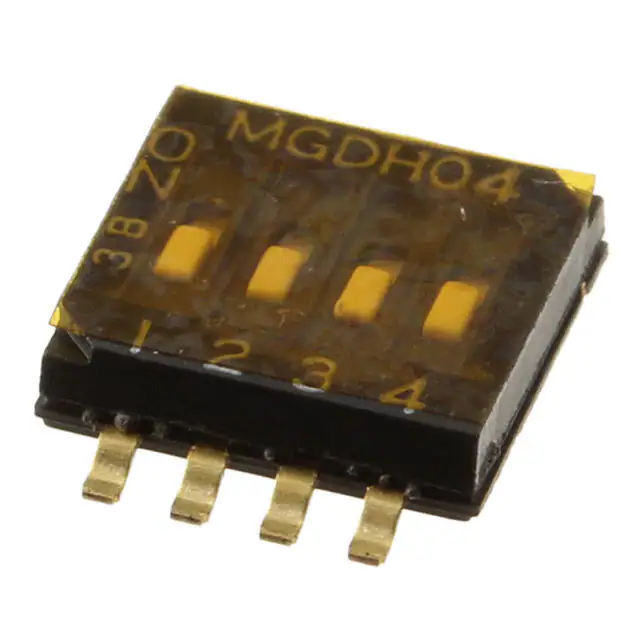

1825140-2SWITCH SLIDE DIP SPST 0.025A 24V |
16,902 |
|
Datasheet |
MGDH | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | No |
|

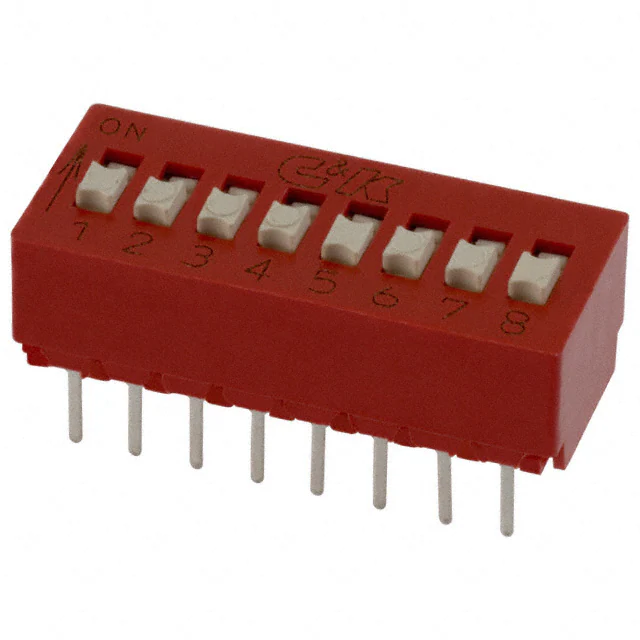

BD08SWITCH SLIDE DIP SPST 0.1A 5V |
9,902 |
|
Datasheet |
BD | Tube | Active | SPST | 8 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CVS-03TBSWITCH SLIDE DIP SPST 0.1A 6V |
52,536 |
|
Datasheet |
CVS | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Slide (Standard) | Raised | 100mA | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.039" (1.00mm) | - | No |
|

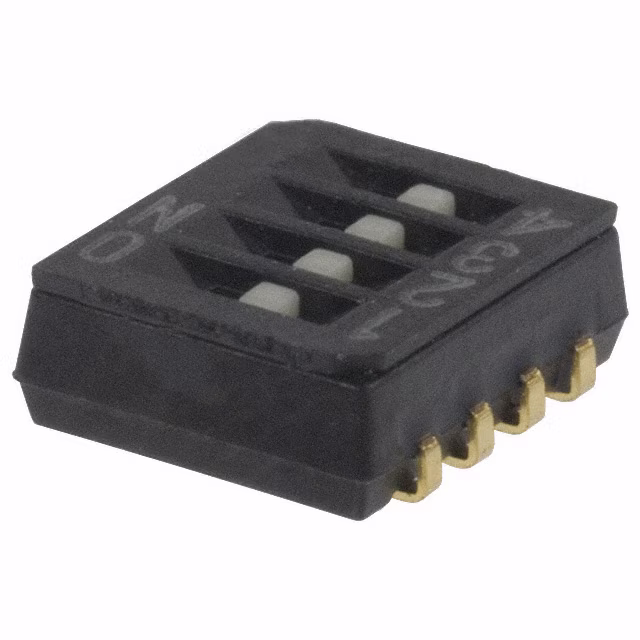

CHS-04TASWITCH SLIDE DIP SPST 0.1A 6V |
36,692 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
TDA04H0SB1SWITCH SLIDE DIP SPST 0.025A 24V |
17,029 |
|
Datasheet |
TDA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

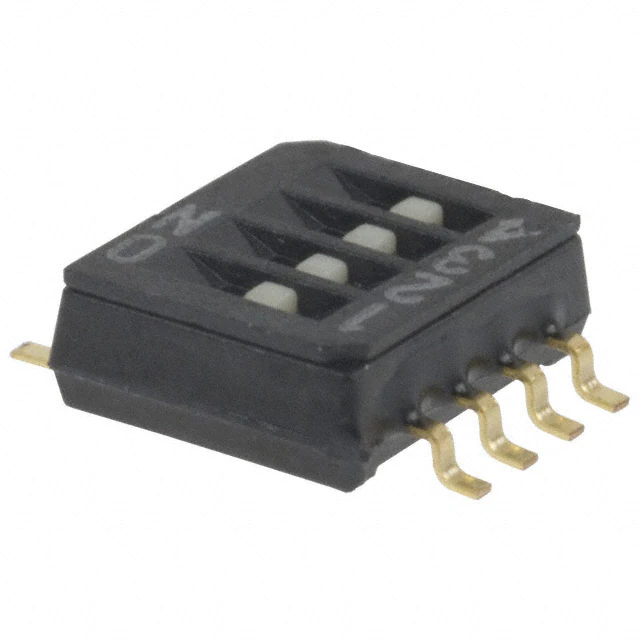

CHS-04TBSWITCH SLIDE DIP SPST 0.1A 6V |
6,614 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
RDS-16S-1055-SMT-TRSWITCH ROTARY DIP HEX 0.025A 24V |
9,957 |
|
Datasheet |
RDS-1055-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CVS-01TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,550 |
|
Datasheet |
CVS | Tape & Reel (TR) | Active | SPST | 1 | 6VDC | Slide (Standard) | Raised | 100mA | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.039" (1.00mm) | - | No |
|
SDA08H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
2,669 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

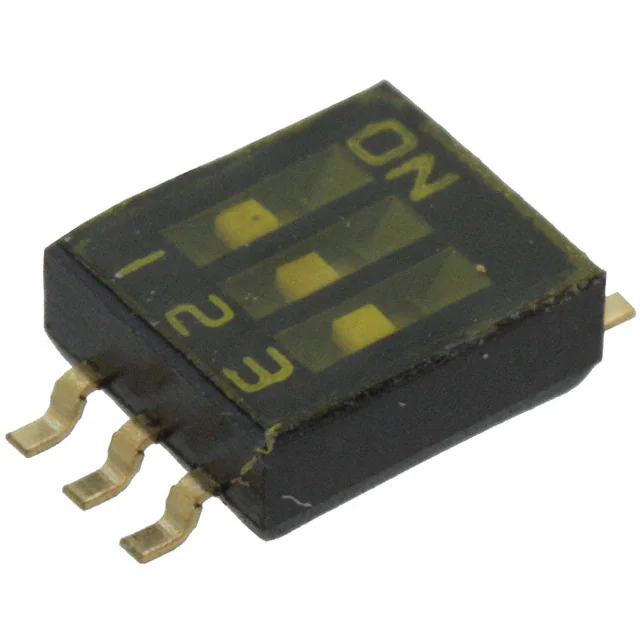

416131160803SWITCH SLIDE DIP SPST 0.025A 24V |
4,143 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
