DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

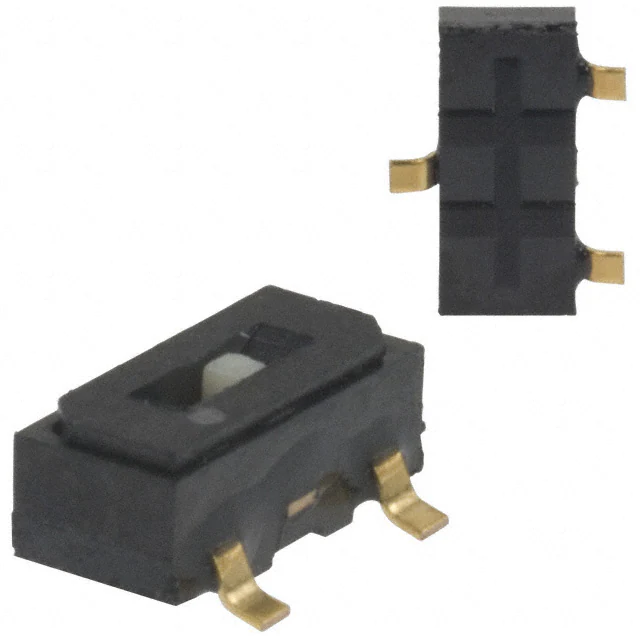

CAS-120TBSWITCH SLIDE SPDT 100MA 6V |
9,173 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | Tape Seal | - |
.jpg)
|
218-4LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
7,782 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
.jpg)
|
219-10LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,872 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
1825058-7SWITCH SLIDE DIP SPST 0.1A 24V |
1,653 |
|
Datasheet |
ADE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
.jpg)
|
218-6LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
27,271 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|

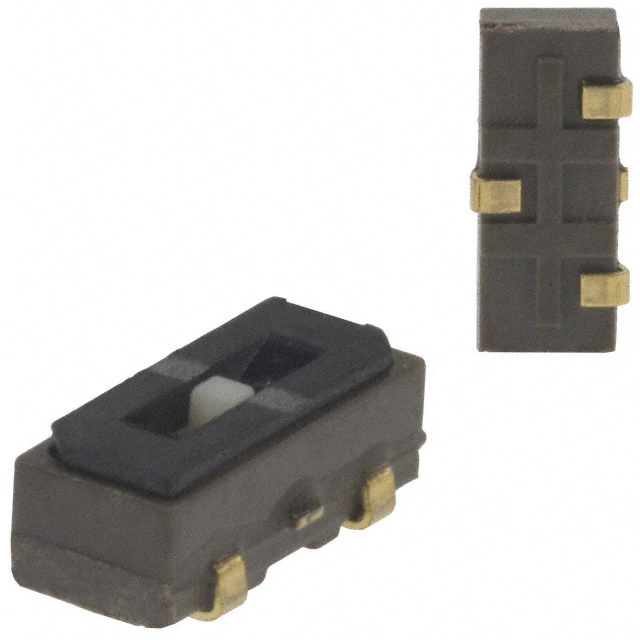

CJS-1201TASWITCH SLIDE SPDT 100MA 6V |
8,729 |
|
Datasheet |
CJS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | Tape Seal | - |
|
218-4LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
9,735 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-12STSWITCH SLIDE DIP SPST 0.05A 24V |
16,403 |
|
Datasheet |
206 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KAE01SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
26,414 |
|
Datasheet |
KAE | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAE01LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,366 |
|
Datasheet |
KAE | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
218-4LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
8,139 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KJ04RTRSWITCH SLIDE DIP SPST 0.025A 24V |
4,605 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
17,531 |
|
Datasheet |
ADF | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

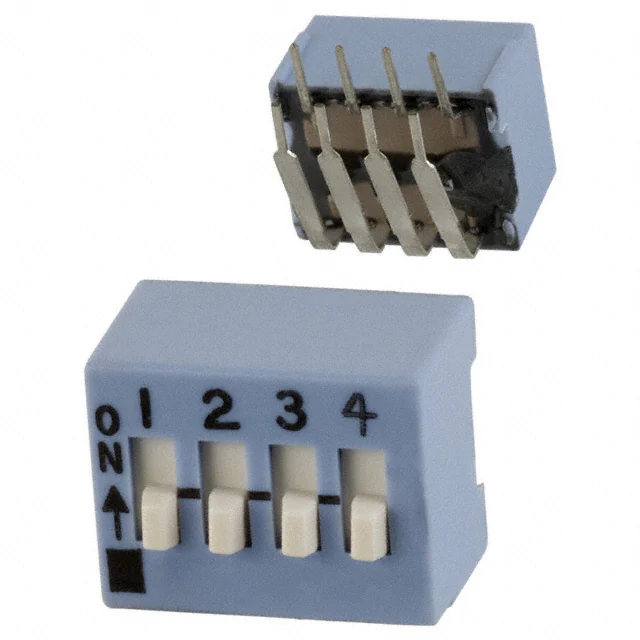

206-4RASTSWITCH SLIDE DIP SPST 0.05A 24V |
1,399 |
|
Datasheet |
206RA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

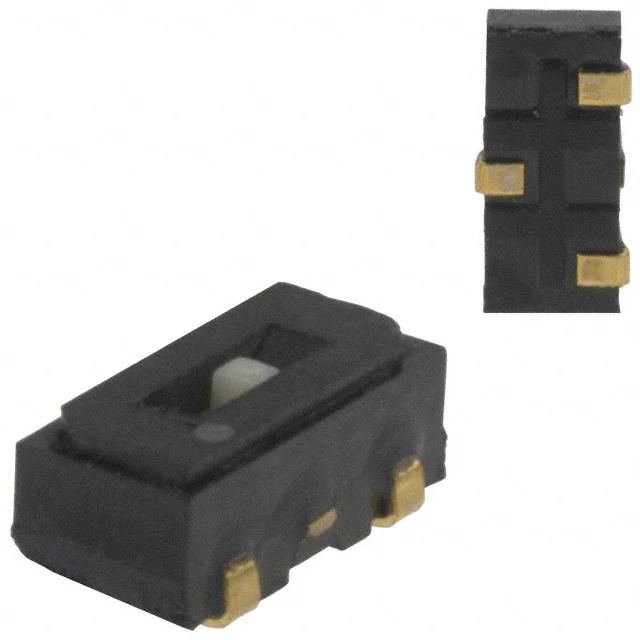

CAS-120TASWITCH SLIDE SPDT 100MA 6V |
29,583 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | Tape Seal | - |
|
|
219-10LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,114 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

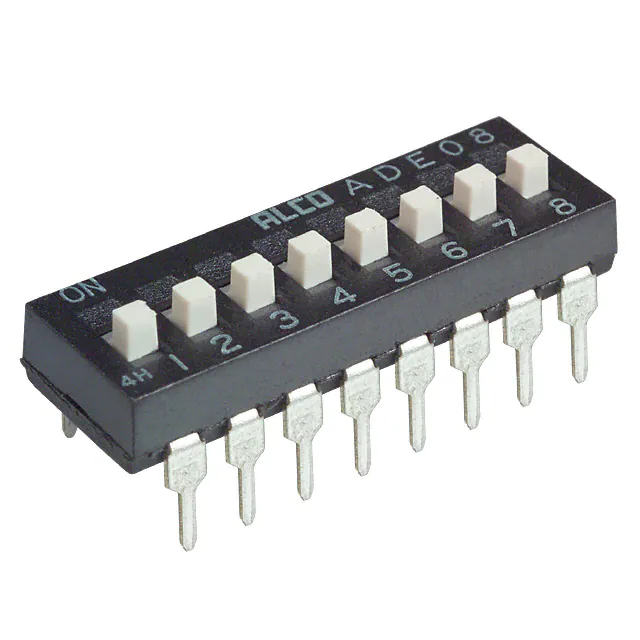

1825057-7SWITCH SLIDE DIP SPST 0.1A 24V |
83,771 |
|
Datasheet |
ADE | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
218-8LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
9,925 |
|
Datasheet |
218 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
218-8LPSTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,802 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|
204-121STSWITCH SLIDE DIP SPDT 0.05A 24V |
1,615 |
|
Datasheet |
204 | Tube | Active | SPDT | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
