DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDA02H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,222 |
|
Datasheet |
SDA | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

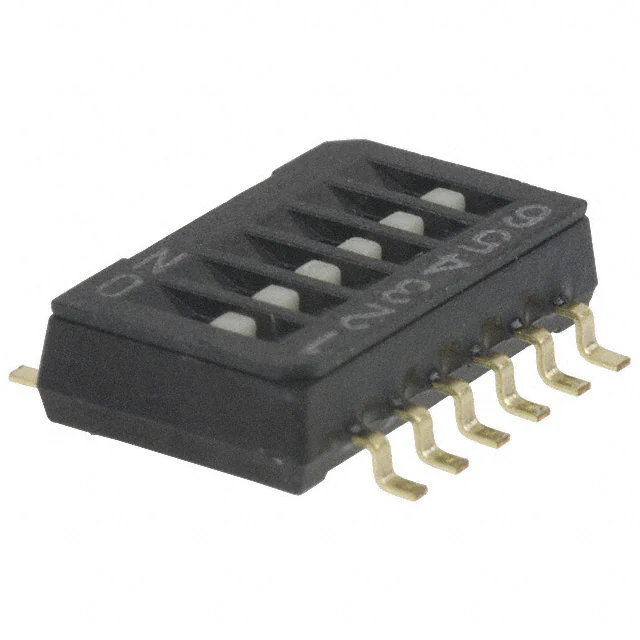

CHS-06TBSWITCH SLIDE DIP SPST 0.1A 6V |
8,673 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 6 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

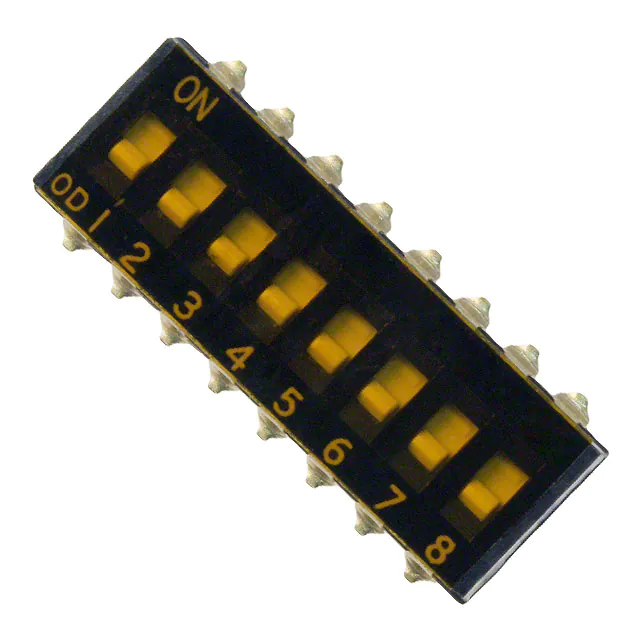

4-1825059-2SWITCH SLIDE DIP SPST 0.025A 24V |
12,148 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

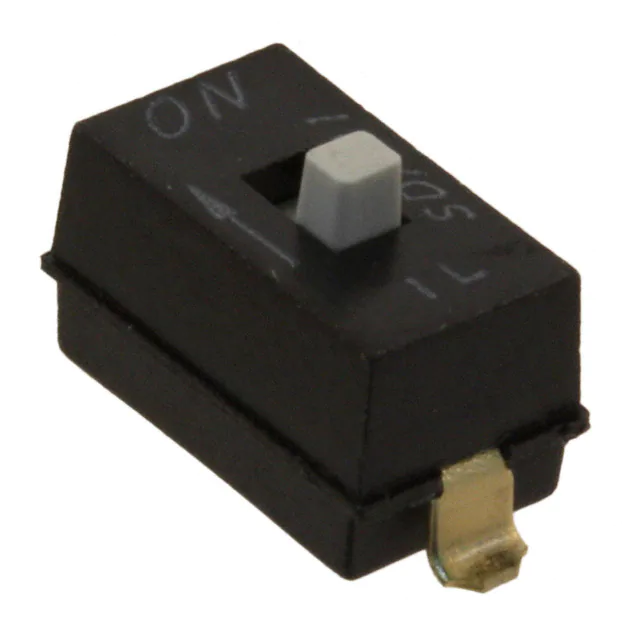

SDA01H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
4,096 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

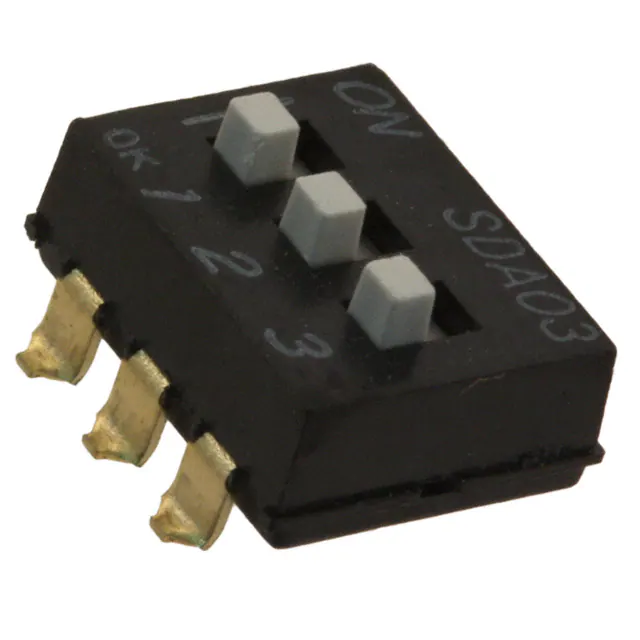

SDA03H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,065 |
|
Datasheet |
SDA | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

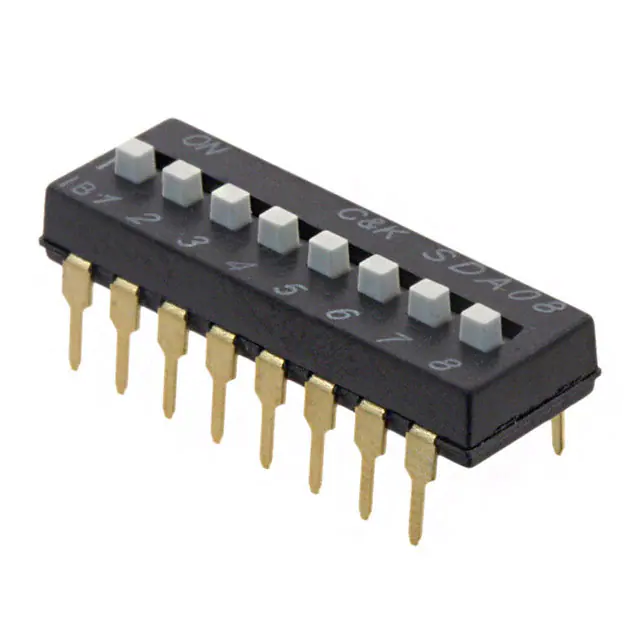

SDA08H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
43,920 |
|
Datasheet |
SDA | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

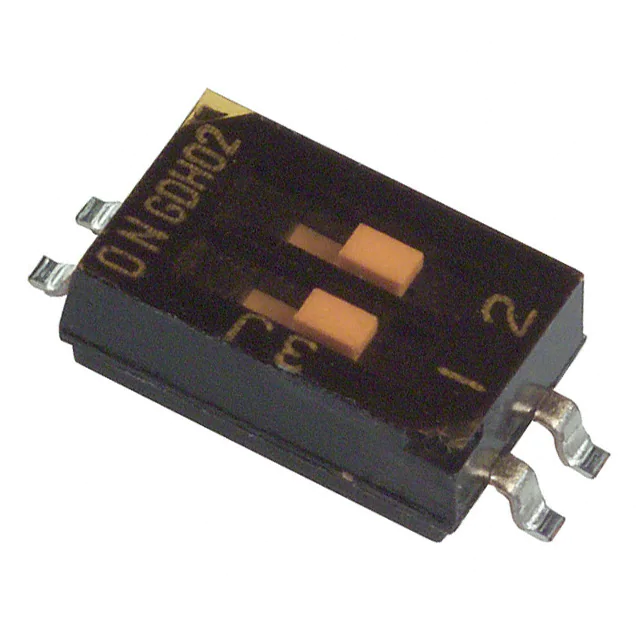

1571983-1SWITCH SLIDE DIP SPST 0.025A 24V |
21,763 |
|
Datasheet |
GDH | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

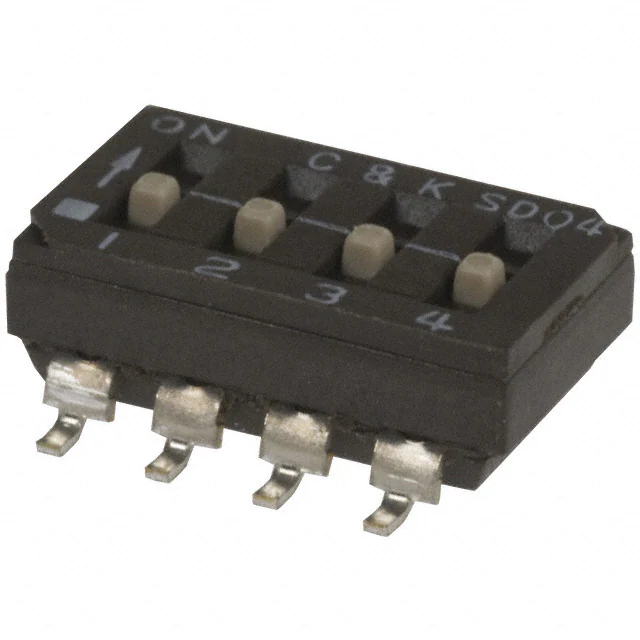

SD04H1SBSWITCH SLIDE DIP SPST 0.1A 25V |
4,969 |
|
Datasheet |
SD | Tube | Active | SPST | 4 | 25VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6SR-4104SWITCH PIANO DIP SPST 0.025A 24V |
1,175 |
|
Datasheet |
A6SR | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
CS-4-13NTBSWITCH ROTARY DIP SP3T 0.1A 16V |
966 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SP3T | 3 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -25°C ~ 70°C | 0.051" (1.30mm) | - | Yes |
|

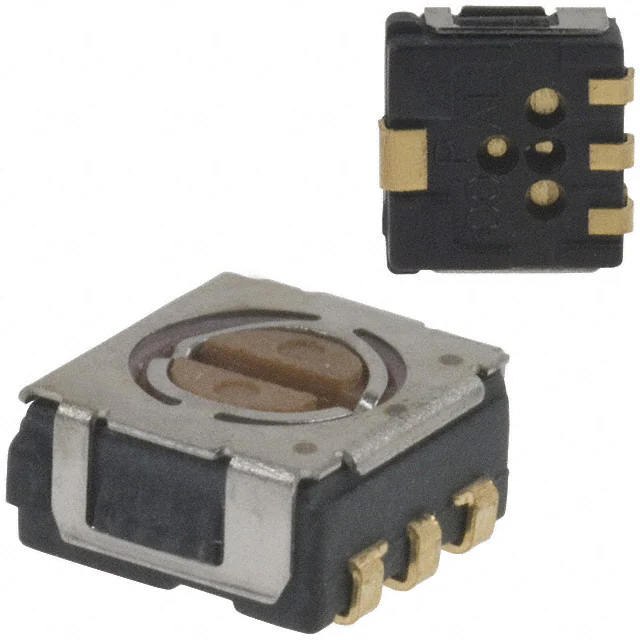

CS-4-13NTASWITCH ROTARY DIP SP3T 0.1A 16V |
3,986 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SP3T | 3 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | -25°C ~ 70°C | 0.051" (1.30mm) | - | Yes |
|

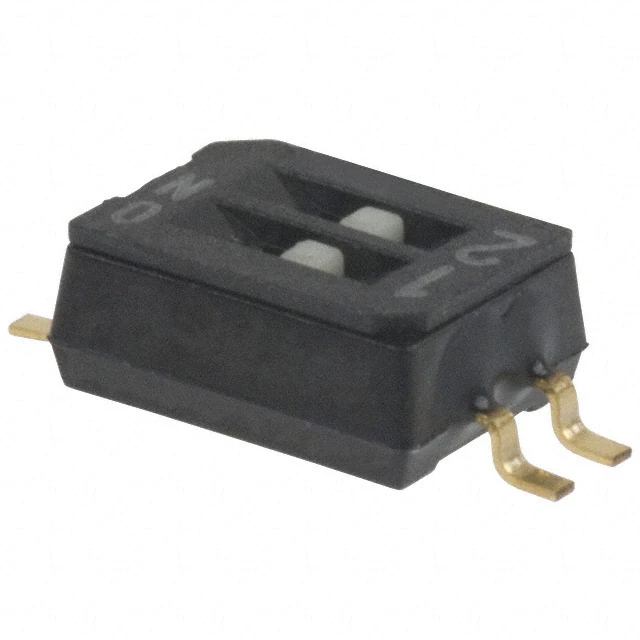

CHS-02TBSWITCH SLIDE DIP SPST 0.1A 6V |
39,864 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 2 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

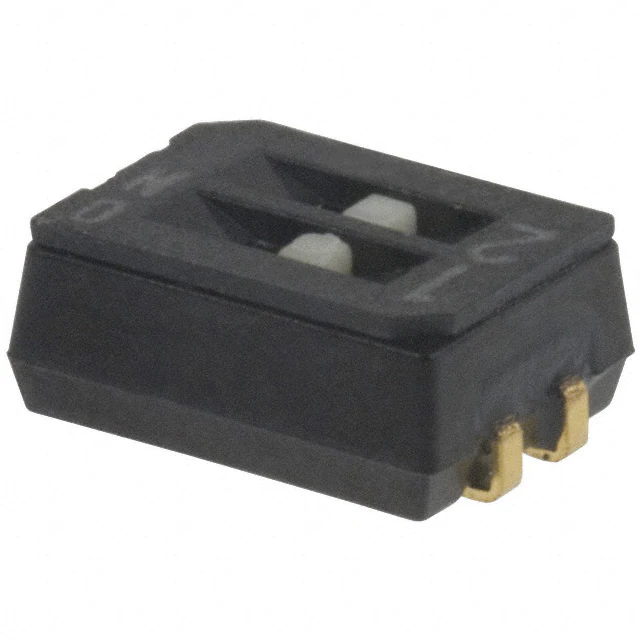

CHS-02TASWITCH SLIDE DIP SPST 0.1A 6V |
21,995 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 2 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
A6H-8102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
5,606 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

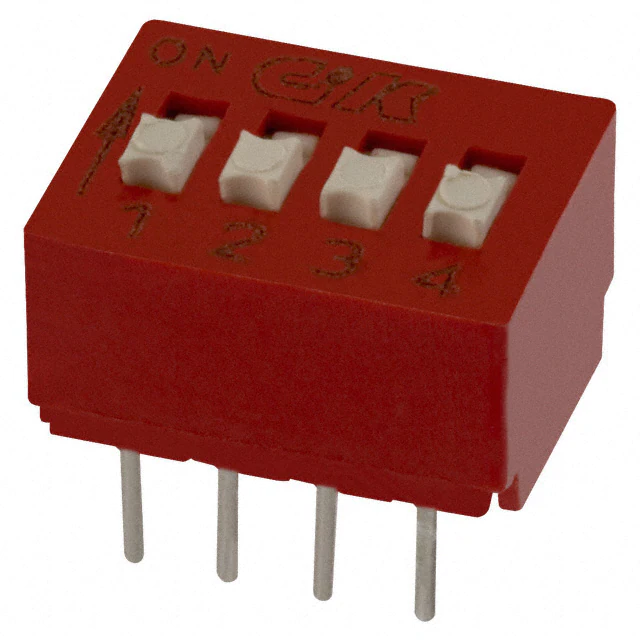

BD04SWITCH SLIDE DIP SPST 0.1A 5V |
1,829 |
|
Datasheet |
BD | Tube | Active | SPST | 4 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CS-7-14TBSWITCH ROTARY DIP SP4T 0.1A 5V |
18,505 |
|
Datasheet |
CS-7 | Tape & Reel (TR) | Active | SP4T | 4 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

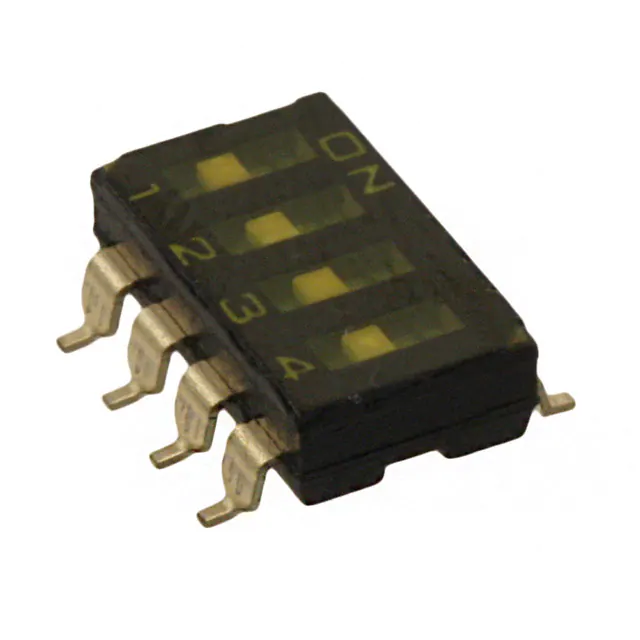

A6S-4102-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,004 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

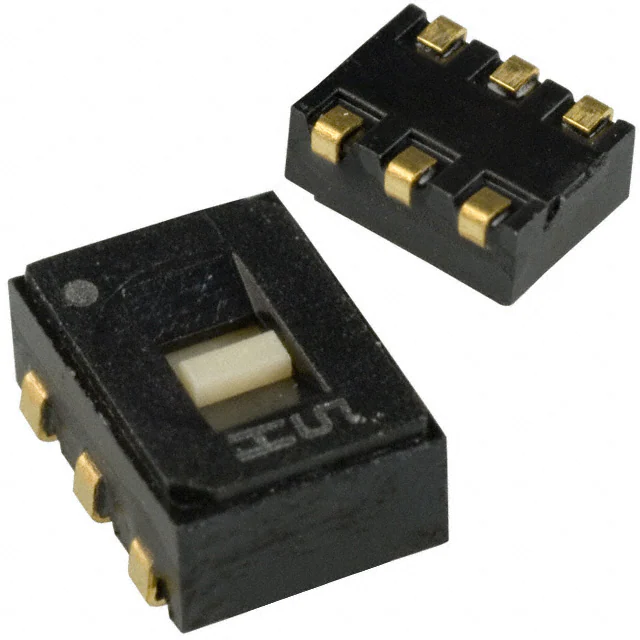

CAS-220TASWITCH SLIDE DPDT 100MA 6V |
10,215 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | DPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | Tape Seal | - |
|

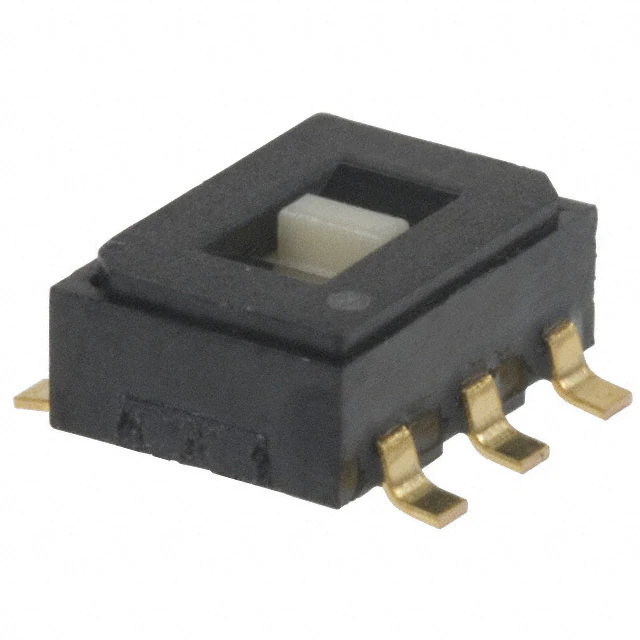

CAS-220TBSWITCH SLIDE DPDT 100MA 6V |
1,216 |
|
Datasheet |
CAS | Tape & Reel (TR) | Active | DPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | Tape Seal | - |
|

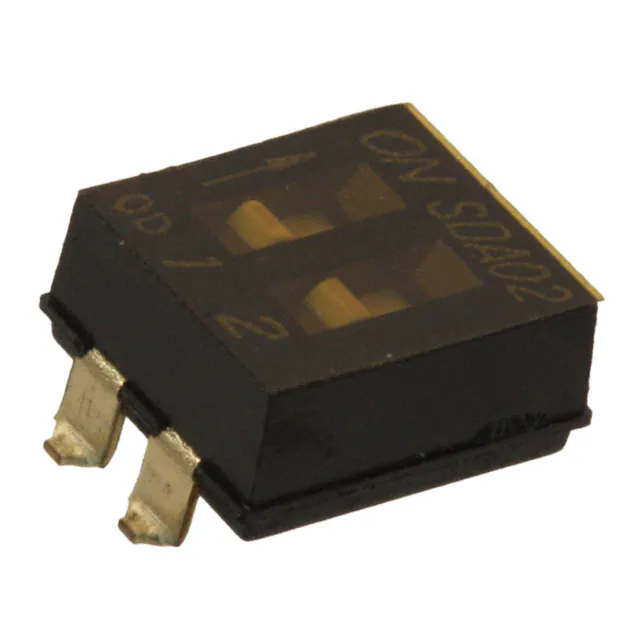

SDA02H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
16,482 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
