DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
418121270802SWITCH SLIDE DIP SPST 0.025A 24V |
5,489 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
218-8LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
1,827 |
|
Datasheet |
218 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|

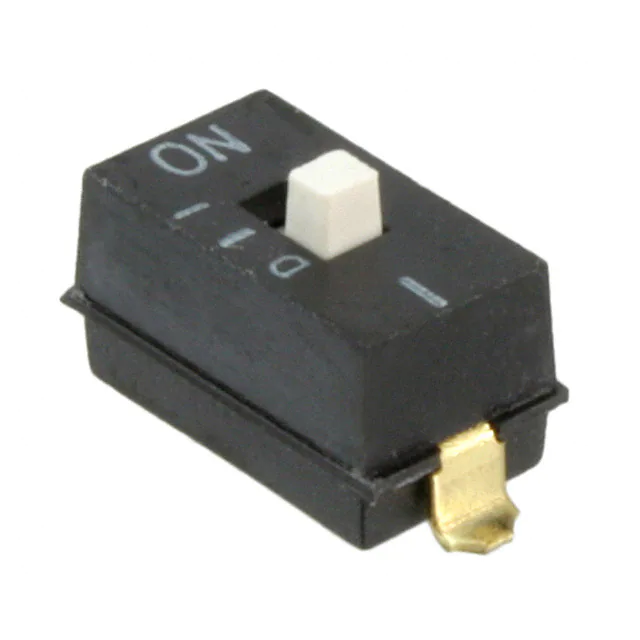

A6SN-1104SWITCH SLIDE DIP SPST 0.025A 24V |
1,650 |
|
Datasheet |
A6SN | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
SDA01H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
131,299 |
|
Datasheet |
SDA | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KAE04LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
5,986 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

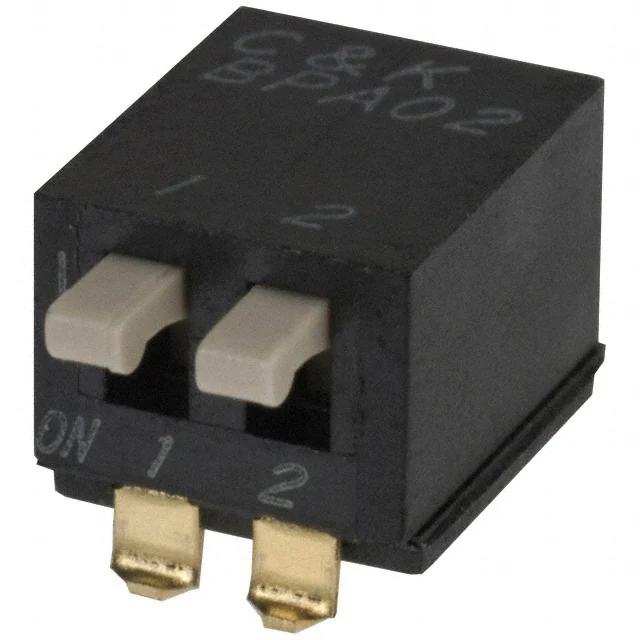

BPA02SBSWITCH PIANO DIP SPST 0.1A 5V |
21,348 |
|
Datasheet |
BPA | Tube | Active | SPST | 2 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

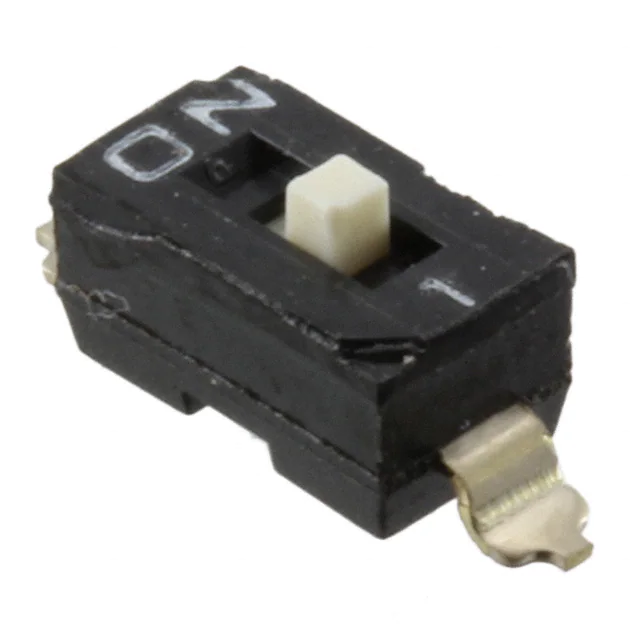

DM01SWITCH SLIDE DIP SPST 0.025A 24V |
3,986 |
|
Datasheet |
DM | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAS2108ESWITCH SLIDE DIP SPST 0.025A 24V |
192 |
|
Datasheet |
KAS | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
193-8MSRSWITCH PIANO DIP SPST 0.05A 24V |
4,236 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
1825059-6SWITCH SLIDE DIP SPST 0.025A 24V |
1,965 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
218-10LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
10,271 |
|
Datasheet |
218 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals, Tape Seal | Yes |
|

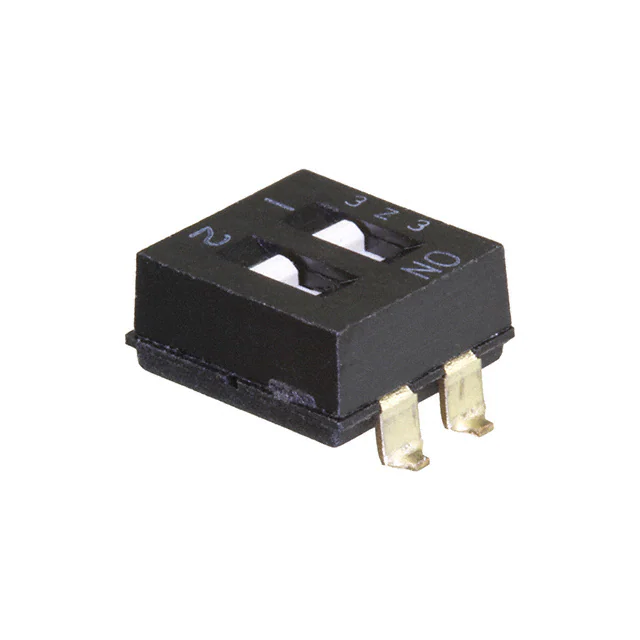

A6SN-2101-PSWITCH SLIDE DIP SPST 0.025A 24V |
881 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
1825059-5SWITCH SLIDE DIP SPST 0.025A 24V |
8,449 |
|
Datasheet |
ADF | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
BPA01BSWITCH PIANO DIP SPST 0.1A 5V |
8,883 |
|
Datasheet |
BPA | Tube | Active | SPST | 1 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

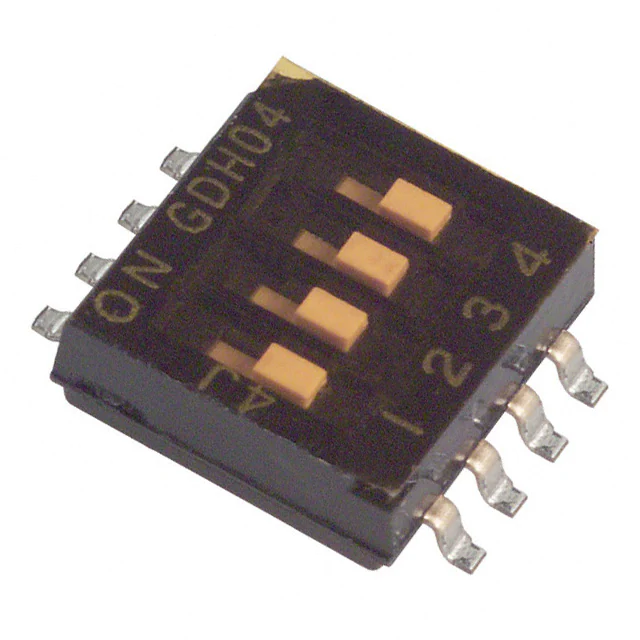

1571983-4SWITCH SLIDE DIP SPST 0.025A 24V |
133,805 |
|
Datasheet |
GDH | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
1-1825058-9SWITCH SLIDE DIP SPST 0.1A 24V |
16,121 |
|
Datasheet |
ADE | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
SDA01H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
54,832 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-1104-HSWITCH SLIDE DIP SPST 0.025A 24V |
813 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
418121270804SWITCH SLIDE DIP SPST 0.025A 24V |
4,940 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S-1104-PHSWITCH SLIDE DIP SPST 0.025A 24V |
800 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
