DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMR7016C-1ESWITCH ROTARY DIP HEX 0.03A 15V |
3,980 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
1825008-4SWITCH ROTARY DIP HEX 0.4VA 20V |
12,128 |
|
Datasheet |
DRD | Bulk | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

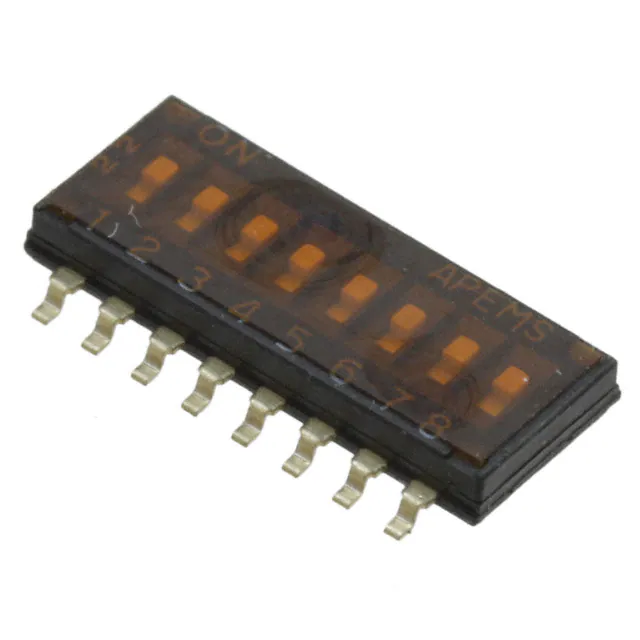

IKH0803000SWITCH SLIDE DIP SPST 0.025A 24V |
2,355 |
|
Datasheet |
IKH | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
1571983-5SWITCH SLIDE DIP SPST 0.025A 24V |
114,952 |
|
Datasheet |
GDH | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

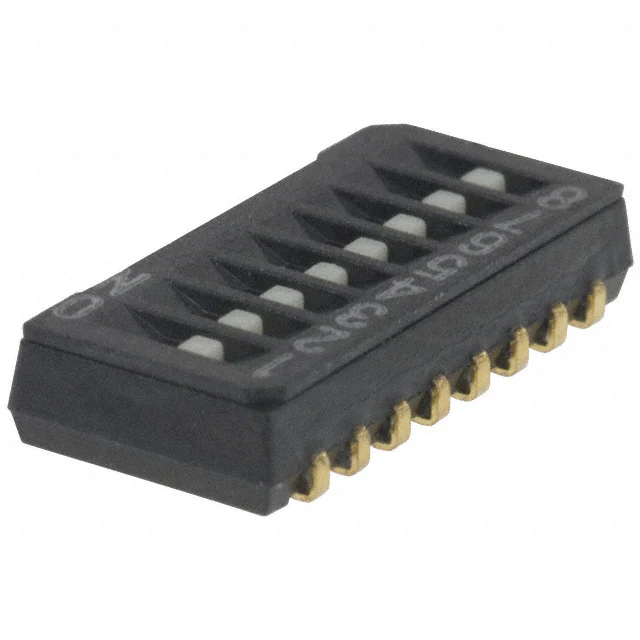

CHS-08TASWITCH SLIDE DIP SPST 0.1A 6V |
24,447 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

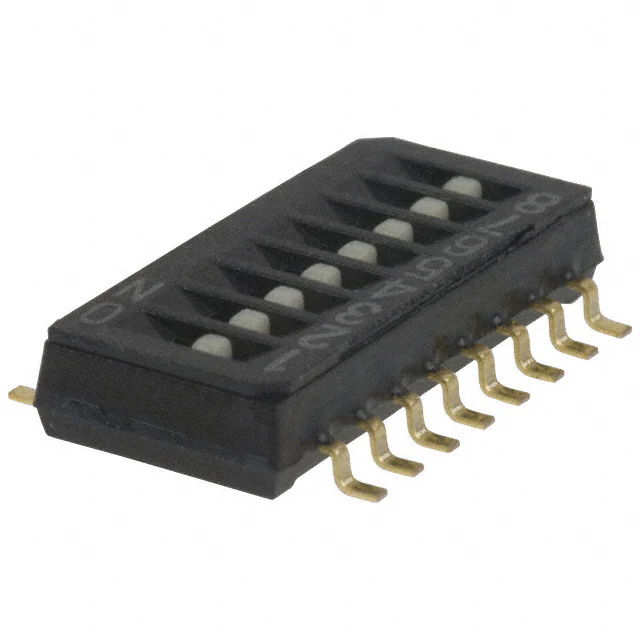

CHS-08TBSWITCH SLIDE DIP SPST 0.1A 6V |
14,608 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
A6RS-161RF-PSWITCH ROTARY DIP HEX 0.025A 24V |
708 |
|
Datasheet |
A6RS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
SD02H1SBRSWITCH SLIDE DIP SPST 0.1A 25V |
1,892 |
|
Datasheet |
SD | Tape & Reel (TR) | Active | SPST | 2 | 25VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6R-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
2,876 |
|
Datasheet |
A6R | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.465" (11.80mm) | Through Hole | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|
TDA06H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
73,578 |
|
Datasheet |
TDA | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
78B02STSWITCH SLIDE DIP SPST 0.15A 30V |
3,890 |
|
Datasheet |
78 | Tube | Active | SPST | 2 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6H-8101SWITCH SLIDE DIP SPST 0.025A 24V |
5,009 |
|
Datasheet |
A6H | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | - | No |
|
DRD16E04SWITCH ROTARY DIP HEX 0.4VA 20V |
4,866 |
|
Datasheet |
DRD | Tube | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
78B04TSWITCH SLIDE DIP SPST 0.15A 30V |
1,936 |
|
Datasheet |
78 | Tube | Active | SPST | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

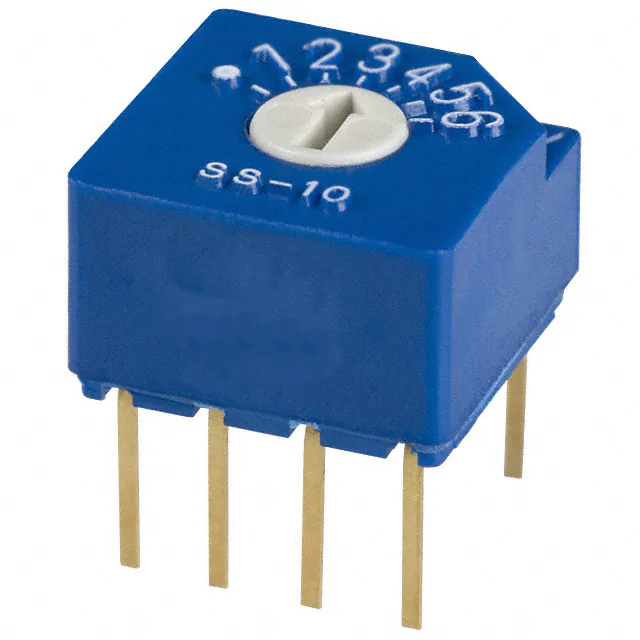

SS-10-16NPESWITCH ROTARY DIP SP6T 0.1A 5V |
827 |
|
Datasheet |
SS-10 | Bulk | Active | SP6T | 6 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6RS-162RF-PSWITCH ROTARY DIP HEX 0.025A 24V |
470 |
|
Datasheet |
A6RS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
78RB02STSWITCH SLIDE DIP SPST 0.15A 30V |
3,547 |
|
Datasheet |
78 | Tube | Active | SPST | 2 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

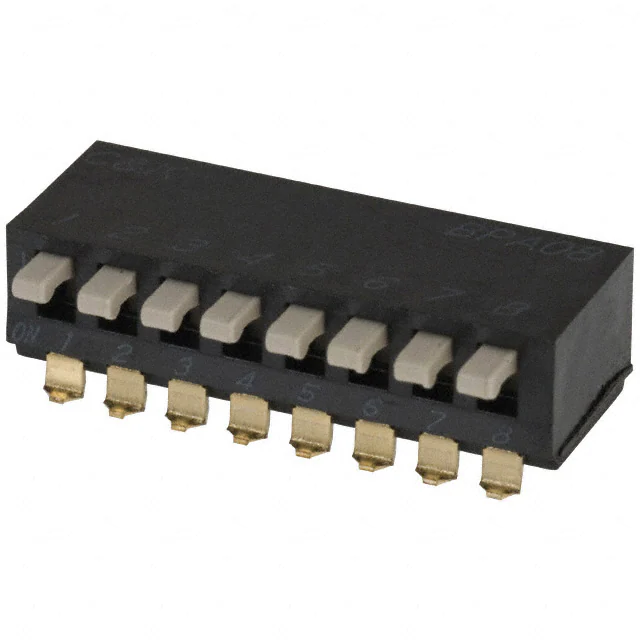

BPA08SBSWITCH PIANO DIP SPST 0.1A 5V |
3,272 |
|
Datasheet |
BPA | Tube | Active | SPST | 8 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

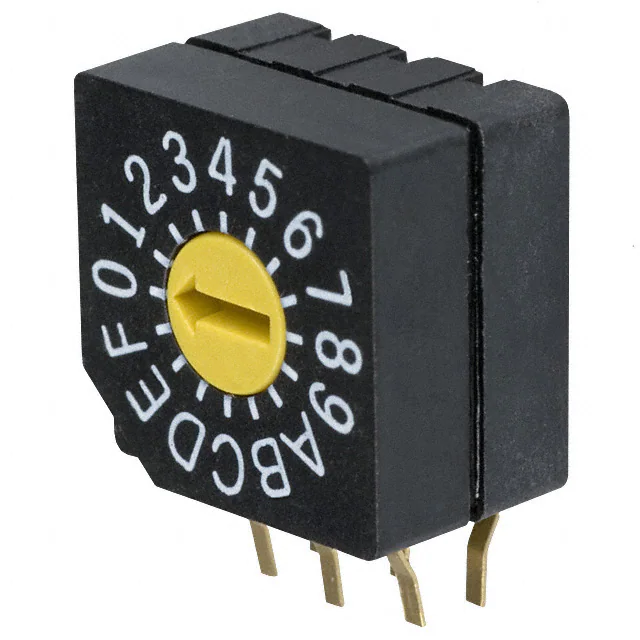

SD-1011SWITCH ROTARY DIP HEX 0.1A 5V |
5,905 |
|
Datasheet |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78B03STSWITCH SLIDE DIP SPST 0.15A 30V |
2,365 |
|
Datasheet |
78 | Tube | Active | SPST | 3 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
