DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-8030SW ROTARY DIP OCT COMP 0.1A 5V |
846 |
|
Datasheet |
S-8000 | Bulk | Active | Octal Complement | 8 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
RDTAR10S1RSWITCH ROTARY DIP BCD 0.15A 42V |
1,506 |
|
Datasheet |
RDT | Tape & Reel (TR) | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.264" (6.70mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
SMR 13016 TMICROMINIATURE ROTARY CODED SWIT |
1,389 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Phosphor Bronze | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -25°C ~ 75°C | 0.100" (2.54mm), Full | - | No |
|
SD08H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
6,719 |
|
Datasheet |
SD | Tape & Reel (TR) | Active | SPST | 8 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
76PSB04STSWITCH PIANO DIP SPST 0.15A 30V |
3,742 |
|
Datasheet |
76 | Tube | Active | SPST | 4 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
RTE0400G04SWITCH ROTARY DIP SP4T 0.1A 30V |
2,308 |
|
Datasheet |
RTE | Tape & Reel (TR) | Active | SP4T | 4 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR01FR10P-SSWITCH ROTARY DIP BCD 0.1A 5V |
1,845 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
90HBW08PTSWITCH SLIDE DIP SPST 0.025A 24V |
3,504 |
|
Datasheet |
90HB | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

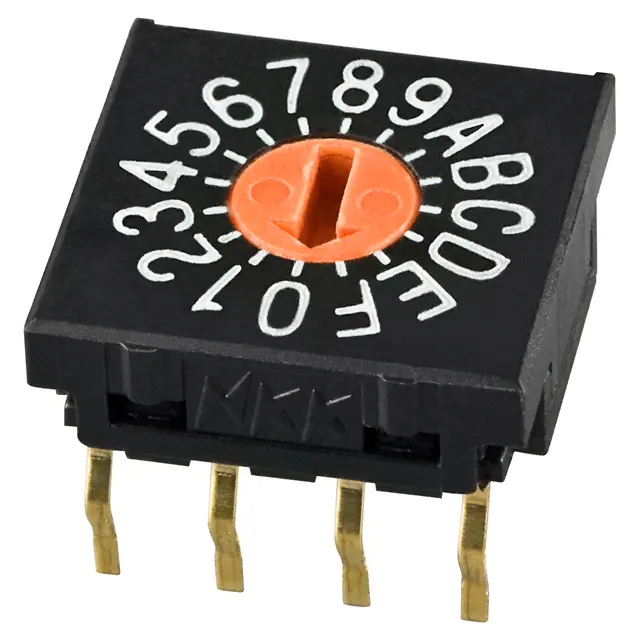

FR01FR16P-SSWITCH ROTARY DIP HEX 0.1A 5V |
1,922 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76HPSB02GWRTSWITCH PIANO DIP SPST 0.15A 30V |
1,599 |
|
Datasheet |
76HP | Tape & Reel (TR) | Active | SPST | 2 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

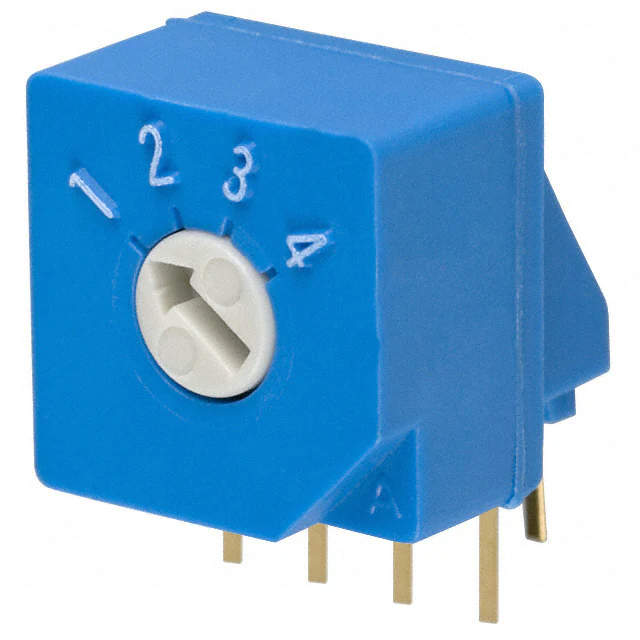

S-2051SWITCH ROTARY DIP SP4T 0.1A 5V |
1,690 |
|
Datasheet |
S-2050 | Bulk | Active | SP4T | 4 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|

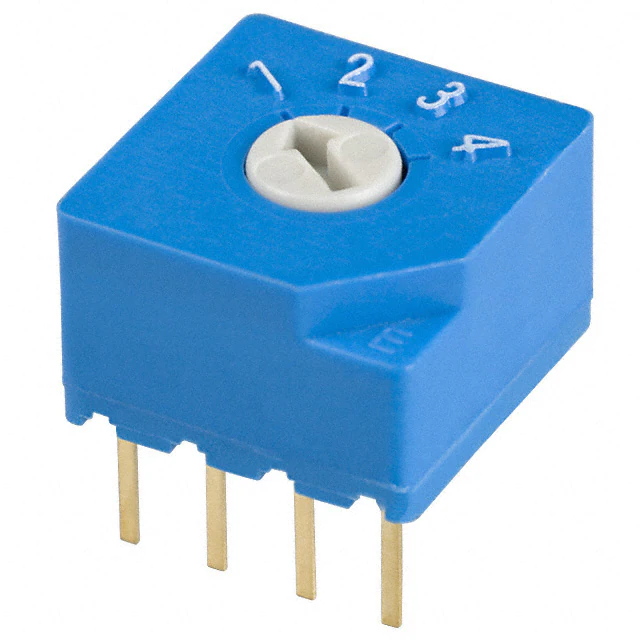

S-2050SWITCH ROTARY DIP SP4T 0.1A 5V |
1,062 |
|
Datasheet |
S-2050 | Bulk | Active | SP4T | 4 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|

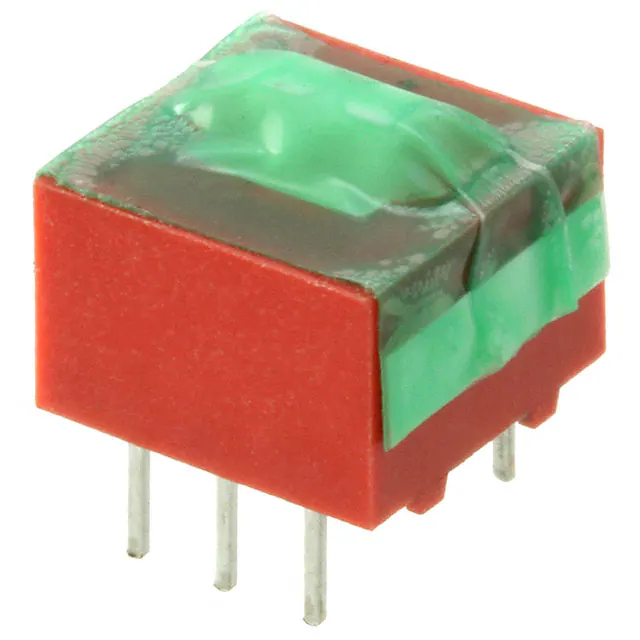

78G01STSWITCH SLIDE DIP 3PST 0.15A 30V |
766 |
|
Datasheet |
78 | Tube | Active | 3PST | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

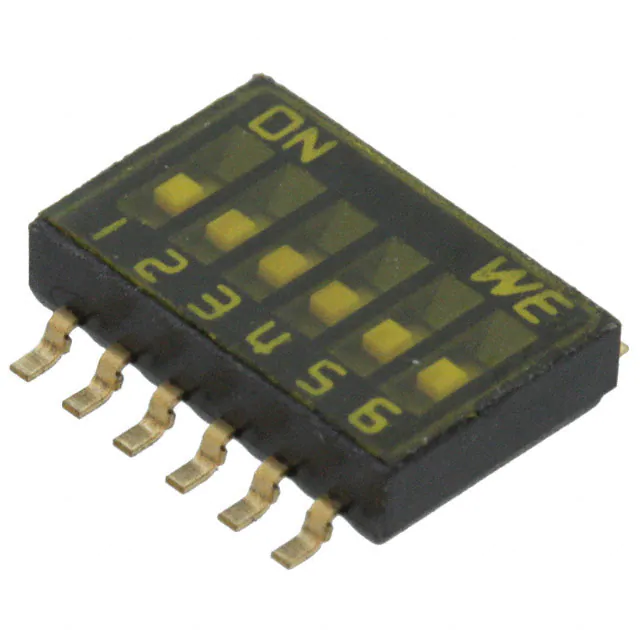

416131160806SWITCH SLIDE DIP SPST 0.025A 24V |
3,323 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
90HBW04PRTSWITCH SLIDE DIP SPST 0.025A 24V |
2,233 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
76HPSB08GWRTSWITCH PIANO DIP SPST 0.15A 30V |
5,591 |
|
Datasheet |
76HP | Tape & Reel (TR) | Active | SPST | 8 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76PSB08STSWITCH PIANO DIP SPST 0.15A 30V |
1,590 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
FR02KR16P-RSWITCH ROTARY DIP HEX 0.1A 5V |
3,679 |
|
Datasheet |
FR02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR02FR16P-RSWITCH ROTARY DIP HEX 0.1A 5V |
2,208 |
|
Datasheet |
FR02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
FR02FR16P-SSWITCH ROTARY DIP HEX 0.1A 5V |
1,636 |
|
Datasheet |
FR02 | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
