DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

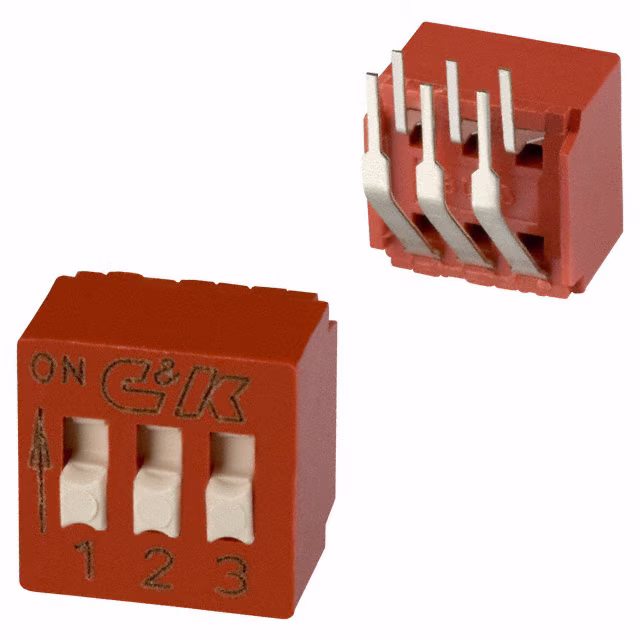

BD03AVSWITCH SLIDE DIP SPST 0.1A 5V |
1,338 |
|
Datasheet |
BD | Bulk | Active | SPST | 3 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

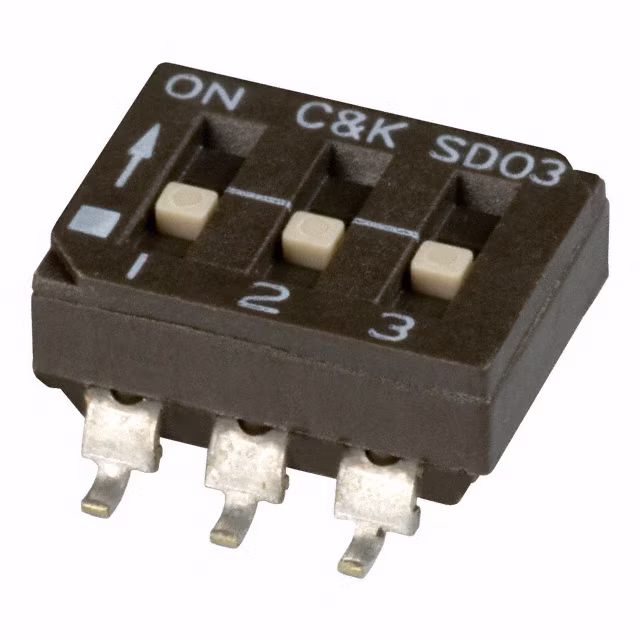

SD03H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
1,585 |
|
Datasheet |
SD | Tube | Active | SPST | 3 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6SN-8104-PSWITCH SLIDE DIP SPST 0.025A 24V |
1,470 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
JS0108AP4SWITCH SLIDE DIP SPST 0.025A 24V |
549 |
|
Datasheet |
JS | Bulk | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.162" (4.11mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
SDA06H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
534 |
|
Datasheet |
SDA | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

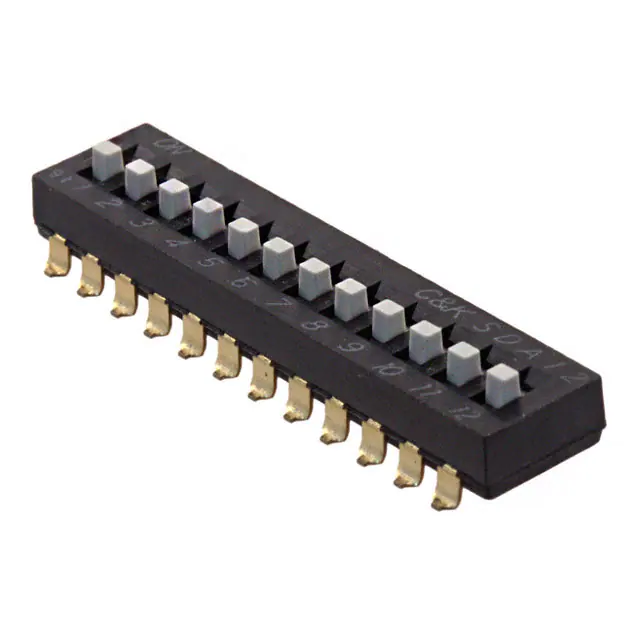

SDA12H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,056 |
|
Datasheet |
SDA | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1825007-6SWITCH ROTARY DIP BCD 0.4VA 20V |
803 |
|
Datasheet |
DRD | Tube | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

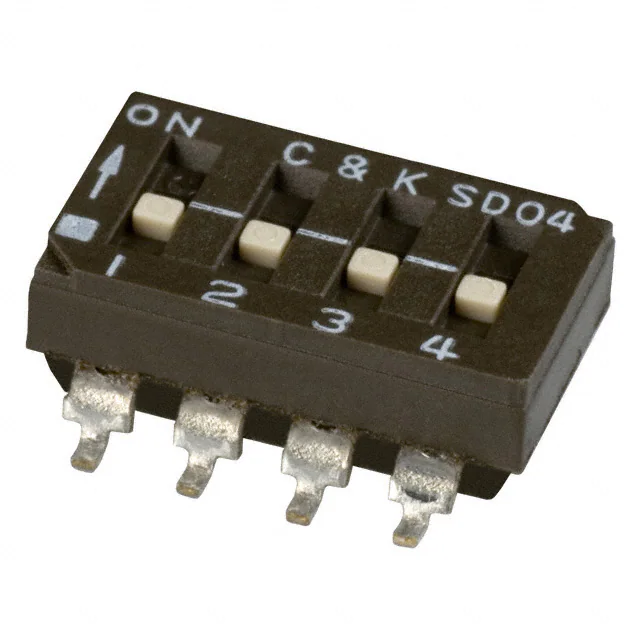

SD04H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
719 |
|
Datasheet |
SD | Tube | Active | SPST | 4 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SD02H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
2,677 |
|
Datasheet |
SD | Tape & Reel (TR) | Active | SPST | 2 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
76SB02TSWITCH ROCKER DIP SPST 0.15A 30V |
4,809 |
|
Datasheet |
76 | Tube | Active | SPST | 2 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6H-0101SWITCH SLIDE DIP SPST 0.025A 24V |
3,394 |
|
Datasheet |
A6H | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | - | No |
|
A6SN-8101SWITCH SLIDE DIP SPST 0.025A 24V |
2,873 |
|
Datasheet |
A6SN | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6H-2102SWITCH SLIDE DIP SPST 0.025A 24V |
970 |
|
Datasheet |
A6H | Bag | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
A6HF-4102SWITCH SLIDE DIP SPST 0.025A 24V |
639 |
|
Datasheet |
A6HF | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
SDA08H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
3,703 |
|
Datasheet |
SDA | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
90B04STSWITCH SLIDE DIP SPST 0.025A 24V |
2,695 |
|
Datasheet |
90B | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

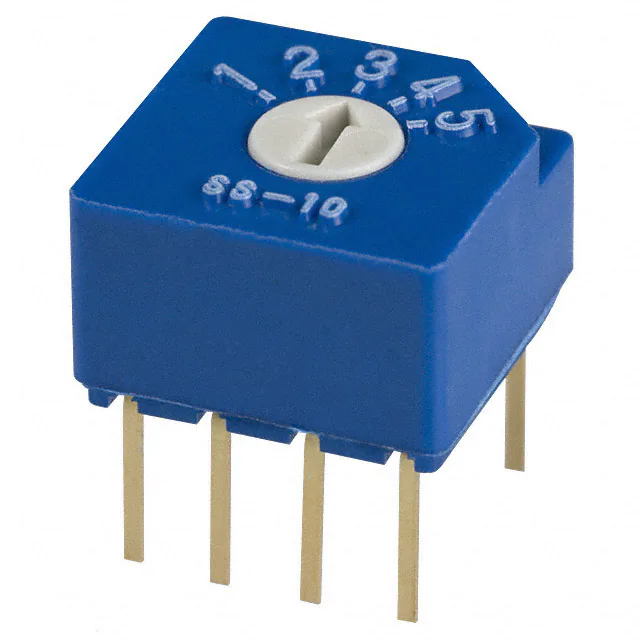

SS-10-15SPESWITCH ROTARY DIP SP5T 0.1A 5V |
1,798 |
|
Datasheet |
SS-10 | Bulk | Active | SP5T | 5 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|

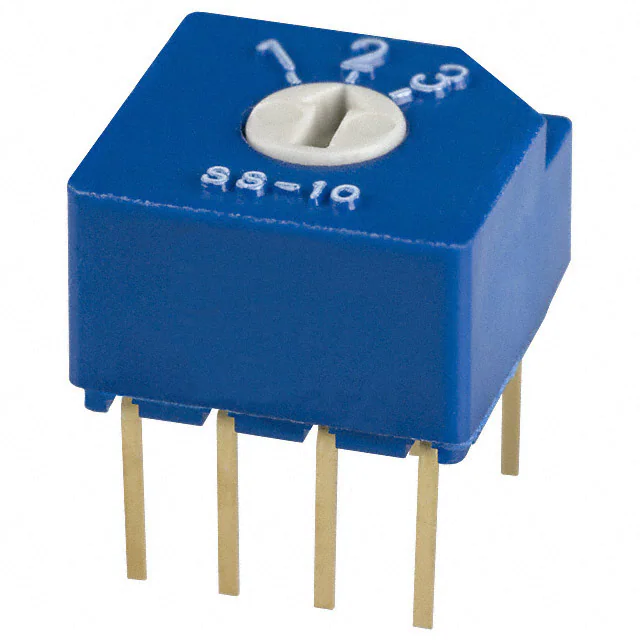

SS-10-23NPESWITCH ROTARY DIP DP3T 0.1A 5V |
3,676 |
|
Datasheet |
SS-10 | Bulk | Active | DP3T | 3 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
A6H-8102-PSWITCH SLIDE DIP SPST 0.025A 24V |
9,754 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

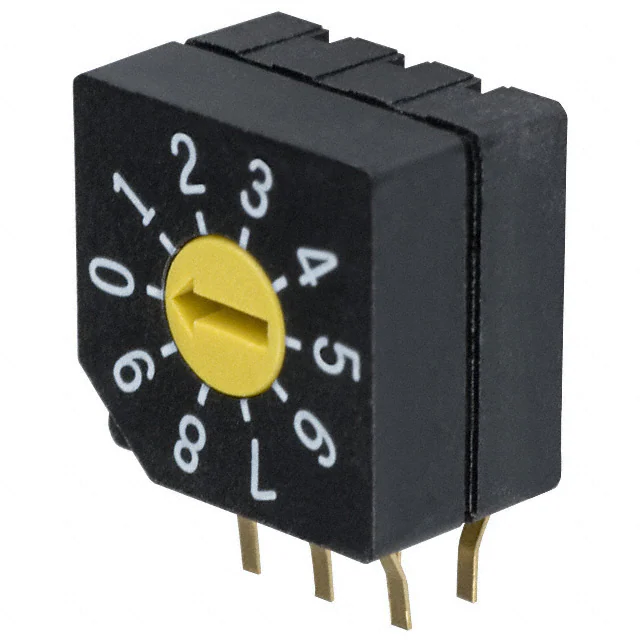

SD-2011SWITCH ROTARY DIP BCD 0.1A 5V |
5,049 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
