DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-8011SWITCH ROTARY DIP OCTAL 0.1A 5V |
812 |
|
Datasheet |
S-8000 | Bulk | Active | Octal | 8 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
SMR 13010 TMICROMINIATURE ROTARY CODED SWIT |
1,130 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6H-8102SWITCH SLIDE DIP SPST 0.025A 24V |
391 |
|
Datasheet |
A6H | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
76SB10STSWITCH ROCKER DIP SPST 0.15A 30V |
9,917 |
|
Datasheet |
76 | Tube | Active | SPST | 10 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

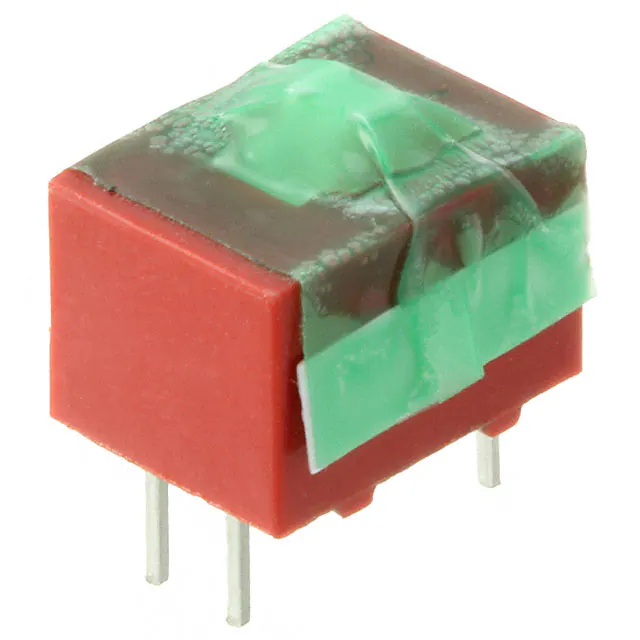

78F01STSWITCH SLIDE DIP DPST 0.15A 30V |
3,836 |
|
Datasheet |
78 | Tube | Active | DPST | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
78H01TSWITCH SLIDE DIP 4PST 0.15A 30V |
3,879 |
|
Datasheet |
78 | Tube | Active | 4PST | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
428521320810SWITCH ROTARY DIP BCD 0.15A 24V |
1,062 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
90HBW04PTSWITCH SLIDE DIP SPST 0.025A 24V |
5,166 |
|
Datasheet |
90HB | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
S-2150SWITCH ROTARY DIP SP4T 0.1A 5V |
1,322 |
|
Datasheet |
S-2050 | Bulk | Active | SP4T | 4 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
78B12STSWITCH SLIDE DIP SPST 0.15A 30V |
3,209 |
|
Datasheet |
78 | Tube | Active | SPST | 12 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
FR01FC16P-SSW ROTARY DIP HEX COMP 0.1A 5V |
476 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76PSB08TSWITCH PIANO DIP SPST 0.15A 30V |
2,542 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76SB12STSWITCH ROCKER DIP SPST 0.15A 30V |
4,758 |
|
Datasheet |
76 | Tube | Active | SPST | 12 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
94HCB16TSWITCH ROTARY DIP HEX 0.1A 50V |
8,082 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.395" (10.02mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
94HBB16WTSWITCH ROTARY DIP HEX 0.1A 50V |
1,823 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
78J01STSWITCH SLIDE DIP SPDT 0.15A 30V |
1,413 |
|
Datasheet |
78 | Tube | Active | SPDT | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
416131160812SWITCH SLIDE DIP SPST 0.025A 24V |
2,278 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
A6R-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
1,548 |
|
Datasheet |
A6R | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|

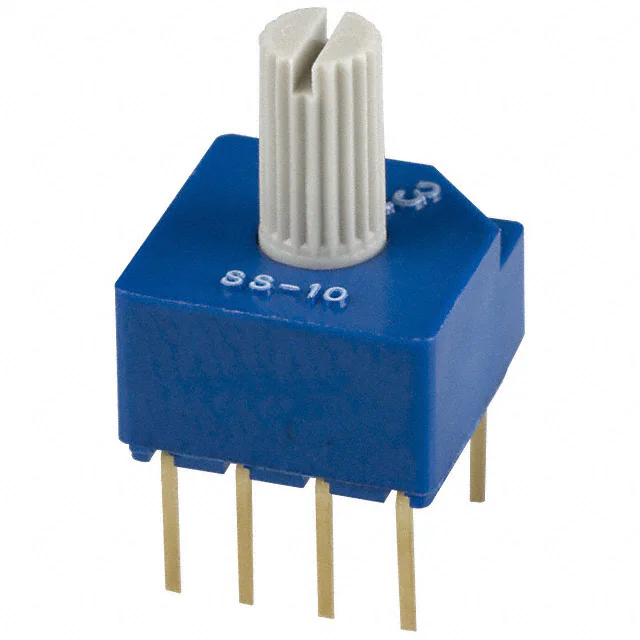

SS-10-23NP-LESWITCH ROTARY DIP DP3T 0.1A 5V |
1,009 |
|
Datasheet |
SS-10 | Bulk | Active | DP3T | 3 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
76HPSB04GWRTSWITCH PIANO DIP SPST 0.15A 30V |
5,083 |
|
Datasheet |
76HP | Tape & Reel (TR) | Active | SPST | 4 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
