| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6KSV-104RFSWITCH ROTARY DIP BCD 0.025A 24V |
185 |
|
Datasheet |
A6KS | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 80°C | 0.050" (1.27mm), Half | - | No |
|
A6A-16RFSWITCH ROTARY DIP HEX 0.1A 28V |
552 |
|
Datasheet |
A6A | Tray | Active | Hexadecimal | 16 | 28VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
90HBJ10PTSWITCH SLIDE DIP SPST 0.025A 24V |
4,174 |
|
Datasheet |
90HB | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6A-16RSSWITCH ROTARY DIP HEX 0.1A 28V |
304 |
|
Datasheet |
A6A | Tray | Active | Hexadecimal | 16 | 28VDC | Rotary with Shaft | Raised | 100mA | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
A6A-10RSWITCH ROTARY DIP BCD 0.1A 28V |
1,448 |
|
Datasheet |
A6A | Bulk | Active | BCD | 10 | 28VDC | Rotary for Tool | Raised | 100mA | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
CRD10CM0SBRSW ROTARY DIP BCD COMP 0.4VA 20V |
1,173 |
|
Datasheet |
CRD | Tape & Reel (TR) | Active | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|

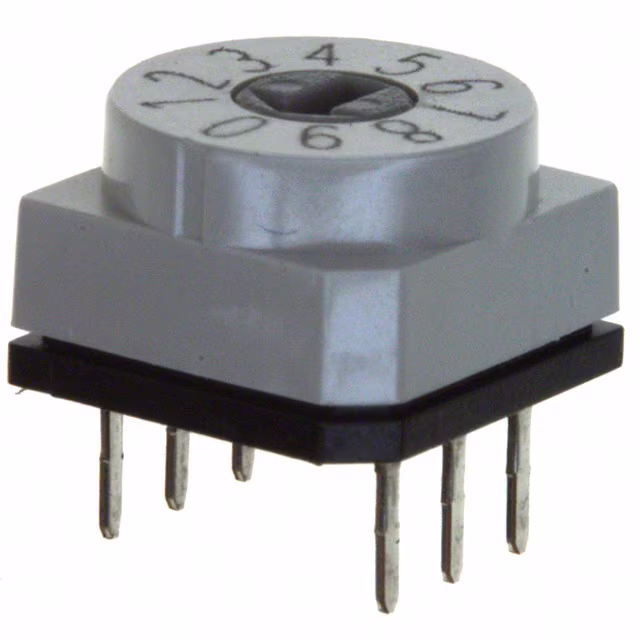

PT65102SW ROTARY DIP BCD COMP 0.15A 24V |
6,876 |
|
Datasheet |
PT65 | Tube | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

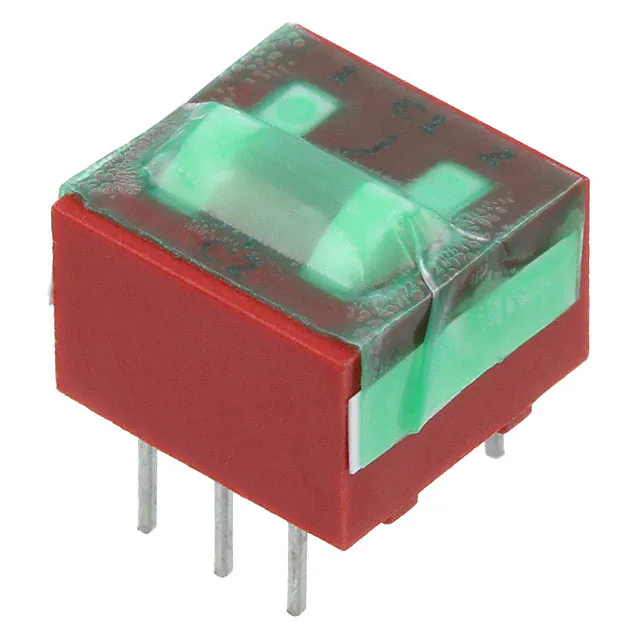

76SC02STSWITCH ROCKER DIP SPDT 0.15A 30V |
4,790 |
|
Datasheet |
76 | Tube | Active | SPDT | 2 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SPA06ABSWITCH SLIDE DIP SPST 0.01A 20V |
815 |
|
Datasheet |
SPA | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 10mA | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 60°C | 0.100" (2.54mm), Full | - | Yes |
|
A6KSV-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
246 |
|
Datasheet |
A6KS | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 80°C | 0.050" (1.27mm), Half | - | No |
|

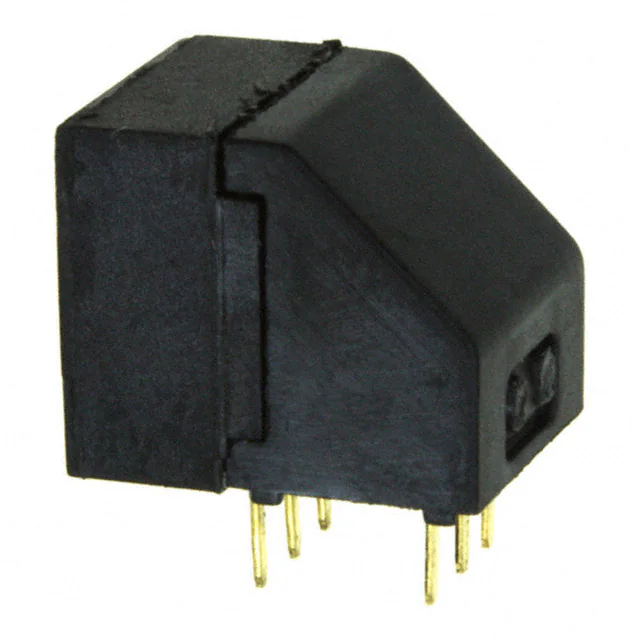

CRD10CM0ABSW ROTARY DIP BCD COMP 0.4VA 20V |
7,364 |
|
Datasheet |
CRD | Tube | Active | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|

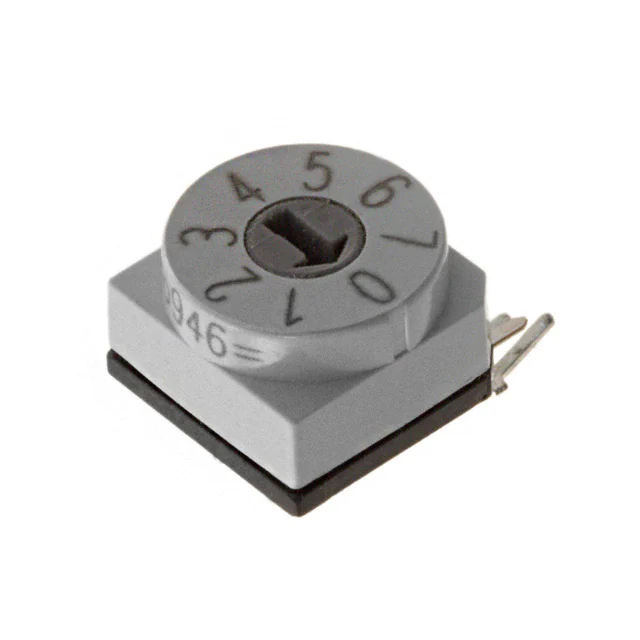

PT65126L508SW ROTARY DIP OCTAL 0.15A 24V |
1,986 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
A6KV-104RSSWITCH ROTARY DIP BCD 0.025A 24V |
531 |
|
Datasheet |
A6K | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 80°C | 0.050" (1.27mm), Half | - | No |
|
A6KV-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
300 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 80°C | 0.050" (1.27mm), Half | - | No |
|
PT65106SW ROTARY DIP HEX COMP 0.15A 24V |
2,861 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
A6KS-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
137 |
|
Datasheet |
A6KS | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | -30°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
A6A-10RWSWITCH ROTARY DIP BCD 0.1A 28V |
469 |
|
Datasheet |
A6A | Tray | Active | BCD | 10 | 28VDC | Rotary with Knob | Raised | 100mA | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
FR01AC16HB-SSW ROTARY DIP HEX COMP 0.1A 5V |
118 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CRD16CM0ABSW ROTARY DIP HEX COMP 0.4VA 20V |
8,790 |
|
Datasheet |
CRD | Tube | Active | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
FR01AR16PBSWITCH ROTARY DIP HEX 0.1A 5V |
1,767 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
