| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65521SWITCH ROTARY DIP SP4T 0.15A 24V |
818 |
|
Datasheet |
PT65 | Tube | Active | SP4T | 4 | 24VDC | Rotary with Knob | Raised | 150mA | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

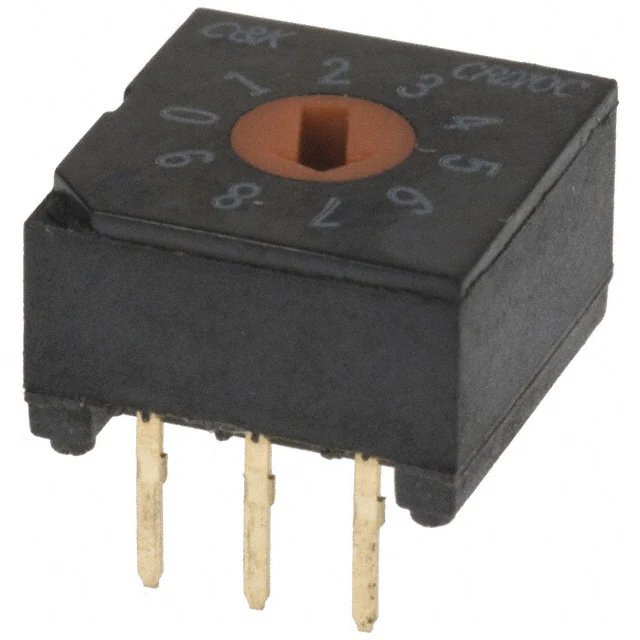

CRD10CM0CBSW ROTARY DIP BCD COMP 0.4VA 20V |
1,412 |
|
Datasheet |
CRD | Tube | Active | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|

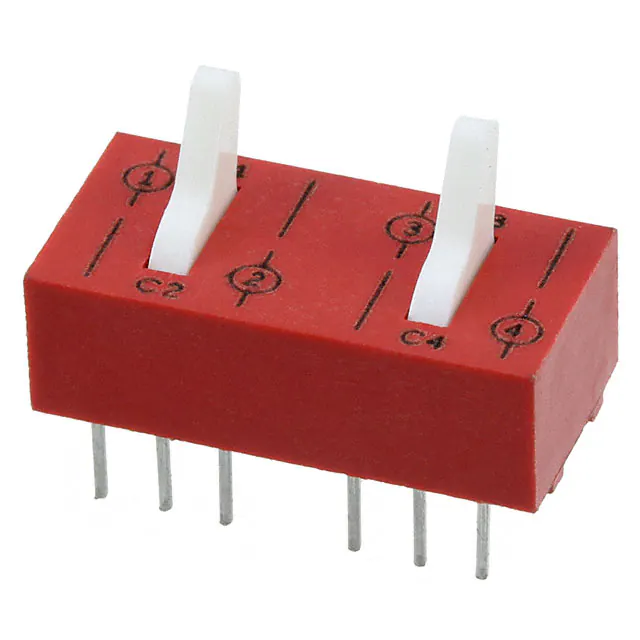

76STD02TSWITCH TOGGLE DIP DPDT 0.15A 30V |
4,943 |
|
Datasheet |
76 | Bulk | Active | DPDT | 2 | 30VDC | Toggle | Raised | 150mA | Copper Alloy | Gold | 0.467" (11.86mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CD16RM0CBSWITCH ROTARY DIP HEX 0.4VA 20V |
29,376 |
|
Datasheet |
CD | Tube | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
PT65112L254SWITCH ROTARY DIP BCD 0.15A 24V |
474 |
|
Datasheet |
PT65 | Tube | Active | BCD | 4 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

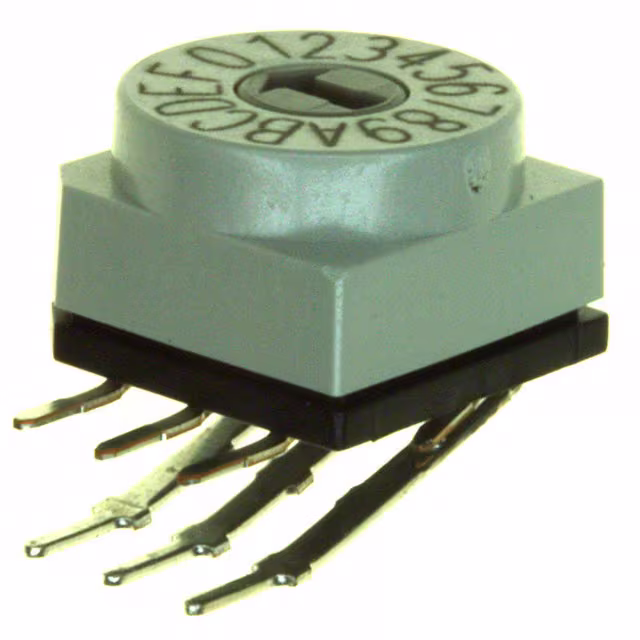

PT65106L254SW ROTARY DIP HEX COMP 0.15A 24V |
210 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

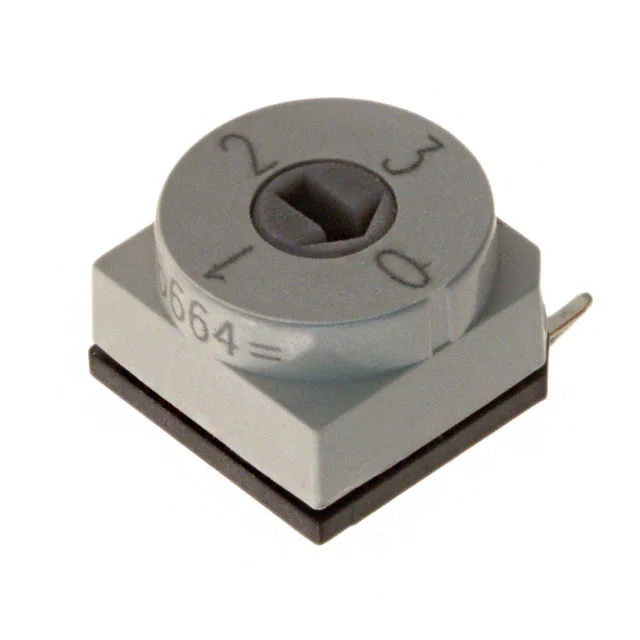

PT65121L254SWITCH ROTARY DIP SP4T 0.15A 24V |
292 |
|
Datasheet |
PT65 | Tube | Active | SP4T | 4 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

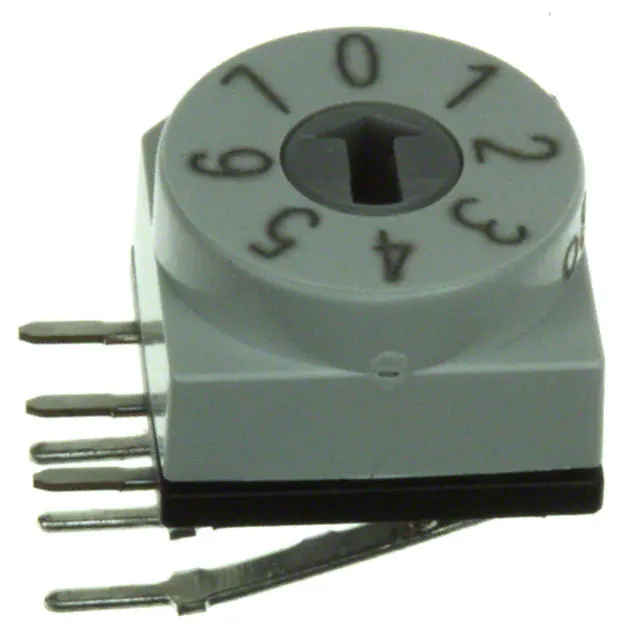

PT65127L254SW ROTARY DIP OCT COMP 0.15A 24V |
172 |
|
Datasheet |
PT65 | Tube | Active | Octal Complement | 8 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
PT65303SWITCH ROTARY DIP HEX 0.15A 24V |
231 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
PT65526SW ROTARY DIP OCTAL 0.15A 24V |
2,922 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 24VDC | Rotary with Knob | Raised | 150mA | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|

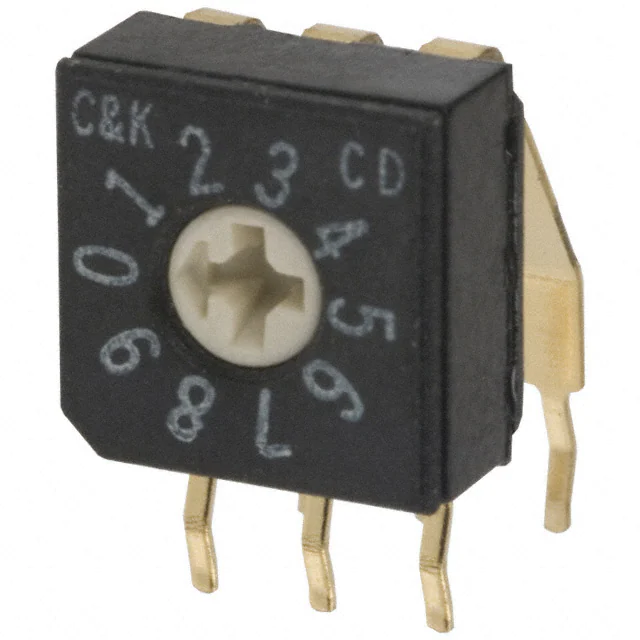

CD10RM0ABSWITCH ROTARY DIP BCD 0.4VA 20V |
115 |
|
Datasheet |
CD | Tube | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
KAE02SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,778 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KR09RSWITCH SLIDE DIP SPST 0.025A 24V |
379 |
|
Datasheet |
KR | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KT02RHSWITCH SLIDE DIP SPST 0.025A 24V |
414 |
|
Datasheet |
KT | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KT02EHSWITCH SLIDE DIP SPST 0.025A 24V |
357 |
|
Datasheet |
KT | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAE03TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,780 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KR02ESWITCH SLIDE DIP SPST 0.025A 24V |
327 |
|
Datasheet |
KR | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KT03EHSWITCH SLIDE DIP SPST 0.025A 24V |
409 |
|
Datasheet |
KT | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KT03RHSWITCH SLIDE DIP SPST 0.025A 24V |
183 |
|
Datasheet |
KT | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KP03ESWITCH PIANO DIP SPST 0.025A 24V |
605 |
|
Datasheet |
KP | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
