| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6HR-6104-PMSWITCH PIANO DIP SPST 0.025A 24V |
807 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|

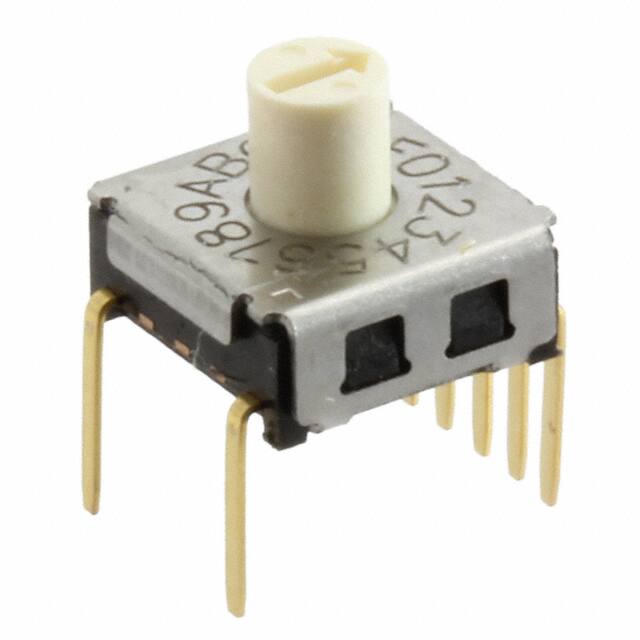

A6K-164RSSWITCH ROTARY DIP HEX 0.025A 24V |
120 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -30°C ~ 80°C | 0.050" (1.27mm), Half | - | No |
|
90HBJ05PTSWITCH SLIDE DIP SPST 0.025A 24V |
229 |
|
Datasheet |
90HB | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6RS-161RSSWITCH ROTARY DIP HEX 0.025A 24V |
194 |
|
Datasheet |
A6RS | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
428521320811SW ROTARY DIP BCD COMP 0.15A 24V |
1,133 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | BCD Complement | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
|
428521520810SWITCH ROTARY DIP BCD 0.15A 24V |
396 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
428521320817SW ROTARY DIP HEX COMP 0.15A 24V |
186 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
90HBJ03PTSWITCH SLIDE DIP SPST 0.025A 24V |
143 |
|
Datasheet |
90HB | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
94HCB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
4,829 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
94HBB16TSWITCH ROTARY DIP HEX 0.1A 50V |
4,515 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.495" (12.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
94HAC10TSW ROTARY DIP BCD COMP 0.1A 50V |
3,713 |
|
Datasheet |
94H | Tube | Active | BCD Complement | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
90HBJ06PTSWITCH SLIDE DIP SPST 0.025A 24V |
3,204 |
|
Datasheet |
90HB | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
94HBB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
1,083 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
A6A-16RSWITCH ROTARY DIP HEX 0.1A 28V |
2,145 |
|
Datasheet |
A6A | Bulk | Active | Hexadecimal | 16 | 28VDC | Rotary for Tool | Raised | 100mA | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
94HAB16JTSWITCH ROTARY DIP HEX 0.1A 50V |
354 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
A6A-16CSW ROTARY DIP HEX COMP 0.1A 28V |
253 |
|
Datasheet |
A6A | Bulk | Active | Hexadecimal Complement | 16 | 28VDC | Rotary for Tool | Raised | 100mA | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|

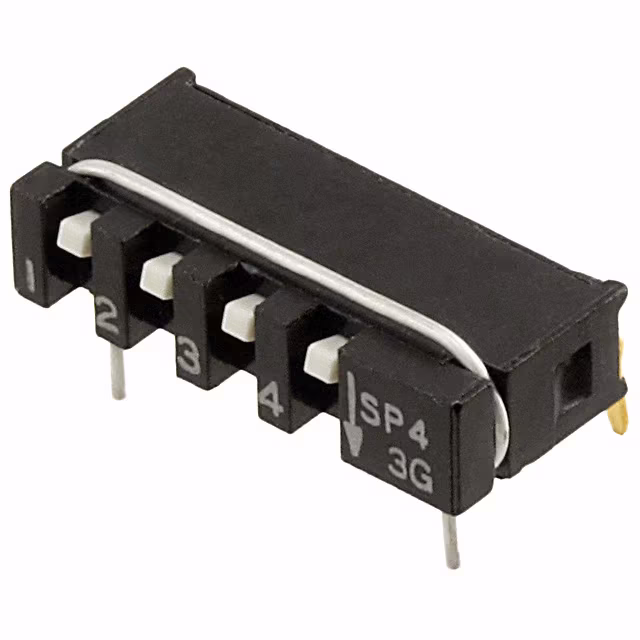

SPA04ABSWITCH SLIDE DIP SPST 0.01A 20V |
223 |
|
Datasheet |
SPA | Tube | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 10mA | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 60°C | 0.100" (2.54mm), Full | - | Yes |
|
A6A-16RWSWITCH ROTARY DIP HEX 0.1A 28V |
111 |
|
Datasheet |
A6A | Bulk | Active | Hexadecimal | 16 | 28VDC | Rotary with Knob | Raised | 100mA | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
A6HR-4104SWITCH PIANO DIP SPST 0.025A 24V |
333 |
|
Datasheet |
A6HR | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
A6K-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
111 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | Gold | 0.118" (3.00mm) | Through Hole | PC Pin | -30°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
