Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EN10VT1224N3HH210 MM ENCODER |
4,576 |
|
Datasheet |
EN10 | Bulk | Active | Not Verified | Incremental | 12 | 5V | Hole for Shaft | Gray Code (Absolute) | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 100K | - | - |
|
EC10E1220505ROTARY ENCODER MECHANICAL 12PPR |
3,179 |
|
Datasheet |
EC10E | Bulk | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC10E1220501THROUGH SHAFT ENCODERS |
3,164 |
|
Datasheet |
EC10E | Bulk | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC10E1220503ROTARY ENCODER MECHANICAL 12PPR |
3,080 |
|
Datasheet |
EC10E | Bulk | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC12R-2230F-S0024ROTARY ENCODER MECHANICAL 24PPR |
781 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC16-4220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,926 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC12R-4220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
4,396 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12R-4225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
898 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC16-4220F-S0012ROTARY ENCODER MECHANICAL 12PPR |
746 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
EC10E1260507THROUGH SHAFT ENCODERS |
3,139 |
|
Datasheet |
EC10E | Bulk | Active | - | Mechanical | 12 | 5V | Hole for Shaft | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|

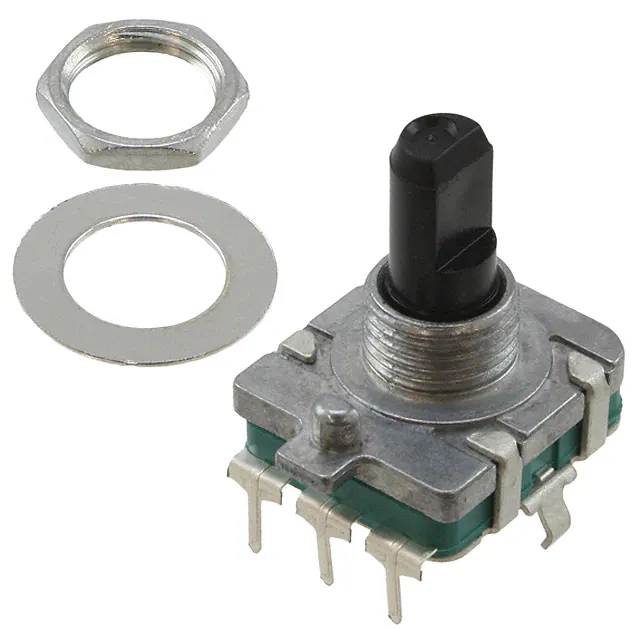

PEC16-4215F-S0024ROTARY ENCODER MECHANICAL 24PPR |
333 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

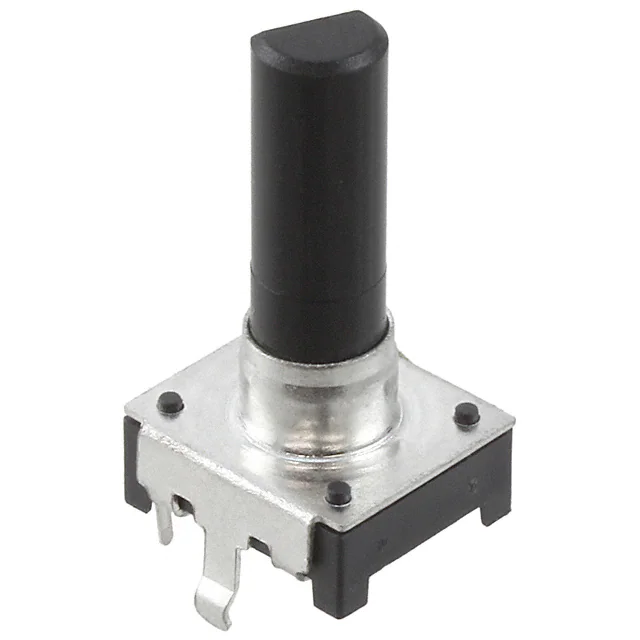

PEC12R-4025F-N0024ROTARY ENCODER MECHANICAL 24PPR |
2,549 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12R-4217F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,210 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-3020F-N0024ROTARY ENCODER |
1,151 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Incremental | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
PEC12R-4017F-N0024ROTARY ENCODER MECHANICAL 24PPR |
842 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4230F-N0024ROTARY ENCODER MECHANICAL 24PPR |
838 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4215F-N0024ROTARY ENCODER |
508 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Incremental | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
PEC12R-4020F-N0024ROTARY ENCODER MECHANICAL 24PPR |
363 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
273 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4215F-N0024ROTARY ENCODER MECHANICAL 24PPR |
8,495 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
