Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC12R-4115F-S0012ROTARY ENCODER INCREMENTAL 12PPR |
866 |
|
Datasheet |
- | Tray | Active | Not Verified | Incremental | 12 | - | Shaft | Quadrature, 2-Bit | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC16-2015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
905 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
PEC12R-2220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
662 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC16-4120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
2,520 |
|
Datasheet |
PEC16 | Bulk | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

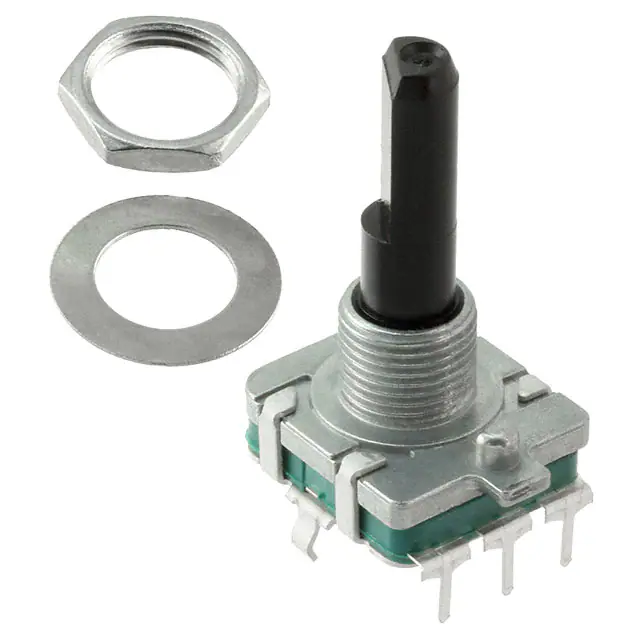

PEC16-4225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
2,341 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC16-4215F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,386 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-4015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,215 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-4020F-N0024ROTARY ENCODER MECHANICAL 24PPR |
991 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-4025F-N0024ROTARY ENCODER MECHANICAL 24PPR |
912 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC12R-3220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,868 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,605 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4125F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,391 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4030F-S0024ROTARY ENCODER INCREMENTAL 24PPR |
1,126 |
|
Datasheet |
- | Tray | Active | Not Verified | Incremental | 24 | - | Shaft | Quadrature, 2-Bit | No | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12R-4217F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,097 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4130F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,025 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4015F-S0024ENCODER |
1,010 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Incremental | 24 | - | 6mm Dia Flatted End, Illuminated | Quadrature, 2-Bit | No | Yes | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
|
PEC12R-4020F-S0012ROTARY ENCODER MECHANICAL 12PPR |
992 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

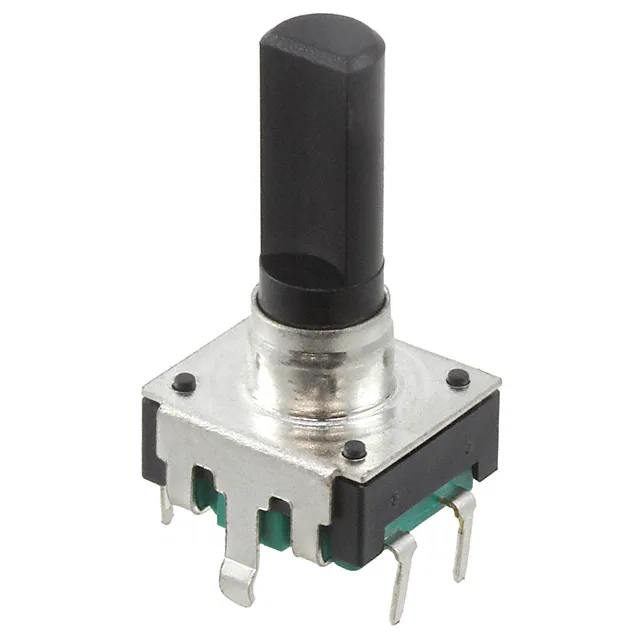

PEC12R-4025F-S0024ROTARY ENCODER MECHANICAL 24PPR |
954 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4230F-S0024ROTARY ENCODER MECHANICAL 24PPR |
939 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12R-4117F-S0012ROTARY ENCODER MECHANICAL 12PPR |
929 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
