Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC11R-4015F-S0012ROTARY ENCODER MECHANICAL 12PPR |
625 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EC12E24204A8ROTARY ENCODER MECHANICAL 24PPR |
141 |
|
Datasheet |
EC12E | Tray | Active | - | Incremental | 24 | 5V | 12mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN16-H20AF15ROTARY ENCODER MECHANICAL 24PPR |
3,952 |
|
Datasheet |
EN16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN12-HS22AF20ROTARY ENCODER MECHANICAL 24PPR |
8,813 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EN12-HS22AF30ROTARY ENCODER MECHANICAL 24PPR |
5,809 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11L-4120K-S0020ROTARY ENCODER MECHANICAL 20PPR |
1,691 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11L-4125F-S0020ROTARY ENCODER MECHANICAL 20PPR |
1,466 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11L-4115K-S0020ROTARY ENCODER MECHANICAL 20PPR |
550 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

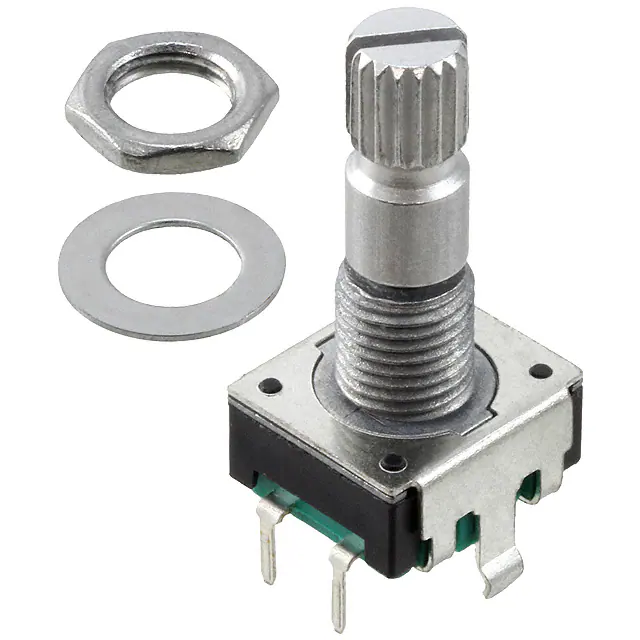

PEC11R-4020K-S0024ROTARY ENCODER MECHANICAL 24PPR |
375 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

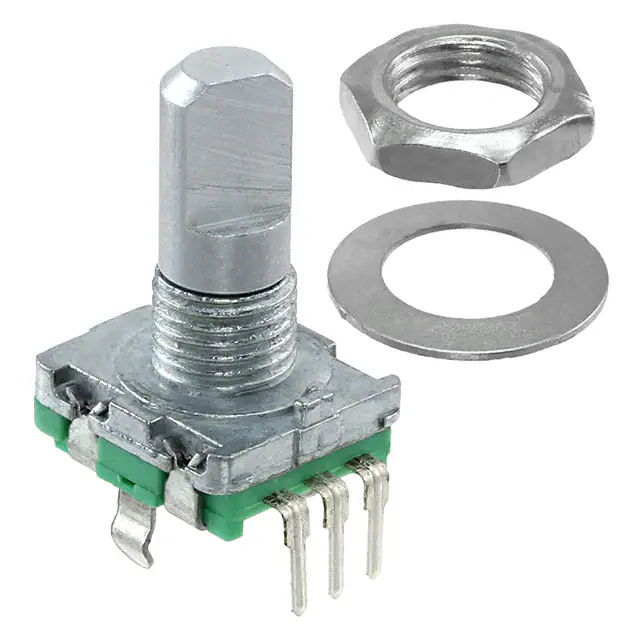

EN11-HNM1AF15ROTARY ENCODER MECHANICAL 20PPR |
1,564 |
|
Datasheet |
EN11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11H-4215F-S0024ROTARY ENCODER WITH BALL/SPRING |
359 |
|
Datasheet |
PEC11H | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

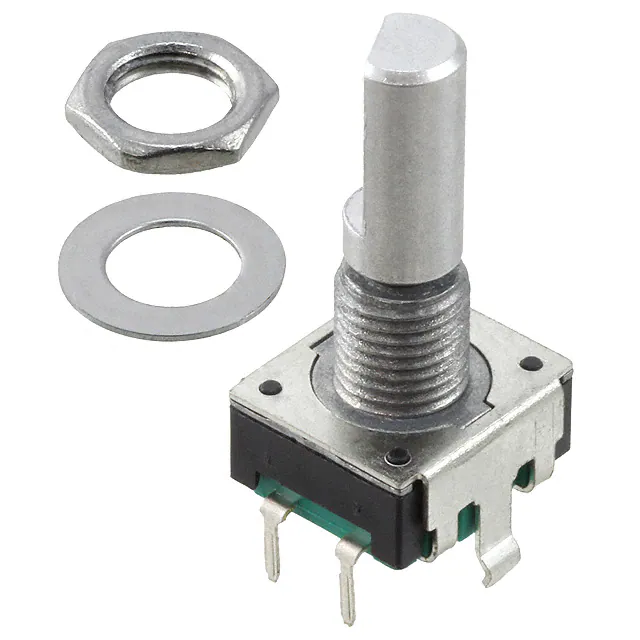

PEC11R-4020F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,669 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4215F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,078 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4020F-S0024ROTARY ENCODER MECHANICAL 24PPR |
414 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

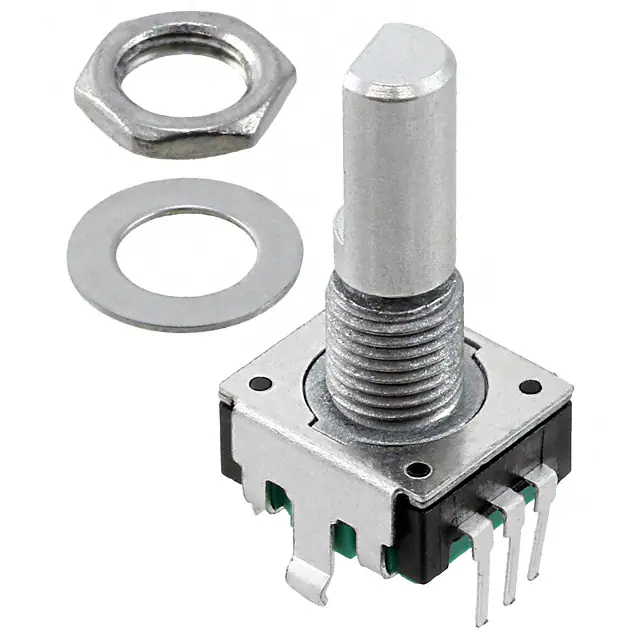

PEC11R-4020F-N0024ROTARY ENCODER MECHANICAL 24PPR |
776 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

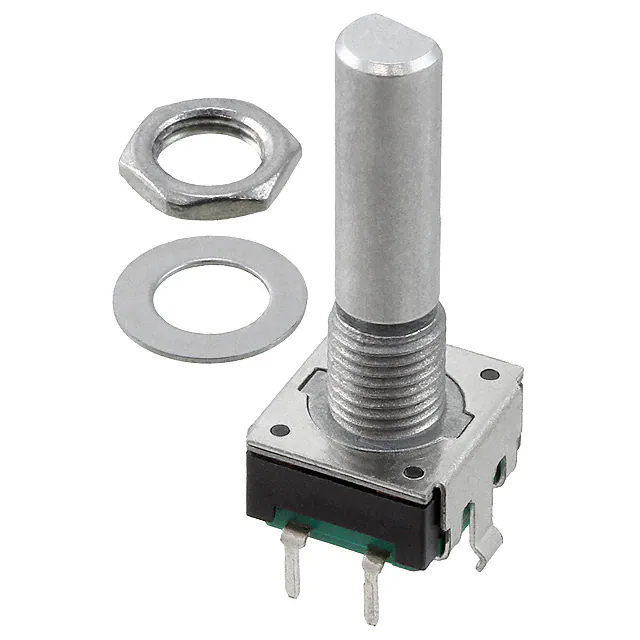

PEC11R-4225F-S0024ROTARY ENCODER MECHANICAL 24PPR |
549 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4230F-N0024ROTARY ENCODER MECHANICAL 24PPR |
2,096 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11S-9215K-H0015ROTARY ENCODER MECHANICAL 15PPR |
1,786 |
|
Datasheet |
PEC11S | Tray | Active | Not Verified | Mechanical | 15 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
|
PEC11R-4220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
552 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4120F-N0018ROTARY ENCODER MECHANICAL 18PPR |
219 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 18 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
