Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

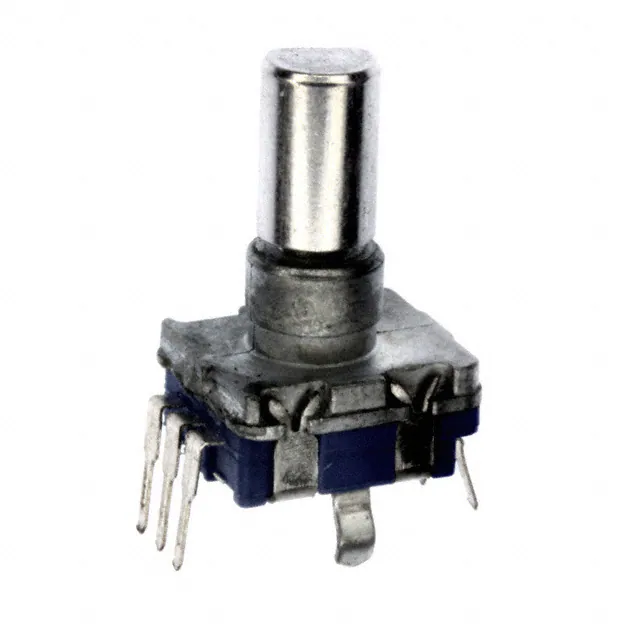

ACZ11BR4E-15FD1-20CROTARY ENCODER INCREMENT 20PPR |
455 |
|
Datasheet |
ACZ11 | Box | Active | Not Verified | Incremental | 20 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ACZ11BR2E-20FD1-20CZ-0546ROTARY ENCODER INCREMENT 20PPR |
1,939 |
|
Datasheet |
ACZ11 | Box | Active | Not Verified | Incremental | 20 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

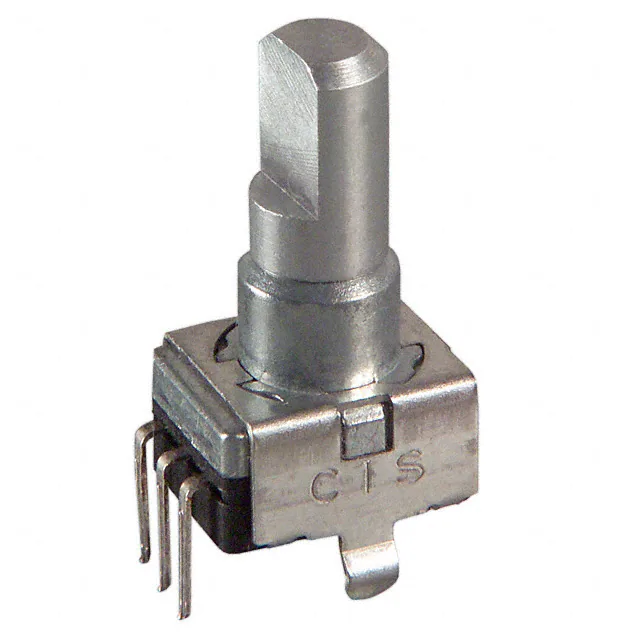

290VAA5F201A2ROTARY ENCODER MECHANICAL 20PPR |
281 |
|
Datasheet |
290 | Bulk | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

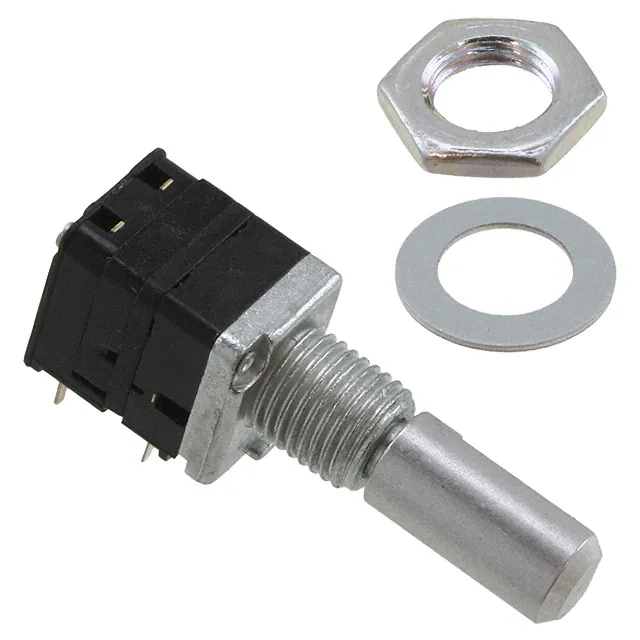

PEC09-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,791 |
|
Datasheet |
PEC09 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11S-9215F-S0015ROTARY ENCODER MECHANICAL 15PPR |
519 |
|
Datasheet |
PEC11S | Tray | Active | Not Verified | Mechanical | 15 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
482016514001MECHANICAL INCREMENTAL ENCODER S |
541 |
|
Datasheet |
WS-ENTV | Bulk | Active | Not Verified | Mechanical | 15 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|
|
482020514001MECHANICAL INCREMENTAL ENCODER S |
249 |
|
Datasheet |
WS-ENTV | Bulk | Active | Not Verified | Mechanical | 20 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | - | - | - |
|

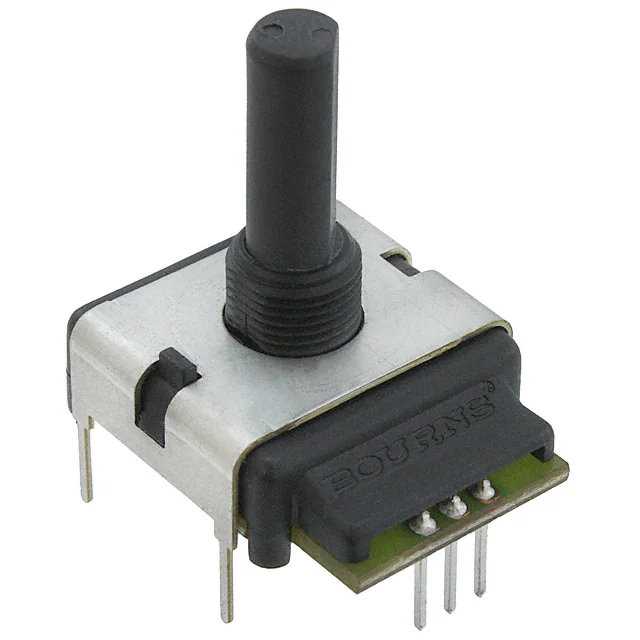

ECW1J-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
245 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | 24 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
288T232R161A2ROTARY ENCODER MECHANICAL 16PPR |
757 |
|
Datasheet |
288 | Bulk | Active | Not Verified | Mechanical | 16 | - | 1/4" Dia Round End | Quadrature (Incremental) | Yes | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|

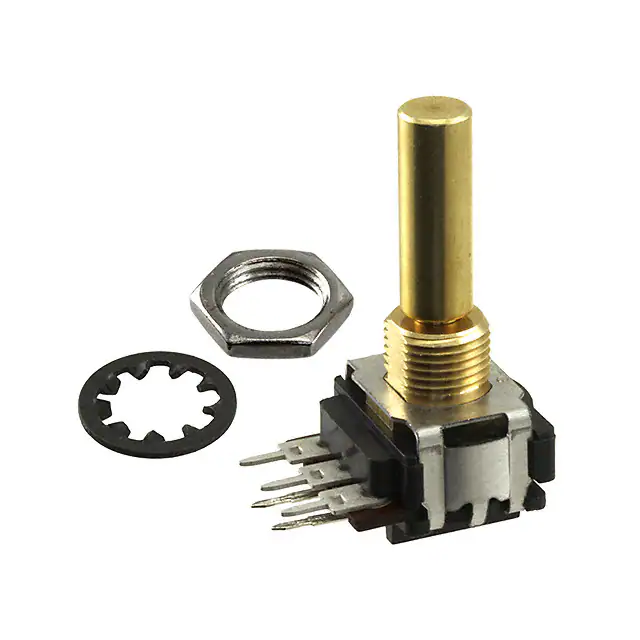

288X232R161B2ROTARY ENCODER MECHANICAL 4PPR |
362 |
|
Datasheet |
288 | Bulk | Active | Not Verified | Mechanical | 4 | - | 1/4" Dia Round End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 50K | - | - |
|
EC11E18244AUROTARY ENCODER MECHANICAL 18PPR |
729 |
|
Datasheet |
EC11 | Tray | Active | - | Mechanical | 18 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

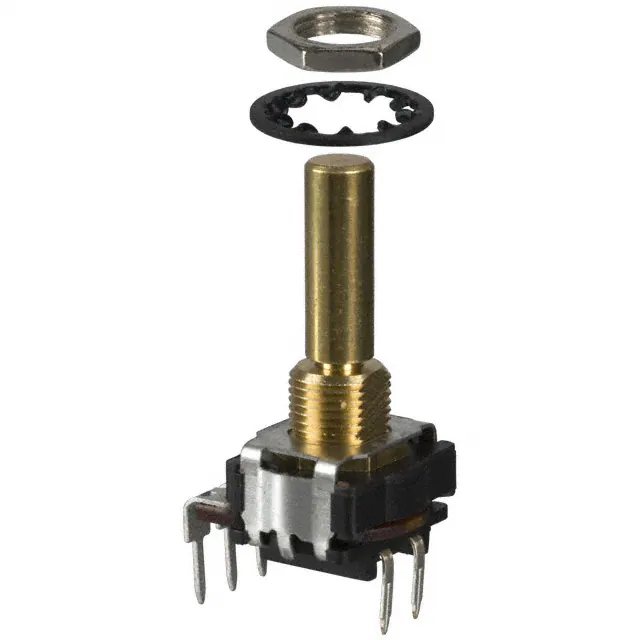

288V232R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,314 |
|
Datasheet |
288 | Tray | Active | Not Verified | Mechanical | 16 | - | 1/4" Dia Round End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
|
EC11E18244A5METAL SHAFT ENCODERS |
1,081 |
|
Datasheet |
EC11E | Tray | Active | - | Incremental | 18 | 5V | 4.5mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E09244AQMETAL SHAFT ENCODERS |
1,037 |
|
Datasheet |
EC11E | Tray | Active | - | Incremental | 9 | 5V | 4.5mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
EC11E15244B2ROTARY ENCODER MECHANICAL 15PPR |
937 |
|
Datasheet |
EC11 | Tray | Active | - | Mechanical | 15 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

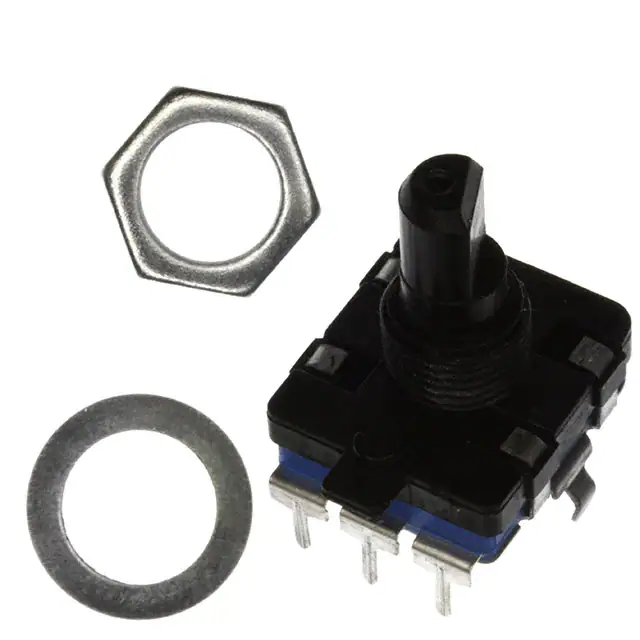

ACZ16NBR1E-15FD1-24CROTARY ENCODER INCREMENT 24PPR |
617 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | 24 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

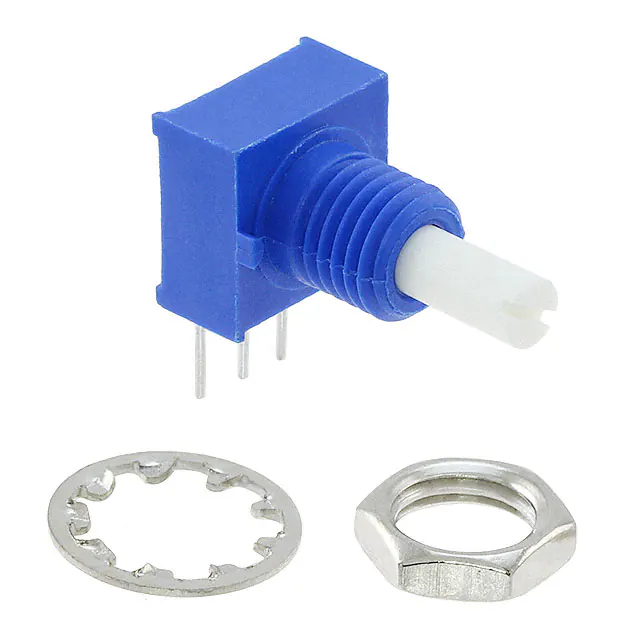

3315C-001-006LROTARY ENCODER MECHANICAL 6PPR |
2,395 |
|
Datasheet |
3315 | Tube | Active | Not Verified | Mechanical | 6 | - | 1/8" Dia Slotted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
|
EC28A1560401RING TYP ENCODERS |
569 |
|
Datasheet |
EC28A | Tray | Active | - | - | 15 | 5V | 28mm Open Center | - | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
ECW0J-B24-AC0006LROTARY ENCODER MECHANICAL 6PPR |
656 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | 6 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

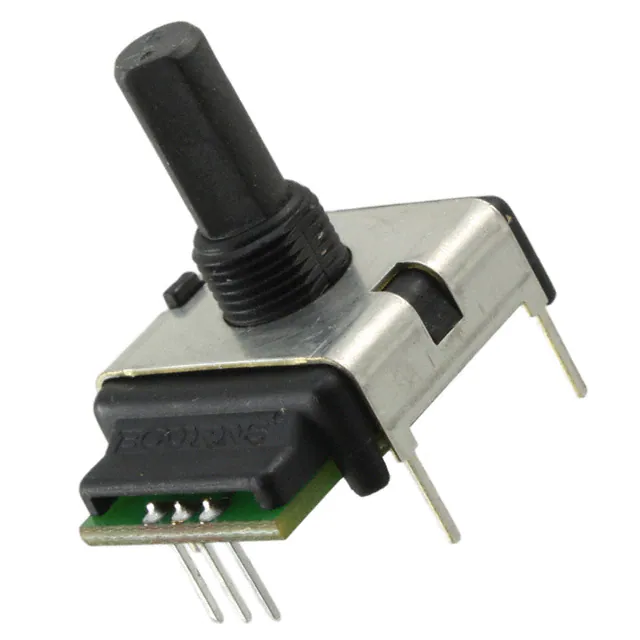

ECW1J-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
279 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | 24 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
