Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENC1J-D28-L00256LROTARY ENCODER OPTICAL 256PPR |
2,737 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 256 | 5V | 1/8" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62V15-02-PROTARY ENCODER OPTICAL 24PPR |
2,432 |
|
Datasheet |
62V | Bulk | Active | Not Verified | Optical | 24 | 3.3V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
62A22-02-PROTARY ENCODER OPTICAL 16PPR |
528 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
|
HRPG-ASCA#19FROTARY ENCODER OPTICAL 120PPR |
110 |
|
Datasheet |
HRPG | Bulk | Active | Not Verified | Optical | 120 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AEDM-5810-Z12ROTARY ENCODER OPTICAL 5000PPR |
153 |
|
Datasheet |
- | Bulk | Active | Not Verified | Optical | 5000 | 4.5V ~ 5.5V | Hole for Shaft | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

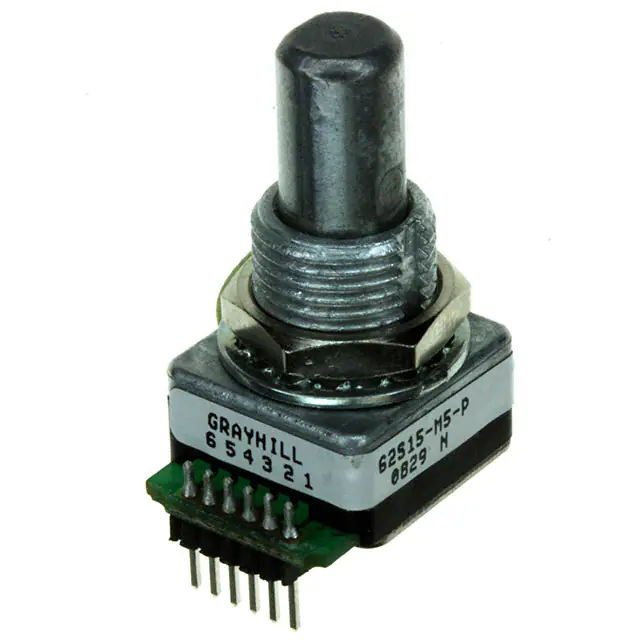

62S15-M5-PROTARY ENCODER OPTICAL 24PPR |
210 |
|
Datasheet |
62S | Bulk | Active | Not Verified | Optical | 24 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5505#A06ROTARY ENCODER OPTICAL 500PPR |
119 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 500 | 5V | 1/4" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5640#A06ROTARY ENCODER OPTICAL 500PPR |
3,818 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 500 | 5V | 1/4" Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

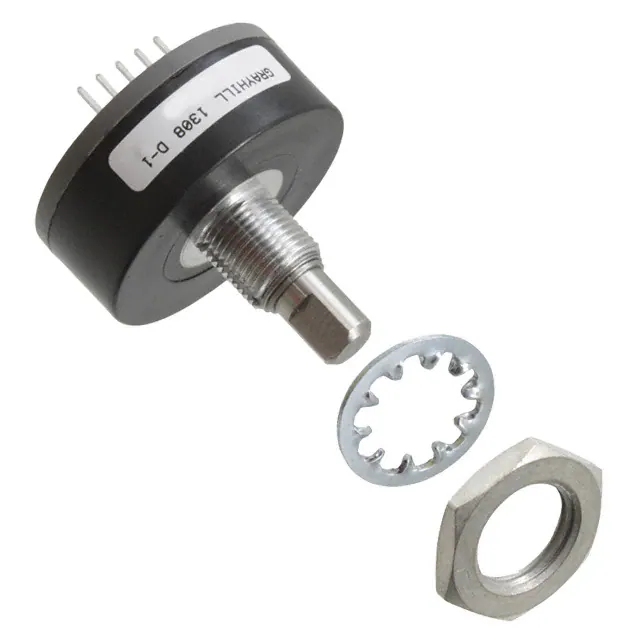

61R256ROTARY ENCODER OPTICAL 256PPR |
217 |
|
Datasheet |
61R | Bulk | Active | Not Verified | Optical | 256 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
AS20-M42M-P1120MM KITS 42B MT 5V 4MM SPI 4W |
105 |
|
Datasheet |
AS20 | Bulk | Active | - | Absolute, Magnetic | - | 4.5V ~ 5.5V | Hole for Shaft | - | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-S1120MM KITS 42B MT 5V 4MM SSI 2W |
2,637 |
|
Datasheet |
AS20 | Bulk | Active | - | Absolute, Magnetic | - | 4.5V ~ 5.5V | Hole for Shaft | - | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|

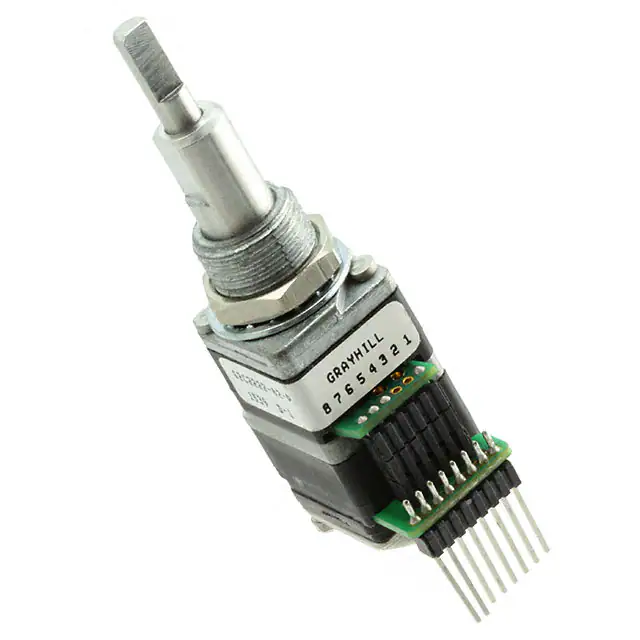

62C2222-02-PROTARY ENCODER OPTICAL 16PPR |
1,628 |
|
Datasheet |
62C | Bulk | Active | Not Verified | Optical | 16 | 5V | Concentric | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
62H3030-H9-PROTARY ENCODER OPTICAL 12PPR |
4,615 |
|
Datasheet |
62H | Bulk | Active | Not Verified | Optical | 12 | 5V | Concentric | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
PEC12R-2225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,151 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC12R-4115F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,150 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

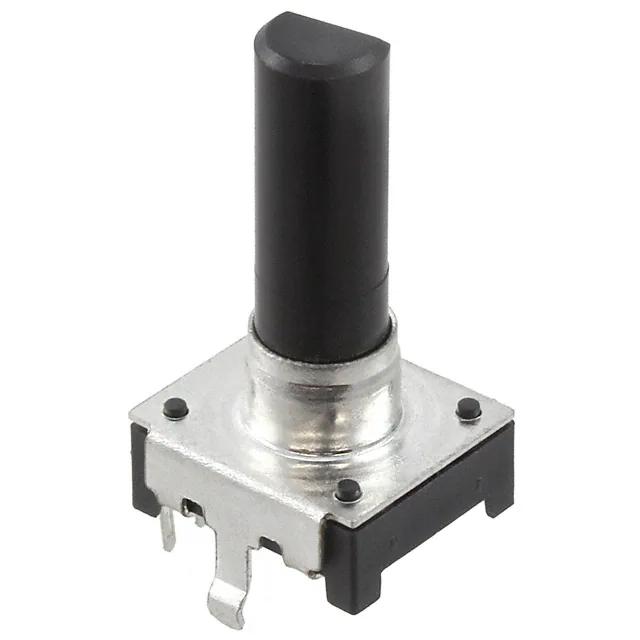

PEC12R-4125F-N0012ROTARY ENCODER MECHANICAL 12PPR |
742 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN12-VN20AF20ROTARY ENCODER MECHANICAL 24PPR |
1,241 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC16-2225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,200 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

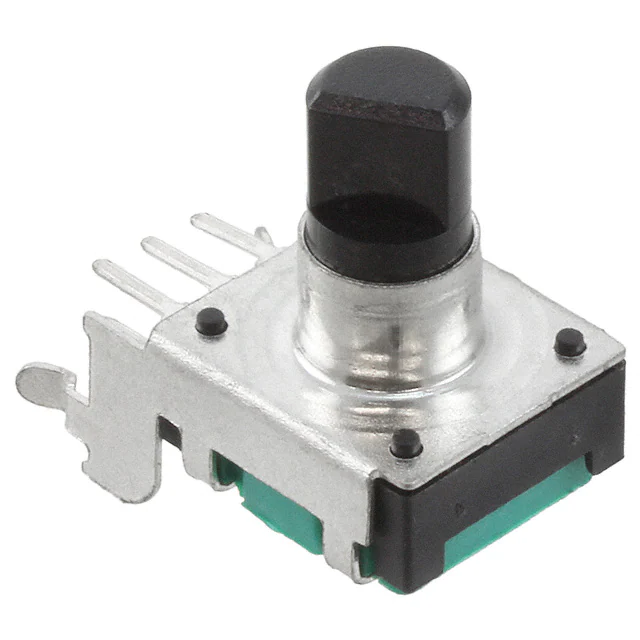

PEC12R-2217F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,150 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|

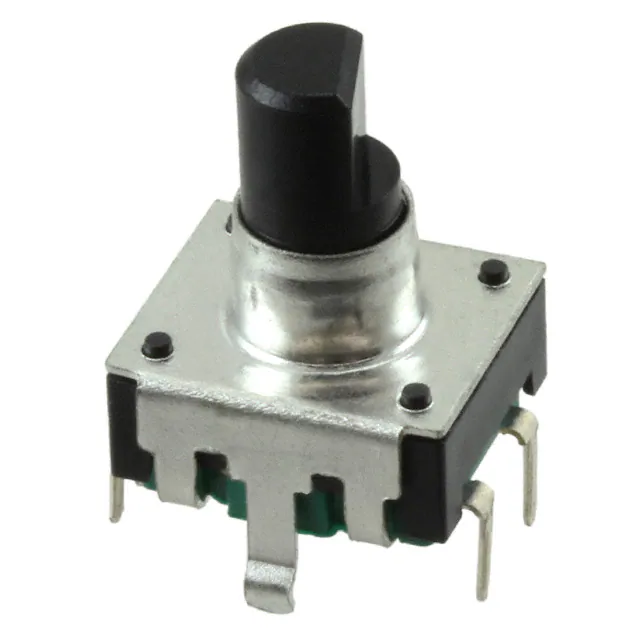

PEC12R-4217F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,142 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
