Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25LB22-HROTARY ENCODER MECHANICAL 16PPR |
133 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | 16 | - | 1/4" Dia Flatted End | Hexadecimal (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
EM14A0D-C24-L064NROTARY ENCODER OPTICAL 64PPR |
141 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | 64 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

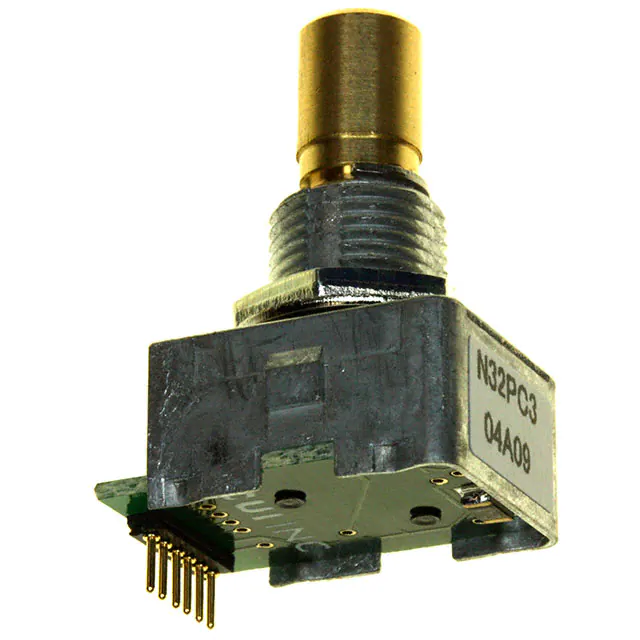

C14N32P-C3ROTARY ENCODER OPTICAL 32PPR |
1,202 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDR-5420-ES214ROTARY ENCODER OPTICAL 200PPR |
341 |
|
Datasheet |
HEDR | Bulk | Active | Not Verified | Optical | 200 | 5V | 5mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDR-9820-102ENCODER 225LPI, REEL 100PC |
230 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Programmable | 3.3V, 5V | Codewheel Not Included | Digital | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AMT11A2Q-VKIT, AMT11A2Q, INCREMENTAL ENCOD |
131 |
|
Datasheet |
AMT11A | Box | Active | Not Verified | Capacitive, Incremental | - | 4.5V ~ 5.5V | - | Quadrature Line Driver (Incremental) | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
HEDS-9100#C00ROTARY ENCODER OPTICAL 100PPR |
363 |
|
Datasheet |
HEDS | Tube | Active | Not Verified | Optical | 100 | 5V | Codewheel Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

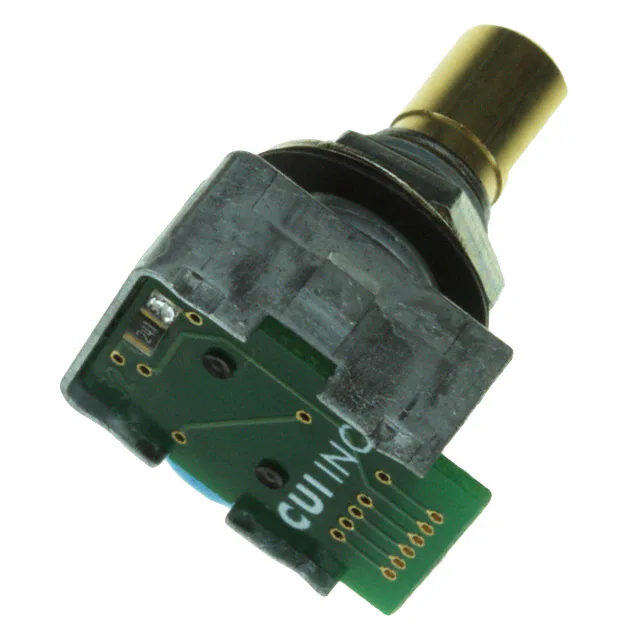

C14D32P-A3AENCODER OPT 32PPR IP65 SLD HOLE |
203 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
EMS22A50-B28-LS6ROTARY ENCODER MAGNETIC 1024PPR |
698 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 1024 | 5V | 1/4" Dia Round End | Binary (Absolute) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
AMT13A2Q-VKIT, AMT13A2Q-V INCREMENTAL ENCO |
180 |
|
Datasheet |
AMT13A | Box | Active | - | Incremental | Programmable | 4.5V ~ 5.5V | Open Center | Quadrature Line Driver (Incremental) | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
26GS22-01A16SROTARY ENCODER MECHANICAL 16PPR |
208 |
|
Datasheet |
26 | Bulk | Active | Not Verified | Mechanical | 16 | - | 1/8" Dia Flatted End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
AMT132Q-VKIT, AMT132Q, INCREMENTAL ENCODE |
422 |
|
Datasheet |
AMT13 | Box | Active | - | Incremental | Programmable | 4.5V ~ 5.5V | Open Center | Quadrature Line Driver with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
ENA1J-B28-L00064LROTARY ENCODER OPTICAL 64PPR |
4,593 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 64 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
71BD36-3119ENCODER MECHANICAL 1/4 IN ADJ |
4,045 |
|
Datasheet |
71 | Bulk | Active | Not Verified | - | - | - | Shaft | - | No | Yes | Panel, PCB Through Hole | User Selectable | Solder Lug | 25K | - | - |
|
|
ENA1P-B28-L00128LROTARY ENCODER OPTICAL 128PPR |
133 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 128 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
EMS22A50-D28-LT6ROTARY ENCODER MAGNETIC 1024PPR |
1,257 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 1024 | 5V | 1/8" Dia Round End | Binary (Absolute) | No | - | Panel Mount | Vertical | PC Pin | 50M | - | - |
|
EMS22Q51-C28-LS4ROTARY ENCODER MAGNETIC 256PPR |
123 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 256 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
EMS22A30-C28-LS6ROTARY ENCODER MAGNETIC 1024PPR |
3,508 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 1024 | 3.3V | 1/4" Dia Flatted End | Binary (Absolute) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
EMS22A30-C28-MS6ROTARY ENCODER MAGNETIC 1024PPR |
1,568 |
|
Datasheet |
- | Bulk | Active | Not Verified | Magnetic | 1024 | 3.3V | 1/4" Dia Flatted End | Binary (Absolute) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|
HEDS-5540#I06ROTARY ENCODER OPTICAL 512PPR |
2,471 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 512 | 5V | 1/4" Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
