Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC11R-4015F-N0012ROTARY ENCODER MECHANICAL 12PPR |
187 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4330F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,424 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

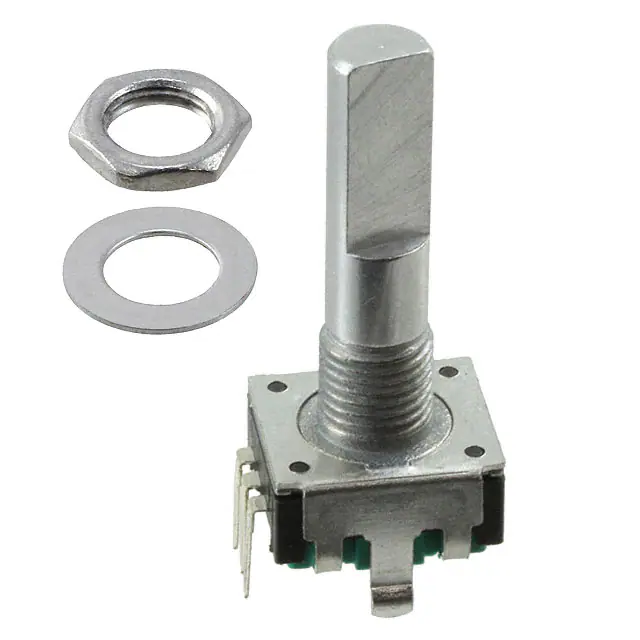

PEC11R-4225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
678 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4125F-N0018ROTARY ENCODER MECHANICAL 18PPR |
927 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 18 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4020F-N0012ROTARY ENCODER MECHANICAL 12PPR |
597 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4220K-N0024ROTARY ENCODER MECHANICAL 24PPR |
510 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

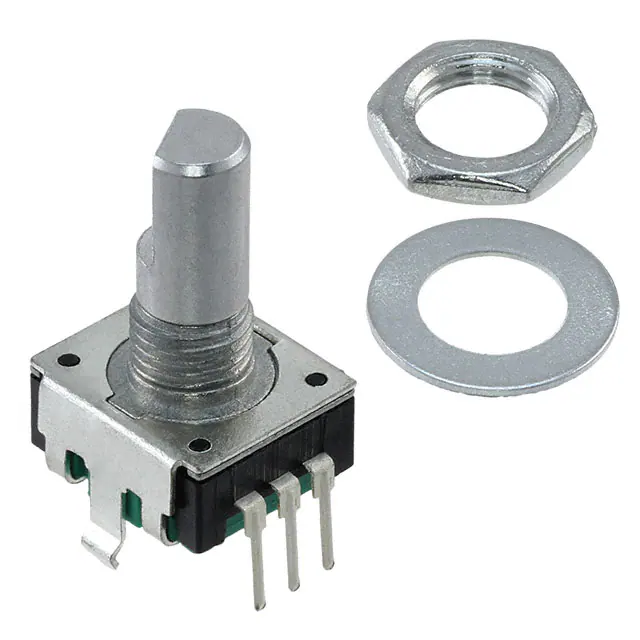

PEC11R-4115F-N0018ROTARY ENCODER MECHANICAL 18PPR |
454 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 18 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

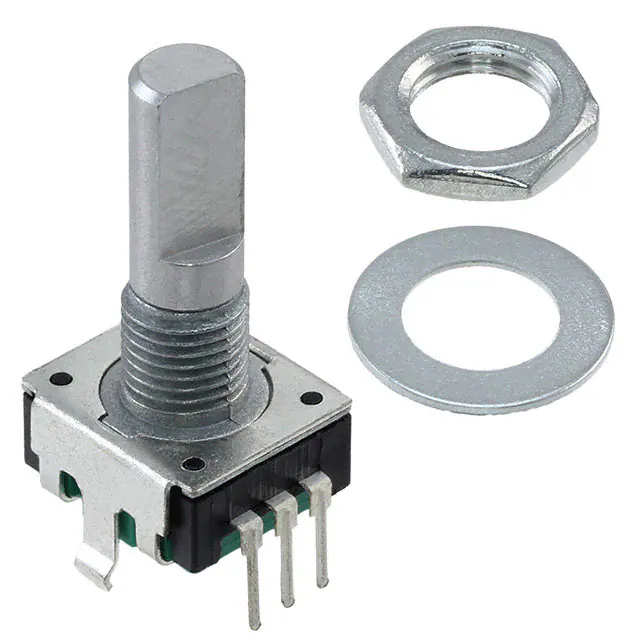

PEC11R-4220F-N0012ROTARY ENCODER MECHANICAL 12PPR |
423 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4015K-N0024ROTARY ENCODER MECHANICAL 24PPR |
383 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

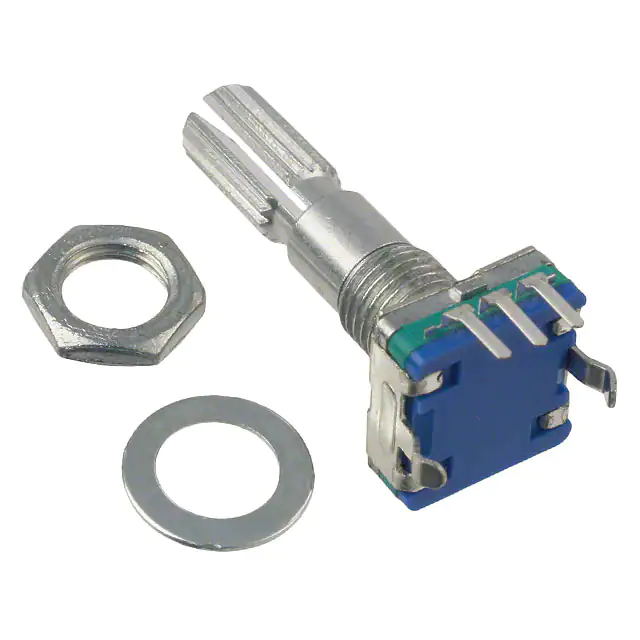

PEC11L-4125K-N0020ROTARY ENCODER MECHANICAL 20PPR |
2,409 |
|
Datasheet |
PEC11 | Box | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ACZ16NBR1E-15KQD1-24CROTARY ENCODER INCREMENT 24PPR |
110 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | 24 | 5V | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11R-4230K-S0024ROTARY ENCODER MECHANICAL 24PPR |
738 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4130F-S0018ROTARY ENCODER MECHANICAL 18PPR |
947 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 18 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4125F-S0018ROTARY ENCODER MECHANICAL 18PPR |
532 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 18 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4225K-S0024ROTARY ENCODER MECHANICAL 24PPR |
463 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11R-4325F-S0012ROTARY ENCODER MECHANICAL 12PPR |
456 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

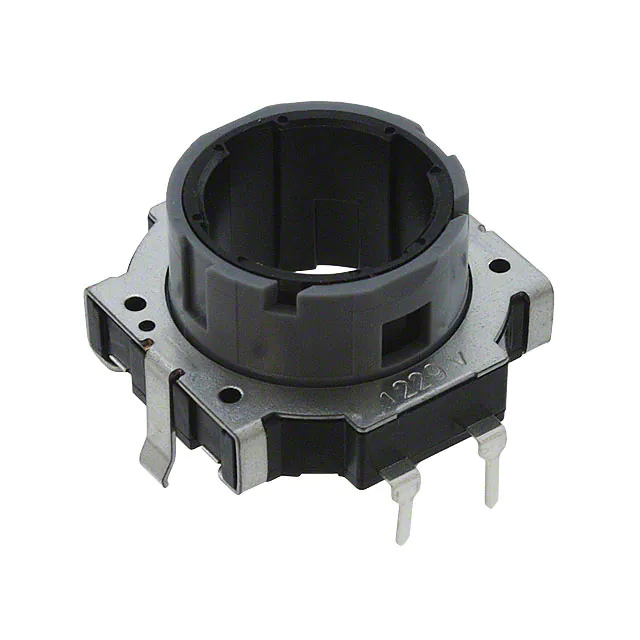

EVQ-V6B00909BROTARY ENCODER MECHANICAL 9PPR |
1,483 |
|
Datasheet |
- | Bulk | Not For New Designs | Not Verified | Mechanical | 9 | - | 20mm Open Center | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN16ABHB11AF2316 MM ABSOLUTE ENCODER |
1,950 |
|
Datasheet |
EN16 | Bulk | Active | Not Verified | Absolute | - | 12V | Shaft | Binary (Absolute) | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 30K | - | - |
|

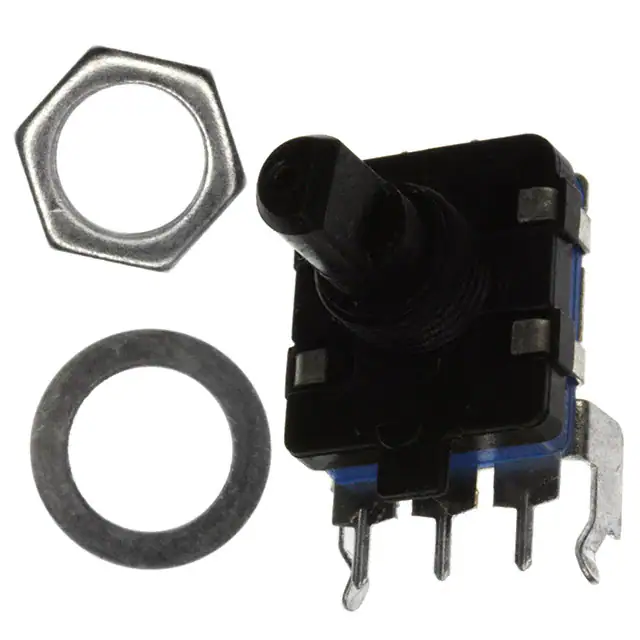

ACZ16NBR1E-15FA1-24CROTARY ENCODER INCREMENT 24PPR |
1,034 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | 24 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
ACZ16NBR1E-15FD1-12CROTARY ENCODER INCREMENT 12PPR |
2,792 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | 12 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
