Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

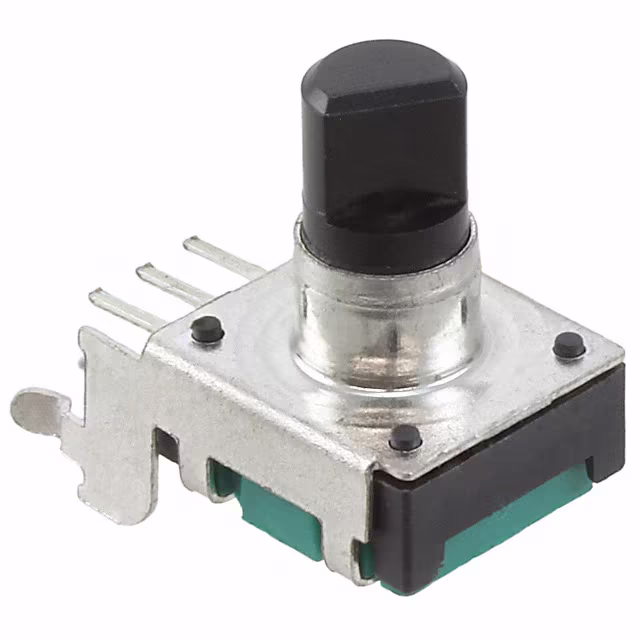

PEC12R-2117F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,096 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC16-4115F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,086 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC16-2215F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,080 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

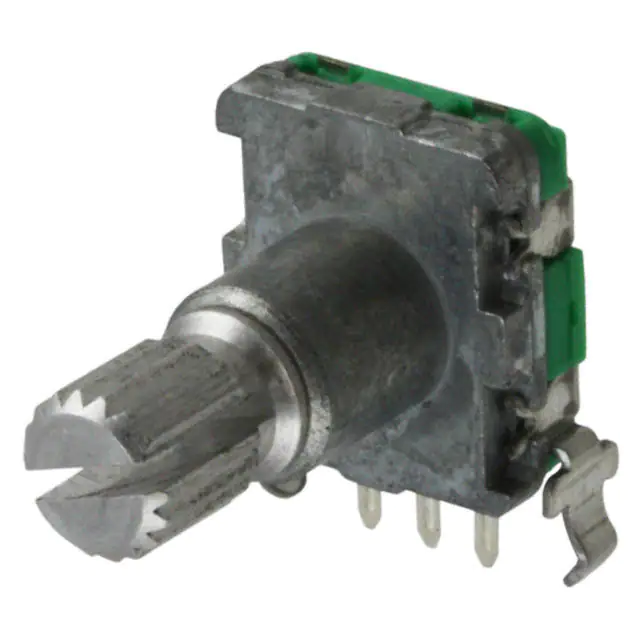

EN11-VNB1BQ15ROTARY ENCODER MECHANICAL 20PPR |
5,871 |
|
Datasheet |
EN11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC12R-4220F-S0012ROTARY ENCODER MECHANICAL 12PPR |
603 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11L-4115K-N0020ENCODER |
2,454 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Knurled End | Quadrature, 2-Bit | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

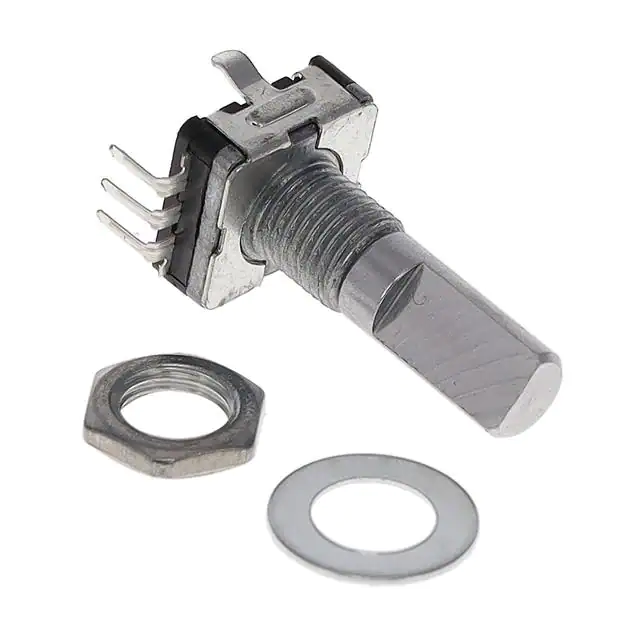

PEC11L-4120F-N0020ROTARY ENCODER MECHANICAL 20PPR |
1,228 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,453 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
PEC16-4120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
930 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-4115F-S0012ROTARY ENCODER MECHANICAL 12PPR |
403 |
|
Datasheet |
PEC16 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC11S-929K-N0015ROTARY ENCODER MECHANICAL 15PPR |
914 |
|
Datasheet |
PEC11S | Tray | Active | Not Verified | Mechanical | 15 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | No | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|
EN18ABHB11A0F2618 MM ABSOLUTE ENCODER |
2,814 |
|
Datasheet |
EN18 | Bulk | Active | Not Verified | Absolute | - | 12V | Shaft | Binary (Absolute) | Yes | No | PCB, Through Hole | Horizontal | PC Pin | 30K | - | - |
|
EN12-HS22AF18ROTARY ENCODER MECHANICAL 24PPR |
5,800 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
EN12-HS11AF25ROTARY ENCODER MECHANICAL 12PPR |
5,165 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

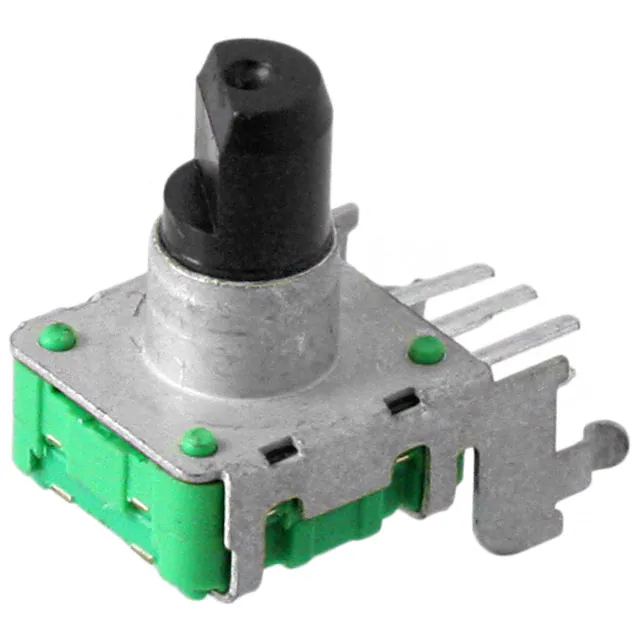

EN12-VS11AF18ROTARY ENCODER MECHANICAL 12PPR |
2,413 |
|
Datasheet |
EN12 | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11L-4220K-S0015ROTARY ENCODER MECHANICAL 15PPR |
1,329 |
|
Datasheet |
PEC11 | Tray | Active | Not Verified | Mechanical | 15 | - | 6mm Dia Knurled End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
EN11-HNB0AF20ROTARY ENCODER MECHANICAL 20PPR |
640 |
|
Datasheet |
EN11 | Tray | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11L-4020K-S0020ROTARY ENCODER |
1,029 |
|
Datasheet |
PEC11L | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PEC11R-4230F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,055 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4320K-S0012ROTARY ENCODER |
441 |
|
Datasheet |
PEC11R | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
