Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD9734-DPG2-EBZEVAL BOARD FOR AD9734 |
3,680 |
|
Datasheet |
- | Box | Obsolete | 1 | 10 | Parallel | - | Current | 1.2G | AD9734 | Board(s) |
|
|
MAX5885EVKITEVAL BOARD FOR MAX5885 |
4,071 |
|
Datasheet |
- | Box | Active | 1 | 16 | CMOS | - | Current/Voltage | 200M | MAX5885 | Board(s) |
|

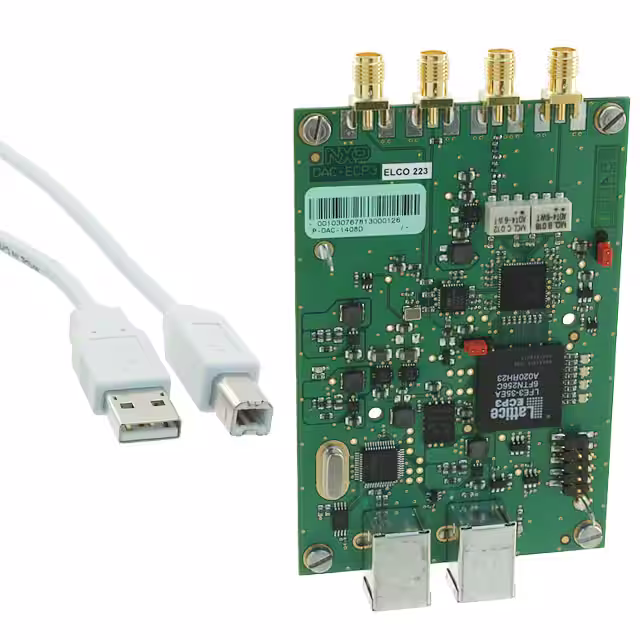

DAC1408D650W2/DB,598EVAL BOARD FOR DAC1408D650 |
4,677 |
|
Datasheet |
- | Box | Obsolete | 2 | 14 | Serial JESD204A, SPI™ | 20 ns | Current | 650M | DAC1408D650 | Board(s) |
|

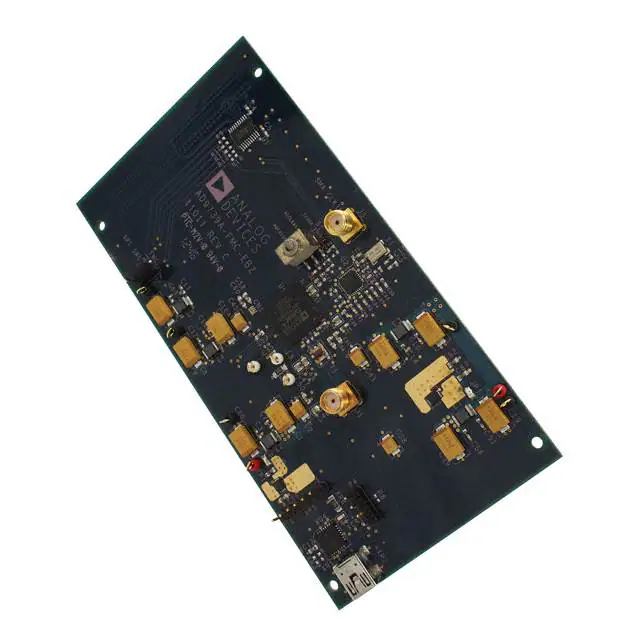

AD9739A-FMC-EBZEVAL BOARD FOR AD9739A |
4,315 |
|
Datasheet |
TxDAC® | Box | Obsolete | 1 | 14 | SPI | - | Current | 2.5G | AD9739A | Board(s) |
|

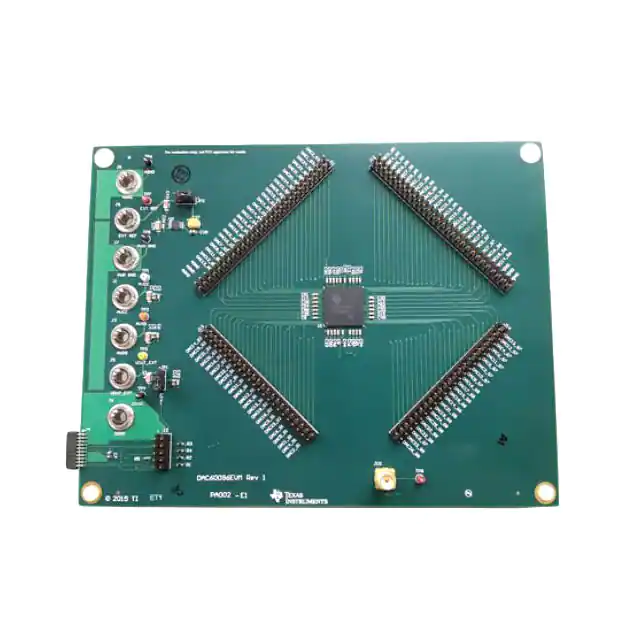

DAC60096EVMEVAL BOARD FOR DAC60096 |
4,361 |
|
Datasheet |
- | Bulk | Obsolete | 96 | 12 | Serial, SPI | 160 µs | Voltage | - | DAC60096 | Board(s) |
|

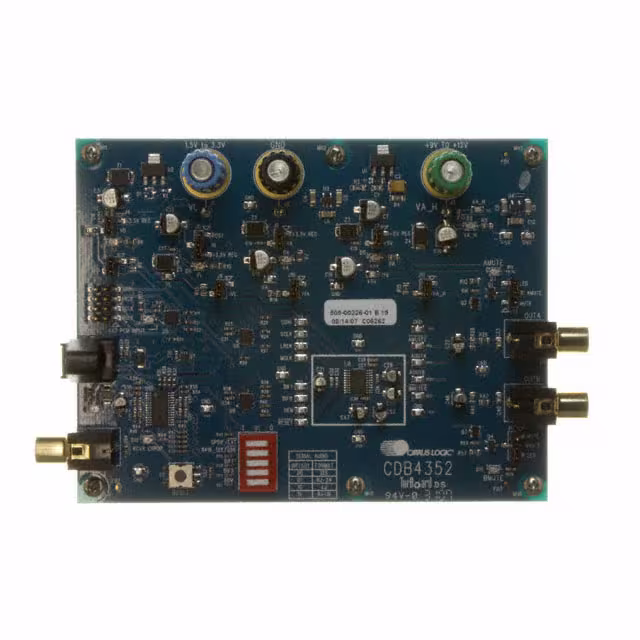

CDB4352EVAL BOARD FOR CS4352 |
3,861 |
|
Datasheet |
Popguard® | Bulk | Not For New Designs | 2 | 24 | Serial | - | Voltage | 192k | CS4352 | Board(s) |
|
|
AD9776A-DPG2-EBZEVAL BOARD FOR AD9776A |
1,221 |
|
Datasheet |
- | Box | Obsolete | 2 | 12 | SPI | - | Current | 1G | AD9776A | Board(s), Cable(s) |
|
|
AD9735-DPG2-EBZEVAL BOARD FOR AD9735 |
1,523 |
|
Datasheet |
- | Box | Active | 1 | 12 | Parallel | - | Current | 1.2G | AD9735 | Board(s) |
|
|
DEM-DAI1602EVAL BOARD FOR PCM1602 |
2,952 |
|
Datasheet |
- | Bulk | Discontinued | 6 | 24 | Serial | - | Voltage | 192k | PCM1602 | Board(s) |
|
|
DEM-DAI1604EVAL BOARD FOR PCM1604 |
1,191 |
|
Datasheet |
SoundPlus™ | - | Obsolete | 6 | 24 | Serial | - | Voltage | 192k | PCM1604 | Board(s) |
|
|
DEM-DAI1608EVAL BOARD FOR PCM1608 |
4,099 |
|
Datasheet |
- | - | Obsolete | 8 | 24 | Serial | - | Voltage | 192k | PCM1608 | Board(s) |
|
|
DEM-DAI1738EVAL BOARD FOR PCM1738 |
3,922 |
|
Datasheet |
- | Box | Obsolete | 2 | 24 | Serial | - | Current | 216k | PCM1738 | Board(s) |
|
|
DEM-DAI1706EVAL BOARD FOR DF1706 PCM1704 |
2,316 |
|
Datasheet |
SoundPlus™ | Bulk | Obsolete | 2 | 24 | Serial | 200 ns | Current | 96k | DF1706, PCM1704 | Board(s) |
|

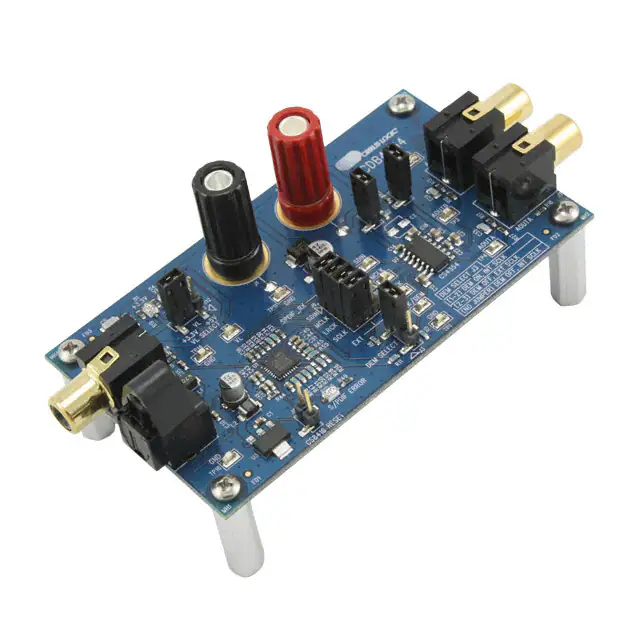

CDB4354EVAL BOARD FOR CS4354 |
2,813 |
|
Datasheet |
- | Box | Active | 1 | 24 | I2S | - | Voltage | 192k | CS4354 | Board(s) |
|

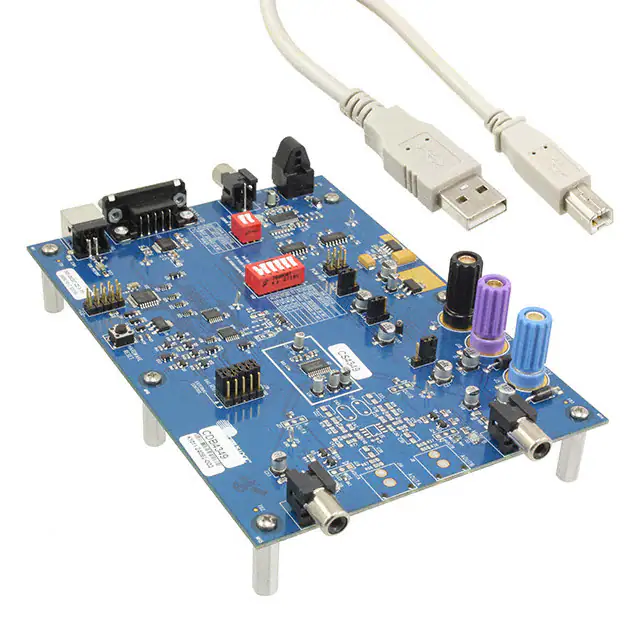

CDB4349EVAL BOARD FOR CS4349 |
2,117 |
|
Datasheet |
Popguard® | Box | Obsolete | 2 | 24 | Serial | - | Voltage | 192k | CS4349 | Board(s) |
|

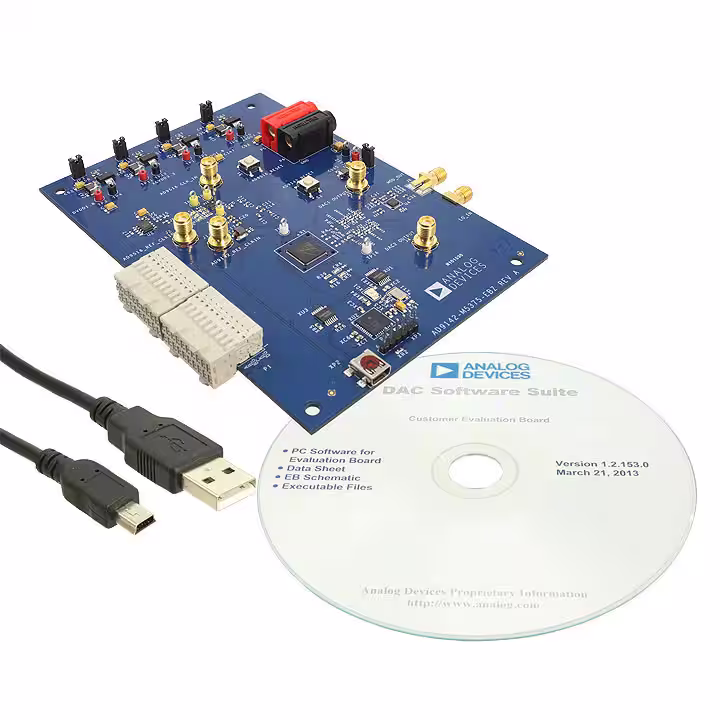

AD9142-M5375-EBZEVAL BOARD FOR AD9142 ADL5375 |
1,146 |
|
Datasheet |
TxDAC+® | Box | Obsolete | 2 | 16 | LVDS - Serial, SPI | 20 ns | Current | 1.6G | AD9142, ADL5375 | Board(s) |
|

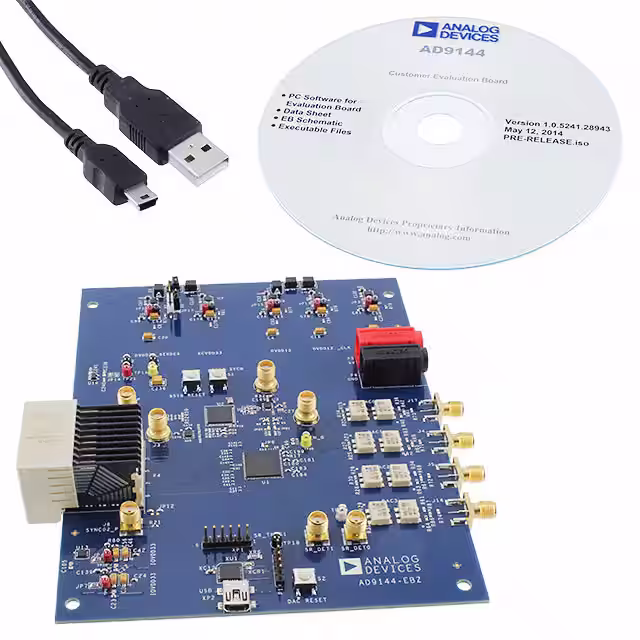

AD9144-EBZEVAL BOARD FOR AD9144 |
2,381 |
|
Datasheet |
TxDAC+® | Box | Obsolete | 4 | 16 | Serial JESD204B, SPI™ | 20 ns | Current | 2.8G | AD9144 | Board(s), Cable(s) |
|
AD9144-M6720-EBZEVAL BOARD FOR AD9144 |
3,466 |
|
Datasheet |
TxDAC+® | Box | Obsolete | 4 | 16 | Serial JESD204B, SPI™ | 20 ns | Current | 2.8G | AD9144 | Board(s), Cable(s) |
|

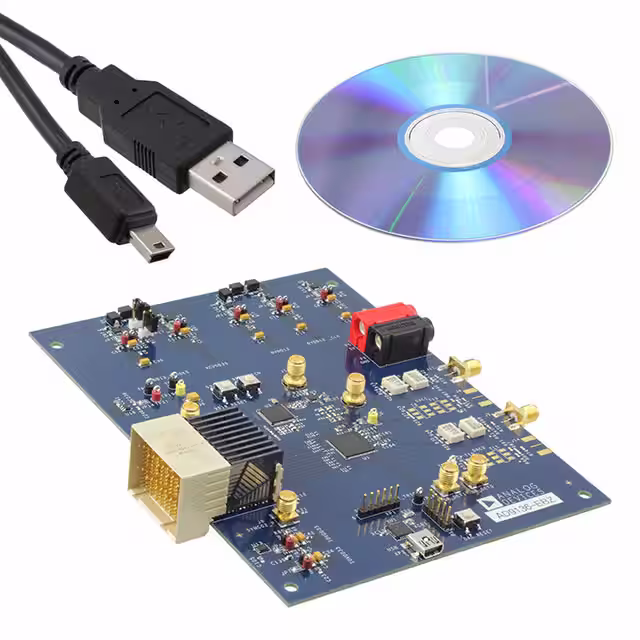

AD9136-EBZEVAL BOARD FOR AD9136 |
1,189 |
|
Datasheet |
TxDAC+® | Box | Obsolete | 2 | 16 | JESD204B Serial | 20 ns | Current | 2.8G | AD9136 | Board(s) |
|

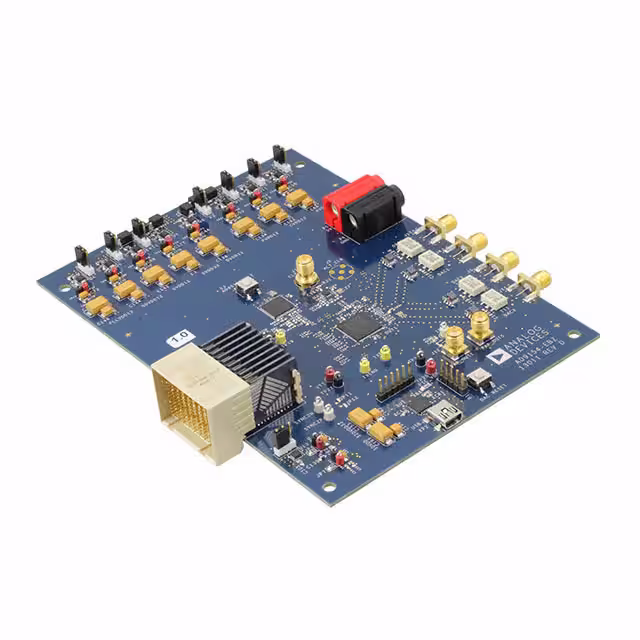

AD9154-EBZEVAL BOARD FOR AD9154 |
2,547 |
|
Datasheet |
TxDAC+® | Box | Obsolete | 4 | 16 | Serial JESD204B, SPI™ | 20 ns | Current | 2.4G | AD9154 | Board(s) |
