Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCM5101EVM-UEVAL BOARD FOR PCM5101 |
1,443 |
|
Datasheet |
DirectPath™ | Box | Obsolete | 2 | 16, 24, 32 | PCM | - | Current | 8k ~ 384k | PCM5101 | Board(s) |
|

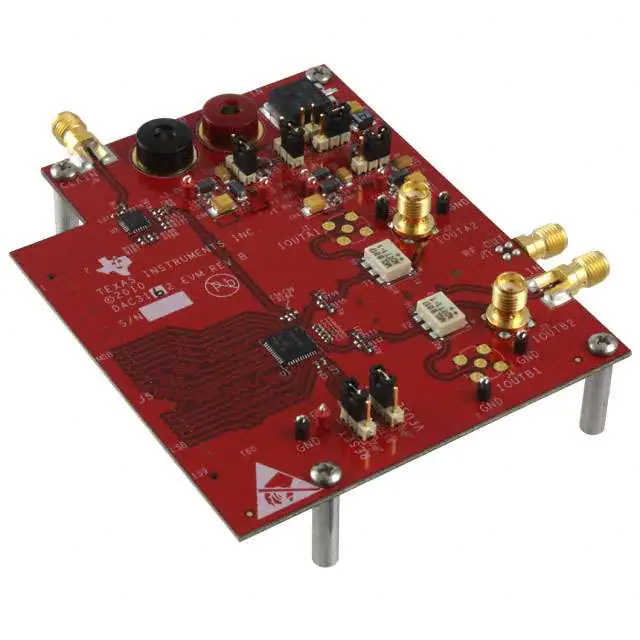

DAC3162EVMEVAL BOARD FOR DAC3162 |
1,774 |
|
Datasheet |
- | Box | Obsolete | 2 | 12 | CMOS, LVDS, Parallel | 10 ns | Current | 500M | DAC3162 | Board(s) |
|

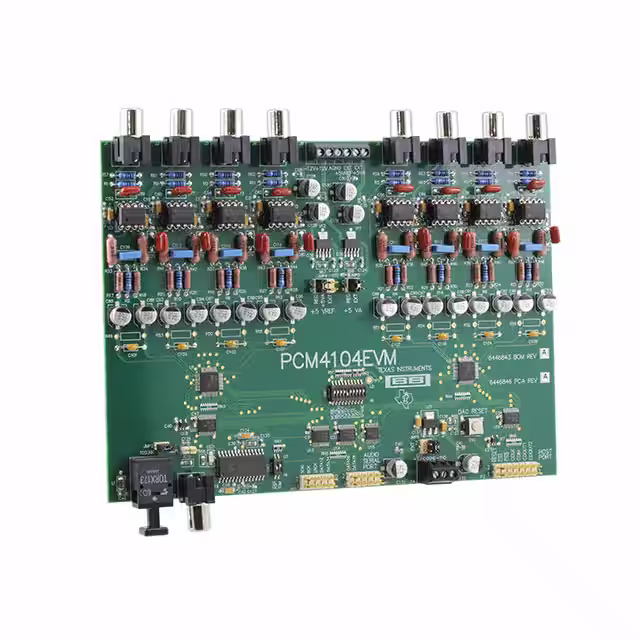

PCM4104EVMEVAL BOARD FOR PCM4104 |
3,731 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 24 | I2C, SPI | - | Voltage | 216k | PCM4104 | Board(s) |
|

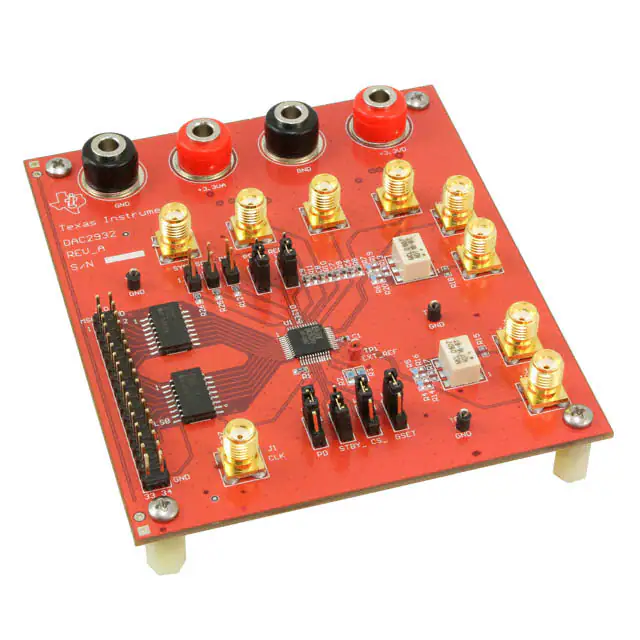

DAC2932EVMEVAL BOARD FOR DAC2932 |
1,328 |
|
Datasheet |
- | Box | Obsolete | 6 | 12 | Serial, Parallel | 20 ns | Current/Voltage | 40M | DAC2932 | Board(s) |
|

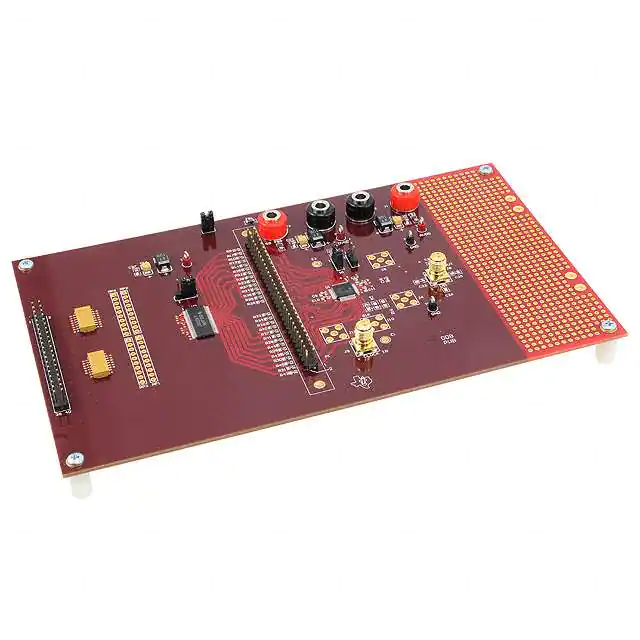

DAC5675AEVMEVAL BOARD FOR DAC5675A |
2,447 |
|
Datasheet |
- | Box | Obsolete | 1 | 14 | Parallel | 20 ns | Current | 400M | DAC5675A | Board(s) |
|

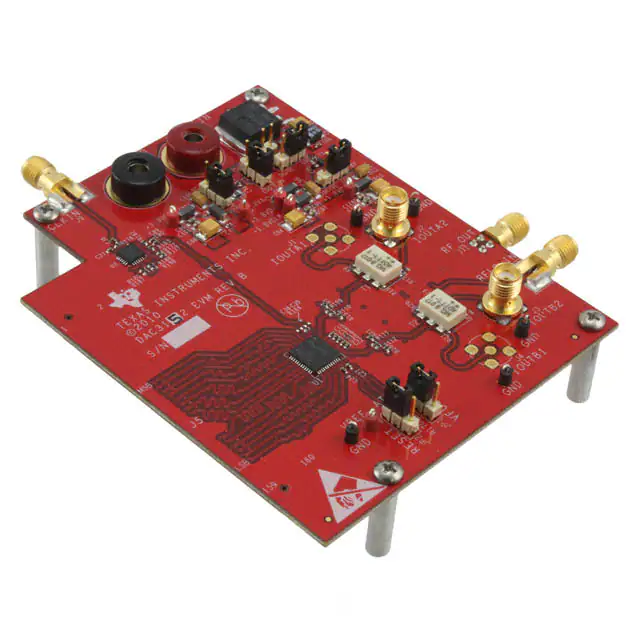

DAC3152EVMEVAL BOARD FOR DAC3152 |
3,253 |
|
Datasheet |
- | Box | Obsolete | 2 | 10 | CMOS, LVDS, Parallel | 10 ns | Current | 500M | DAC3152 | Board(s) |
|
DAC904EVMEVAL BOARD FOR DAC904 |
3,924 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 14 | CMOS | 30 ns | Current | 165M | DAC904 | Board(s) |
|

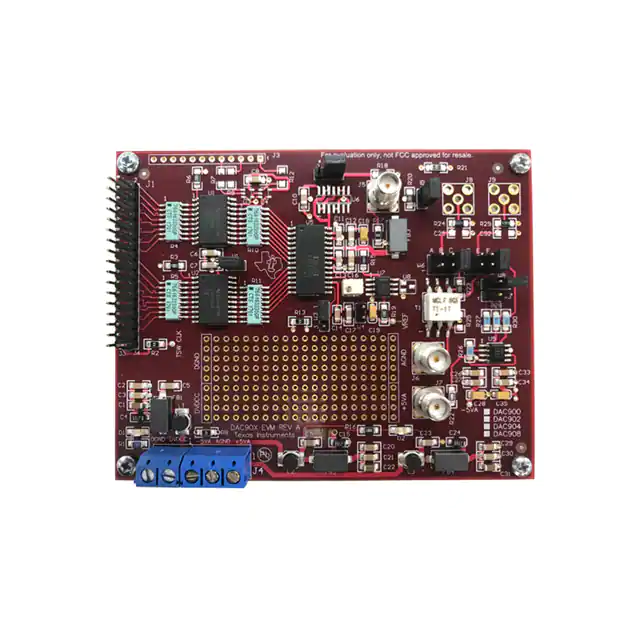

DAC908EVMEVAL BOARD FOR DAC908 |
4,863 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 8 | CMOS | 30 ns | Current | 165M | DAC908 | Board(s) |
|
HI5960SOICEVAL1EVAL BOARD FOR HI5960 |
3,543 |
|
Datasheet |
CommLink™ | Box | Active | 1 | 14 | Parallel | 35 ns | Current | 130M | HI5960 | Board(s) |
|
|
MAX5183EVKITEVAL BOARD FOR MAX5183 |
2,126 |
|
Datasheet |
- | Box | Obsolete | 2 | 8, 10 | - | - | - | - | MAX5183 | Board(s) |
|
|
6026-410-000P-BOARDEVAL BOARD FOR AD9739A |
3,003 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 14 | LVDS, SPI | - | Current | 2.5G | AD9739A | Board(s) |
|
|
AD9751-EBEVAL BOARD FOR AD9751 |
3,636 |
|
Datasheet |
TxDAC® | Bulk | Obsolete | 1 | 10 | Parallel | 11 ns | Current | 300M | AD9751 | Board(s) |
|
|
AD9753-EBEVAL BOARD FOR AD9753 |
4,173 |
|
Datasheet |
TxDAC+® | Bulk | Obsolete | 1 | 12 | Parallel | 11 ns | Current | 300M | AD9753 | Board(s) |
|

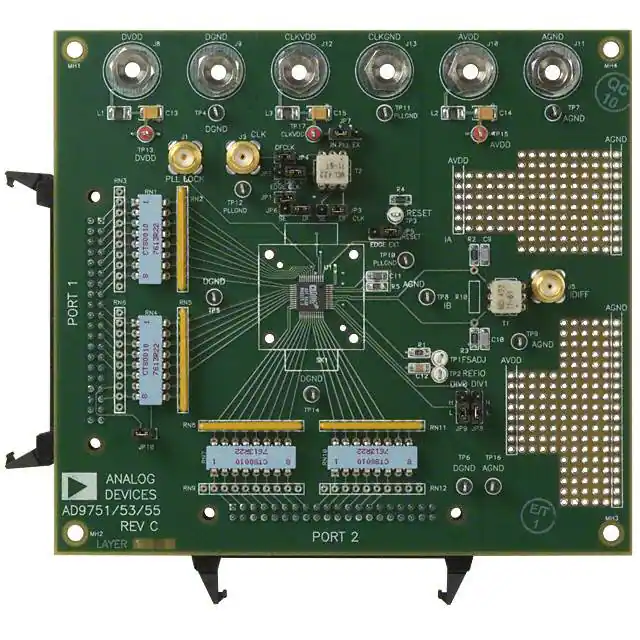

AD9755-EBEVAL BOARD FOR AD9755 |
4,955 |
|
Datasheet |
TxDAC+® | Bulk | Obsolete | 1 | 14 | Parallel | 11 ns | Current | 300M | AD9755 | Board(s) |
|
|
AD9705-EBZEVAL BOARD FOR AD9705 |
3,259 |
|
Datasheet |
TxDAC® | Bulk | Obsolete | 1 | 10 | Parallel | 11 ns | Current | 175M | AD9705 | Board(s) |
|
|
AD9706-EBZEVAL BOARD FOR AD9706 |
4,431 |
|
Datasheet |
TxDAC® | Bulk | Obsolete | 1 | 12 | Parallel | 11 ns | Current | 175M | AD9706 | Board(s) |
|
|
DEM-DAI1770EVAL BOARD FOR PCM1770 |
3,378 |
|
Datasheet |
- | Box | Obsolete | 2 | 24 | Parallel | - | - | 48k | PCM1770 | Board(s) |
|
|
DEM-DAI1771EVAL BOARD FOR PCM1771 |
2,596 |
|
Datasheet |
- | Box | Obsolete | 2 | 24 | Parallel | - | - | 48k | PCM1771 | Board(s) |
|

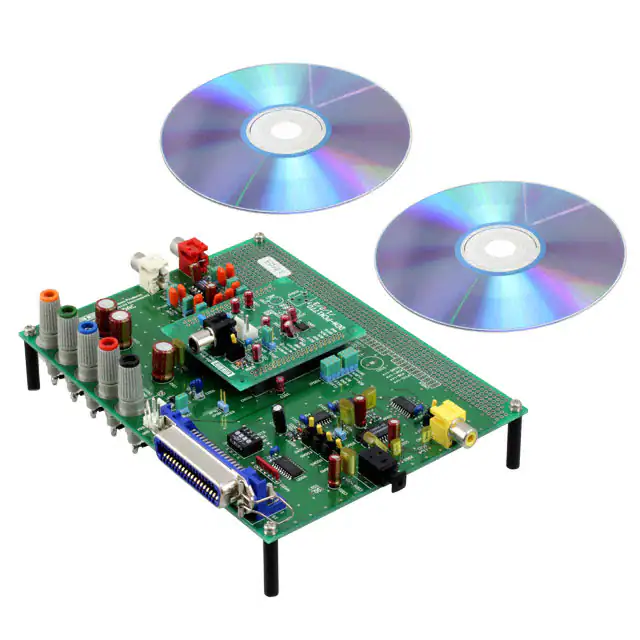

DEM-DAI1772EVAL BOARD FOR PCM1772 |
1,846 |
|
Datasheet |
- | Box | Obsolete | 2 | 24 | Parallel | - | - | 48k | PCM1772 | Board(s) |
|
|
DEM-DAI1773EVAL BOARD FOR PCM1773 |
4,444 |
|
Datasheet |
- | Box | Obsolete | 2 | 24 | Parallel | - | - | 48k | PCM1773 | Board(s) |
