Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC121C08XEB/NOPBEVAL BOARD FOR DAC121C081/5 |
3,402 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 12 | I2C, Serial | 6 µs | Voltage | - | DAC121C081/5 | Board(s) |
|

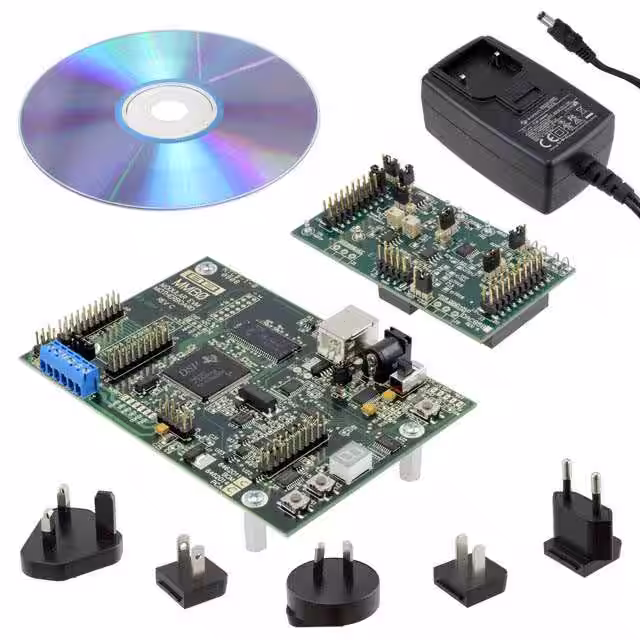

DAC8581EVM-PDKEVAL BOARD FOR DAC8581 |
4,241 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | SPI | 650 ns | Voltage | 3M | DAC8581 | Board(s) |
|
|
DAC121S101EVAL/NOPBEVAL BOARD FOR DAC121S101 |
1,998 |
|
Datasheet |
- | Box | Obsolete | 1 | 12 | Serial | 12 µs | Voltage | - | DAC121S101 | Board(s) |
|

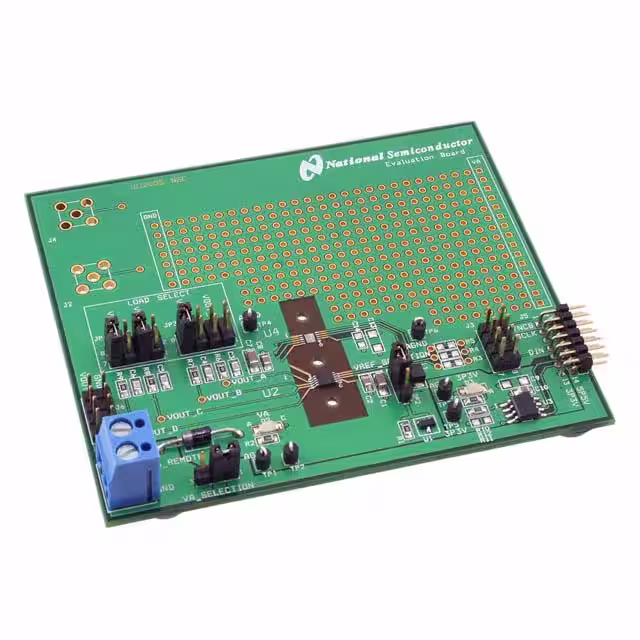

DAC122S085EB/NOPBEVAL BOARD FOR DAC122S085 |
4,266 |
|
Datasheet |
- | Box | Obsolete | 2 | 12 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 6 µs | Voltage | - | DAC122S085 | Board(s) |
|
|
MAX5890EVKIT#EVAL BOARD FOR MAX5890 |
2,339 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 14 | Parallel | 11 ns | Current | 600M | MAX5890 | Board(s) |
|
|
MAX5895EVKITEVAL BOARD FOR MAX5895 |
1,896 |
|
Datasheet |
- | Box | Obsolete | 2 | 16 | SPI | - | Current/Voltage | 500M | MAX5895 | Board(s), Cable(s) |
|

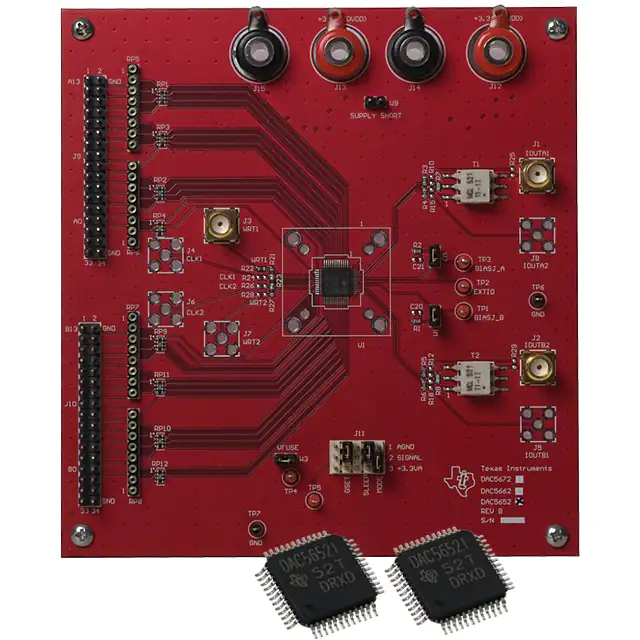

DAC5652EVMEVAL BOARD FOR DAC5652 |
3,691 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 10 | Parallel | 20 ns | Current | 275M | DAC5652 | Board(s) |
|

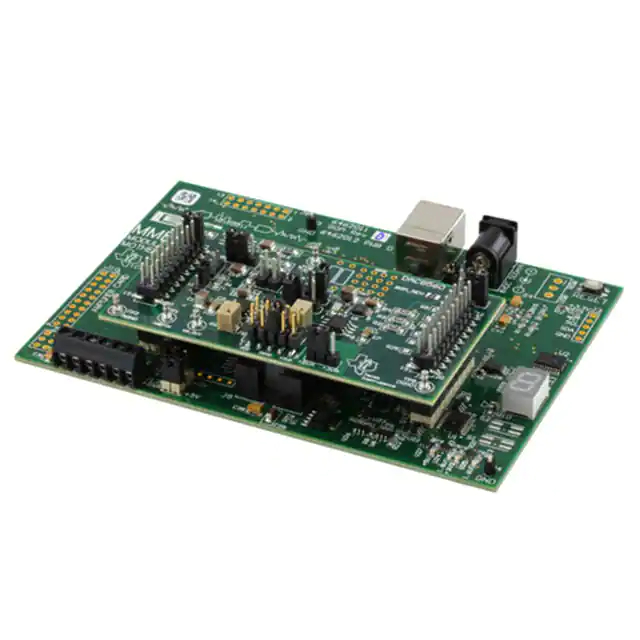

DAC8560EVM-PDKEVAL BOARD FOR DAC8560 |
3,961 |
|
Datasheet |
microPOWER™ | Box | Obsolete | 1 | 16 | SPI, DSP | 8 µs | Voltage | 225k | DAC8560 | Board(s) |
|

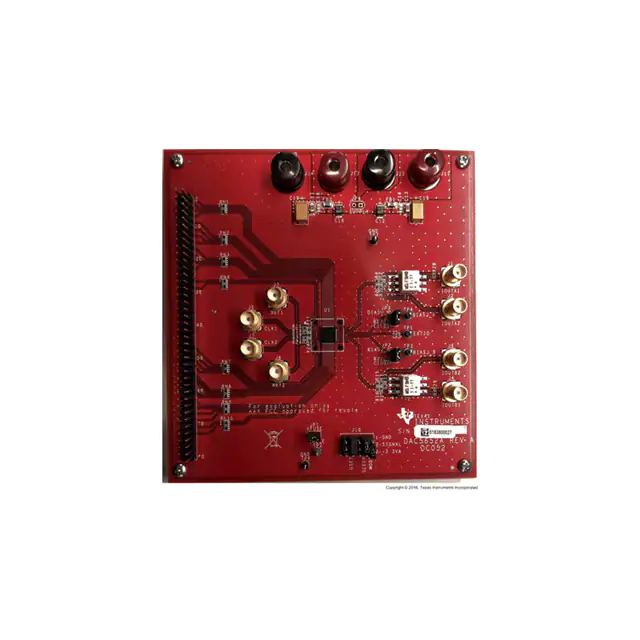

DAC5652AEVMEVAL BOARD FOR DAC5652A |
3,731 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 10 | Parallel | 20 ns | Current | 275M | DAC5652A | Board(s) |
|

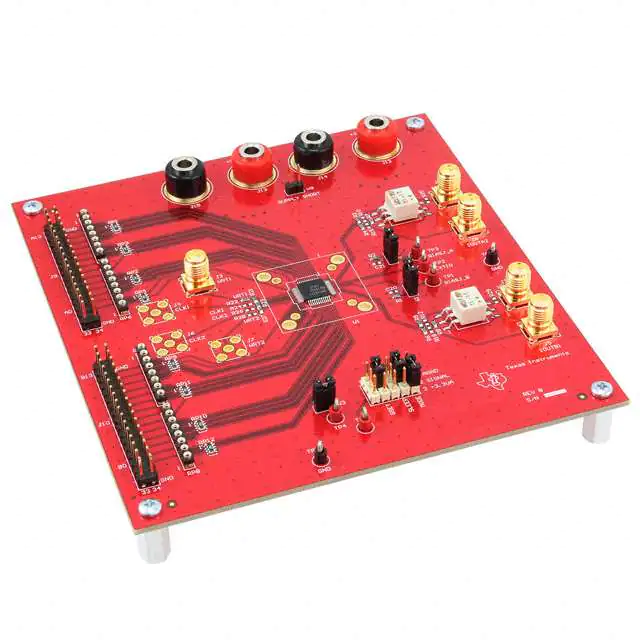

DAC5672EVMEVAL BOARD FOR DAC5672 |
1,462 |
|
Datasheet |
- | Box | Obsolete | 2 | 14 | Parallel | 20 ns | Current | 275M | DAC5672 | Board(s) |
|

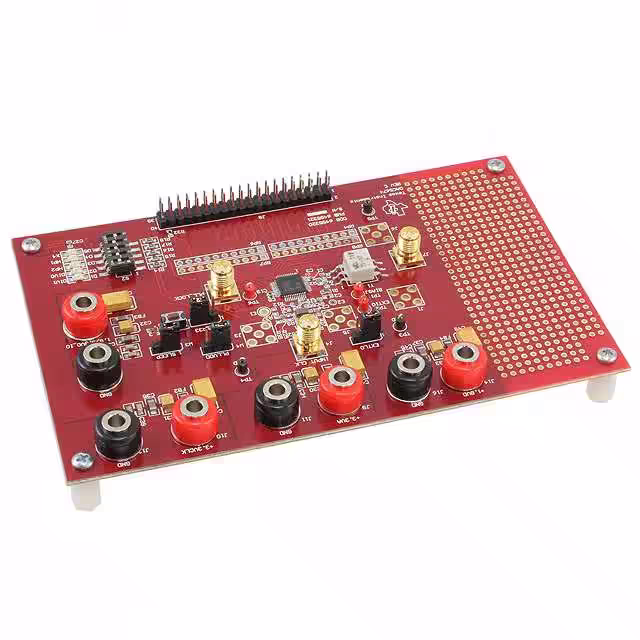

DAC5674EVMEVAL BOARD FOR DAC5674 |
4,623 |
|
Datasheet |
CommsDAC™ | Box | Obsolete | 1 | 14 | Parallel | 20 ns | Current | 400M | DAC5674 | Board(s) |
|

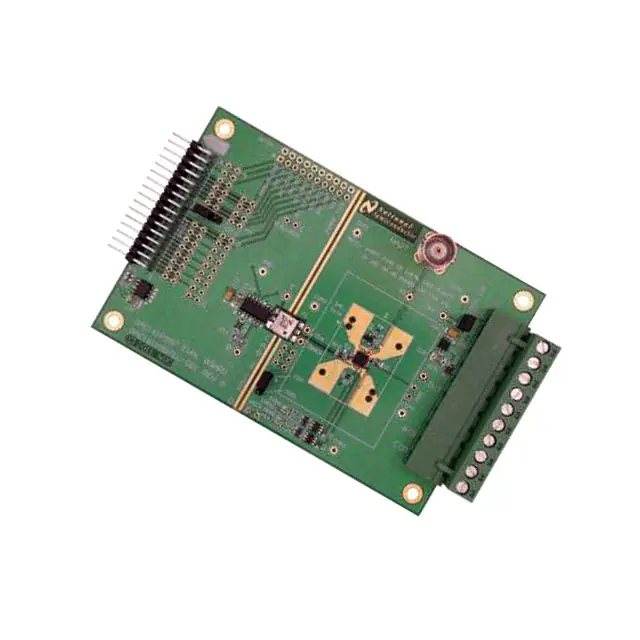

DAC161P997EVAL/NOPBEVAL BOARD FOR DAC161P997 |
1,730 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | Serial | - | Current | - | DAC161P997 | Board(s) |
|
|
DAC70508EVMEVAL BOARD FOR DAC70508 |
1,780 |
|
Datasheet |
- | Bulk | Obsolete | 8 | 14 | Serial, SPI | 5 µs | Voltage | - | DAC70508 | Board(s) |
|
|
MAX5661EVCMAXQU+EVAL BOARD FOR MAX5661 |
2,712 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial | - | Current/Voltage | - | MAX5661 | Board(s), Cable(s) |
|
|
MAX5889EVKIT#EVAL BOARD FOR MAX5889 |
3,220 |
|
Datasheet |
- | Box | Active | 1 | 12 | Parallel | 11 ns | Current | 600M | MAX5889 | Board(s) |
|
|
MAX5891EVKIT#EVAL BOARD FOR MAX5891 |
2,963 |
|
Datasheet |
- | Box | Active | 1 | 16 | Parallel | 11 ns | Current | 600M | MAX5891 | Board(s) |
|
|
MAX5886EVKIT#EVAL BOARD FOR MAX5886 |
4,157 |
|
Datasheet |
- | Box | Active | 1 | 12 | LVDS | 11 ns | Current | 500M | MAX5886 | Board(s) |
|
|
MAX5875EVKITEVAL BOARD FOR MAX5875 |
2,896 |
|
Datasheet |
- | Box | Active | 2 | 16 | CMOS | 14 ns | Current | 200M | MAX5875 | Board(s) |
|
|
MAX5874EVKITEVAL BOARD FOR MAX5874 |
1,010 |
|
Datasheet |
- | Box | Obsolete | 2 | 14 | CMOS | 14 ns | Current | 200M | MAX5874 | Board(s) |
|
|
MAX5535EVKIT+EVAL BOARD FOR MAX5535 |
3,360 |
|
Datasheet |
- | Box | Active | 2 | 12 | Serial | 660 µs | Voltage | - | MAX5535 | Board(s) |
