Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

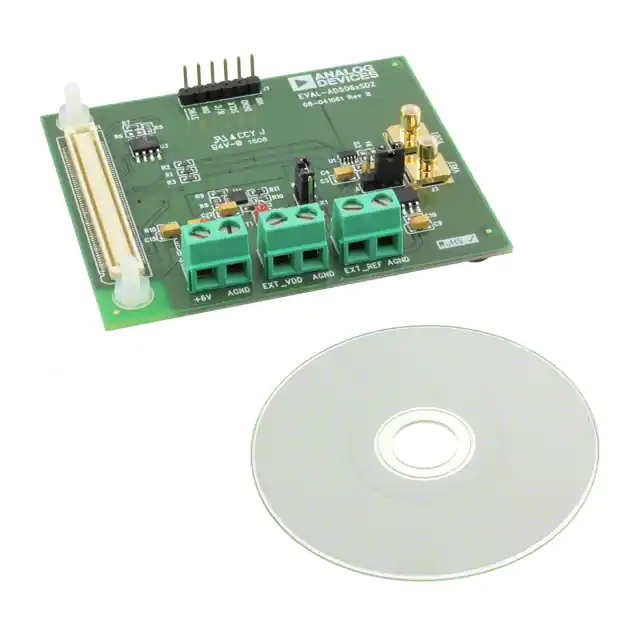

EVAL-AD5061SDZEVAL BOARD FOR AD5061 |
3,046 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 4 µs | Voltage | - | AD5061 | Board(s) |
|

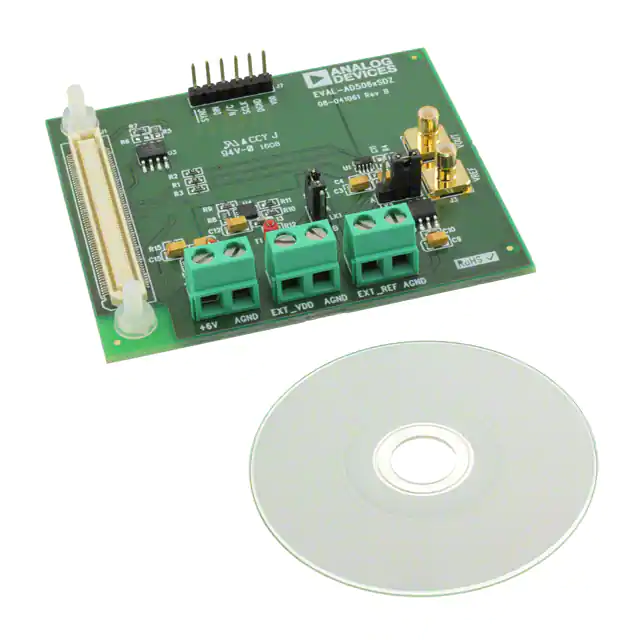

EVAL-AD5062SDZEVAL BOARD FOR AD5062 |
3,867 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 4 µs | Voltage | - | AD5062 | Board(s) |
|
EVAL-AD5451EBZEVAL BOARD FOR AD5451 |
1,200 |
|
Datasheet |
- | Box | Obsolete | 1 | 10 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | - | Current | 2.7M | AD5451 | Board(s) |
|
|
MAX5316EVKIT#EVAL BOARD FOR MAX5316 |
1,399 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 16 | SPI | 3 µs | Voltage | - | MAX5316 | Board(s) |
|

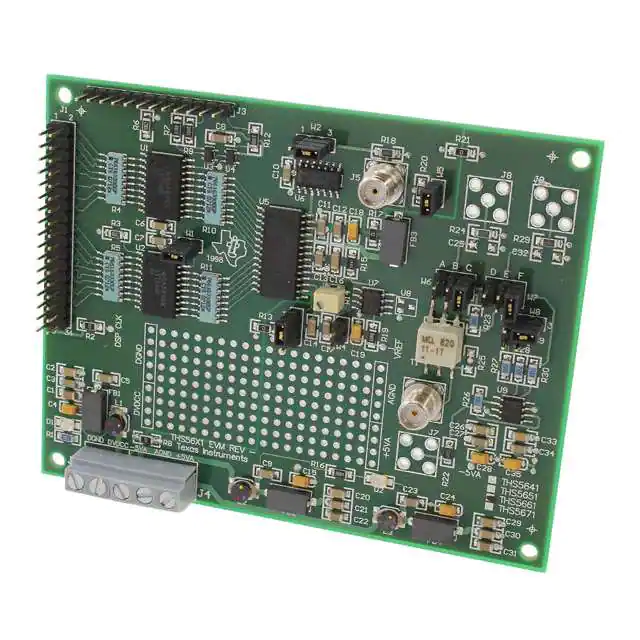

THS5661EVMEVAL BOARD FOR THS5661A |
4,499 |
|
Datasheet |
CommsDAC™ | Bulk | Obsolete | 1 | 12 | Parallel | 35 ns | Current | 125M | THS5661A | Board(s) |
|

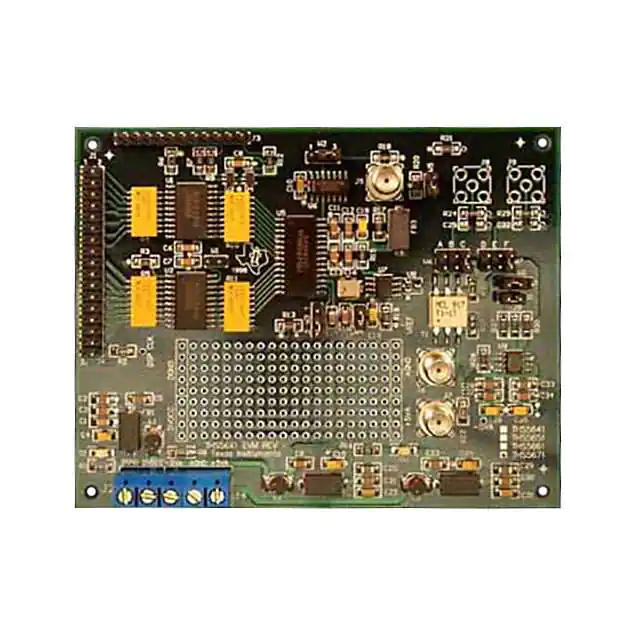

THS5651EVMEVAL BOARD FOR THS5651A |
2,394 |
|
Datasheet |
CommsDAC™ | Bulk | Obsolete | 1 | 10 | Parallel | 35 ns | Current | 125M | THS5651A | Board(s) |
|

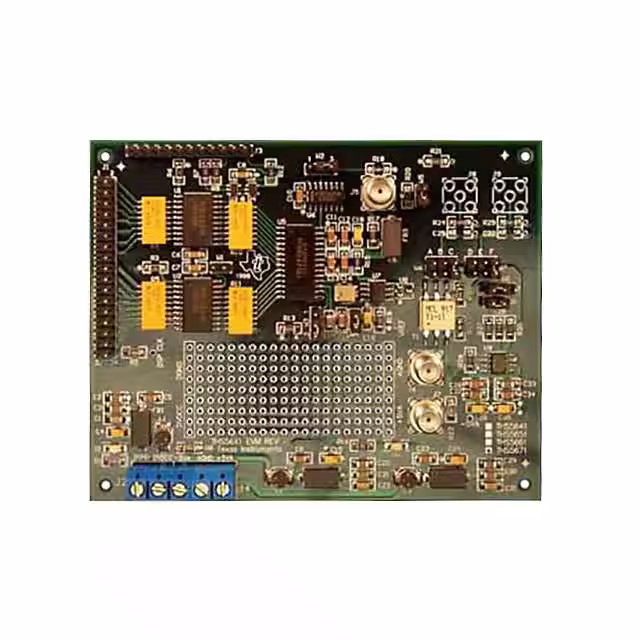

THS5671EVMEVAL BOARD FOR THS5671A |
2,775 |
|
Datasheet |
CommsDAC™ | Bulk | Obsolete | 1 | 14 | Parallel | 35 ns | Current | 125M | THS5671A | Board(s) |
|

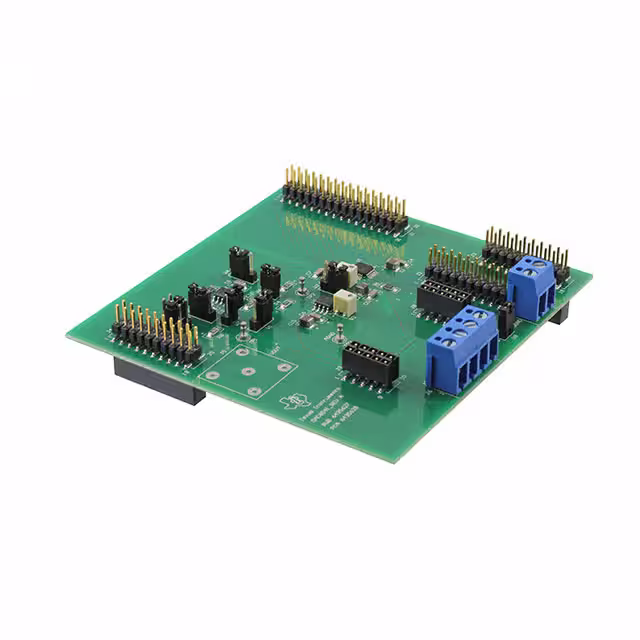

DAC8541EVMEVAL BOARD FOR DAC8541 |
1,695 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 16 | Parallel | 8 µs | Voltage | - | DAC8541 | Board(s) |
|

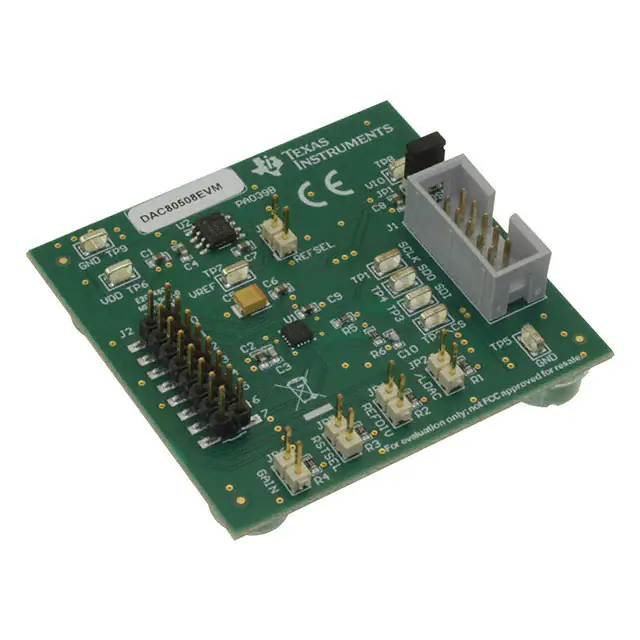

DAC80508EVMEVAL BOARD FOR DAC80508 |
3,148 |
|
Datasheet |
- | Bulk | Obsolete | 8 | 16 | Serial, SPI | 5 µs | Voltage | - | DAC80508 | Board(s) |
|

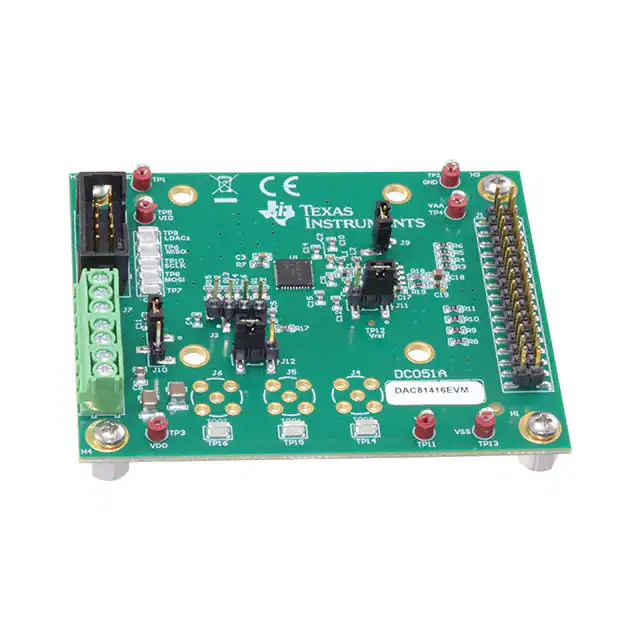

DAC81416EVMEVAL BOARD FOR DAC81416 |
1,654 |
|
Datasheet |
- | Bulk | Obsolete | 16 | 16 | Serial, SPI | 20 µs | Voltage | - | DAC81416 | Board(s) |
|
|
NV-NAU8402EVAL BOARD FOR NAU8402 |
1,829 |
|
Datasheet |
NuMicro® | Bulk | Active | 1 | 24 | I2C | - | Voltage | - | NAU8402 | Board(s) |
|
|
DAC081S101EVALEVAL BOARD FOR DAC081S101 |
3,183 |
|
Datasheet |
- | Box | Obsolete | 1 | 8 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 3 µs | Voltage | - | DAC081S101 | Board(s) |
|

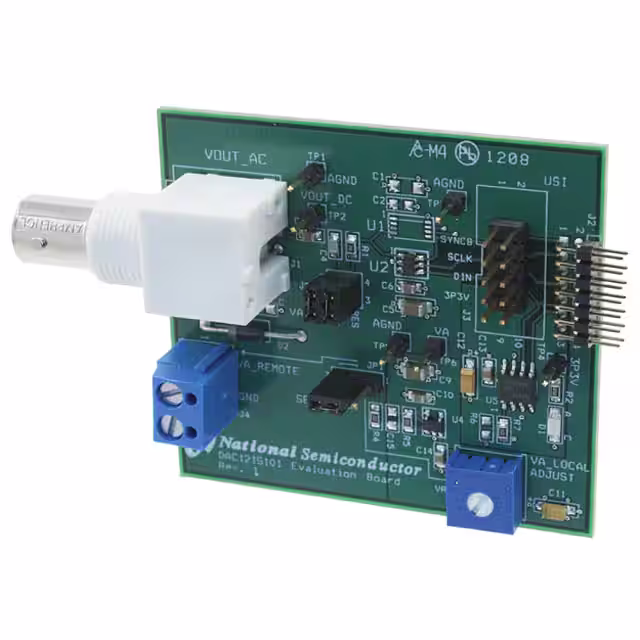

DAC121S101EVALEVAL BOARD FOR DAC121S101 |
1,430 |
|
Datasheet |
- | Box | Obsolete | 1 | 12 | Serial | 12 µs | Voltage | - | DAC121S101 | Board(s) |
|
|
MAX5110EVKIT+EVAL BOARD FOR MAX5110 |
4,599 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 14 | SPI | - | Current | - | MAX5110 | Board(s) |
|
|
EVAL-AD5452EBZEVAL BOARD FOR AD5452 |
1,708 |
|
Datasheet |
- | Box | Obsolete | 1 | 12 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | - | Current | 2.7M | AD5452 | Board(s) |
|
MAX5717EVKIT#EVAL BOARD FOR MAX5717 |
1,741 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | SPI | 750 ns | Voltage | - | MAX5717 | Board(s), Cable(s) |
|

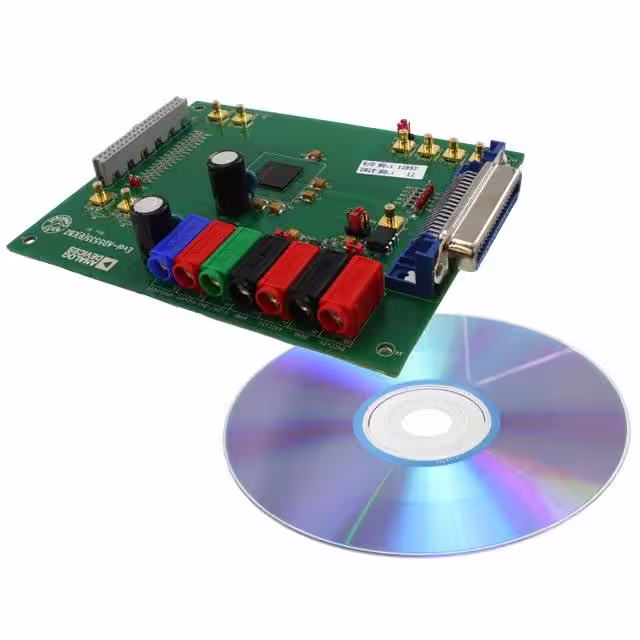

EVAL-AD5535EBZEVAL BOARD FOR AD5535 |
2,582 |
|
Datasheet |
- | Box | Obsolete | 32 | 14 | Serial | 65 µs | Voltage | 1.2M | AD5535 | Board(s) |
|

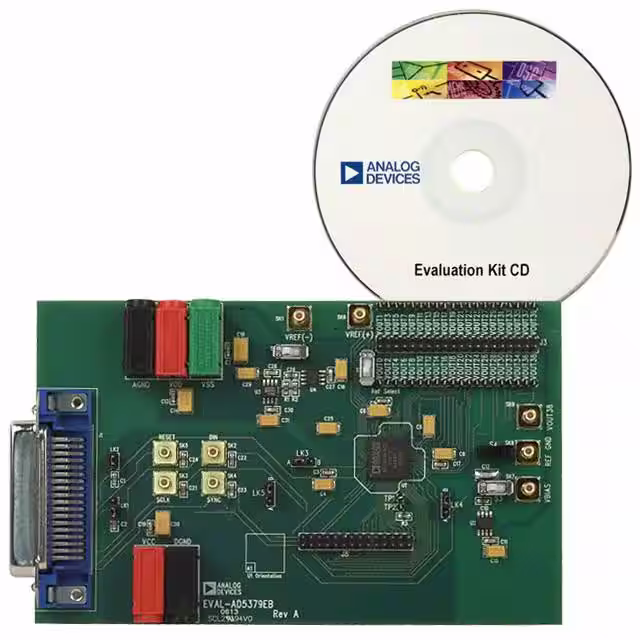

EVAL-AD5379EBZEVAL BOARD FOR AD5379 |
2,690 |
|
Datasheet |
- | Bulk | Obsolete | 40 | 14 | Serial, Parallel | 20 µs | Voltage | 50k | AD5379 | Board(s) |
|
|
EVAL-AD5532EBZEVAL BOARD FOR AD5532 |
4,701 |
|
Datasheet |
- | Box | Obsolete | 32 | 14 | Serial | 22 µs | Voltage | 45k | AD5532 | Board(s) |
|

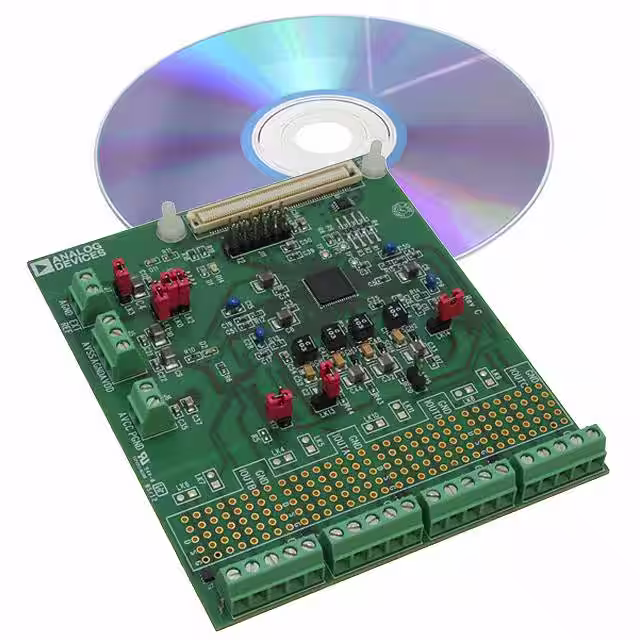

EVAL-AD5757SDZEVAL BOARD FOR AD5757 |
2,437 |
|
Datasheet |
- | Box | Obsolete | 4 | 16 | Serial | 15 µs | Current | - | AD5757 | Board(s) |
