Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

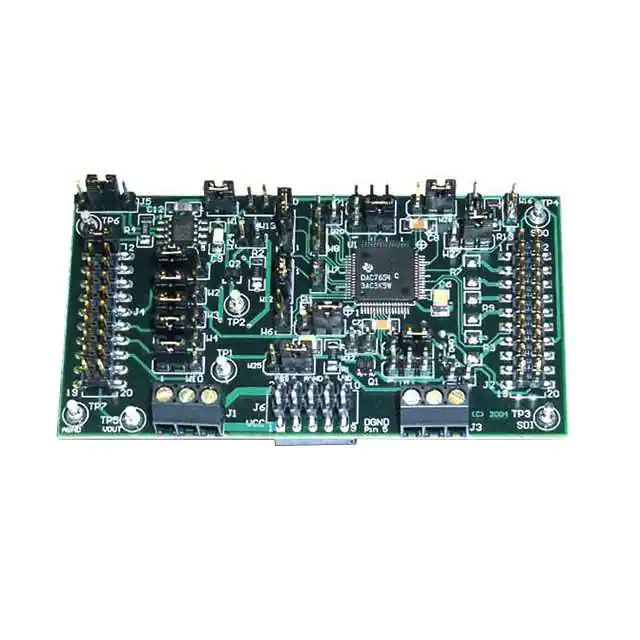

DAC7654EVMEVAL BOARD FOR DAC7654 |
1,927 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 16 | Serial | 12 µs | Voltage | - | DAC7654 | Board(s) |
|

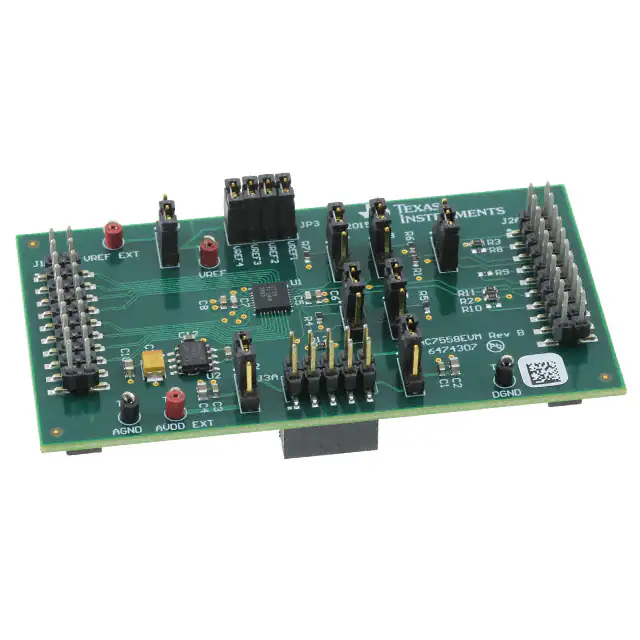

DAC7558EVMEVAL BOARD FOR DAC7558 |
2,721 |
|
Datasheet |
- | Box | Obsolete | 8 | 12 | MICROWIRE™, QSPI™, Serial, SPI™ | 5 µs | Voltage | 200k | DAC7558 | Board(s) |
|

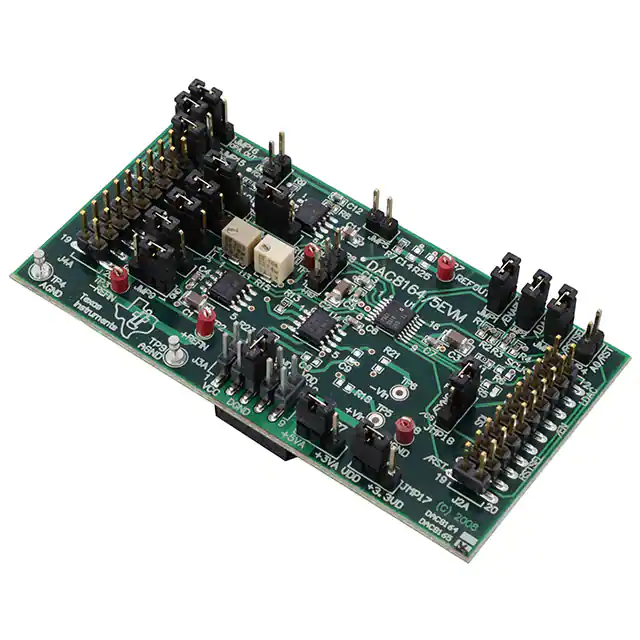

DAC8165EVMEVAL BOARD FOR DAC8165 |
2,822 |
|
Datasheet |
- | Box | Obsolete | 4 | 14 | Serial | 8 µs | Voltage | - | DAC8165 | Board(s) |
|

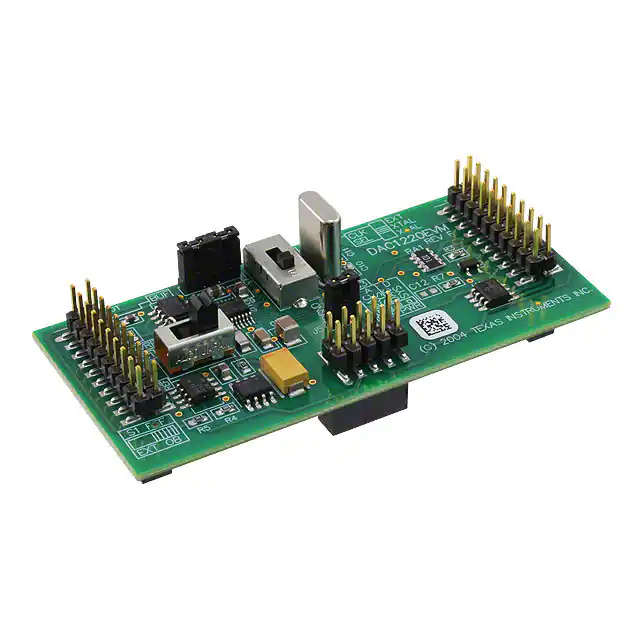

DAC1220EVMEVAL BOARD FOR DAC1220 |
1,157 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 20 | I2C, SPI | 1.8 ms | Voltage | - | DAC1220 | Board(s) |
|

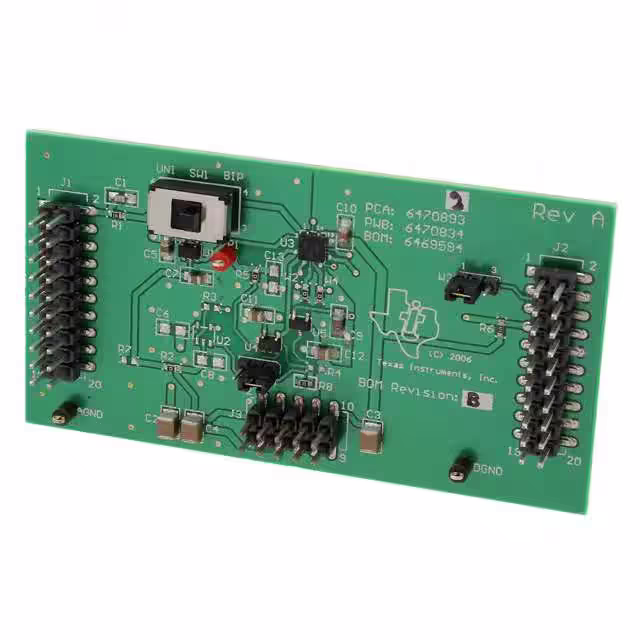

DAC8832EVMEVAL BOARD FOR DAC8832 |
4,574 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | SPI | 1 µs | Voltage | 50M | DAC8832 | Board(s) |
|

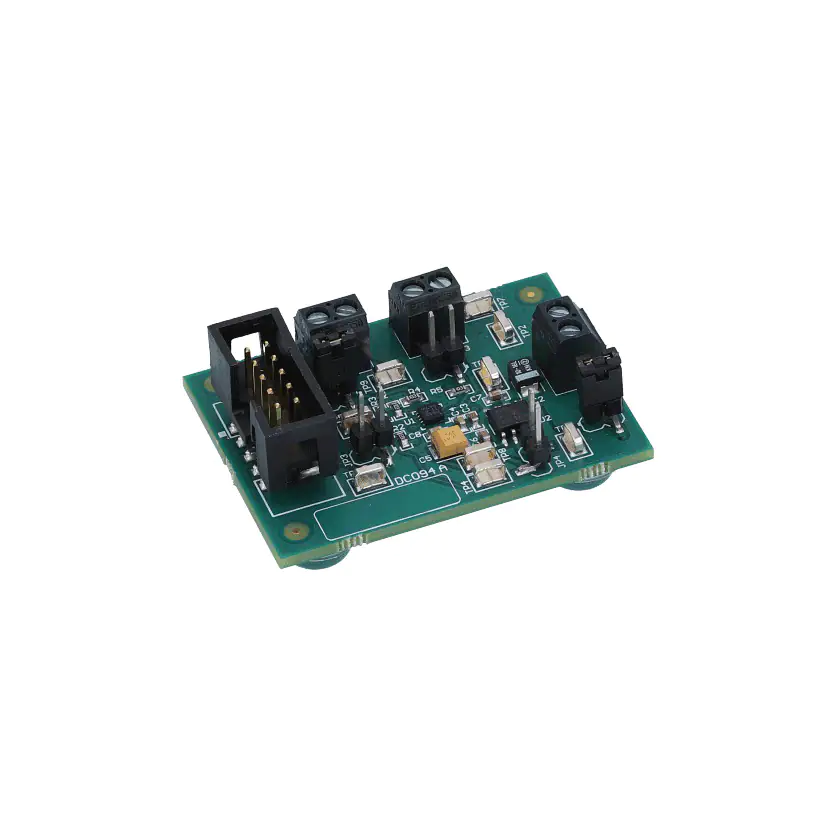

DAC80502EVMEVAL BOARD FOR DAC80502 |
2,398 |
|
Datasheet |
- | Box | Obsolete | 2 | 16 | I2C, Serial, SPI | 5 µs | Voltage | - | DAC80502 | Board(s) |
|

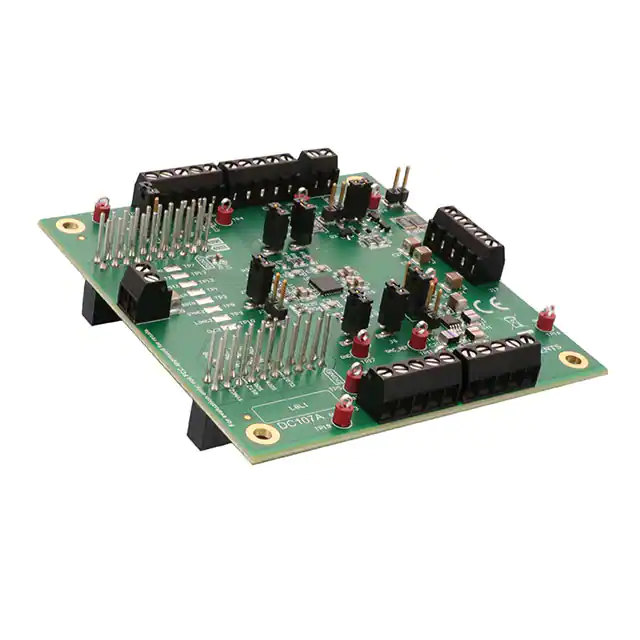

BP-DAC81404EVMEVAL BOARD FOR DAC81404 |
1,272 |
|
Datasheet |
- | Box | Obsolete | 4 | 16 | Serial, SPI | - | Voltage | - | DAC81404 | Board(s) |
|
ADM00317EVAL BOARD FOR MCP4706 MCP4716 |
2,164 |
|
Datasheet |
- | Bulk | Active | 3 | 8, 10, 12 | - | 6 µs | Voltage | - | MCP4706, MCP4716, MCP4726 | Board(s) |
|
EVAL-AD5338RDBZEVAL BOARD FOR AD5338R |
2,004 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 10 | I2C, Serial | 5 µs | Voltage | - | AD5338R | Board(s) |
|

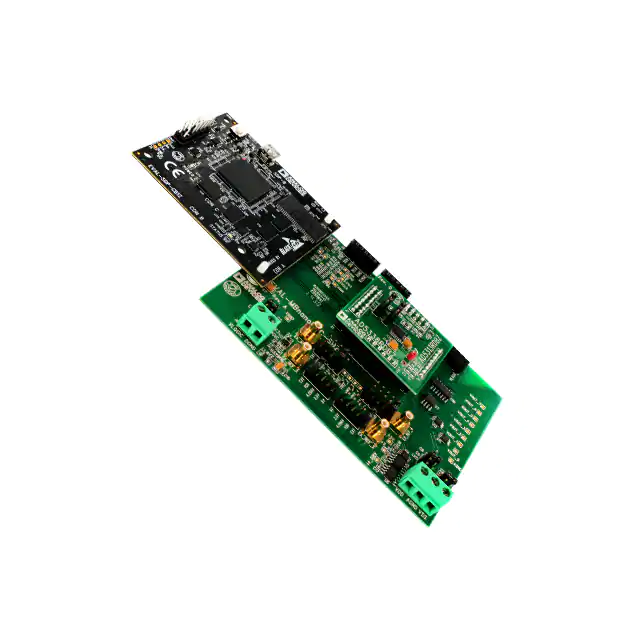

EVAL-AD5325DBZEVAL BOARD FOR AD5325 |
2,530 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 12 | I2C, Serial | 8 µs | Voltage | - | AD5325 | Board(s) |
|
|
EVAL-AD5326DBZEVAL BOARD FOR AD5326 |
1,637 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 12 | I2C, Serial | 8 µs | Voltage | - | AD5326 | Board(s) |
|

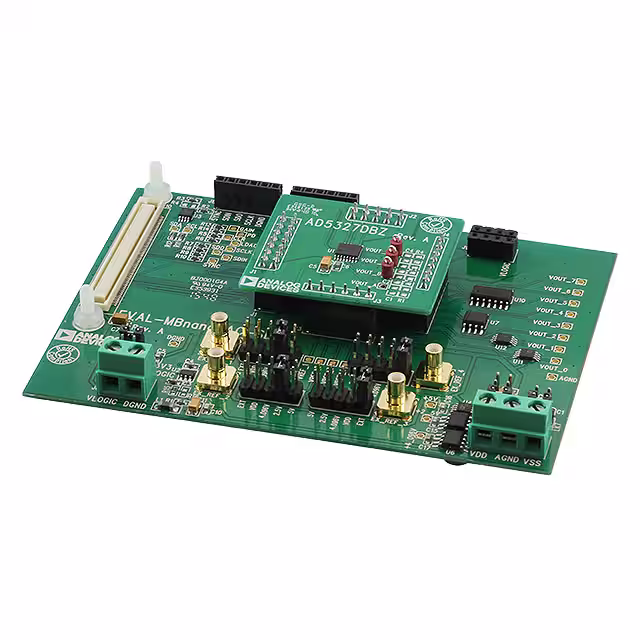

EVAL-AD5327DBZEVAL BOARD FOR AD5327 |
3,596 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 12 | Serial, SPI | 8 µs | Voltage | - | AD5327 | Board(s) |
|

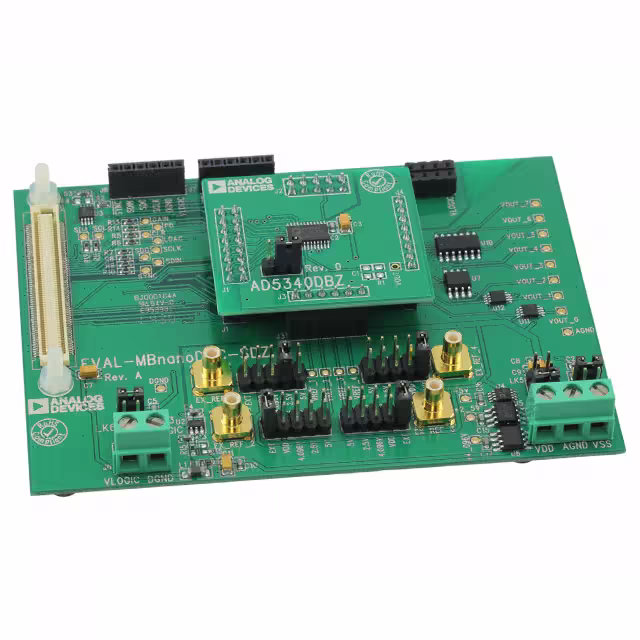

EVAL-AD5340DBZEVAL BOARD FOR AD5340 |
4,071 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 12 | Parallel | 8 µs | Voltage | - | AD5340 | Board(s) |
|

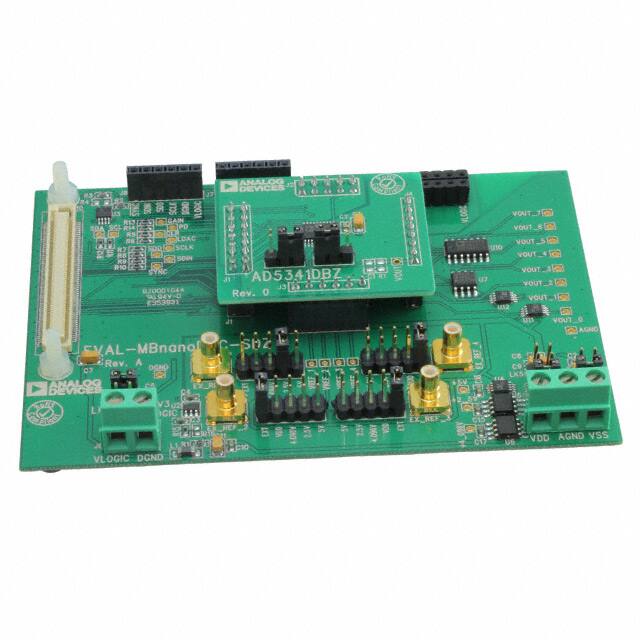

EVAL-AD5341DBZEVAL BOARD FOR AD5341 |
4,569 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 12 | Parallel | 8 µs | Voltage | - | AD5341 | Board(s) |
|

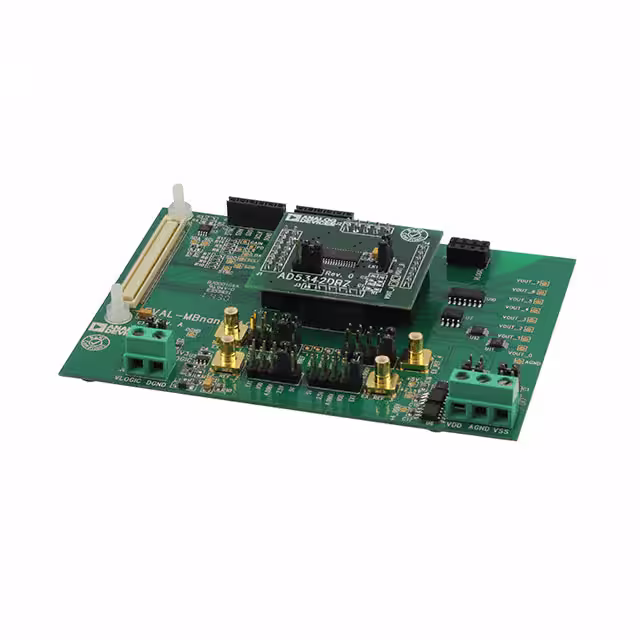

EVAL-AD5342DBZEVAL BOARD FOR AD5342 |
1,629 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 12 | Parallel | 8 µs | Voltage | - | AD5342 | Board(s) |
|

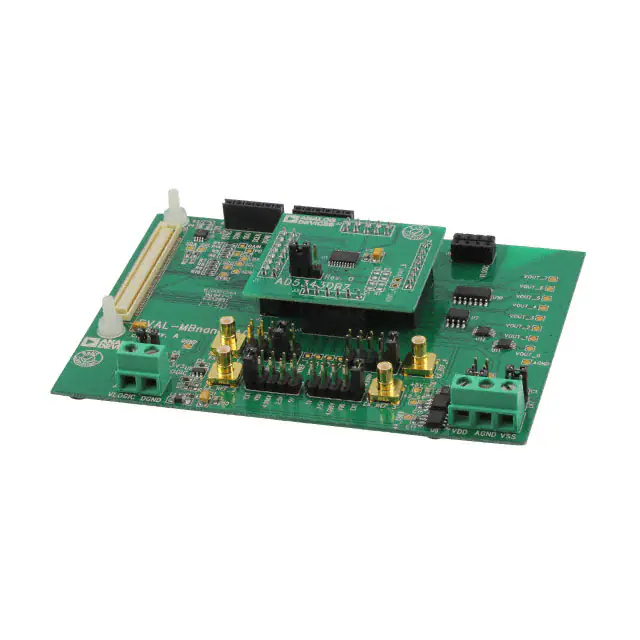

EVAL-AD5343DBZEVAL BOARD FOR AD5343 |
1,441 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 12 | Parallel | 8 µs | Voltage | - | AD5343 | Board(s) |
|

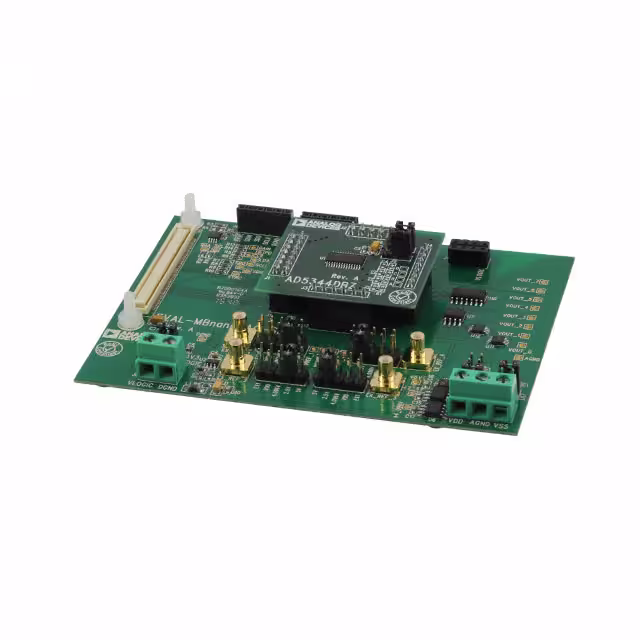

EVAL-AD5344DBZEVAL BOARD FOR AD5344 |
1,320 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 12 | Parallel | 8 µs | Voltage | - | AD5344 | Board(s) |
|

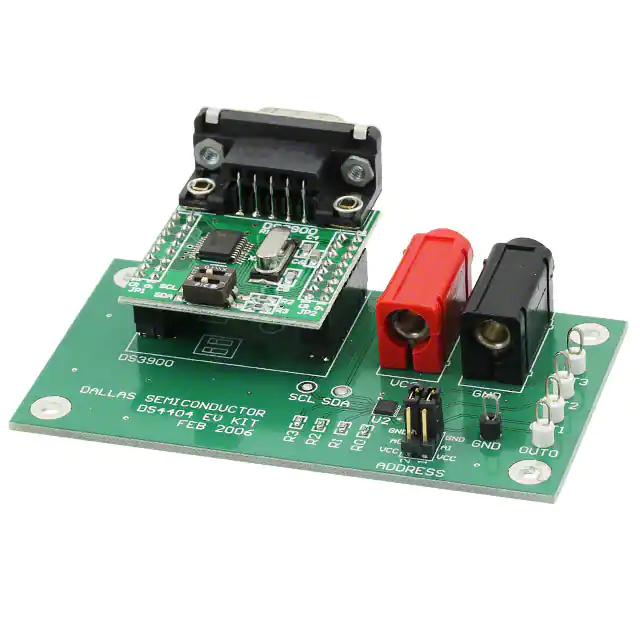

DS4404KEVAL BOARD FOR DS4404 |
1,274 |
|
Datasheet |
- | Box | Obsolete | 4 | 5 | I2C | - | Current | - | DS4404 | Board(s) |
|
|
MAX5815AEVKIT#EVAL BOARD FOR MAX5815A |
1,414 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C | 4.5 µs | - | 400k | MAX5815A | Board(s), Cable(s) |
|

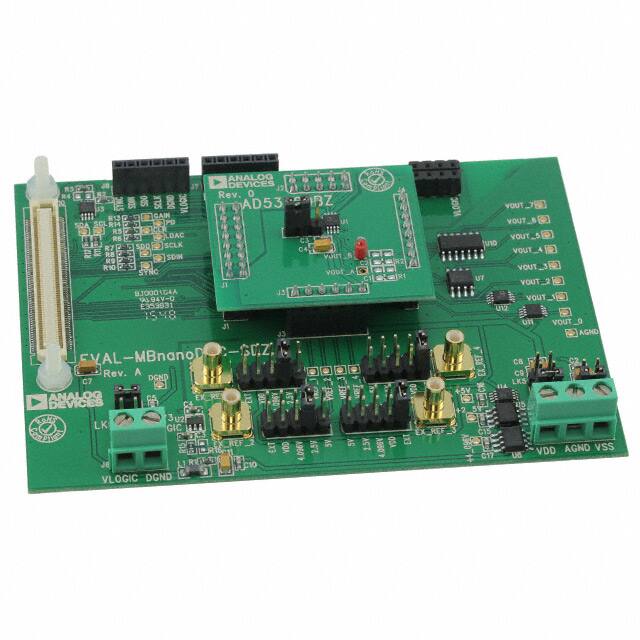

EVAL-AD5339DBZEVAL BOARD FOR AD5339 |
2,247 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 12 | I2C, Serial | 8 µs | Voltage | - | AD5339 | Board(s) |
