Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

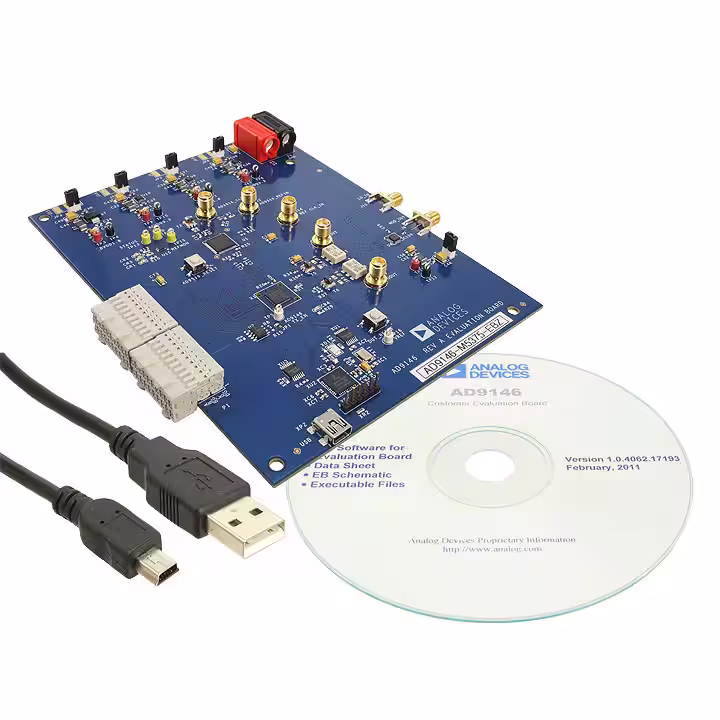

AD9146-M5375-EBZEVAL BOARD FOR AD9146 ADL5375 |
1,937 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 16 | Serial | 20 ns | Current | 1G | AD9146, ADL5375 | Board(s) |
|

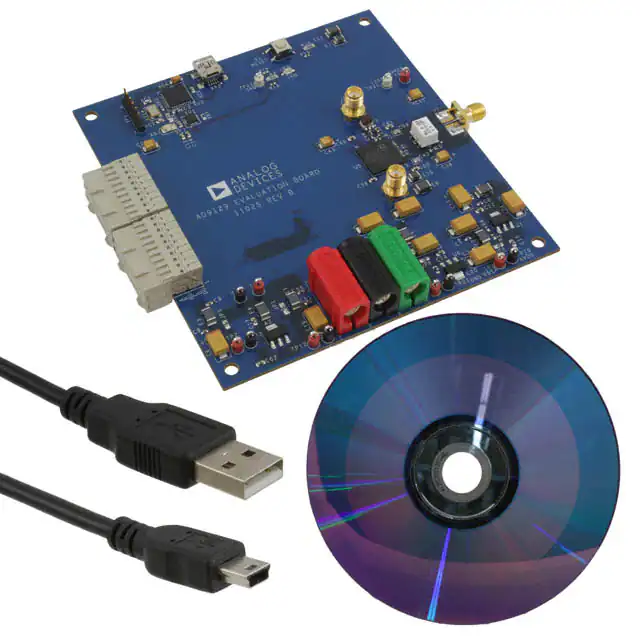

AD9129-EBZEVAL BOARD FOR AD9129 |
1,779 |
|
Datasheet |
- | Box | Active | 1 | 14 | SPI | 13 ns | Current | 2.8G | AD9129 | Board(s) |
|

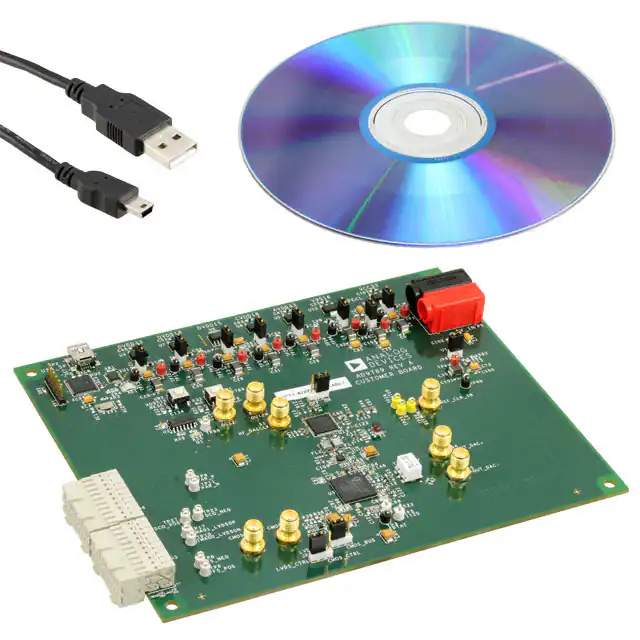

AD9789-EBZEVAL BOARD FOR AD9789 |
2,084 |
|
Datasheet |
- | Box | Active | 4 | 14 | SPI | 13 ns | Voltage | 2.4G | AD9789 | Board(s), Cable(s) |
|

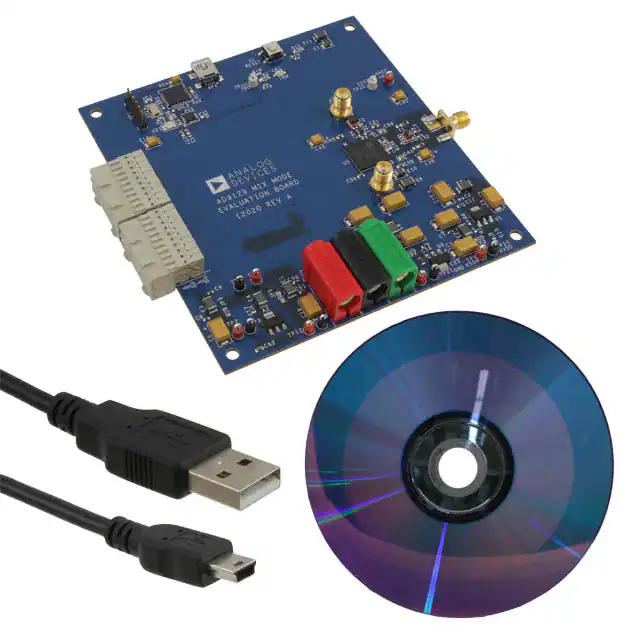

AD9129-MIX-EBZEVAL BOARD FOR AD9129 |
4,084 |
|
Datasheet |
- | Box | Active | 1 | 14 | SPI | 13 ns | Current | 2.8G | AD9129 | Board(s) |
|
AD9707-DPG2-EBZEVAL BOARD FOR AD9707 |
1,168 |
|
Datasheet |
TxDAC® | Bulk | Active | 1 | 14 | Parallel | 11 ns | Current | 175M | AD9707 | Board(s), Cable(s) |
|
AD9164-FMCB-EBZEVAL BOARD FOR AD9164 |
4,113 |
|
Datasheet |
- | Bulk | Active | 1 | 16 | JESD204B Serial | - | Current | 12G | AD9164 | Board(s) |
|

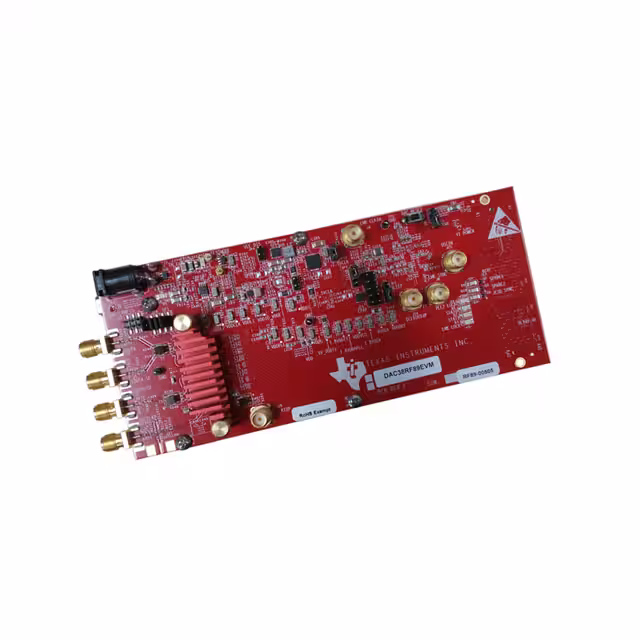

DAC38RF89EVMEVAL BOARD FOR DAC38RF89 |
4,591 |
|
Datasheet |
- | Bulk | Active | 2 | 14 | JESD204B | 1 ns | Voltage | 9G | DAC38RF89 | Board(s) |
|

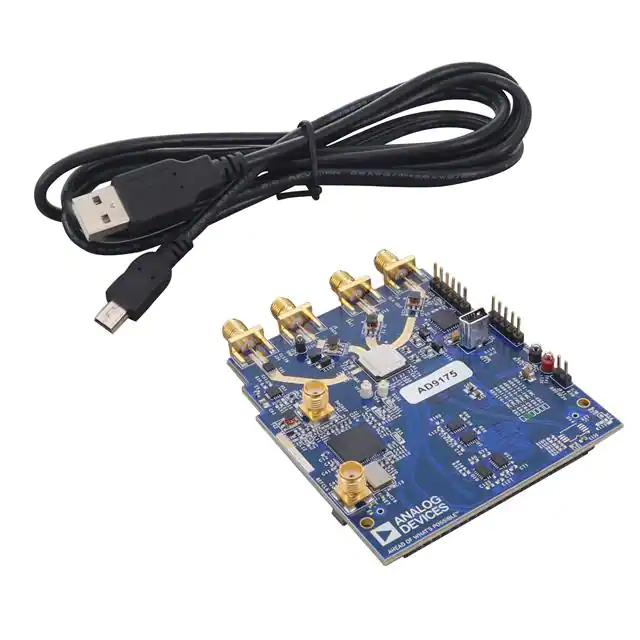

AD9175-FMC-EBZEVAL BOARD FOR AD9175 |
1,720 |
|
Datasheet |
- | Bulk | Active | 2 | 16 | JESD204B Serial | - | Current/Voltage | 12.6G | AD9175 | Board(s) |
|

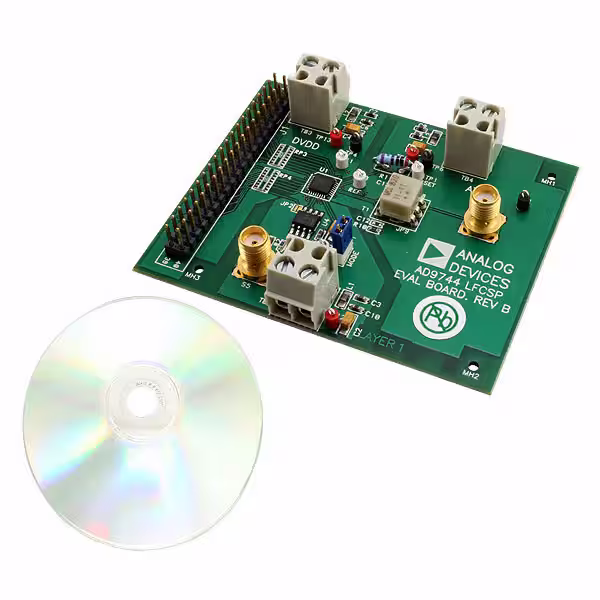

AD9742ACP-PCBZEVAL BOARD FOR AD9742 |
3,259 |
|
Datasheet |
TxDAC® | Box | Active | 1 | 12 | Parallel | 11 ns | Current | 210M | AD9742 | Board(s) |
|

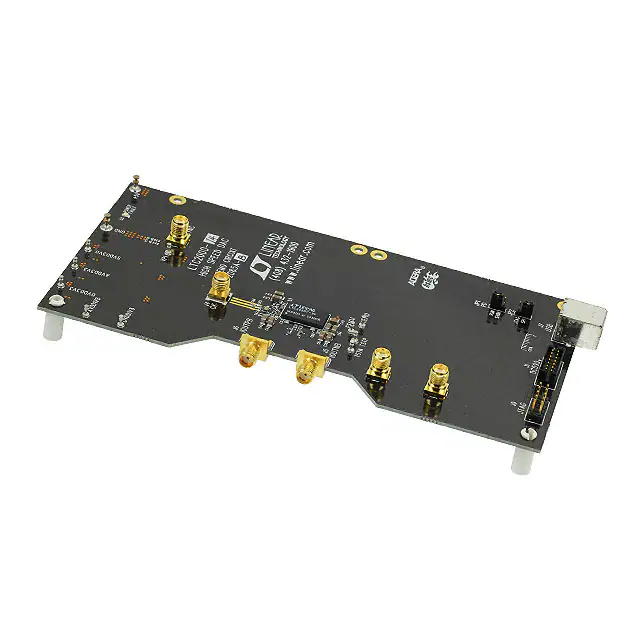

DC2085A-BEVAL BOARD FOR LTC2000-14 |
2,136 |
|
Datasheet |
- | Box | Active | 1 | 14 | LVDS - Serial, SPI | 2.2 ns | Current | 2.5G | LTC2000-14 | Board(s) |
|

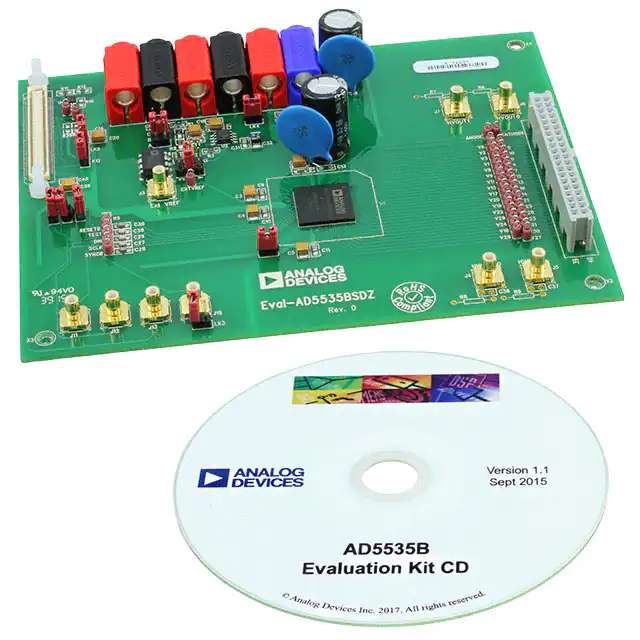

EVAL-AD5535BSDZEVAL BOARD FOR AD5535B |
3,906 |
|
Datasheet |
denseDAC | Box | Active | 32 | 14 | Serial | 60 µs | Voltage | 1.2M | AD5535B | Board(s) |
|

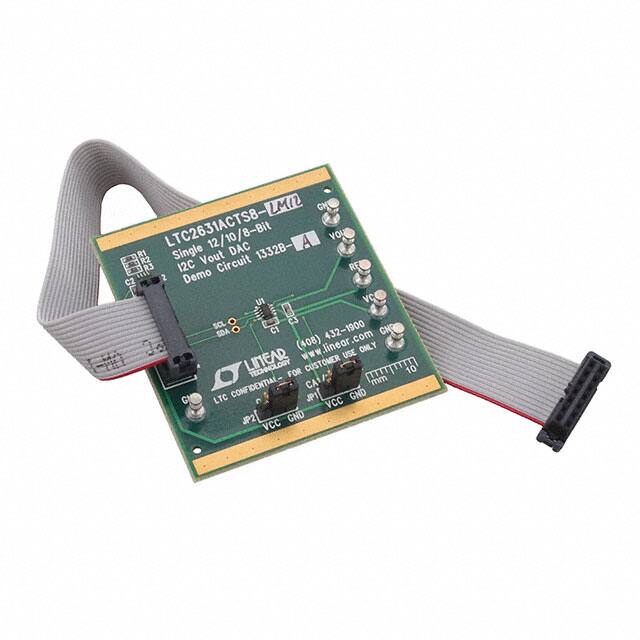

DC1332B-AEVAL BOARD FOR LTC2631-12 |
2,449 |
|
Datasheet |
- | Box | Active | 1 | 12 | I2C | 4.1 µs | Voltage | - | LTC2631-12 | Board(s) |
|
DC1333A-CEVAL BOARD FOR LTC2640-12 |
4,119 |
|
Datasheet |
- | Box | Active | 1 | 12 | MICROWIRE™, Serial, SPI™ | 4.1 µs | Voltage | - | LTC2640-12 | Board(s) |
|
|
DC1333A-AEVAL BOARD FOR LTC2640-12 |
1,472 |
|
Datasheet |
- | Box | Active | 1 | 12 | MICROWIRE™, Serial, SPI™ | 4.1 µs | Voltage | - | LTC2640-12 | Board(s) |
|
DC1534A-AEVAL BOARD FOR LTC2637-12 |
3,014 |
|
Datasheet |
- | Box | Active | 8 | 12 | I2C | 4.5 µs | Voltage | - | LTC2637-12 | Board(s) |
|
EVAL-AD5320DBZEVAL BOARD FOR AD5320 |
1,653 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 12 | Serial, SPI | 8 µs | Voltage | - | AD5320 | Board(s) |
|
DC1678A-CEVAL BOARD FOR LTC2654-12 |
2,227 |
|
Datasheet |
- | Box | Active | 4 | 12 | MICROWIRE™, Serial, SPI™ | 8.9 µs | Voltage | - | LTC2654-12 | Board(s) |
|
AFE882H1EVMEVAL BOARD FOR AFE882H1 |
1,174 |
|
Datasheet |
- | Bulk | Active | 1 | 16 | SPI, UART | - | Voltage | - | AFE882H1 | Board(s), Cable(s) |
|
|
DAC81416-08EVMEVAL BOARD FOR DAC81416 |
2,192 |
|
Datasheet |
- | Box | Active | 16 | 16 | Serial, SPI | 12 µs | Voltage | - | DAC81416 | Board(s), Cable(s) |
|
AD9744ACP-PCBZEVAL BOARD FOR AD9744 |
3,879 |
|
Datasheet |
TxDAC® | Box | Obsolete | 1 | 14 | Parallel | 11 ns | Current | 210M | AD9744 | Board(s) |
