Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2085A-FEVAL BOARD FOR LTC2000A-11 |
2,436 |
|
Datasheet |
- | Box | Active | 1 | 11 | LVDS - Serial, SPI | 2.2 ns | Current | 2.7G | LTC2000A-11 | Board(s) |
|
|
DC2085A-EEVAL BOARD FOR LTC2000A-14 |
4,604 |
|
Datasheet |
- | Box | Active | 1 | 14 | LVDS - Serial, SPI | 2.2 ns | Current | 2.7G | LTC2000A-14 | Board(s) |
|

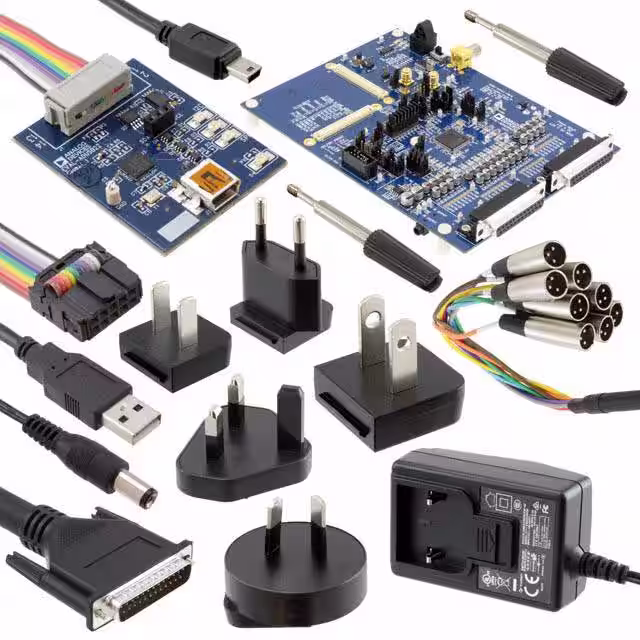

EVAL-ADAU1966ZEVAL BOARD FOR ADAU1966 |
2,039 |
|
Datasheet |
- | Box | Active | 16 | 24 | I2C, Serial, SPI | - | Voltage | 192k | ADAU1966 | Board(s) |
|
EVAL-ADAU1962AZEVAL BOARD FOR ADAU1962A |
1,557 |
|
Datasheet |
- | Box | Active | 12 | 24 | I2C, Serial, SPI | - | Voltage | 192k | ADAU1962A | Board(s), Cable(s), Power Supply |
|

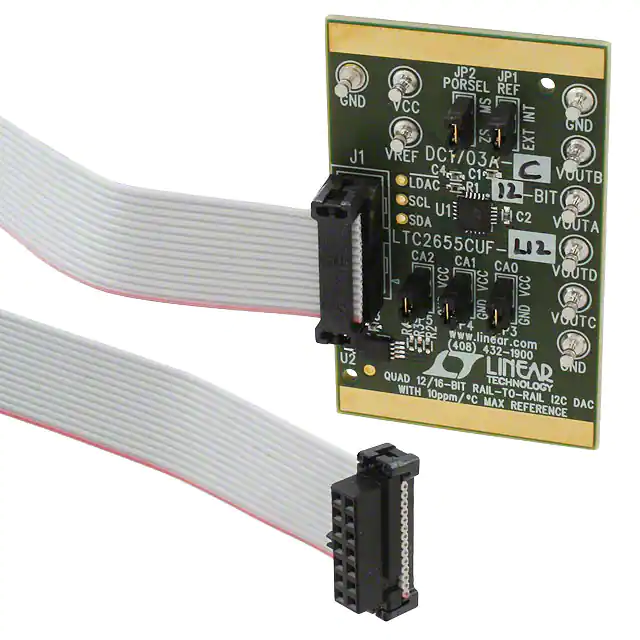

DC1703A-CEVAL BOARD FOR LTC2655-12 |
4,668 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C, Serial | 9.1 µs | Voltage | - | LTC2655-12 | Board(s) |
|

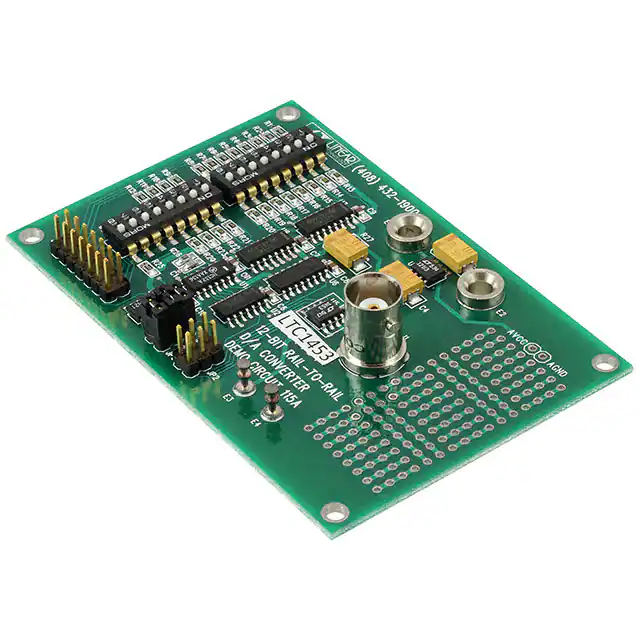

DC115A-AEVAL BOARD FOR LTC1453 |
1,669 |
|
Datasheet |
- | Box | Active | 1 | 12 | Serial | 14 µs | Voltage | - | LTC1453 | Board(s) |
|

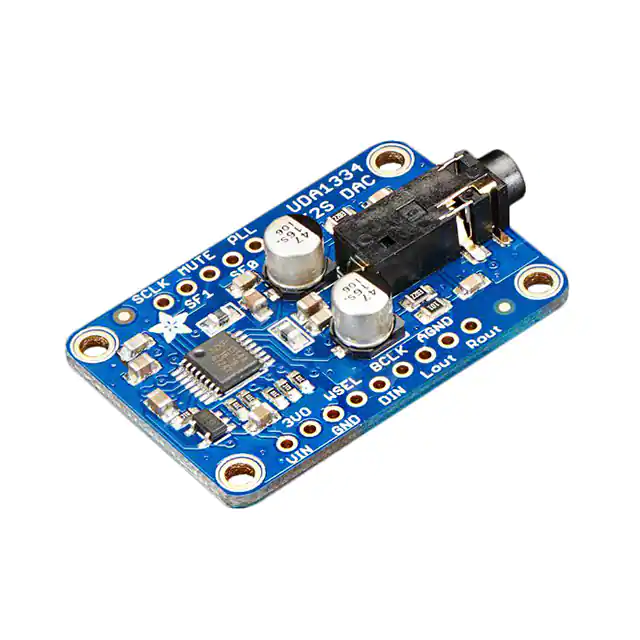

3678EVAL BOARD FOR UDA1334A |
1,341 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 16, 20, 24 | I2S | - | - | - | UDA1334A | Board(s) |
|

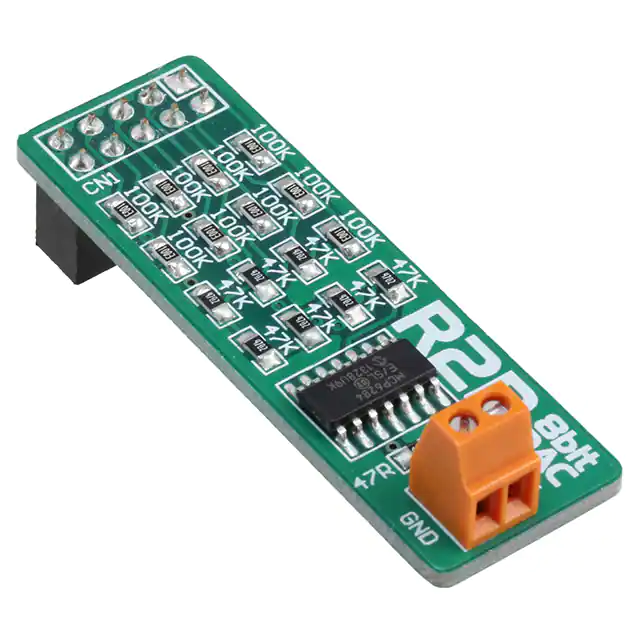

MIKROE-391EVAL BOARD FOR MCP6284 |
4,700 |
|
Datasheet |
- | Bulk | Active | 1 | 8 | Parallel | - | - | - | MCP6284 | Board(s) |
|
MAX5825PMB1#EVAL BOARD FOR MAX5825 |
2,479 |
|
Datasheet |
- | Bulk | Obsolete | 8 | 12 | I2C, Serial | 4.5 µs | Voltage | - | MAX5825 | Board(s) |
|

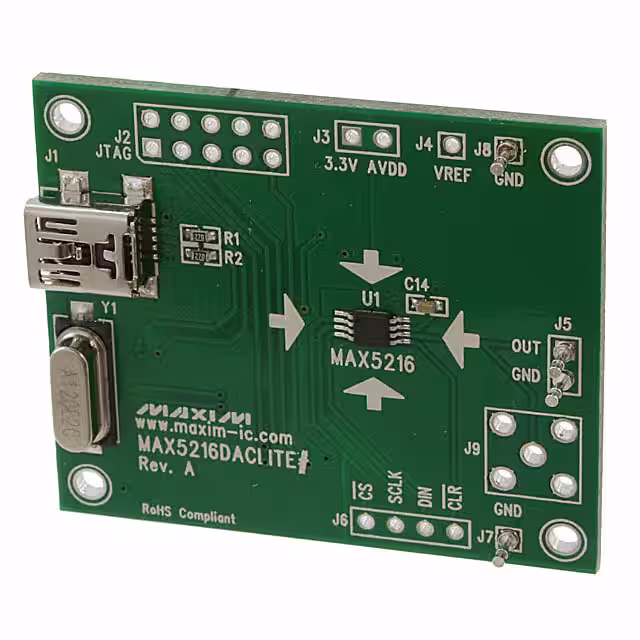

MAX5216DACLITE#EVAL BOARD FOR MAX5216 |
1,295 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 14 µs | Voltage | - | MAX5216 | Board(s) |
|
DC1332A-CEVAL BOARD FOR LTC2631-12 |
2,037 |
|
Datasheet |
- | Box | Obsolete | 1 | 12 | I2C | 4.1 µs | Voltage | - | LTC2631-12 | Board(s) |
|

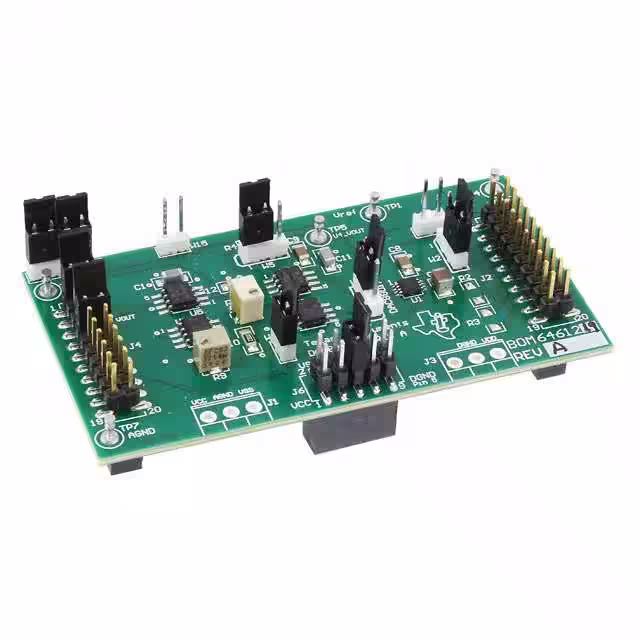

DAC8801EVMEVAL BOARD FOR DAC8801 |
1,302 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 14 | Serial | 300 ns | Current | - | DAC8801 | Board(s) |
|
DAC8164EVMEVAL BOARD FOR DAC8164 |
3,398 |
|
Datasheet |
- | Box | Obsolete | 4 | 14 | Serial | 8 µs | Voltage | - | DAC8164 | Board(s) |
|
|
DAC5574EVMEVAL BOARD FOR DAC5574 |
4,086 |
|
Datasheet |
- | - | Obsolete | 4 | 8 | I2C | 6 µs | Voltage | 188k | DAC5574 | Board(s) |
|
|
DAC7731EVMEVAL BOARD FOR DAC7731 |
1,236 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 16 | SPI | 3 µs | Voltage | - | DAC7731 | Board(s) |
|
|
DAC8580EVMEVAL BOARD FOR DAC8580 |
4,921 |
|
Datasheet |
- | Tape & Box (TB) | Obsolete | 1 | 16 | Serial | 350 ns | Voltage | 1M | DAC8580 | Board(s) |
|

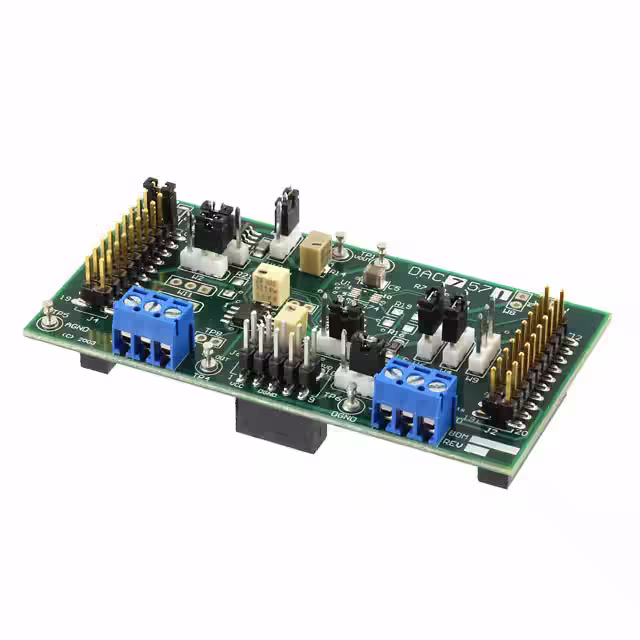

DAC7571EVMEVAL BOARD FOR DAC7571 |
3,901 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 12 | I2C | 8 µs | Voltage | - | DAC7571 | Board(s) |
|
DAC8571EVMEVAL BOARD FOR DAC8571 |
3,739 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 16 | I2C | 8 µs | Voltage | 52k | DAC8571 | Board(s) |
|
DAC6573EVMEVAL BOARD FOR DAC6573 |
1,993 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 10 | I2C | 7 µs | Voltage | 188k | DAC6573 | Board(s) |
|

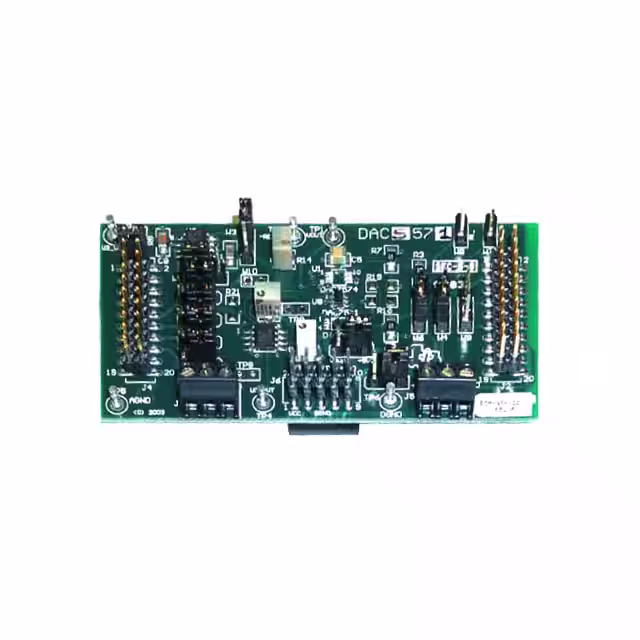

DAC5571EVMEVAL BOARD FOR DAC5571 |
1,750 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 8 | I2C | 6 µs | Voltage | 188k | DAC5571 | Board(s) |
