Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

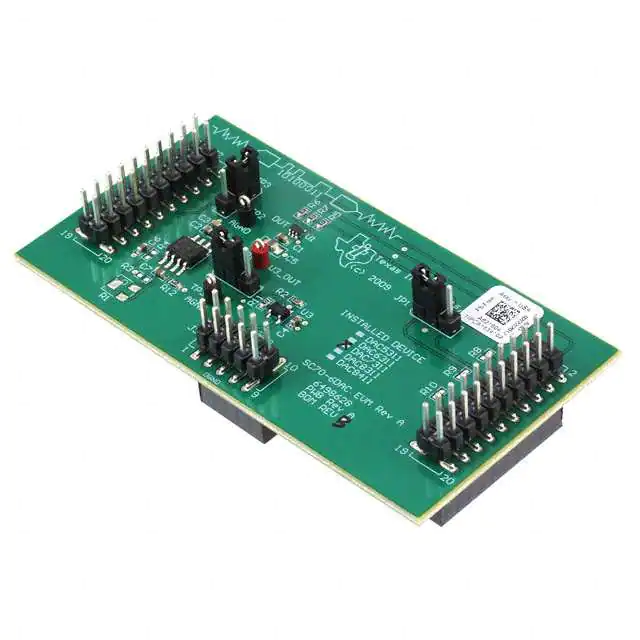

DAC7311EVMEVAL BOARD FOR DAC7311 |
1,227 |
|
Datasheet |
- | Box | Active | 1 | 12 | MICROWIRE™, QSPI™, Serial, SPI™ | 12 µs | Voltage | - | DAC7311 | Board(s) |
|

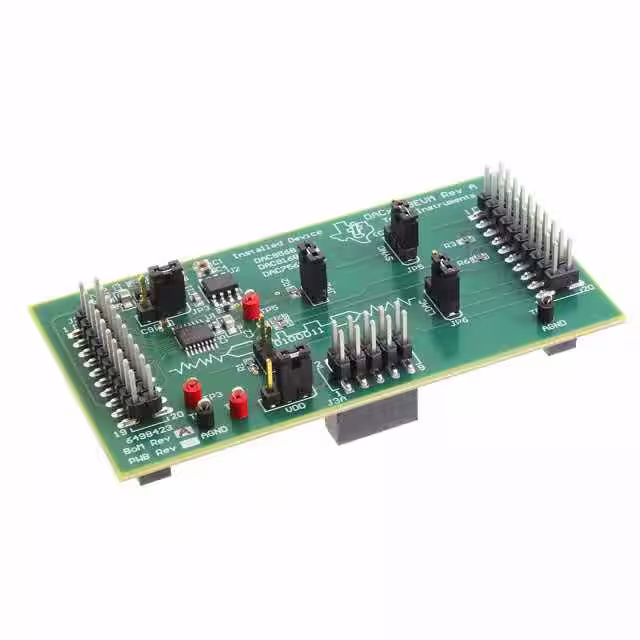

DAC8568EVMEVAL BOARD FOR DAC8568 |
4,745 |
|
Datasheet |
- | Box | Active | 8 | 16 | Serial | 5 µs | Voltage | - | DAC8568 | Board(s) |
|

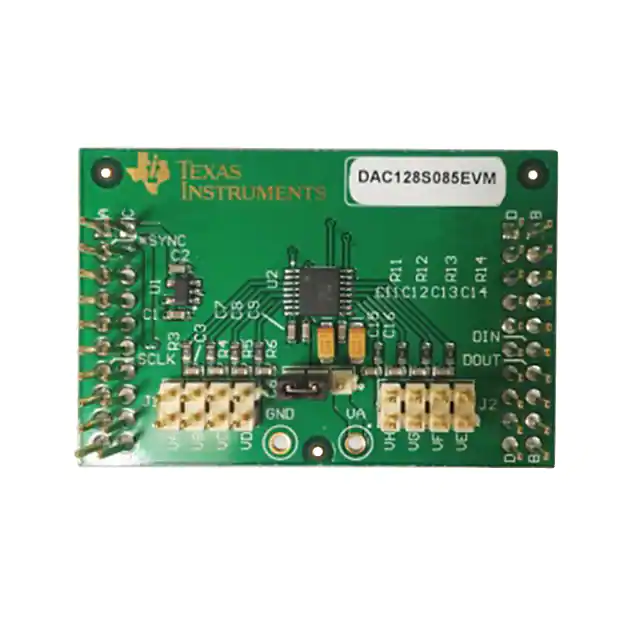

DAC128S085EVMEVAL BOARD FOR DAC128S085 |
3,045 |
|
Datasheet |
- | Box | Active | 8 | 12 | Serial | 6 µs | Voltage | - | DAC128S085 | Board(s) |
|

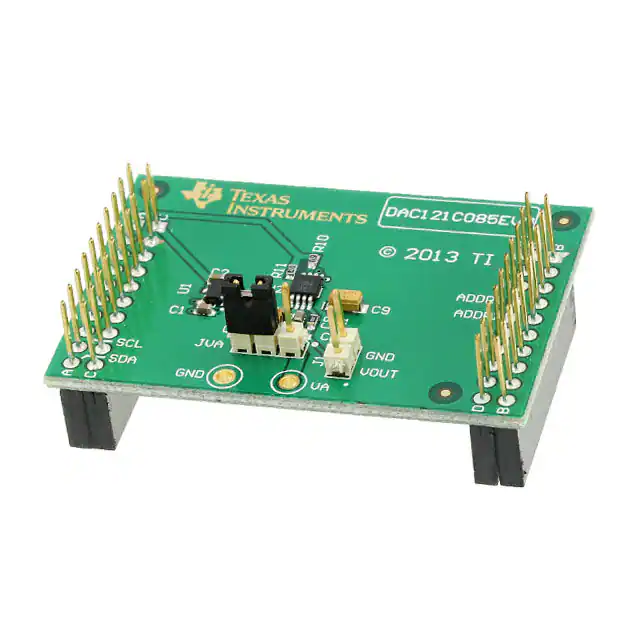

DAC121C085EVMEVAL BOARD FOR DAC121C085 |
3,992 |
|
Datasheet |
- | Box | Active | 1 | 12 | I2C | 6 µs | Voltage | - | DAC121C085 | Board(s) |
|

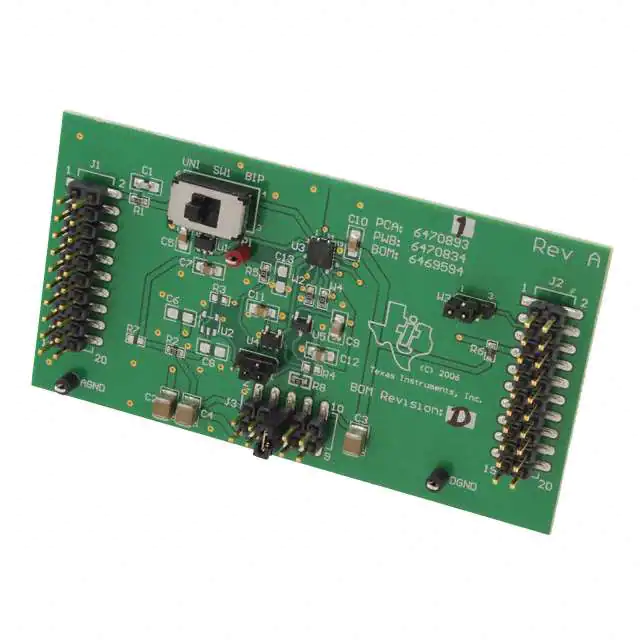

DAC8831EVMEVAL BOARD FOR DAC8831 |
3,339 |
|
Datasheet |
- | Box | Active | 1 | 16 | SPI | 1 µs | Voltage | 50M | DAC8831 | Board(s) |
|

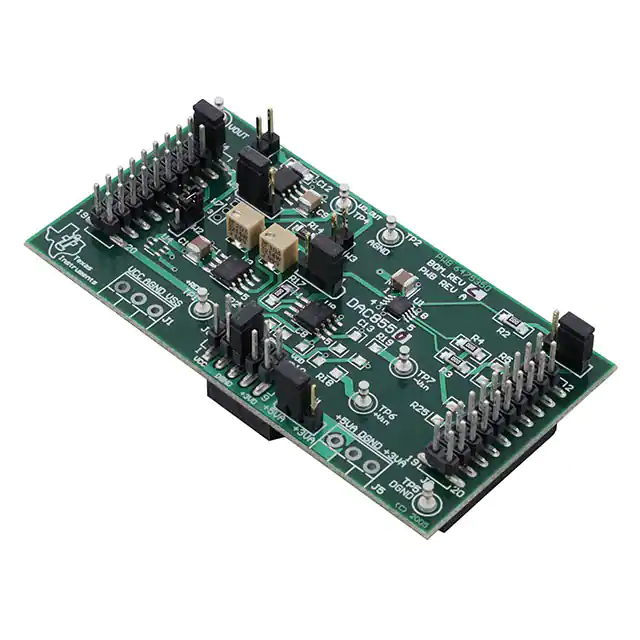

DAC8550EVMEVAL BOARD FOR DAC8550 |
3,392 |
|
Datasheet |
- | Bulk | Active | 1 | 16 | SPI, DSP | 8 µs | Voltage | 1M | DAC8550 | Board(s) |
|

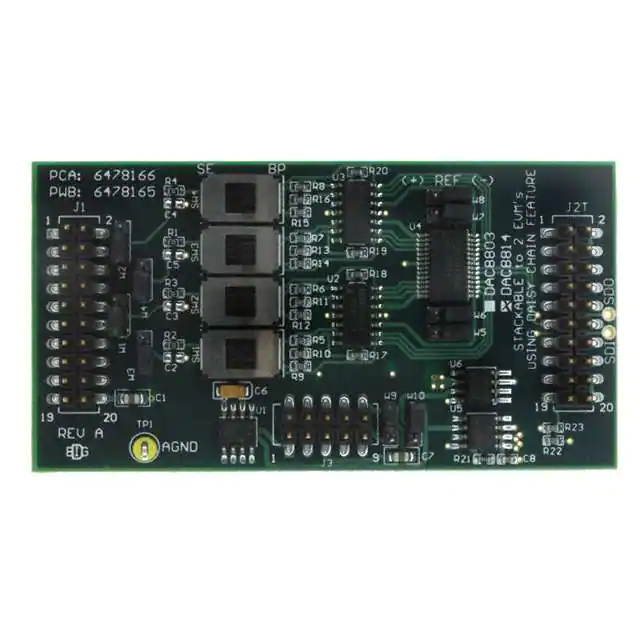

DAC8814EVMEVAL BOARD FOR DAC8814 |
1,941 |
|
Datasheet |
- | Box | Active | 4 | 16 | SPI | 300 ns | Current | - | DAC8814 | Board(s) |
|

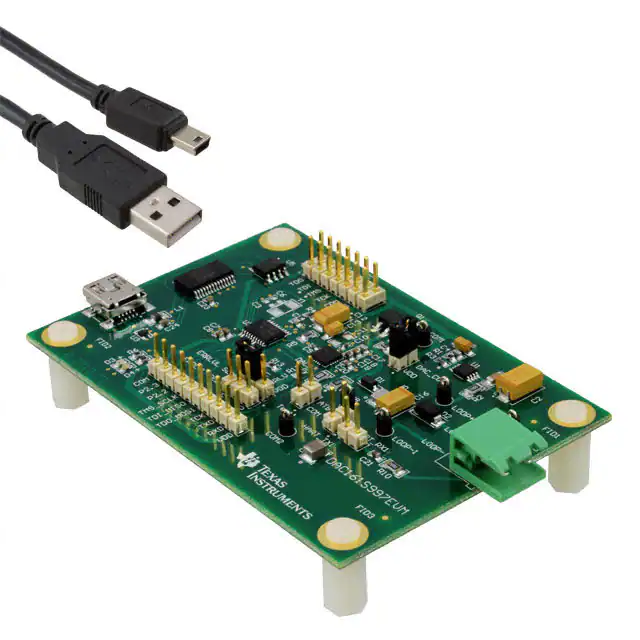

DAC161S997EVMEVAL BOARD FOR DAC161S997 |
2,530 |
|
Datasheet |
- | Box | Active | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | - | Current | - | DAC161S997 | Board(s) |
|

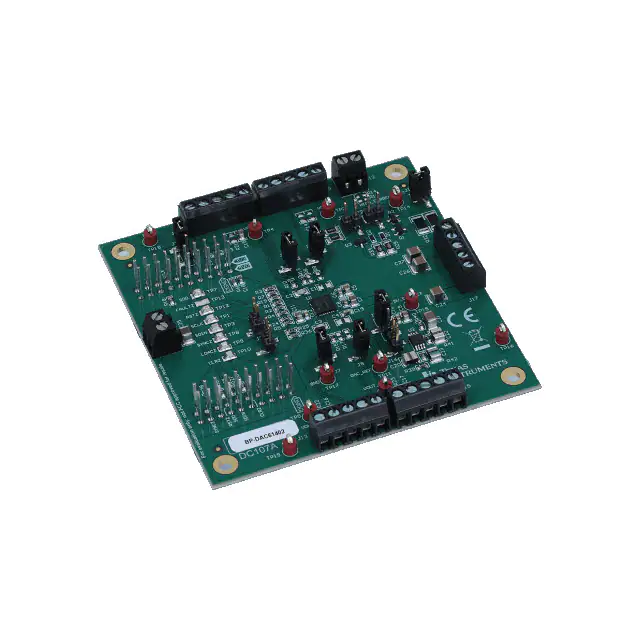

BP-DAC61402EVMEVAL BOARD FOR DAC61402 |
1,828 |
|
Datasheet |
- | Box | Active | 2 | 12 | SPI | - | Voltage | - | DAC61402 | Board(s) |
|

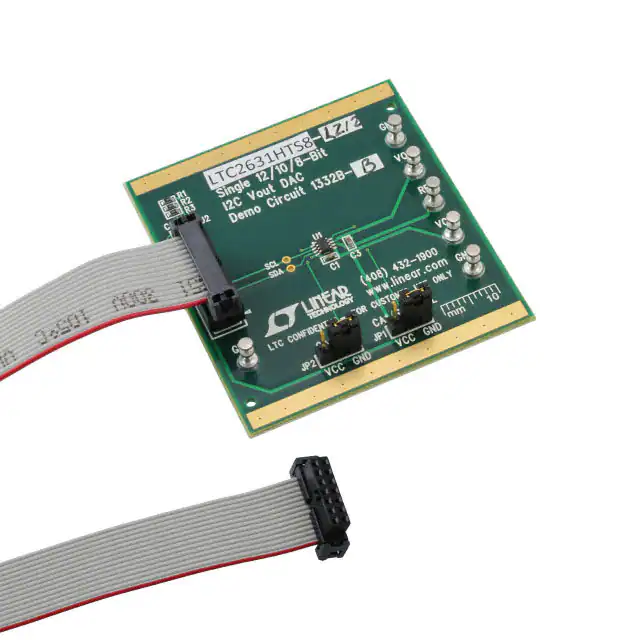

DC1332B-BEVAL BOARD FOR LTC2631-12 |
1,825 |
|
Datasheet |
- | Box | Active | 1 | 12 | I2C | 4.1 µs | Voltage | - | LTC2631-12 | Board(s) |
|

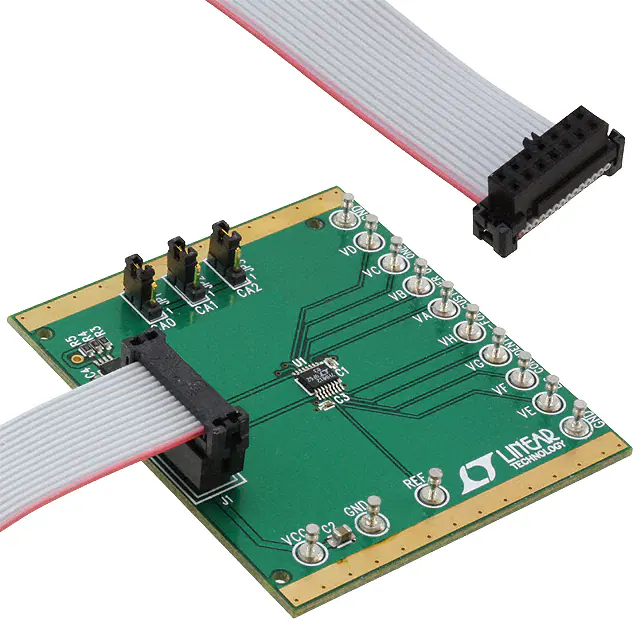

DC1534A-DEVAL BOARD FOR LTC2637-12 |
4,549 |
|
Datasheet |
- | Box | Active | 8 | 12 | I2C | 4.5 µs | Voltage | - | LTC2637-12 | Board(s) |
|

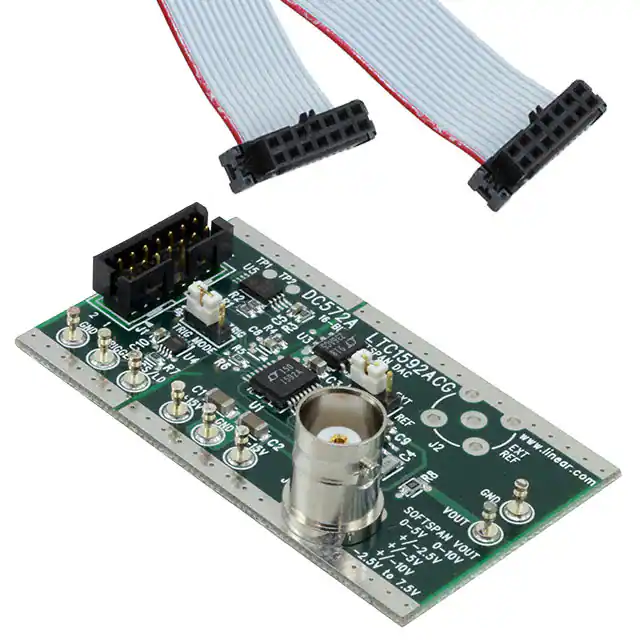

DC572AEVAL BOARD FOR LTC1592 |
4,147 |
|
Datasheet |
SoftSpan™ | Box | Active | 1 | 16 | SPI | 2 µs | Current | - | LTC1592 | Board(s) |
|

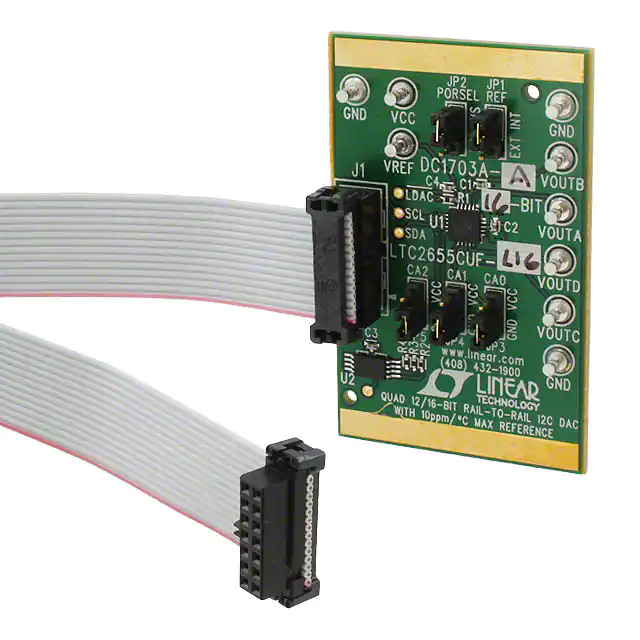

DC1703A-AEVAL BOARD FOR LTC2655-16 |
2,264 |
|
Datasheet |
- | Box | Active | 4 | 16 | I2C, Serial | 9.1 µs | Voltage | - | LTC2655-16 | Board(s) |
|

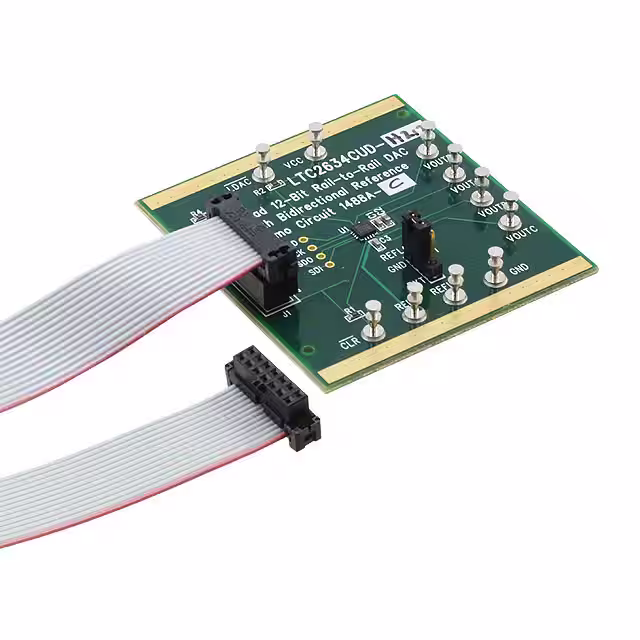

DC1488A-CEVAL BOARD FOR LTC2634-12 |
1,877 |
|
Datasheet |
- | Box | Active | 4 | 12 | MICROWIRE™, Serial, SPI™ | 4.2 µs | Voltage | - | LTC2634-12 | Board(s) |
|

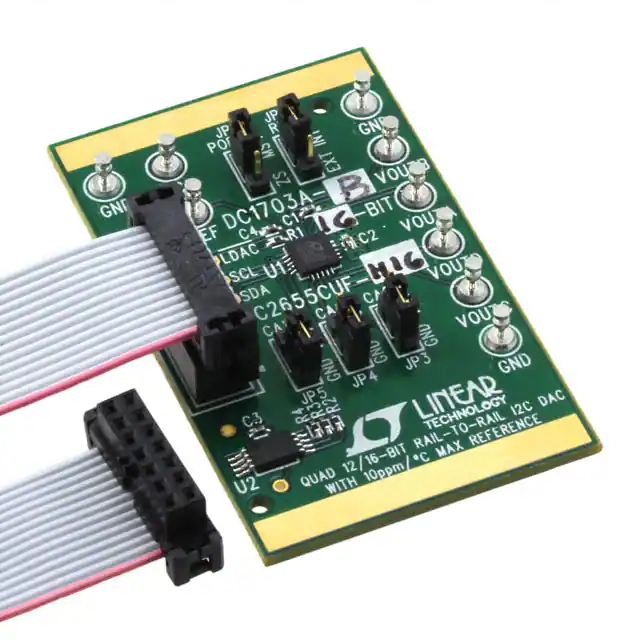

DC1703A-BEVAL BOARD FOR LTC2655-16 |
1,593 |
|
Datasheet |
- | Box | Active | 4 | 16 | I2C, Serial | 9.1 µs | Voltage | - | LTC2655-16 | Board(s) |
|

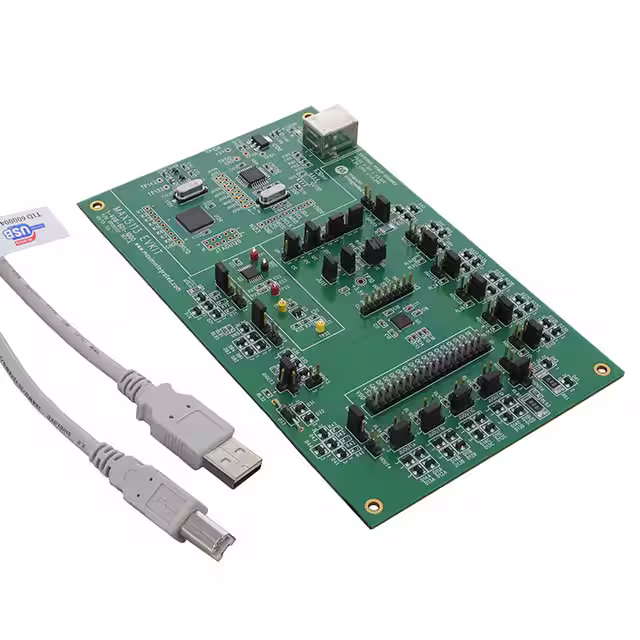

MAX5113EVKIT#EVAL BOARD FOR MAX5113 |
1,335 |
|
Datasheet |
- | Box | Active | 1 | 14 | SPI | 15 µs | Current | - | MAX5113 | Board(s) |
|

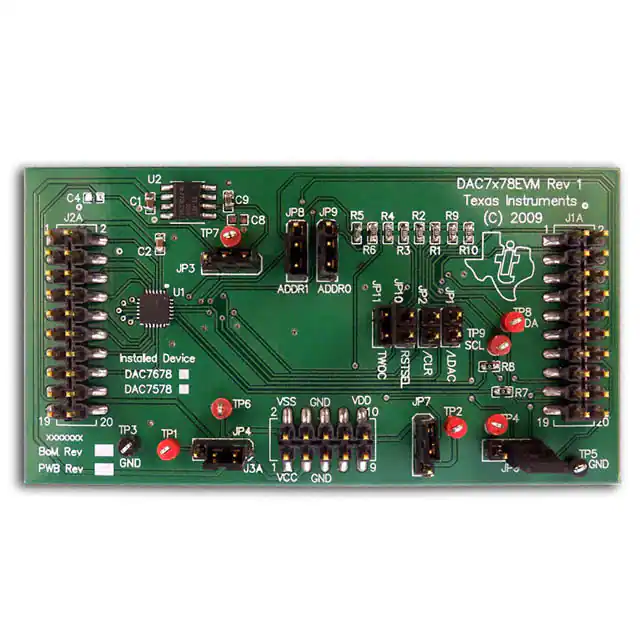

DAC7678EVMEVAL BOARD FOR DAC7678 |
4,896 |
|
Datasheet |
- | Bulk | Active | 8 | 12 | I2C | 12 µs | Voltage | - | DAC7678 | Board(s) |
|

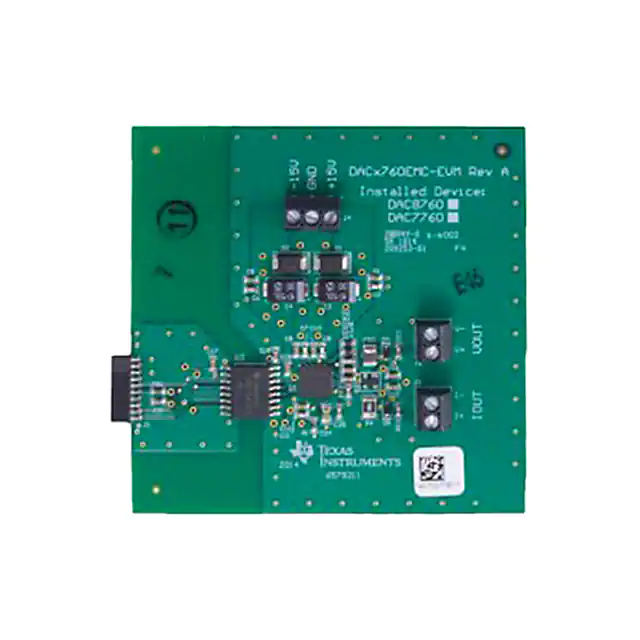

DAC8760EMC-EVMEVAL BOARD FOR DAC8760 |
4,260 |
|
Datasheet |
- | Box | Active | 1 | 16 | SPI | 10 µs | Current/Voltage | - | DAC8760 | Board(s) |
|

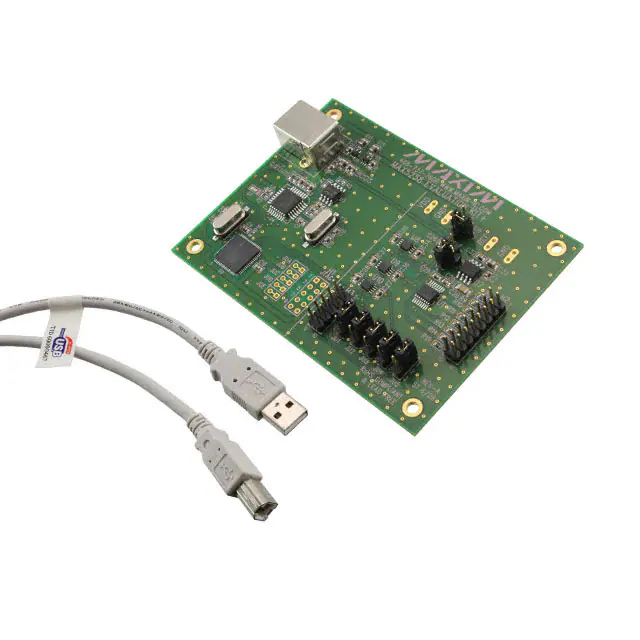

MAX5258EVKIT+EVAL BOARD FOR MAX5258 |
3,474 |
|
Datasheet |
- | Box | Active | 8 | 8 | Serial | 10 µs | Voltage | - | MAX5258 | Board(s), Cable(s) |
|
EVAL-AD5676RARDZEVAL BOARD FOR AD5676R |
1,685 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial, SPI | 8 µs | Voltage | - | AD5676R | Board(s) |
