Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-AD5781SDZEVAL BOARD FOR AD5781 |
3,269 |
|
Datasheet |
- | Bulk | Active | 1 | 18 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | - | AD5781 | Board(s) |
|

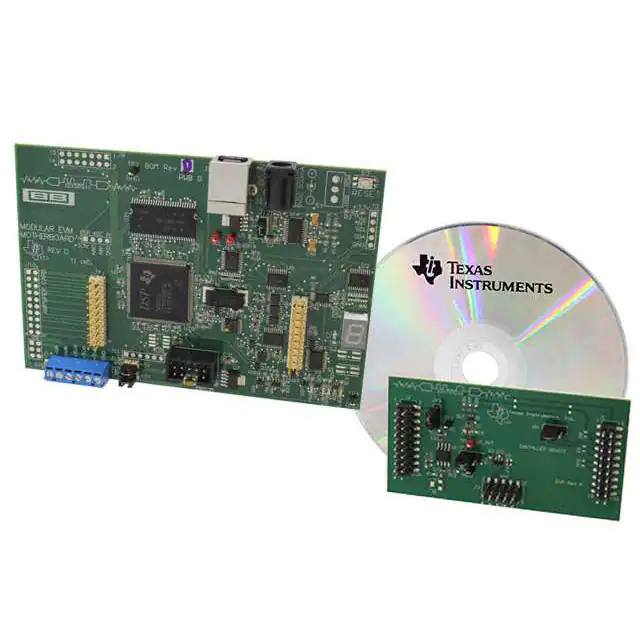

DAC8411EVM-PDKEVAL BOARD FOR DAC8411 |
4,868 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial | 6 µs | Voltage | - | DAC8411 | Board(s) |
|

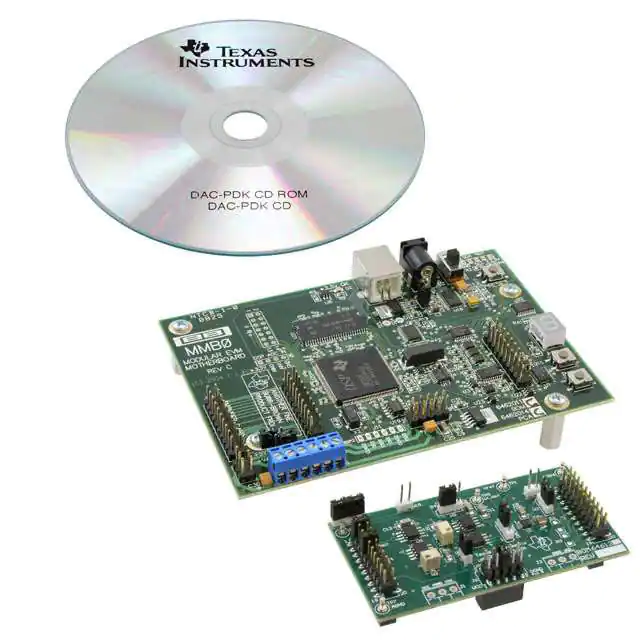

DAC8811EVM-PDKEVAL BOARD FOR DAC8811 |
3,373 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial | 300 ns | Current | - | DAC8811 | Board(s) |
|

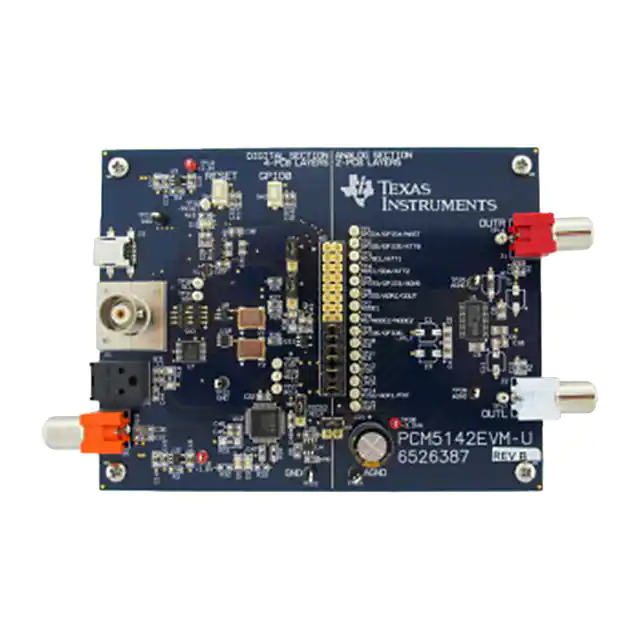

PCM5142EVM-UEVAL BOARD FOR PCM5142 |
4,350 |
|
Datasheet |
DirectPath™ | Box | Active | 2 | 16, 24, 32 | I2C, Serial, SPI | - | Voltage | 8k ~ 384k | PCM5142 | Board(s) |
|
AD9767-KIT-EBZEVAL BOARD FOR AD9767 |
4,974 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 14 | Parallel | 35 ns | Current | 125M | AD9767 | Board(s) |
|
|
AD9748-FMC-EBZEVAL BOARD FOR AD9748 |
2,943 |
|
Datasheet |
TxDAC® | Bulk | Active | 1 | 8 | Parallel | 11 ns | Current | 210M | AD9748 | Board(s) |
|
|
AD9767-EBZEVAL BOARD FOR AD9767 |
1,265 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 14 | Parallel | 35 ns | Current | 125M | AD9767 | Board(s) |
|

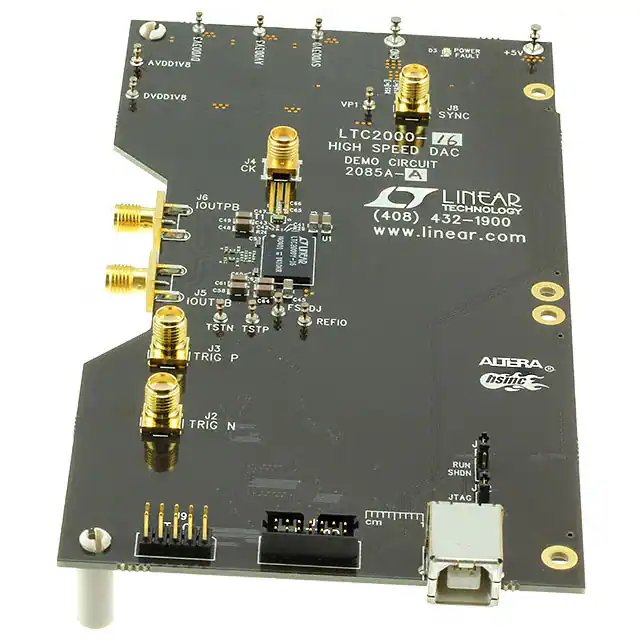

DC2085A-AEVAL BOARD FOR LTC2000-16 |
1,582 |
|
Datasheet |
- | Box | Active | 1 | 16 | LVDS - Serial, SPI | 2.2 ns | Current | 2.5G | LTC2000-16 | Board(s) |
|
|
DC2303A-BEVAL BOARD FOR LTC2000-14 |
1,903 |
|
Datasheet |
- | Box | Active | 1 | 14 | LVDS - Serial, SPI | 2.2 ns | Current | 2.5G | LTC2000-14 | Board(s) |
|

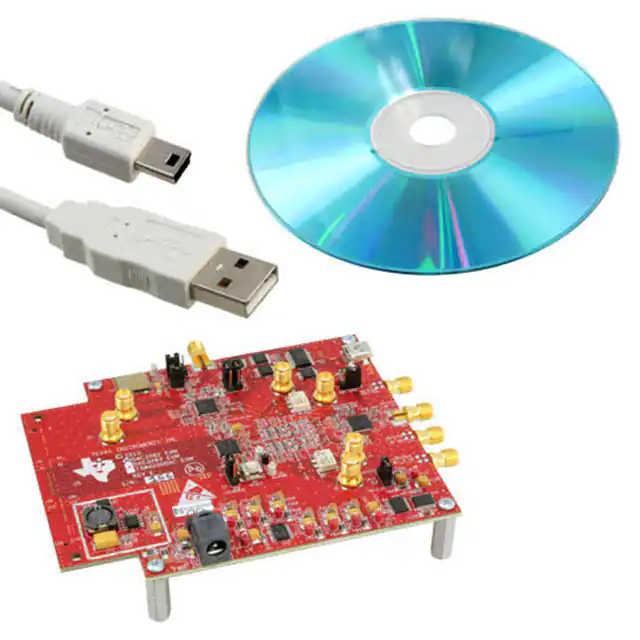

DAC3282EVMEVAL BOARD FOR DAC3282 |
2,690 |
|
Datasheet |
- | Box | Active | 2 | 16 | Serial | 10.4 ns | Current | 625M | DAC3282 | Board(s) |
|

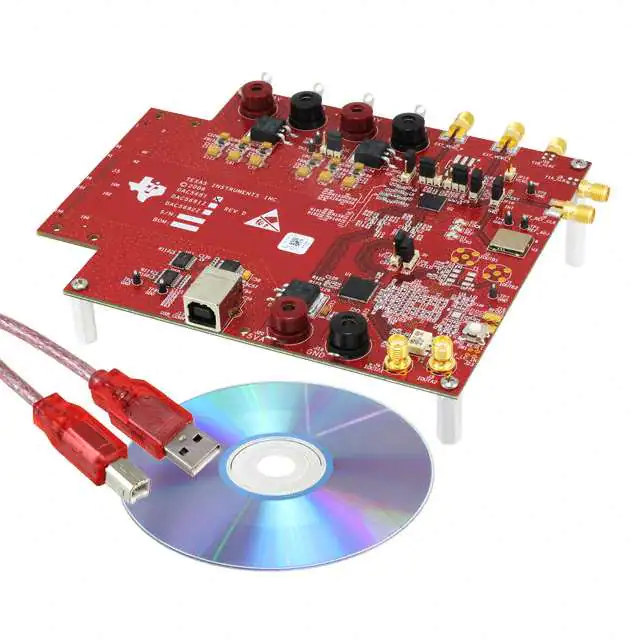

DAC5681EVMEVAL BOARD FOR DAC5681 |
3,204 |
|
Datasheet |
- | Box | Active | 1 | 16 | LVDS - Parallel, Serial | 10.4 ns | Current | 1G | DAC5681 | Board(s) |
|

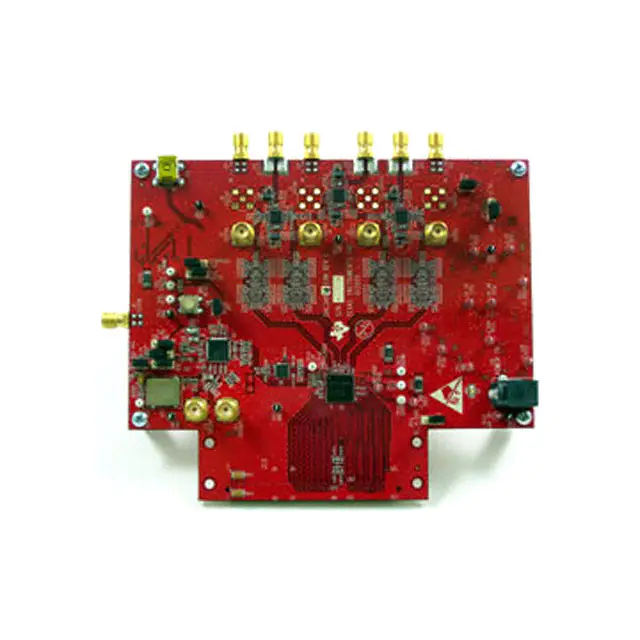

DAC3484EVMEVAL BOARD FOR DAC3484 |
3,228 |
|
Datasheet |
- | Bulk | Active | 4 | 16 | CMOS, LVDS, Serial | - | Current | 1.25G | DAC3484 | Board(s) |
|

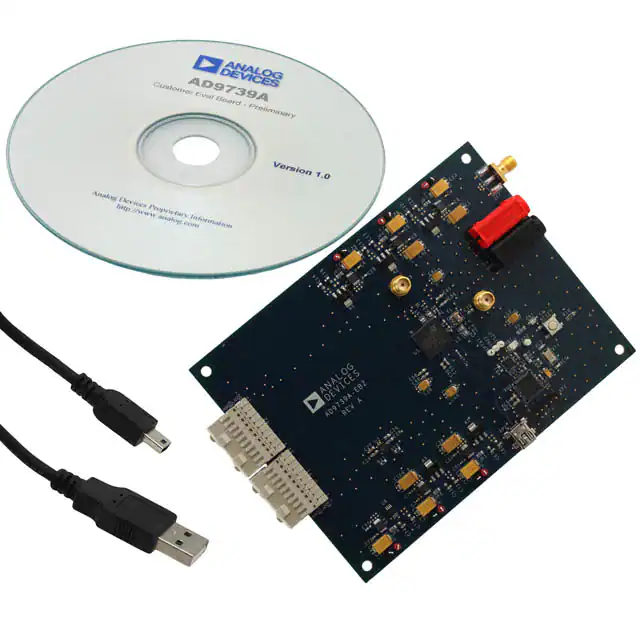

AD9739A-EBZEVAL BOARD FOR AD9739A |
3,771 |
|
Datasheet |
TxDAC® | Box | Active | 1 | 14 | SPI | - | Current | 2.5G | AD9739A | Board(s) |
|

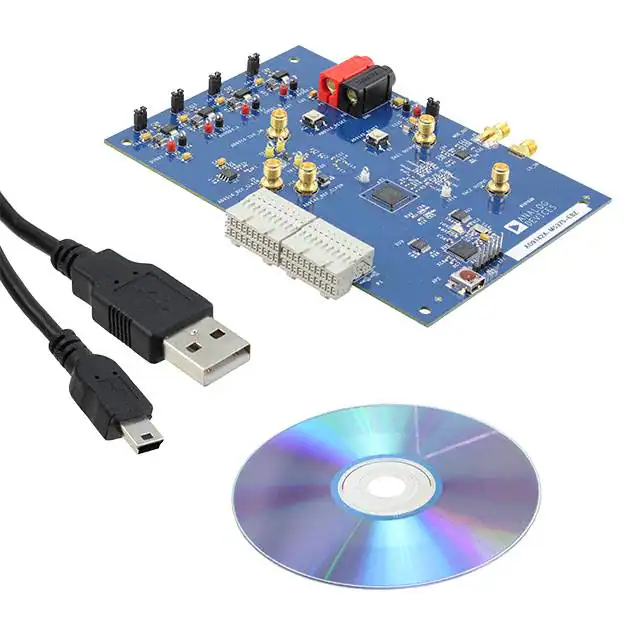

AD9142A-M5375-EBZEVAL BOARD FOR AD9142A ADL5375 |
1,794 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 16 | LVDS - Serial, SPI | 20 ns | Current | 1.6G | AD9142A, ADL5375 | Board(s), Cable(s) |
|

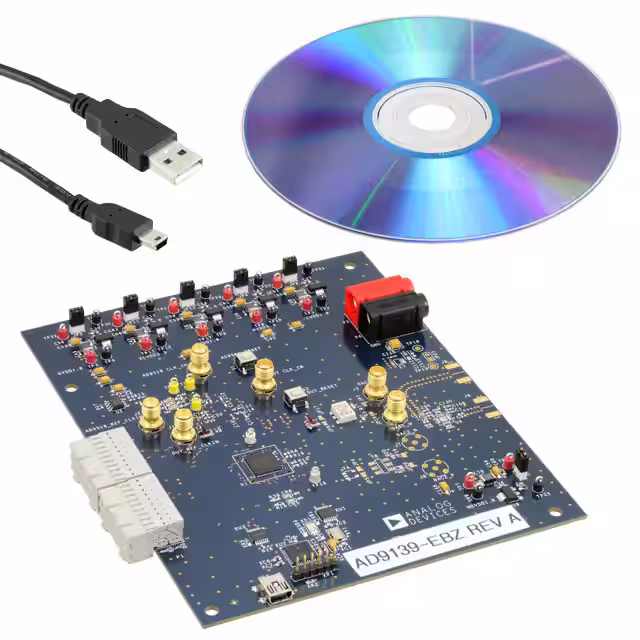

AD9139-EBZEVAL BOARD FOR AD9139 |
4,145 |
|
Datasheet |
TxDAC+® | Box | Active | 1 | 16 | LVDS - Serial | 20 ns | Current | 1.6G | AD9139 | Board(s) |
|

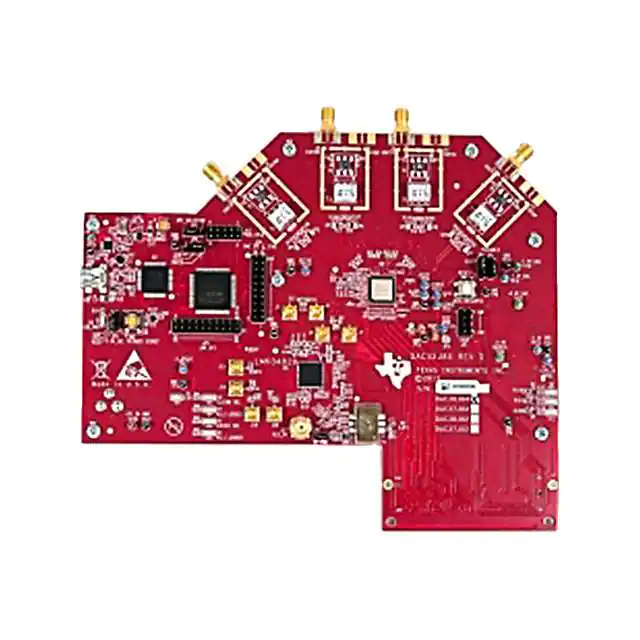

DAC37J82EVMEVAL BOARD FOR DAC37J82 |
4,516 |
|
Datasheet |
- | Box | Active | 2 | 16 | JESD204B Serial | 10 ns | Current | 1.6G | DAC37J82 | Board(s) |
|

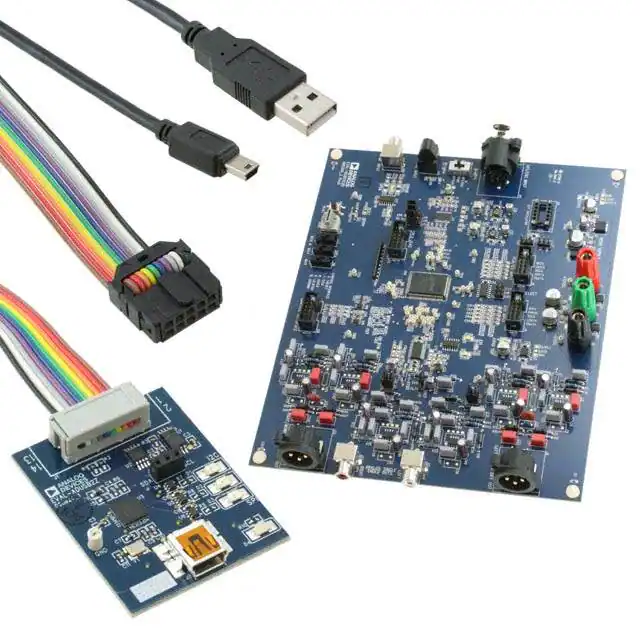

EVAL-AD1955EBZEVAL BOARD FOR AD1955 |
2,164 |
|
Datasheet |
- | Box | Active | 2 | 24 | Serial | - | Current | 192k | AD1955 | Board(s) |
|
EVAL-AD5660EBZEVAL BOARD FOR AD5660 |
4,436 |
|
Datasheet |
nanoDAC® | Box | Active | 1 | 16 | Serial | 8 µs | Voltage | 125k | AD5660 | Board(s), Cable(s) |
|
|
DAC63004WCSP-EVMEVAL BOARD FOR DAC63004W |
1,025 |
|
Datasheet |
- | Box | Active | 1 | 12 | I2C, SPI | - | Current/Voltage | - | DAC63004W | Board(s) |
|
|
MAX5715BOB#EVAL BOARD FOR MAX5715 |
2,794 |
|
Datasheet |
- | Box | Active | 4 | 12 | SPI | - | Voltage | - | MAX5715 | Board(s), Cable(s) |
