Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

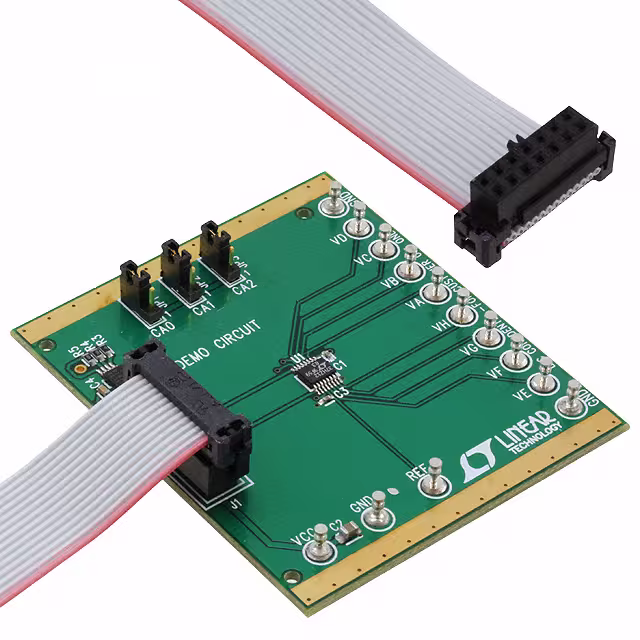

DC1534A-CEVAL BOARD FOR LTC2637-12 |
3,696 |
|
Datasheet |
- | Box | Active | 8 | 12 | I2C | 4.5 µs | Voltage | - | LTC2637-12 | Board(s) |
|

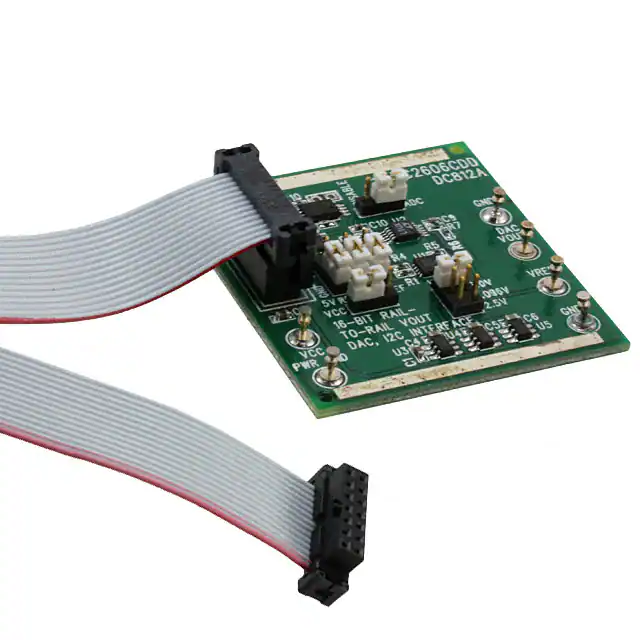

DC812AEVAL BOARD FOR LTC2606 |
2,880 |
|
Datasheet |
- | Box | Active | 1 | 16 | I2C | 10 µs | Voltage | - | LTC2606 | Board(s) |
|

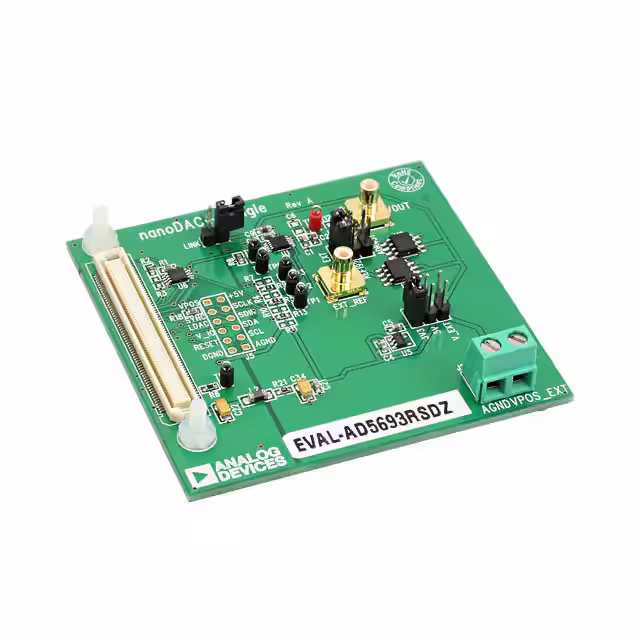

EVAL-AD5693RSDZEVAL BOARD FOR AD5693R |
3,390 |
|
Datasheet |
nanoDAC+® | Box | Active | 1 | 16 | I2C, Serial | 5 µs | Voltage | - | AD5693R | Board(s) |
|

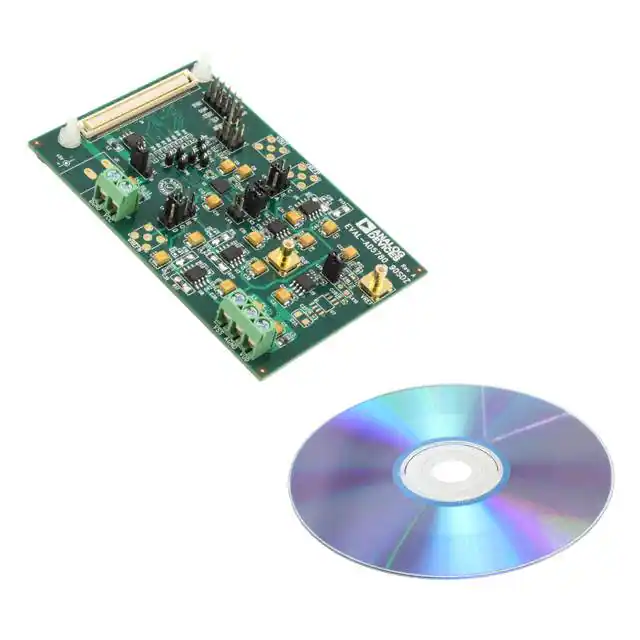

EVAL-AD5780SDZEVAL BOARD FOR AD5780 |
4,748 |
|
Datasheet |
- | Bulk | Active | 1 | 18 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 2.5 µs | Voltage | - | AD5780 | Board(s), Cable(s) |
|

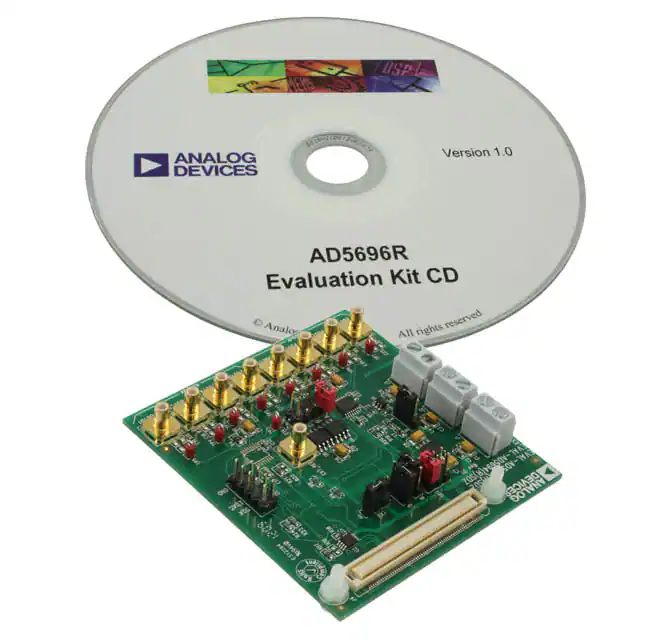

EVAL-AD5696RSDZEVAL BOARD FOR AD5696R |
1,337 |
|
Datasheet |
nanoDAC® | Box | Active | 4 | 16 | I2C | 5 µs | Voltage | - | AD5696R | Board(s) |
|

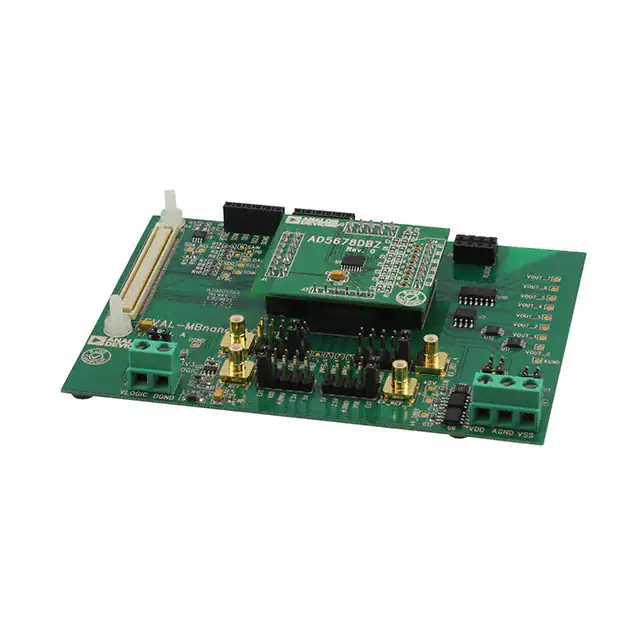

EVAL-AD5678DBZEVAL BOARD FOR AD5678 |
1,895 |
|
Datasheet |
nanoDAC® | Bulk | Active | 8 | 12, 16 | Serial, SPI | 6 µs | Voltage | - | AD5678 | Board(s) |
|

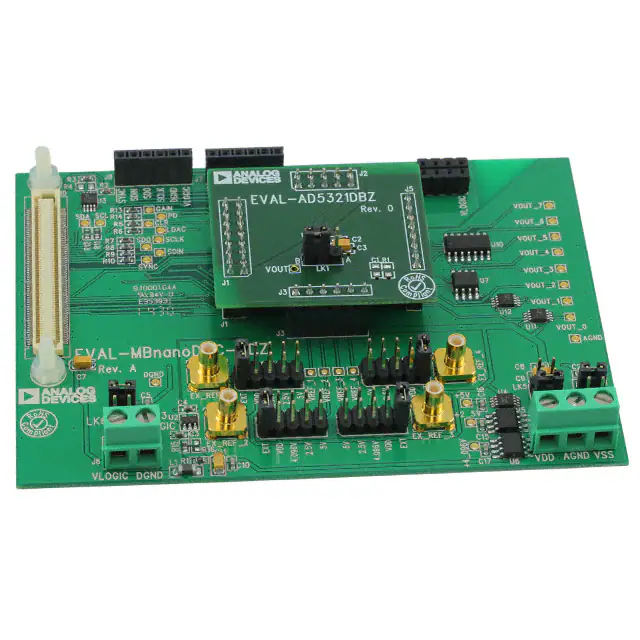

EVAL-AD5321DBZEVAL BOARD FOR AD5321 |
2,473 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 12 | I2C, Serial | 8 µs | Voltage | - | AD5321 | Board(s) |
|

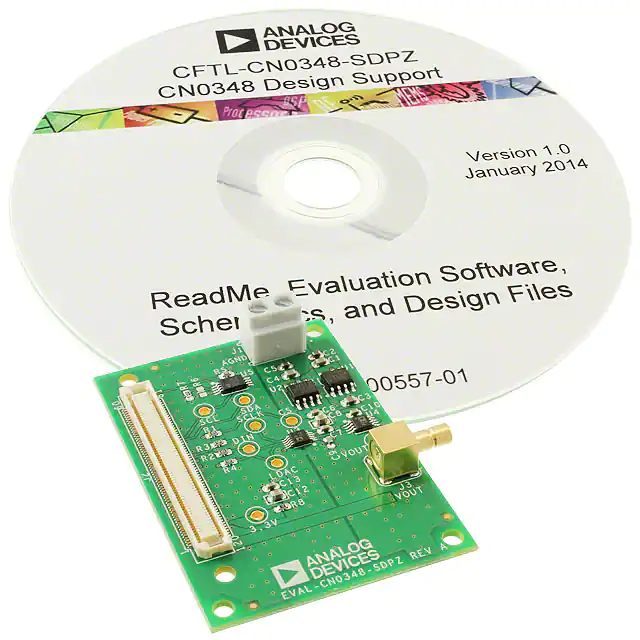

EVAL-CN0348-SDPZEVAL BOARD FOR AD5541A ADA4500-2 |
2,312 |
|
Datasheet |
Circuits from the Lab™ | Box | Active | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | - | AD5541A, ADA4500-2, ADR4550 | Board(s) |
|

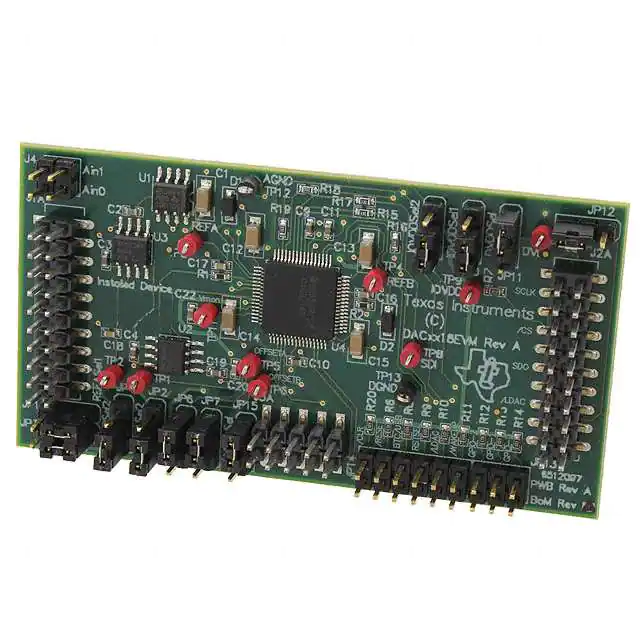

DAC8218EVMEVAL BOARD FOR DAC8218 |
4,231 |
|
Datasheet |
- | Box | Active | 8 | 14 | SPI | 15 µs | Voltage | - | DAC8218 | Board(s) |
|
DC2789A-AEVAL BOARD FOR LTC1661 |
3,354 |
|
Datasheet |
- | Box | Active | 2 | 10 | Serial, SPI | 30 µs | - | - | LTC1661 | Board(s) |
|

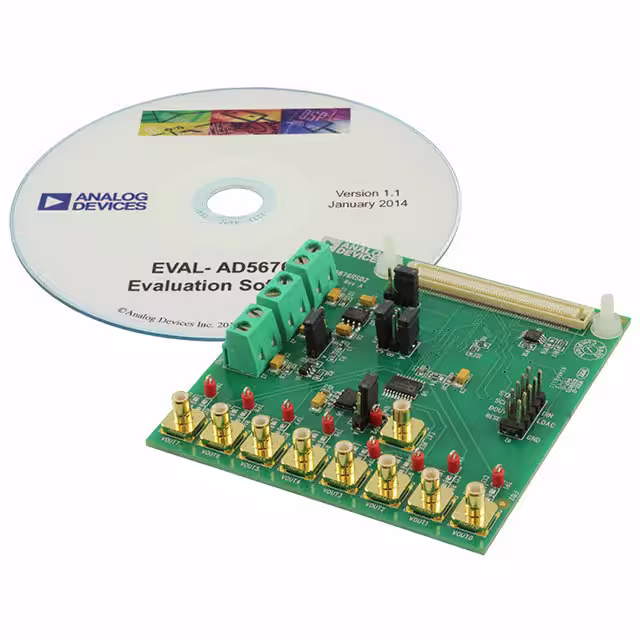

EVAL-AD5676RSDZEVAL BOARD FOR AD5676R |
4,431 |
|
Datasheet |
nanoDAC+® | Box | Active | 8 | 16 | SPI | 5 µs | Voltage | - | AD5676R | Board(s) |
|

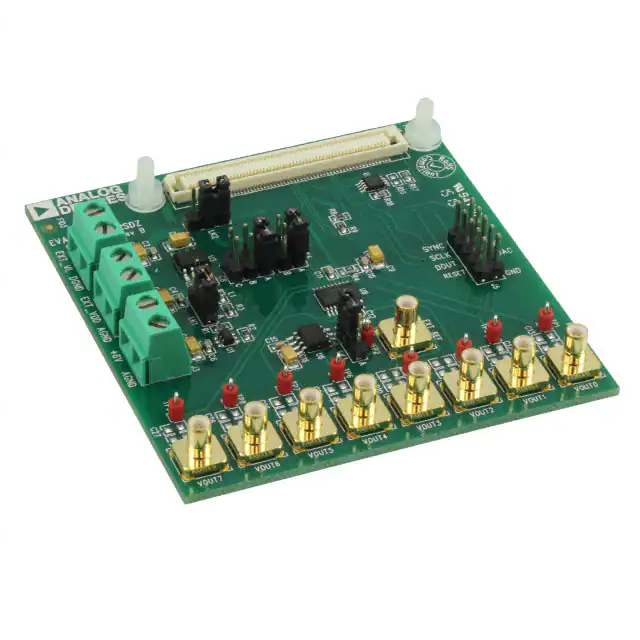

EVAL-AD5676SDZEVAL BOARD FOR AD5676 |
2,985 |
|
Datasheet |
nanoDAC+® | Box | Active | 8 | 16 | SPI | 5 µs | Voltage | - | AD5676 | Board(s) |
|

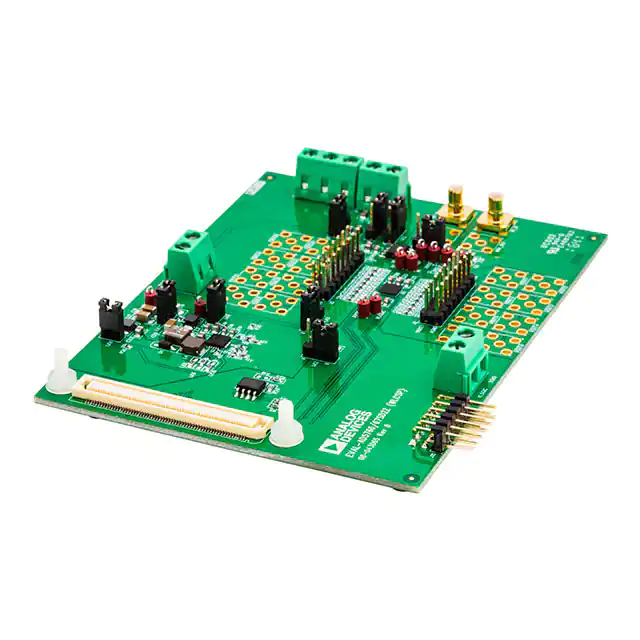

EVAL-AD5767SD2ZEVAL BOARD FOR AD5767 |
4,635 |
|
Datasheet |
- | Box | Active | 16 | 12 | DSP, Serial, SPI | 12 µs | Voltage | - | AD5767 | Board(s) |
|

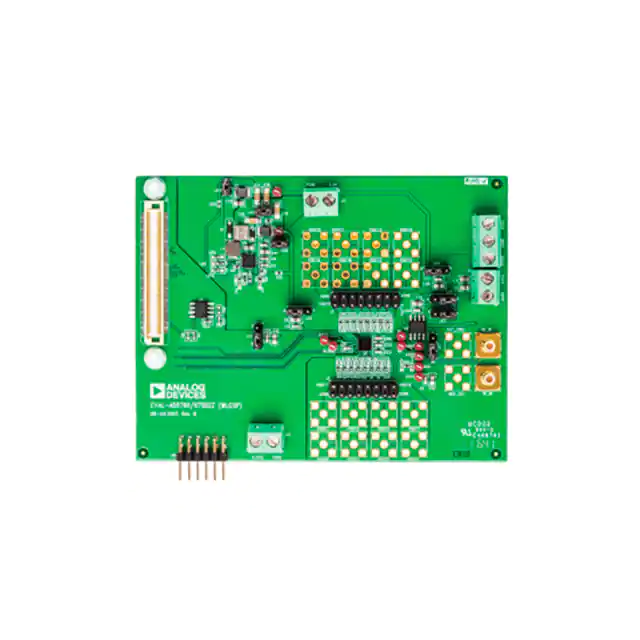

EVAL-AD5766SD2ZEVAL BOARD FOR AD5766 |
1,217 |
|
Datasheet |
- | Bulk | Active | 16 | 16 | Serial, SPI | 12 µs | Voltage | - | AD5766 | Board(s) |
|
DC1466B-DEVAL BOARD FOR LTC2636 |
3,709 |
|
Datasheet |
- | Bulk | Active | 8 | 12 | SPI | 3.4 µs | Voltage | - | LTC2636 | Board(s) |
|

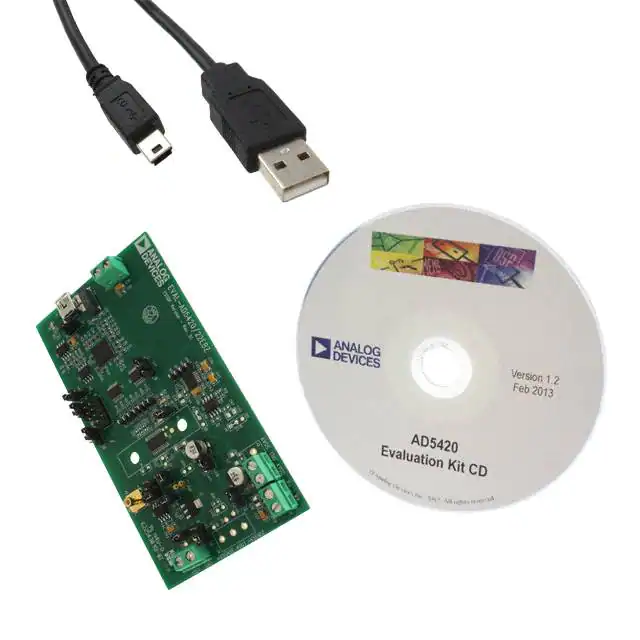

EVAL-AD5420EBZEVAL BOARD FOR AD5420 |
1,921 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial | 10 µs | Current | - | AD5420 | Board(s) |
|

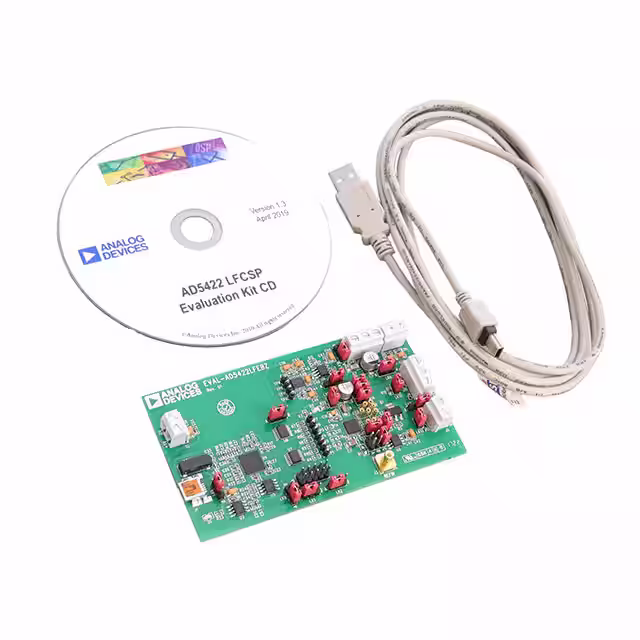

EVAL-AD5422LFEBZEVAL BOARD FOR AD5422 |
3,184 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial | 32 µs | Current/Voltage | 40k | AD5422 | Board(s) |
|

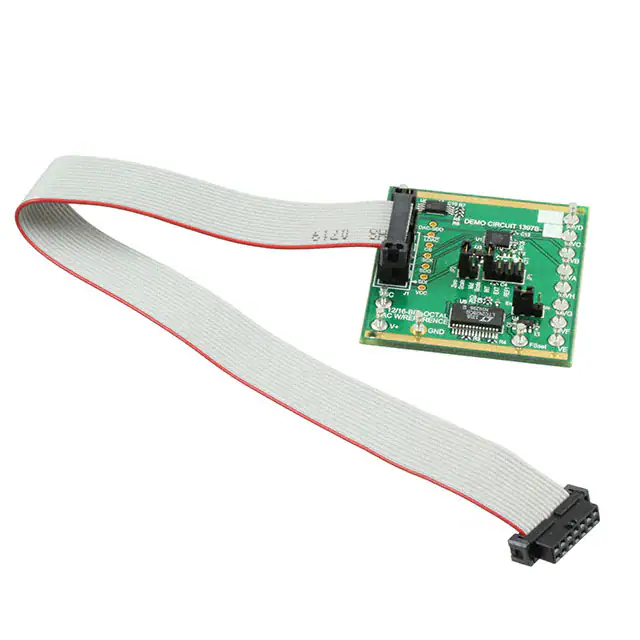

DC1397B-BEVAL BOARD FOR LTC2656-16 |
2,469 |
|
Datasheet |
- | Box | Active | 8 | 16 | MICROWIRE™, Serial, SPI™ | 8.9 µs | Voltage | - | LTC2656-16 | Board(s) |
|

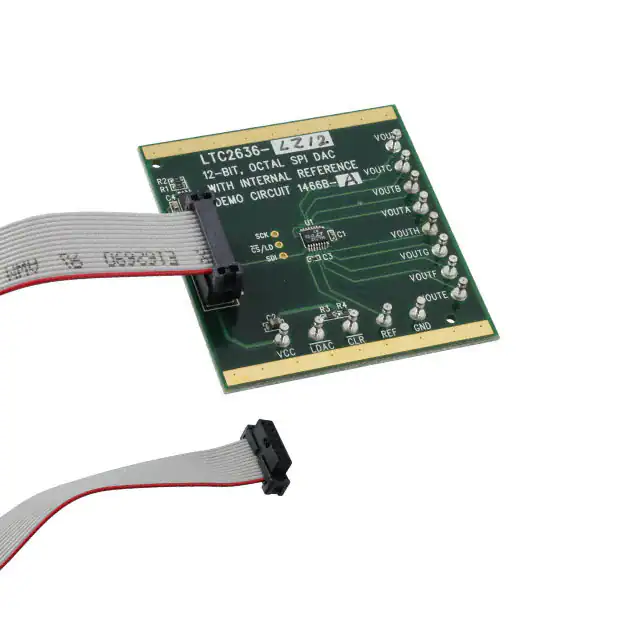

DC1466B-AEVAL BOARD FOR LTC2636-12 |
1,669 |
|
Datasheet |
- | Box | Active | 8 | 12 | MICROWIRE™, Serial, SPI™ | 4.4 µs | Voltage | - | LTC2636-12 | Board(s) |
|
EVAL-AD5770RSDZEVAL BOARD FOR AD5770R |
2,655 |
|
Datasheet |
- | Box | Active | 6 | 14 | Serial, SPI | - | Current | - | AD5770R | Board(s), Cable(s) |
