Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

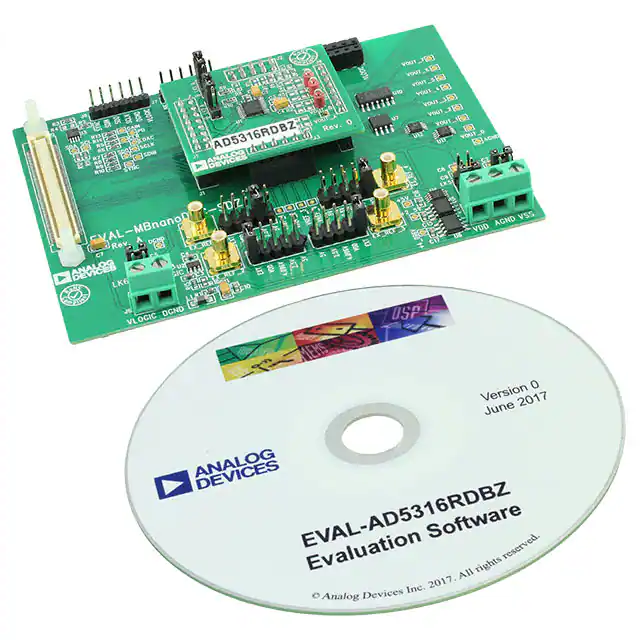

EVAL-AD5316RDBZEVAL BOARD FOR AD5316R |
2,691 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 10 | I2C, Serial | 5 µs | Voltage | - | AD5316R | Board(s) |
|

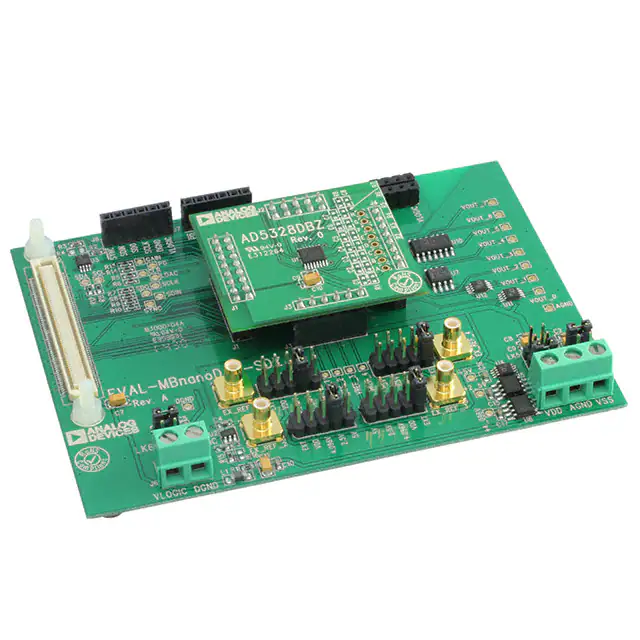

EVAL-AD5328DBZEVAL BOARD FOR AD5328 |
3,145 |
|
Datasheet |
nanoDAC® | Bulk | Active | 8 | 12 | Serial, SPI | 8 µs | Voltage | - | AD5328 | Board(s) |
|

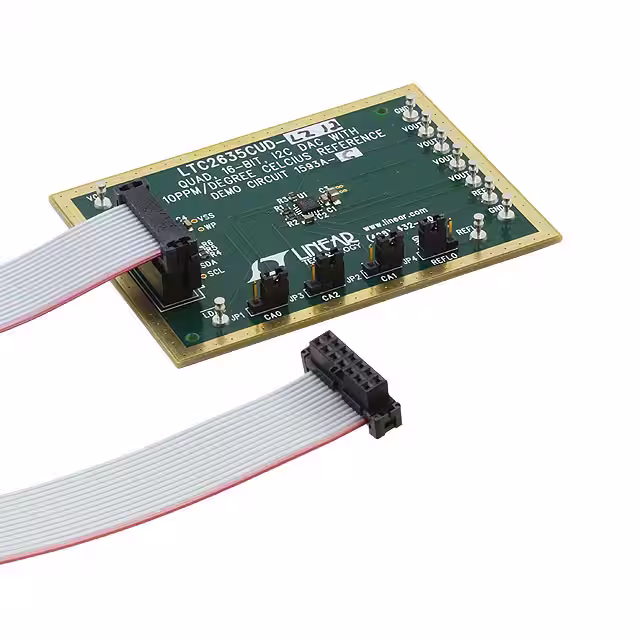

DC1593A-CEVAL BOARD FOR LTC2635-12 |
1,526 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C | 4.4 µs | Voltage | - | LTC2635-12 | Board(s) |
|

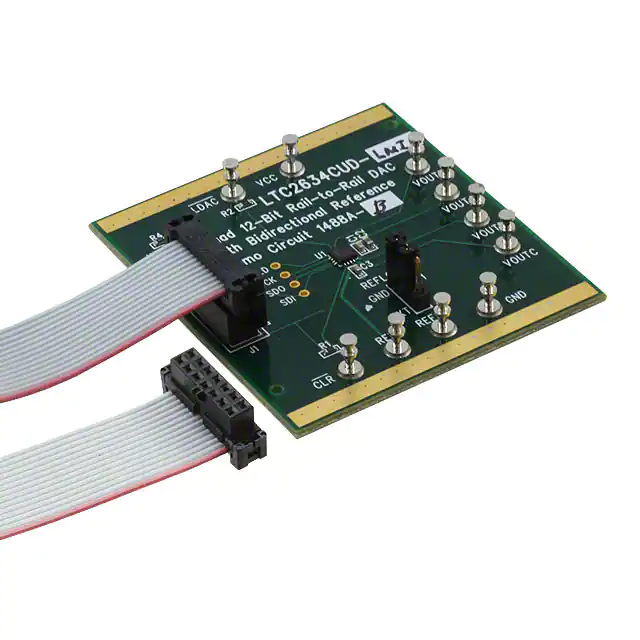

DC1488A-BEVAL BOARD FOR LTC2634-12 |
4,415 |
|
Datasheet |
- | Box | Active | 4 | 12 | MICROWIRE™, Serial, SPI™ | 4.2 µs | Voltage | - | LTC2634-12 | Board(s) |
|

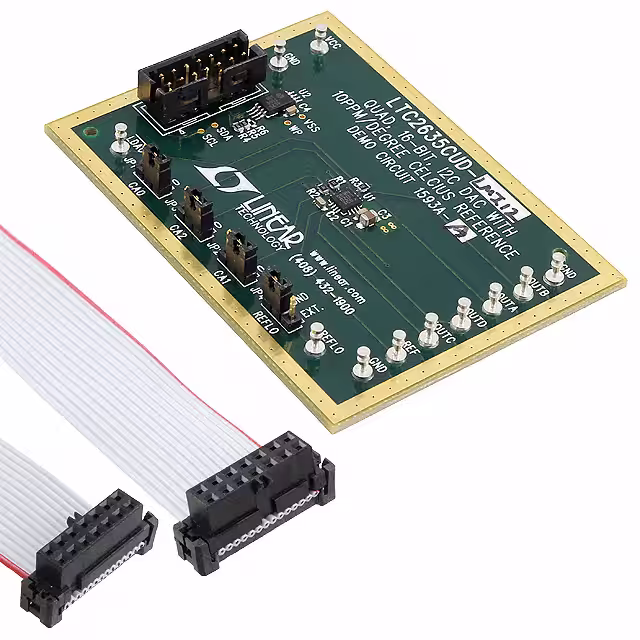

DC1593A-AEVAL BOARD FOR LTC2635-12 |
4,640 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C | 4.4 µs | Voltage | - | LTC2635-12 | Board(s) |
|

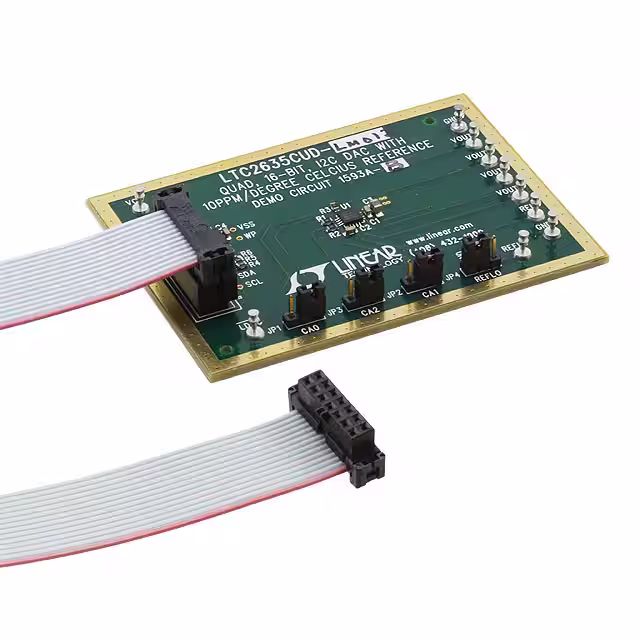

DC1593A-BEVAL BOARD FOR LTC2635-12 |
4,957 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C | 4.4 µs | Voltage | - | LTC2635-12 | Board(s) |
|

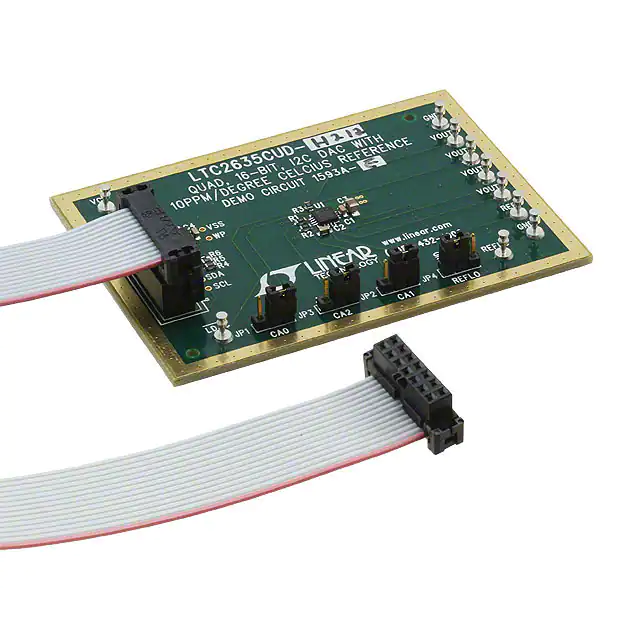

DC1593A-EEVAL BOARD FOR LTC2635-12 |
1,864 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C | 4.4 µs | Voltage | - | LTC2635-12 | Board(s) |
|

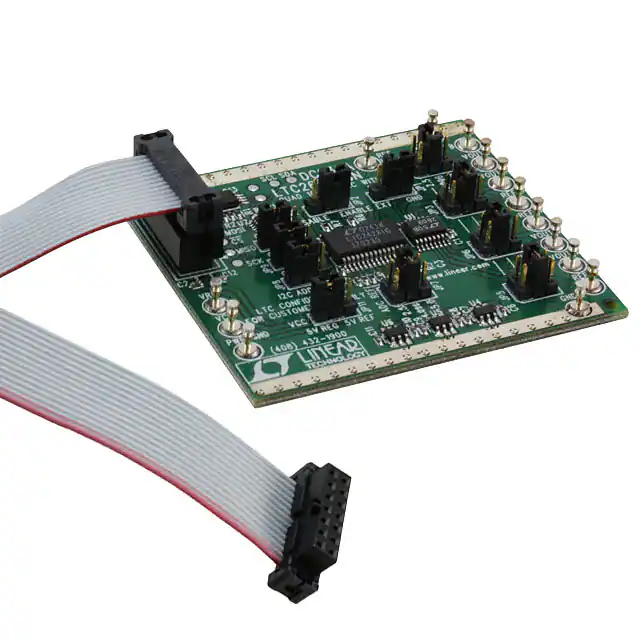

DC936AEVAL BOARD FOR LTC2609 |
1,448 |
|
Datasheet |
- | Box | Active | 4 | 16 | I2C | 10 µs | Voltage | - | LTC2609 | Board(s) |
|
DC2789A-BEVAL BOARD FOR LTC1662 |
4,650 |
|
Datasheet |
- | Box | Active | 2 | 10 | Serial, SPI | 750 µs | - | - | LTC1662 | Board(s) |
|
DC2795A-CEVAL BOARD FOR LTC1664 |
1,908 |
|
Datasheet |
- | Box | Active | 4 | 10 | Serial, SPI | 19 µs | Voltage | - | LTC1664 | Board(s) |
|

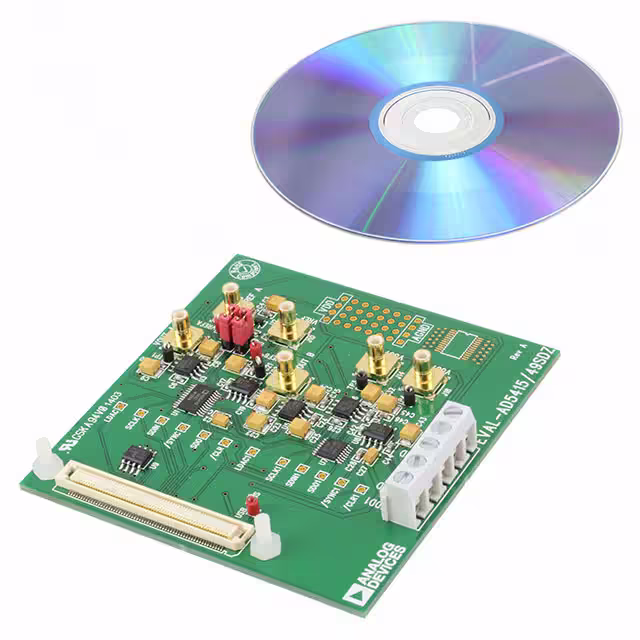

EV-AD5415/49SDZEVAL BOARD FOR AD5415 AD5449 |
2,653 |
|
Datasheet |
- | Box | Active | 4 | 12 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | - | Current | 2.47M | AD5415, AD5449 | Board(s) |
|
DC2795A-BEVAL BOARD FOR LTC1665 |
2,589 |
|
Datasheet |
- | Box | Active | 8 | 8 | Serial, SPI | 30 µs | Voltage | - | LTC1665 | Board(s) |
|
DC2795A-AEVAL BOARD FOR LTC1660 |
2,222 |
|
Datasheet |
- | Box | Active | 8 | 10 | Serial, SPI | 30 µs | Voltage | - | LTC1660 | Board(s) |
|

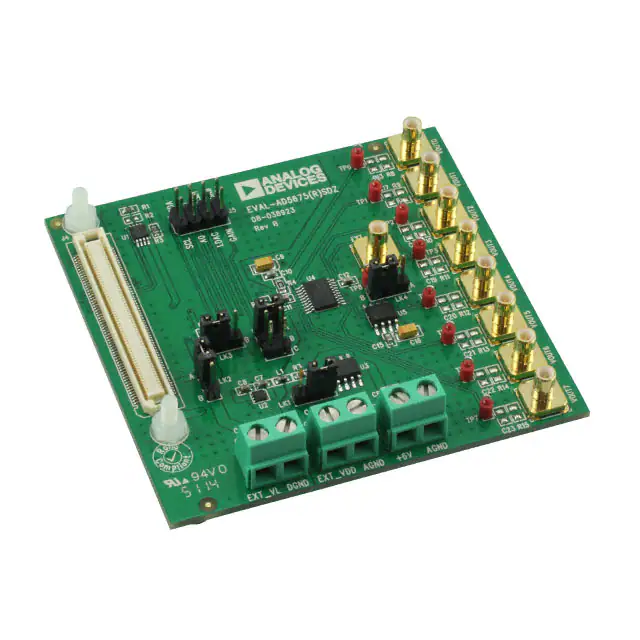

EVAL-AD5675SDZEVAL BOARD FOR AD5675 |
2,830 |
|
Datasheet |
nanoDAC+® | Box | Active | 8 | 16 | I2C | 5 µs | Voltage | - | AD5675 | Board(s) |
|
EVAL-AD5064EBZEVAL BOARD FOR AD5064 |
1,192 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 16 | Serial | 8 µs | Voltage | 125k | AD5064 | Board(s), Cable(s) |
|
|
DS4424EVKIT#EVAL BOARD FOR DS4424 |
4,469 |
|
Datasheet |
- | Box | Active | 4 | 7 | I2C | - | Current | - | DS4424 | Board(s) |
|
|
AD9736-DPG2-EBZEVAL BOARD FOR AD9736 |
1,772 |
|
Datasheet |
- | Box | Active | 1 | 14 | Parallel | - | Current | 1.2G | AD9736 | Board(s) |
|
|
DC2303A-EEVAL BOARD FOR LTC2000A-14 |
4,948 |
|
Datasheet |
- | Box | Active | 1 | 14 | LVDS - Serial, SPI | 2.2 ns | Current | 2.7G | LTC2000A-14 | Board(s) |
|
AD9746-DPG2-EBZEVAL BOARD FOR AD9746 |
2,453 |
|
Datasheet |
- | Bulk | Active | 2 | 14 | Parallel | - | Current | 250M | AD9746 | Board(s) |
|

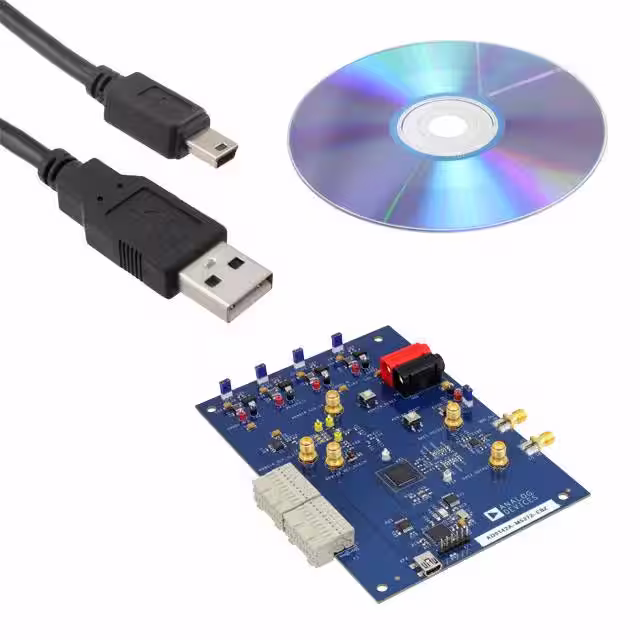

AD9142A-M5372-EBZEVAL BOARD FOR AD9142A ADL5372 |
2,344 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 16 | LVDS - Serial, SPI | 20 ns | Current | 1.8G | AD9142A, ADL5372 | Board(s), Cable(s) |
