Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC3171EVMEVAL BOARD FOR DAC3171 |
4,192 |
|
Datasheet |
- | Box | Obsolete | 1 | 14 | LVDS - Parallel | 11 ns | Current | 500M | DAC3171 | Board(s) |
|

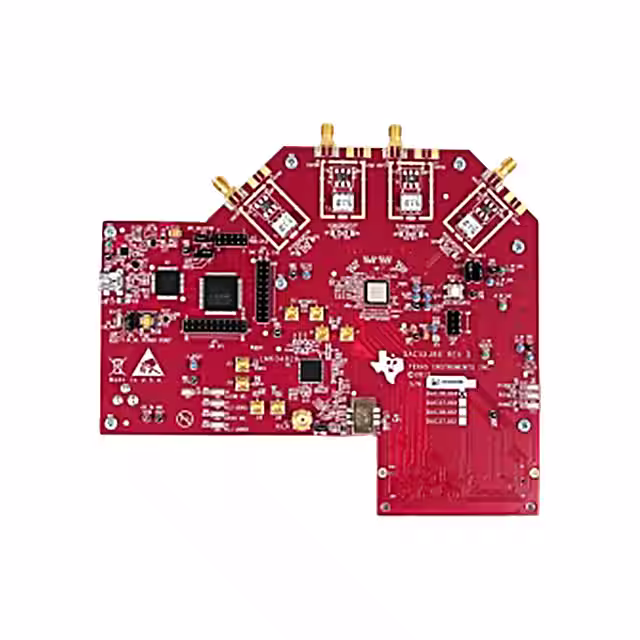

DAC38J82EVMEVAL BOARD FOR DAC38J82 |
3,216 |
|
Datasheet |
- | Box | Obsolete | 2 | 16 | Serial JESD204B, SPI™ | 10 ns | Current | 2.5G | DAC38J82 | Board(s) |
|

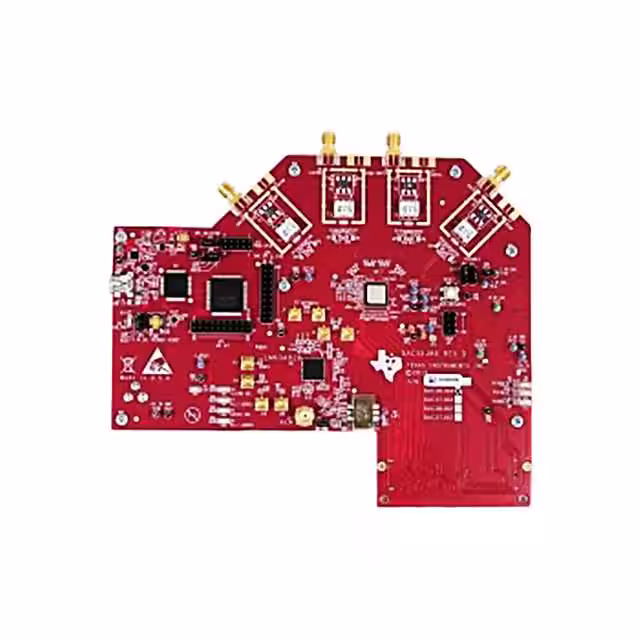

DAC39J82EVMEVAL BOARD FOR DAC39J82 |
4,478 |
|
Datasheet |
- | Box | Obsolete | 2 | 16 | JESD204B | 10 ns | Current | 2.8G | DAC39J82 | Board(s) |
|

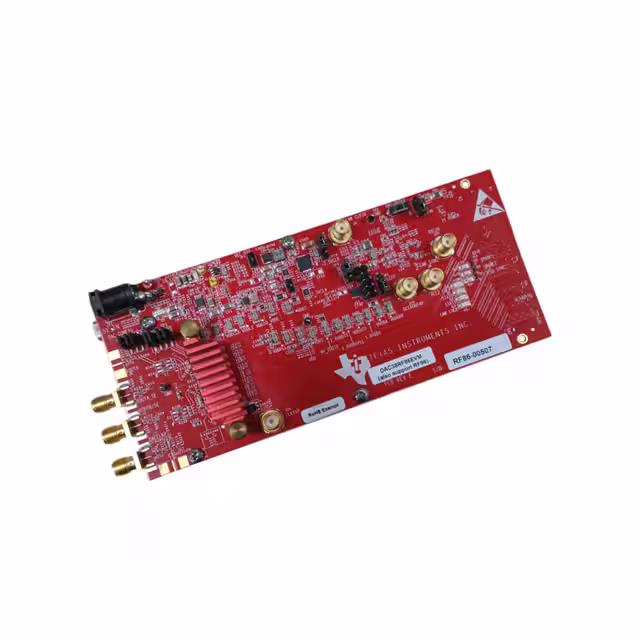

DAC38RF86EVMEVAL BOARD FOR DAC38RF86 |
4,812 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 14 | JESD204B | 1 ns | Voltage | 9G | DAC38RF86 | Board(s) |
|
CDB43130-CSPEVAL BOARD FOR CS43130 |
1,626 |
|
Datasheet |
- | Box | Obsolete | 2 | 32 | Serial | - | Voltage | - | CS43130 | Board(s) |
|

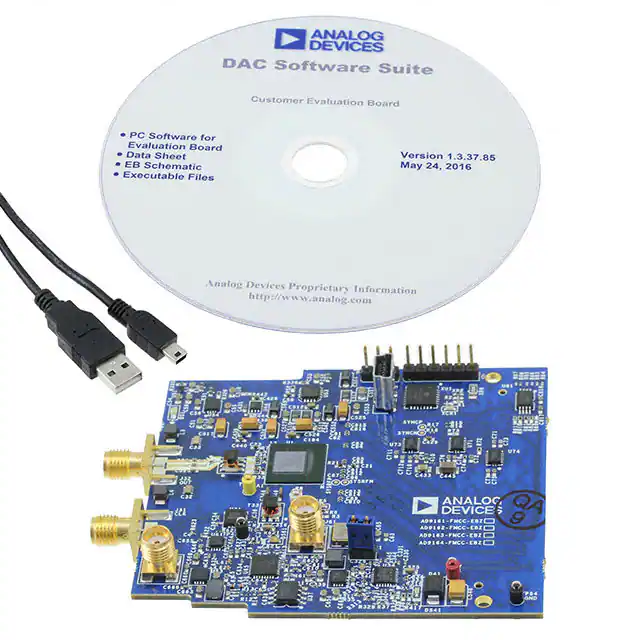

AD9164-FMCC-EBZEVAL BOARD FOR AD9164 |
4,007 |
|
Datasheet |
- | Bulk | Active | 1 | 16 | JESD204B Serial | - | Current | 12G | AD9164 | Board(s) |
|
DAC63204EVMEVAL BOARD FOR DAC63204 |
4,365 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C, SPI | 20 µs | Current/Voltage | - | DAC63204 | Board(s), Cable(s) |
|
|
EVAL-AD45335SDZEVAL BOARD FOR AD45335 |
4,102 |
|
Datasheet |
- | Box | Active | 32 | 14 | SPI | 470 µs | Voltage | - | AD45335 | Board(s) |
|

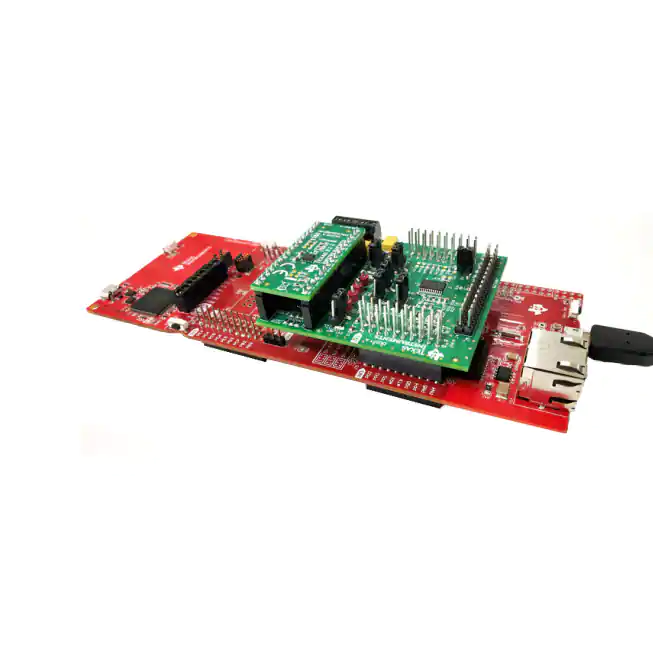

DAC53608EVMEVAL BOARD FOR DAC53608 |
3,399 |
|
Datasheet |
- | Box | Active | 8 | 10 | I2C, Serial | 10 µs | Voltage | - | DAC53608 | Board(s) |
|

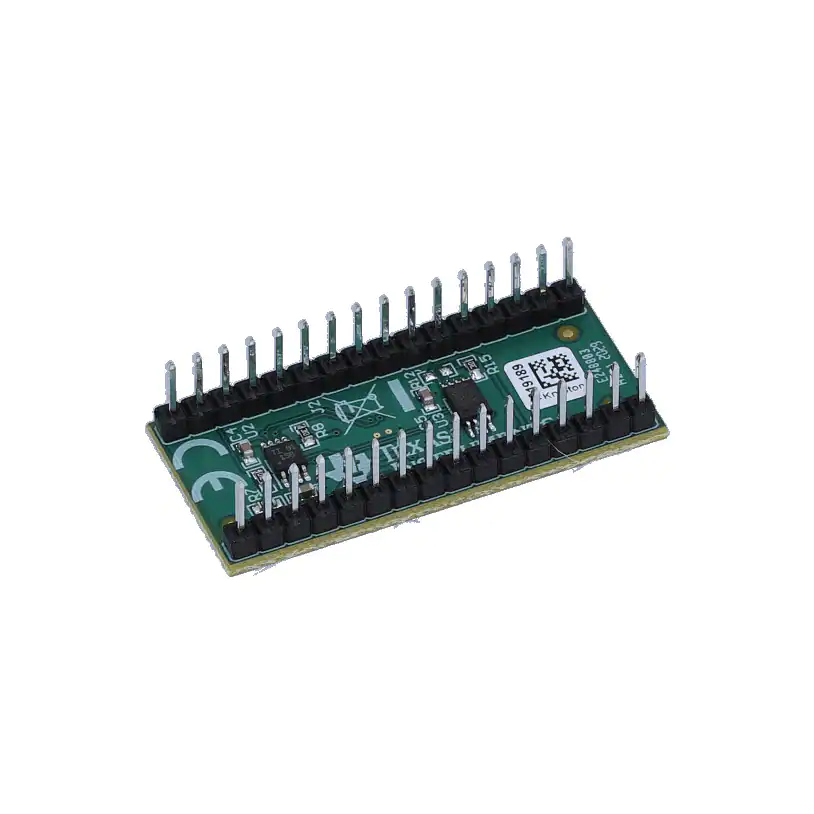

DAC53701EVMEVAL BOARD FOR DAC53701 |
3,927 |
|
Datasheet |
- | Box | Active | 1 | 10 | I2C | 12 µs | Voltage | - | DAC53701 | Board(s), Cable(s) |
|

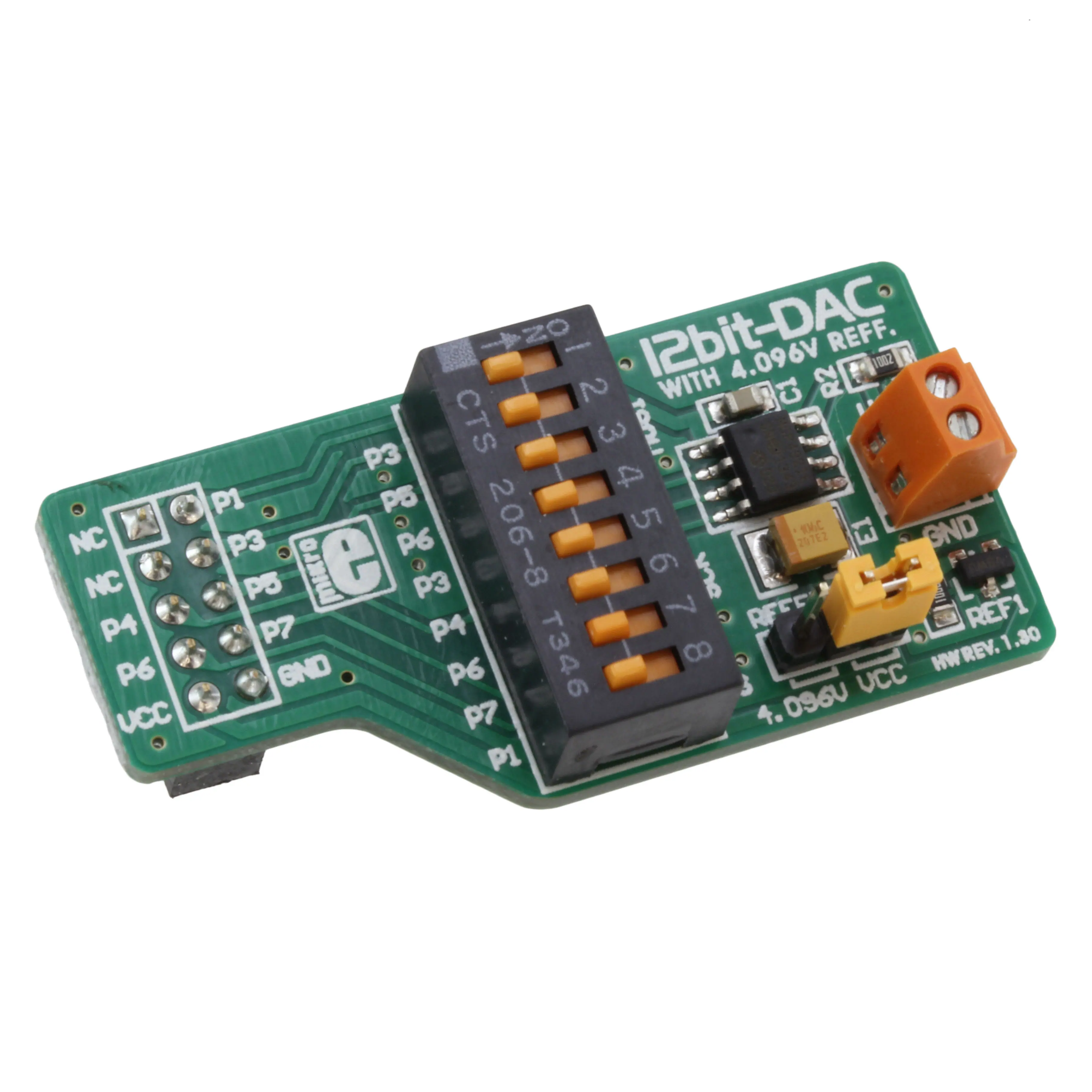

MIKROE-80EVAL BOARD FOR MCP4921 |
2,335 |
|
Datasheet |
- | Bulk | Active | 1 | 12 | SPI | 4.5 µs | Voltage | - | MCP4921 | Board(s) |
|
MCP4725EVEVAL BOARD FOR MCP4725 |
1,676 |
|
Datasheet |
- | Box | Active | 1 | 12 | I2C | 6 µs | Voltage | 100k ~ 3.4M | MCP4725 | Board(s) |
|

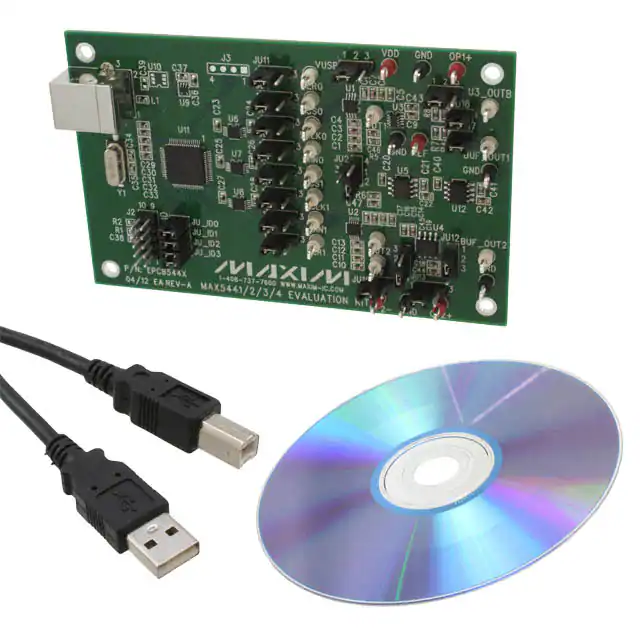

MAX544XEVKIT#EVAL BOARD FOR MAX5441 MAX5442 |
2,657 |
|
Datasheet |
- | Box | Active | 2 | 16 | MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | - | MAX5441, MAX5442 | Board(s), Cable(s) |
|

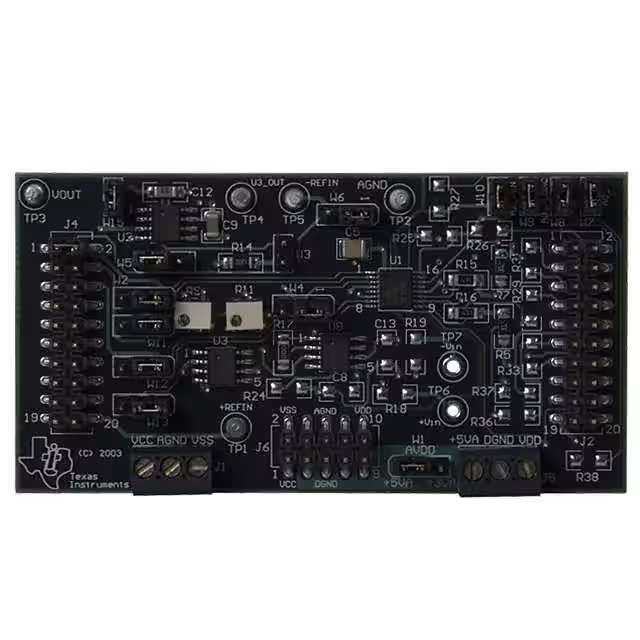

DAC7573EVMEVAL BOARD FOR DAC7573 |
1,279 |
|
Datasheet |
- | Bulk | Active | 4 | 12 | I2C | 5 µs | Voltage | 188k | DAC7573 | Board(s) |
|

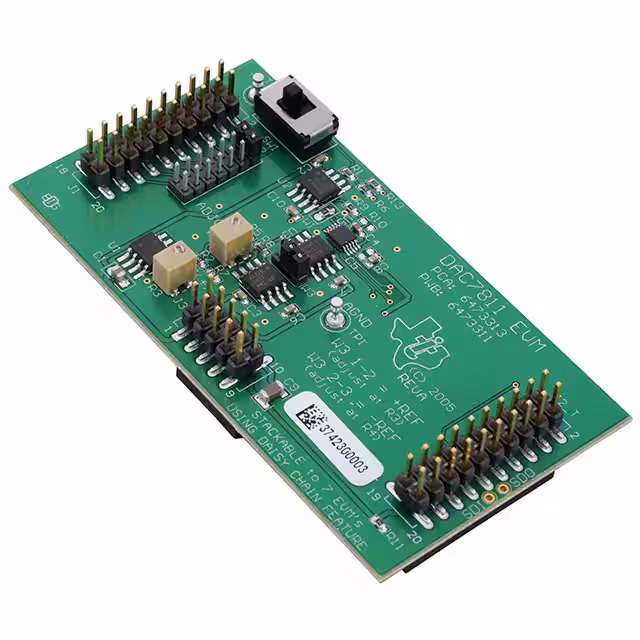

DAC7811EVMEVAL BOARD FOR DAC7811 |
1,424 |
|
Datasheet |
- | Bulk | Active | 1 | 12 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 200 ns | Current | - | DAC7811 | Board(s) |
|

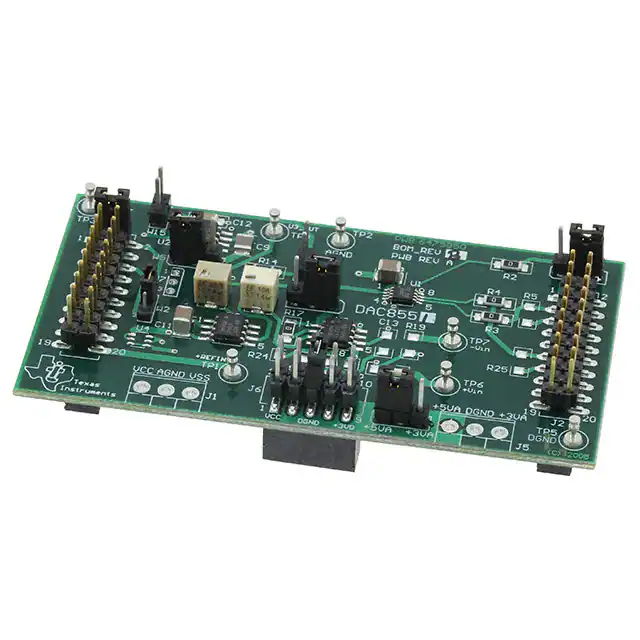

DAC8551EVMEVAL BOARD FOR DAC8551 |
2,284 |
|
Datasheet |
- | Box | Active | 1 | 16 | SPI, DSP | 8 µs | Voltage | 1M | DAC8551 | Board(s) |
|

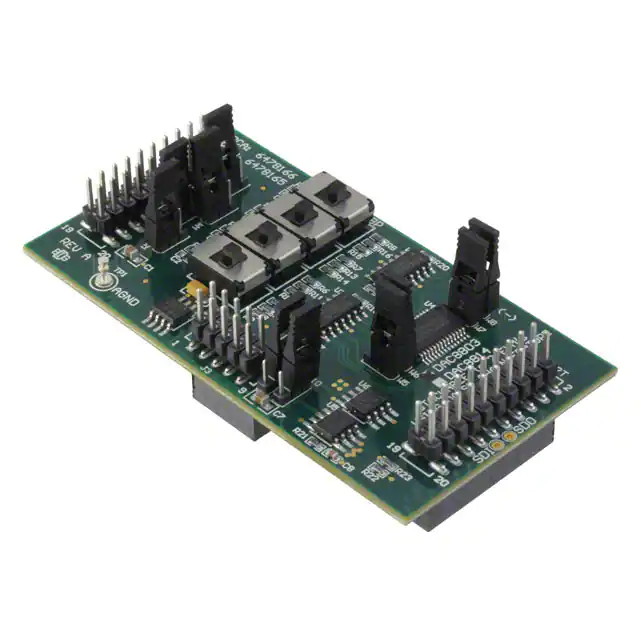

DAC8803EVMEVAL BOARD FOR DAC8803 |
2,150 |
|
Datasheet |
- | Bulk | Active | 4 | 14 | SPI | 300 ns | Current | - | DAC8803 | Board(s) |
|

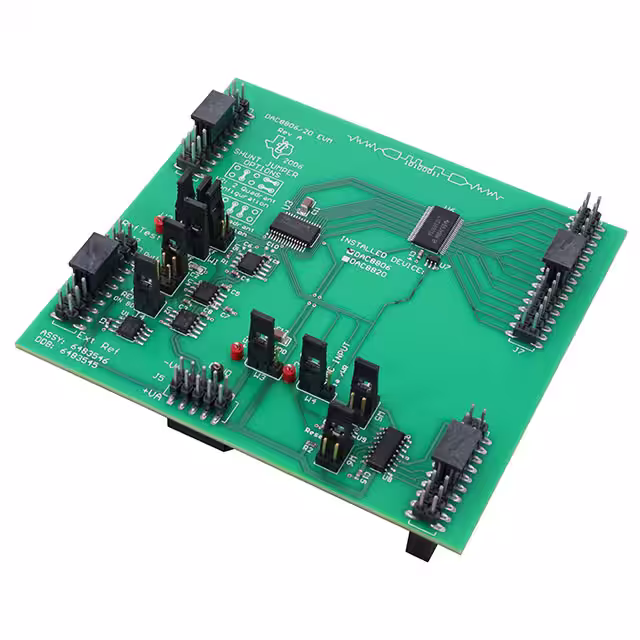

DAC8806EVMEVAL BOARD FOR DAC8806 |
2,896 |
|
Datasheet |
- | Box | Active | 1 | 14 | Parallel | 500 ns | Current | - | DAC8806 | Board(s) |
|

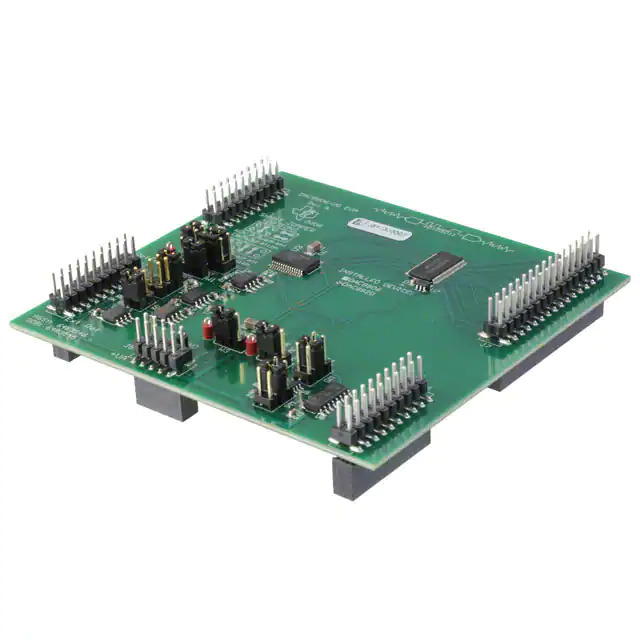

DAC8820EVMEVAL BOARD FOR DAC8820 |
3,030 |
|
Datasheet |
- | Box | Active | 1 | 16 | Parallel | 500 ns | Current | - | DAC8820 | Board(s) |
|

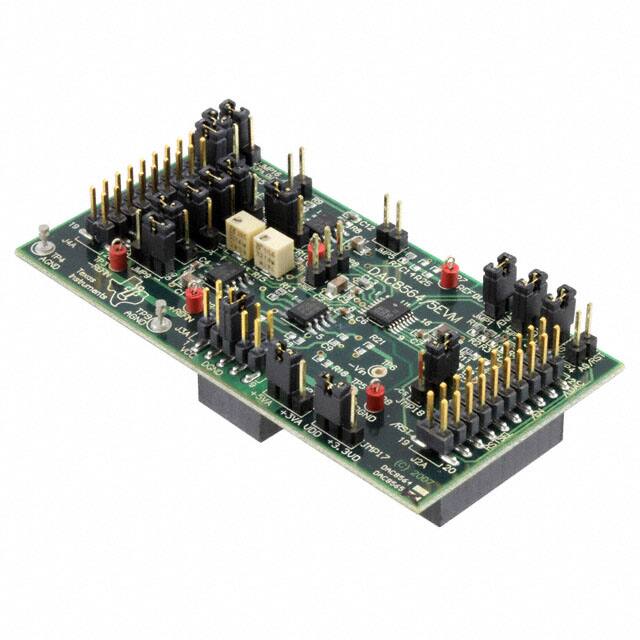

DAC8565EVMEVAL BOARD FOR DAC8565 |
1,463 |
|
Datasheet |
- | Box | Active | 4 | 16 | Serial | 8 µs | Voltage | - | DAC8565 | Board(s) |
