Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2903A-BEVAL BOARD FOR LTC2672-12 |
1,003 |
|
Datasheet |
SoftSpan™ | Box | Active | 5 | 12 | SPI | 3.8 µs | Current | - | LTC2672-12 | Board(s), Cable(s) |
|

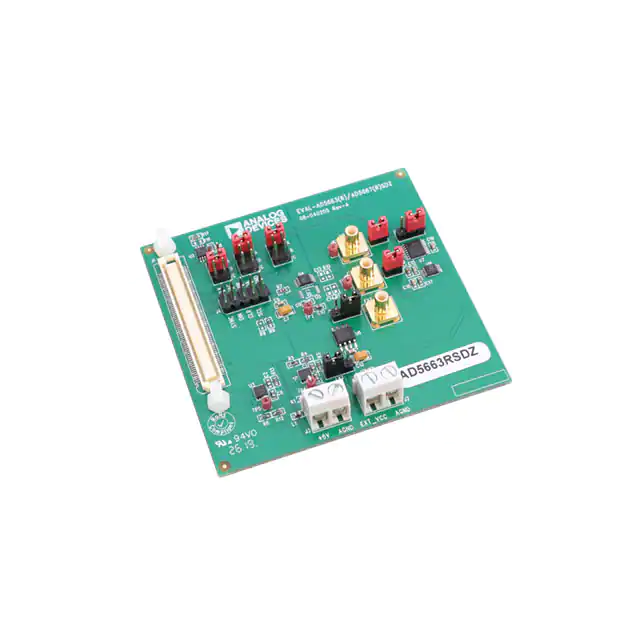

EVAL-AD5663RSDZEVAL BOARD FOR AD5663R |
2,960 |
|
Datasheet |
- | Bulk | Active | 2 | 16 | SPI | - | Voltage | - | AD5663R | Board(s), Cable(s) |
|

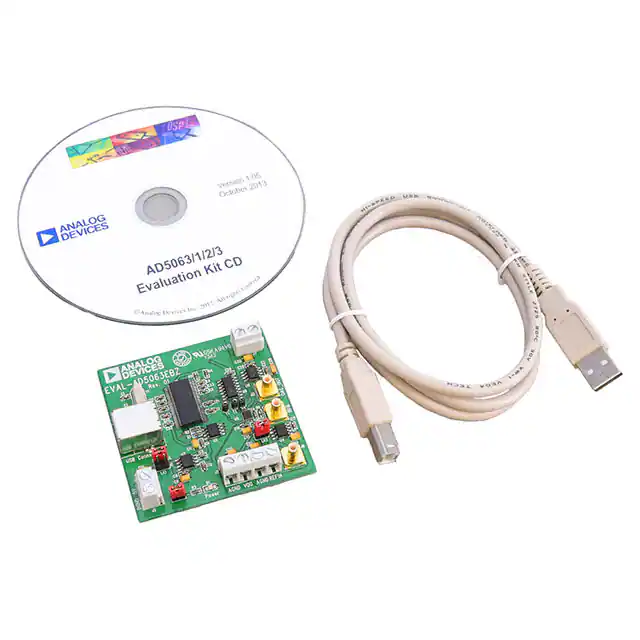

EVAL-AD5063EBZEVAL BOARD FOR AD5063 |
2,790 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 16 | SPI | 1 µs | Voltage | 333k | AD5063 | Board(s) |
|

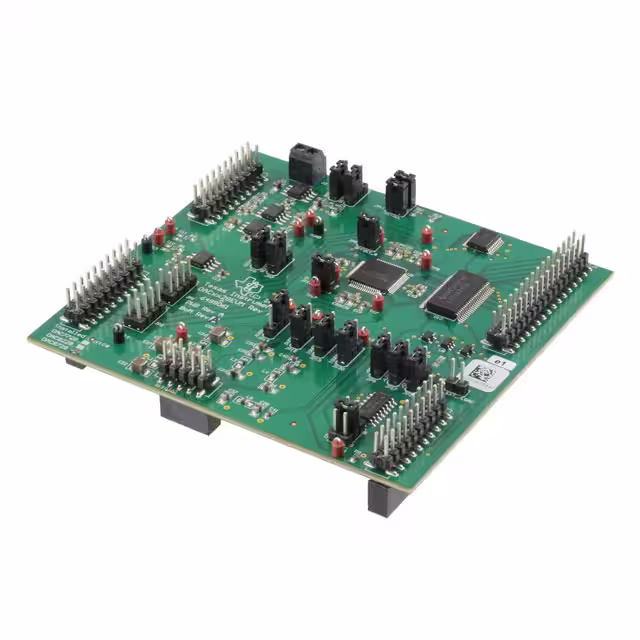

DAC8728EVMEVAL BOARD FOR DAC8728 |
2,656 |
|
Datasheet |
- | Box | Active | 8 | 16 | Parallel | 15 µs | Voltage | - | DAC8728 | Board(s) |
|
|
EVAL-AD3542RFMCZEVAL BOARD FOR AD3542R |
3,502 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial, SPI | 100 ns | Voltage | - | AD3542R | Board(s) |
|

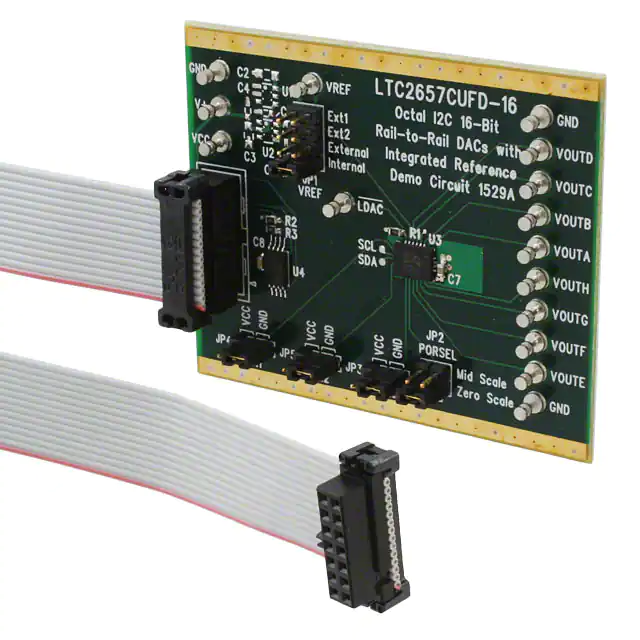

DC1529A-AEVAL BOARD FOR LTC2657-16 |
4,071 |
|
Datasheet |
- | Box | Active | 8 | 16 | I2C, Serial | 9.1 µs | Voltage | - | LTC2657-16 | Board(s) |
|

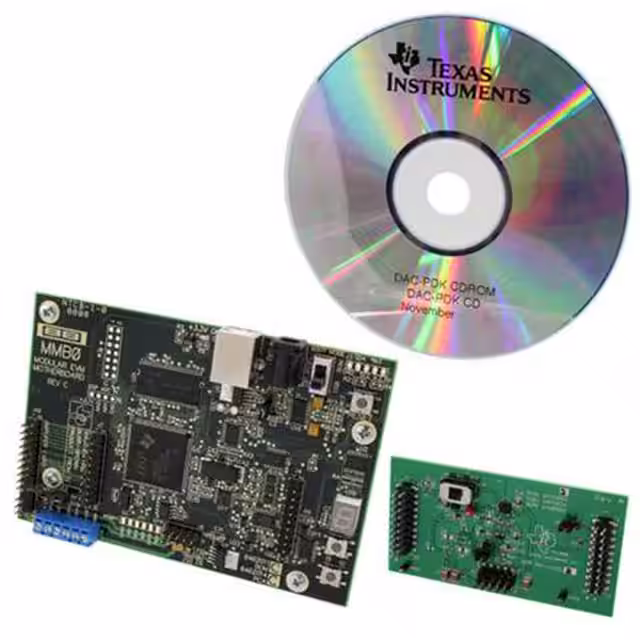

DAC8832EVM-PDKEVAL BOARD FOR DAC8832 |
2,986 |
|
Datasheet |
- | Box | Active | 1 | 16 | SPI | 1 µs | Voltage | 50M | DAC8832 | Board(s) |
|

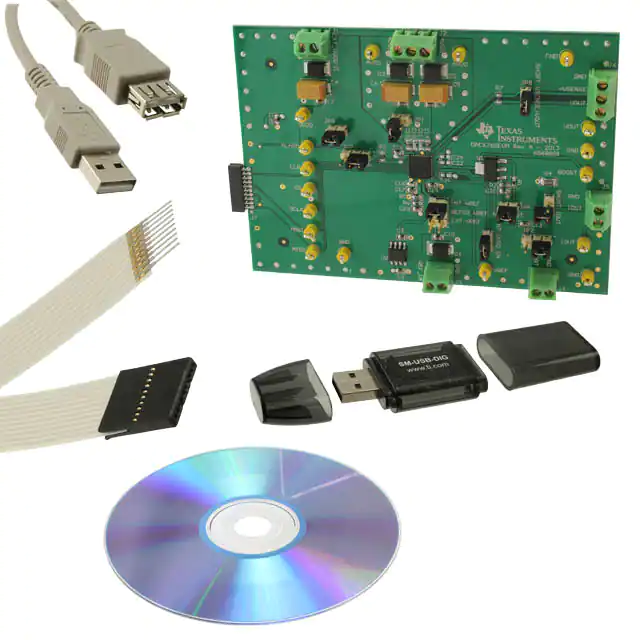

DAC8760EVMEVAL BOARD FOR DAC8760 |
1,716 |
|
Datasheet |
- | Box | Active | 1 | 16 | SPI | 10 µs | Current/Voltage | - | DAC8760 | Board(s), Cable(s) |
|

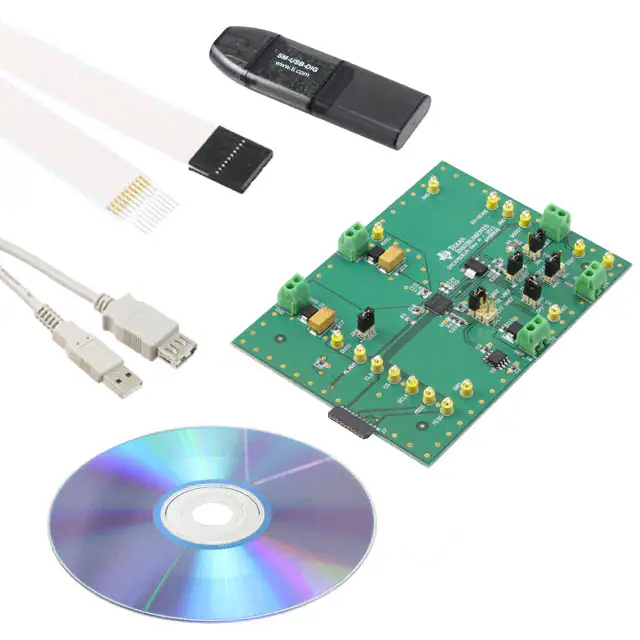

DAC7750EVMEVAL BOARD FOR DAC7750 |
2,625 |
|
Datasheet |
- | Box | Active | 1 | 12 | SPI | 10 µs | Current | - | DAC7750 | Board(s), Cable(s) |
|
DAC8750EVMEVAL BOARD FOR DAC8750 |
4,541 |
|
Datasheet |
- | Box | Active | 1 | 16 | SPI | 10 µs | Current | - | DAC8750 | Board(s), Cable(s) |
|

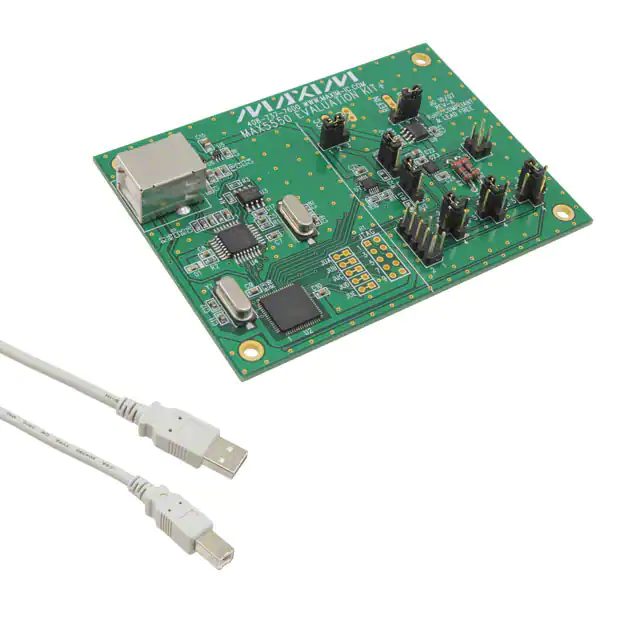

MAX5550EVKIT+EVAL BOARD FOR MAX5550 |
2,977 |
|
Datasheet |
- | Box | Active | 2 | 10 | Serial | 30 µs | Current | - | MAX5550 | Board(s) |
|

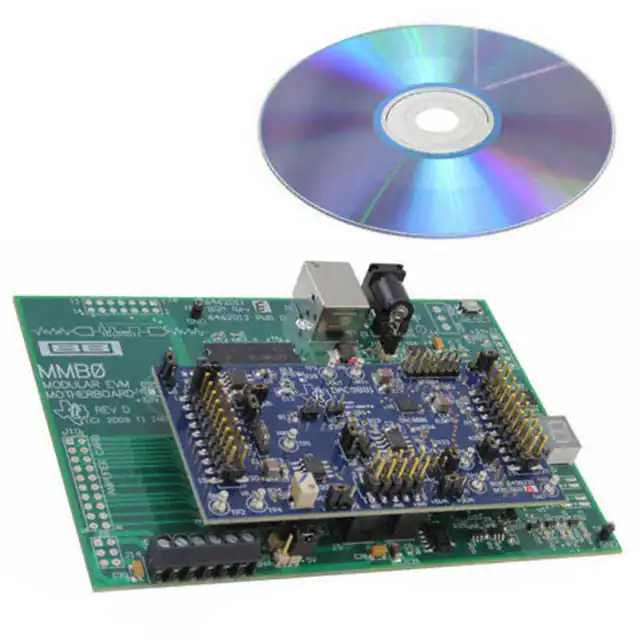

DAC9881EVM-PDKEVAL BOARD FOR DAC9881 |
2,012 |
|
Datasheet |
- | Box | Active | 1 | 18 | Serial | 5 µs | Voltage | - | DAC9881 | Board(s) |
|

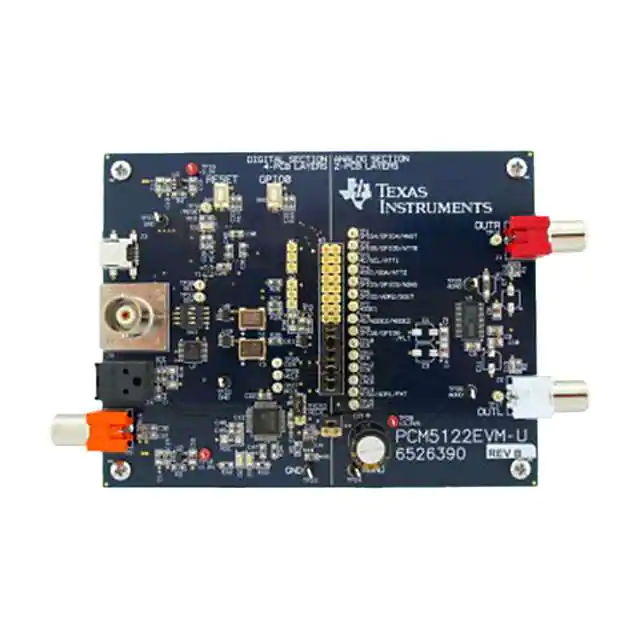

PCM5122EVM-UEVAL BOARD FOR PCM5122 |
4,128 |
|
Datasheet |
DirectPath™ | Box | Active | 2 | 16, 24, 32 | I2C, Serial, SPI | - | Voltage | 8k ~ 384k | PCM5122 | Board(s) |
|

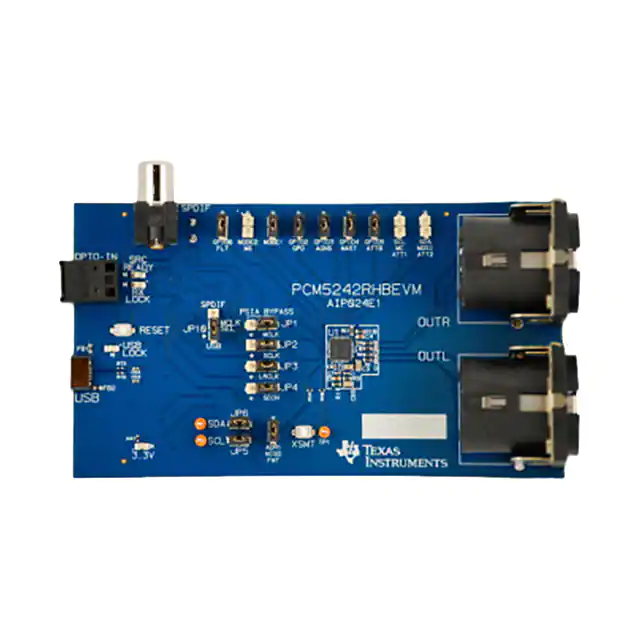

PCM5242RHBEVMEVAL BOARD FOR PCM5242 |
1,603 |
|
Datasheet |
DirectPath™ | Box | Active | 2 | 32 | I2C, SPI | - | Current | 384k | PCM5242 | Board(s) |
|

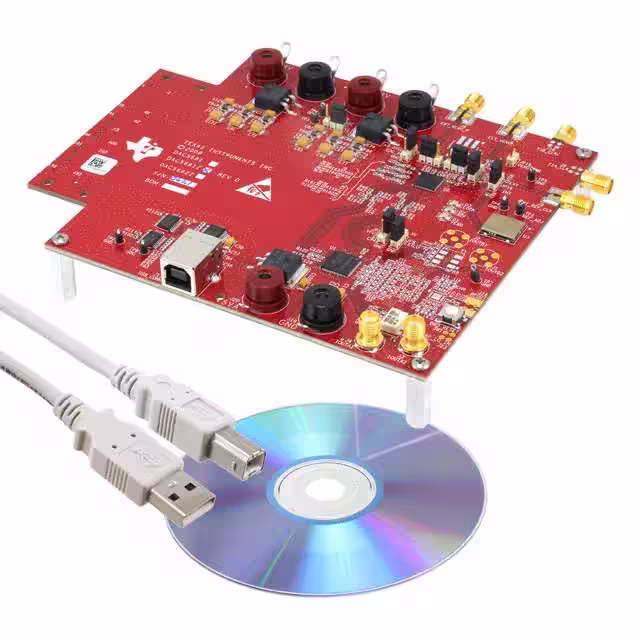

DAC5681ZEVMEVAL BOARD FOR DAC5681Z |
2,631 |
|
Datasheet |
- | Box | Active | 1 | 16 | LVDS - Parallel, Serial | 10.4 ns | Current | 1G | DAC5681Z | Board(s) |
|

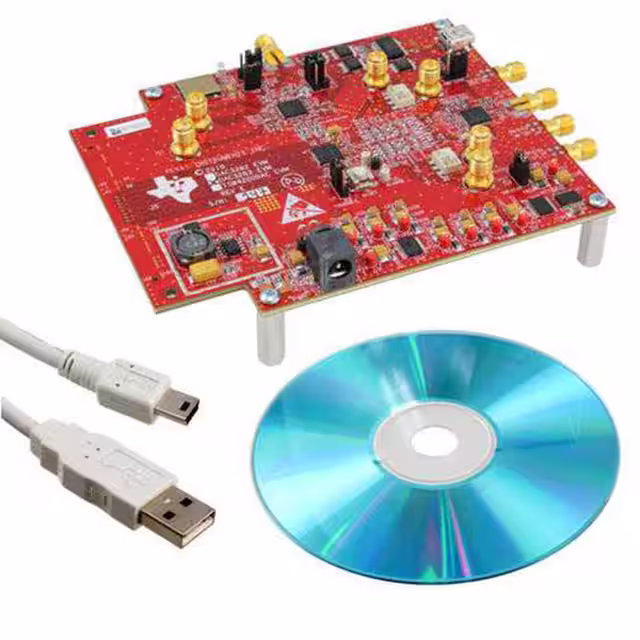

DAC3283EVMEVAL BOARD FOR DAC3283 |
3,348 |
|
Datasheet |
- | Box | Active | 2 | 16 | Serial | 10.4 ns | Current | 800M | DAC3283 | Board(s) |
|

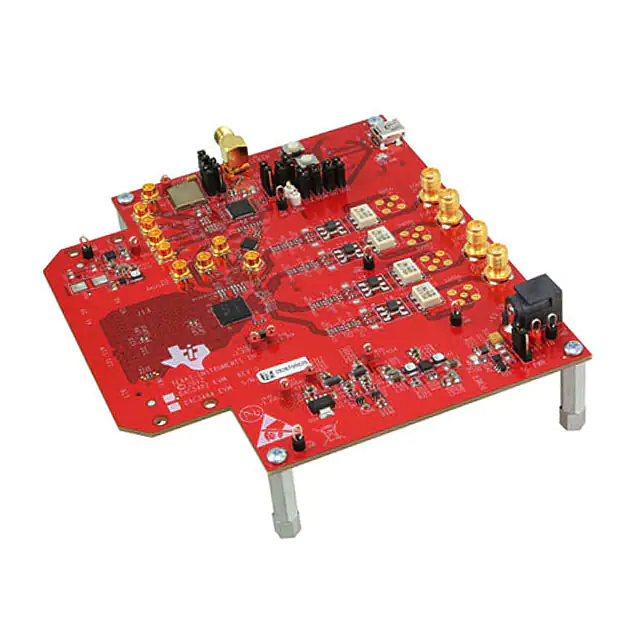

DAC3482EVMEVAL BOARD FOR DAC3482 |
3,846 |
|
Datasheet |
- | Box | Active | 2 | 16 | LVDS - Serial | 10 ns | Current | 1.25G | DAC3482 | Board(s) |
|

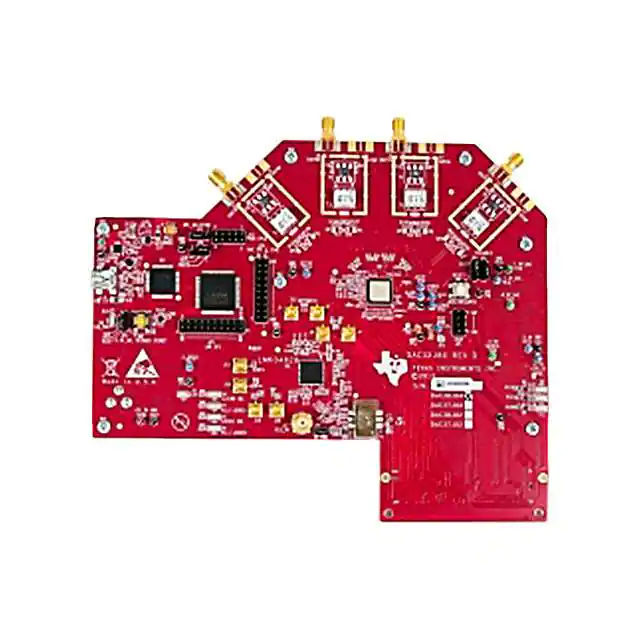

DAC38J84EVMEVAL BOARD FOR DAC38J84 |
4,189 |
|
Datasheet |
- | Box | Active | 1 | 16 | Serial JESD204B, SPI™ | 10 ns | Voltage | 2.5G | DAC38J84 | Board(s) |
|
AD9171-FMC-EBZEVAL BOARD FOR AD9171 |
4,407 |
|
Datasheet |
- | Bulk | Active | 2 | 16 | JESD204B, Serial, SPI | - | - | 12.6G | AD9171 | Board(s) |
|

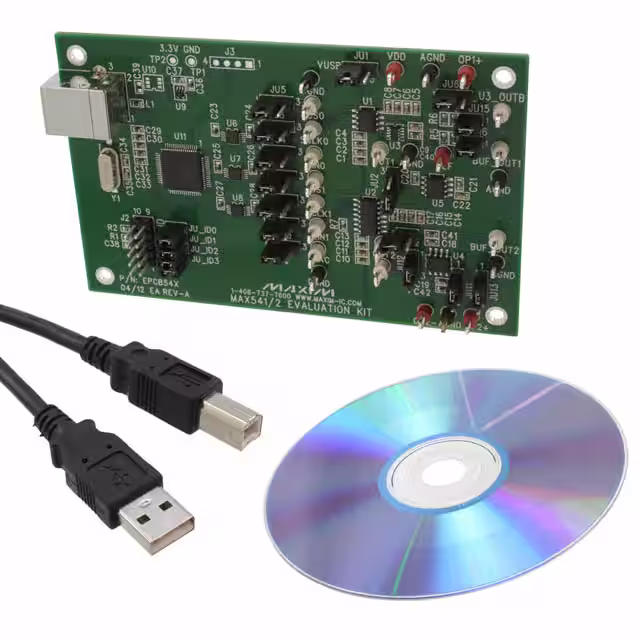

MAX54XEVKIT#EVAL BOARD FOR MAX541 MAX542 |
4,466 |
|
Datasheet |
- | Box | Active | 2 | 16 | MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | - | MAX541, MAX542 | Board(s), Cable(s) |
