Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

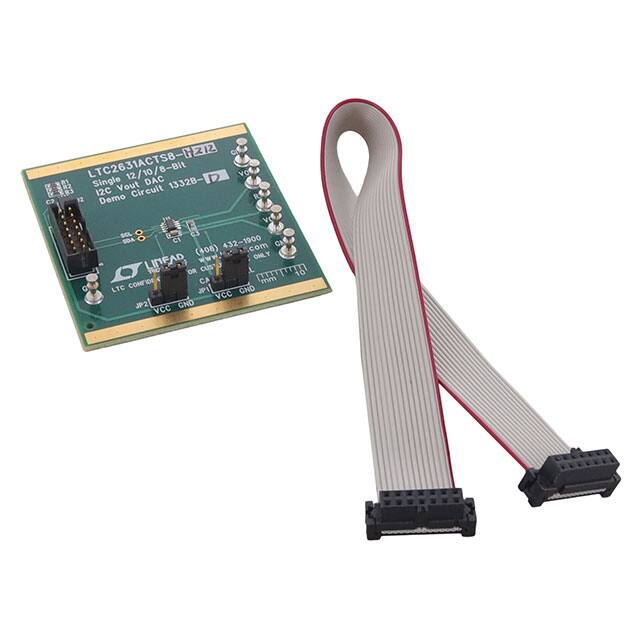

DC1332B-DEVAL BOARD FOR LTC2631 |
3,198 |
|
Datasheet |
- | Bulk | Active | 1 | 12 | I2C | 4.6 µs | Voltage | - | LTC2631 | Board(s), Cable(s) |
|

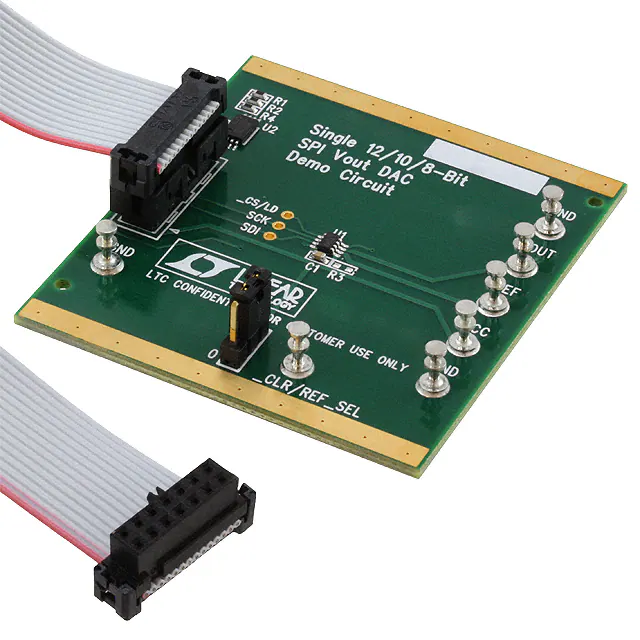

DC1333A-DEVAL BOARD FOR LTC2640-12 |
4,112 |
|
Datasheet |
- | Box | Active | 1 | 12 | MICROWIRE™, Serial, SPI™ | 4.1 µs | Voltage | - | LTC2640-12 | Board(s) |
|

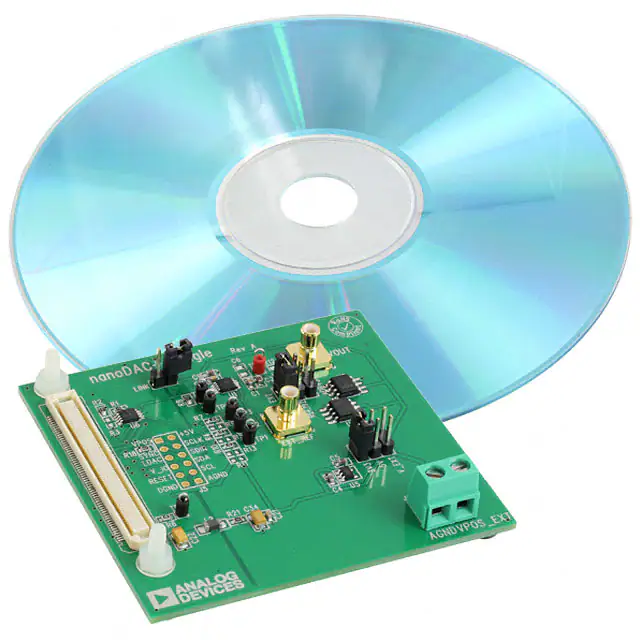

EVAL-AD5683RSDZEVAL BOARD FOR AD5683R |
1,368 |
|
Datasheet |
nanoDAC+® | Box | Active | 1 | 16 | Serial | 5 µs | Voltage | - | AD5683R | Board(s) |
|

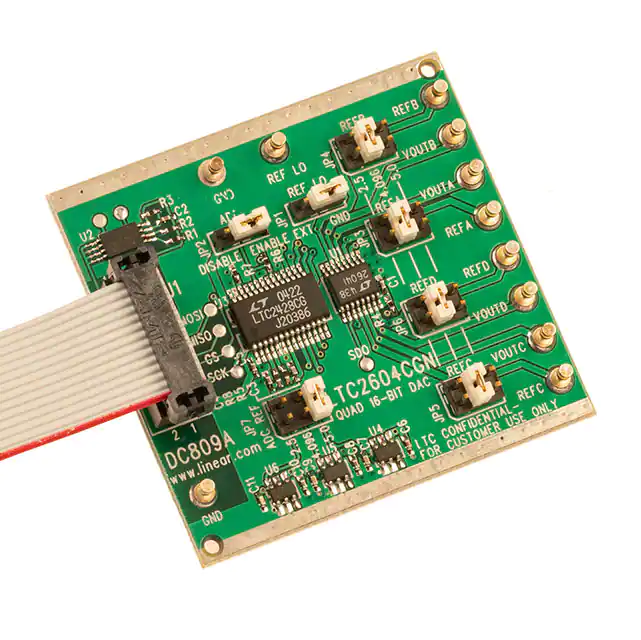

DC809AEVAL BOARD FOR LTC2604 |
4,248 |
|
Datasheet |
- | Box | Active | 4 | 16 | MICROWIRE™, Serial, SPI™ | 10 µs | Voltage | - | LTC2604 | Board(s) |
|

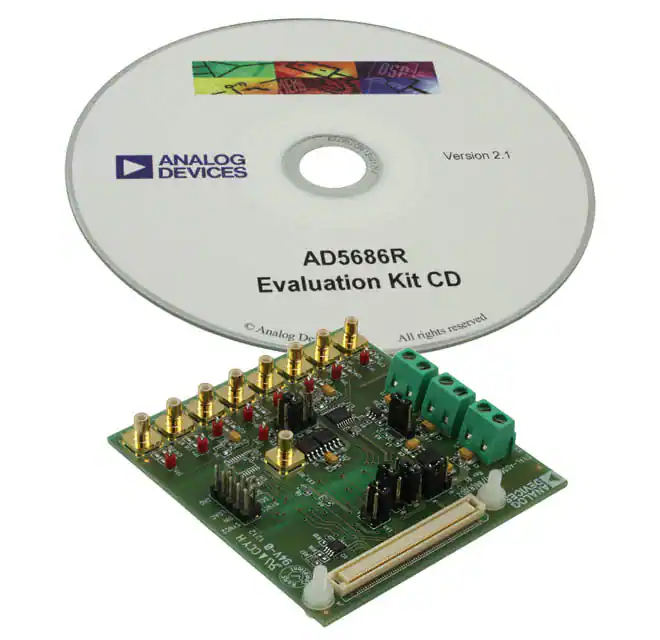

EVAL-AD5686RSDZEVAL BOARD FOR AD5686R |
4,135 |
|
Datasheet |
nanoDAC® | Box | Active | 4 | 16 | Serial, SPI | 5 µs | Voltage | - | AD5686R | Board(s) |
|

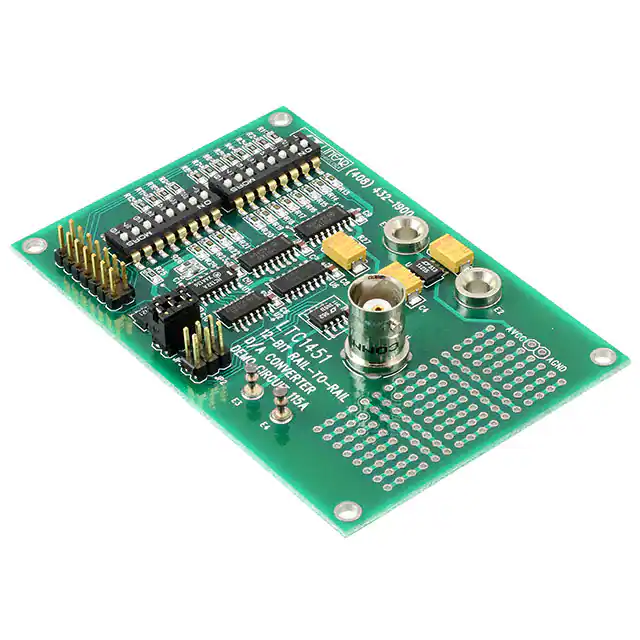

DC115A-BEVAL BOARD FOR LTC1451 |
2,162 |
|
Datasheet |
- | Box | Active | 1 | 12 | Serial | 14 µs | Voltage | - | LTC1451 | Board(s) |
|

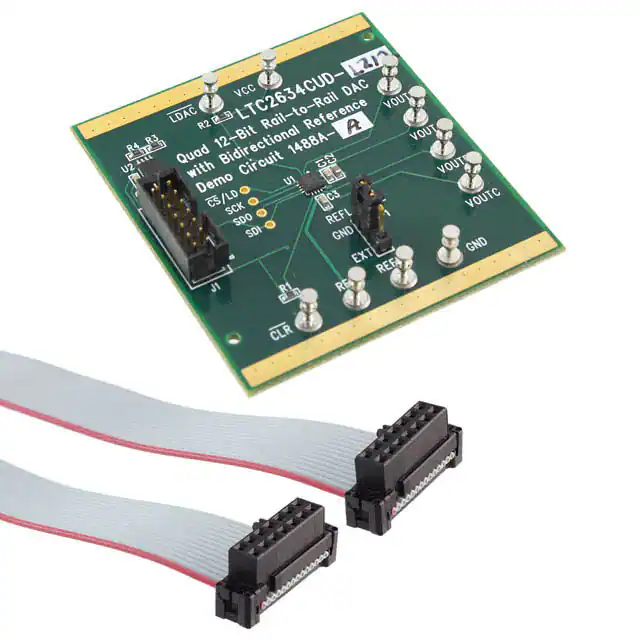

DC1488A-AEVAL BOARD FOR LTC2634-12 |
1,475 |
|
Datasheet |
- | Box | Active | 4 | 12 | MICROWIRE™, Serial, SPI™ | 4.2 µs | Voltage | - | LTC2634-12 | Board(s) |
|

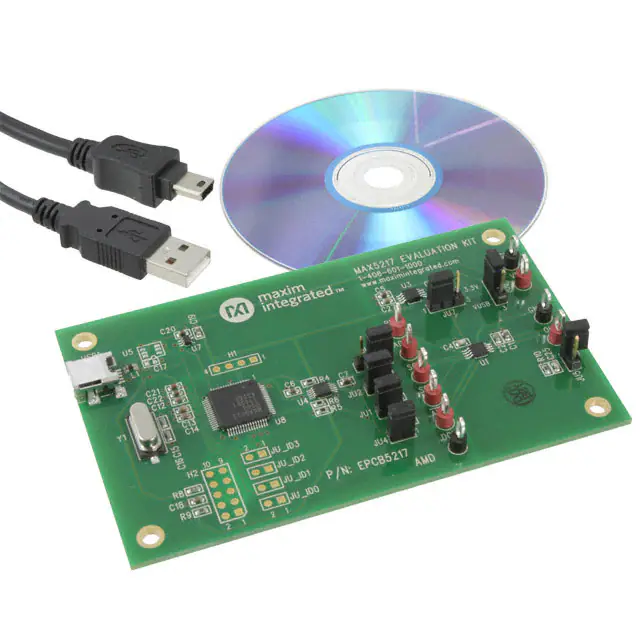

MAX5217EVKIT#EVAL BOARD FOR MAX5217 |
3,891 |
|
Datasheet |
- | Box | Active | 1 | 16 | I2C, Serial | 18 µs | Voltage | - | MAX5217 | Board(s), Cable(s) |
|
DC1466B-BEVAL BOARD FOR LTC2636-12 |
2,931 |
|
Datasheet |
- | Bulk | Active | 8 | 12 | MICROWIRE™, Serial, SPI™ | 4.4 µs | Voltage | - | LTC2636-12 | Board(s) |
|

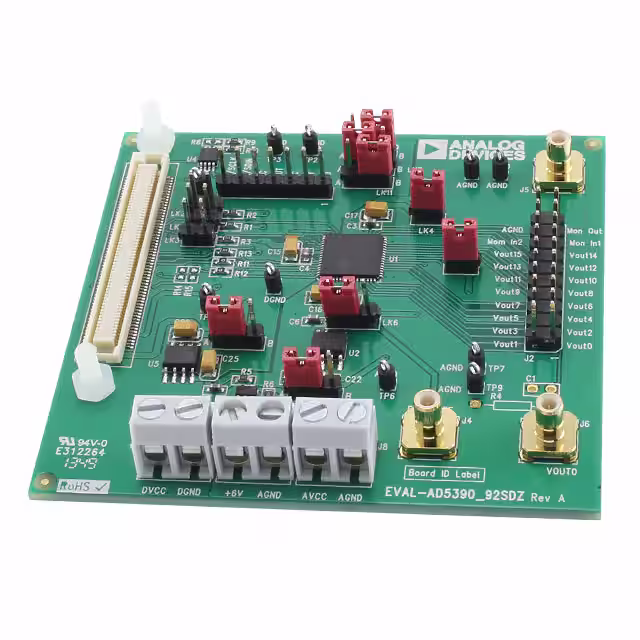

EVAL-AD5392SDZEVAL BOARD FOR AD5392 |
2,029 |
|
Datasheet |
- | Box | Active | 16 | 14 | Serial | 8 µs | Voltage | 125k | AD5392 | Board(s) |
|

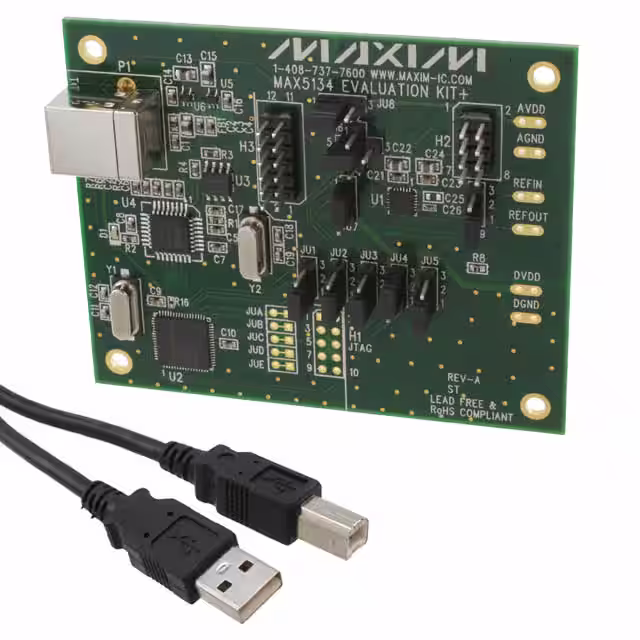

MAX5134EVKIT+EVAL BOARD FOR MAX5134 MAX5135 |
1,472 |
|
Datasheet |
- | Box | Active | 4 | 16 | Serial | 5 µs | Voltage | - | MAX5134, MAX5135, MAX5136, MAX5137 | Board(s), Cable(s) |
|

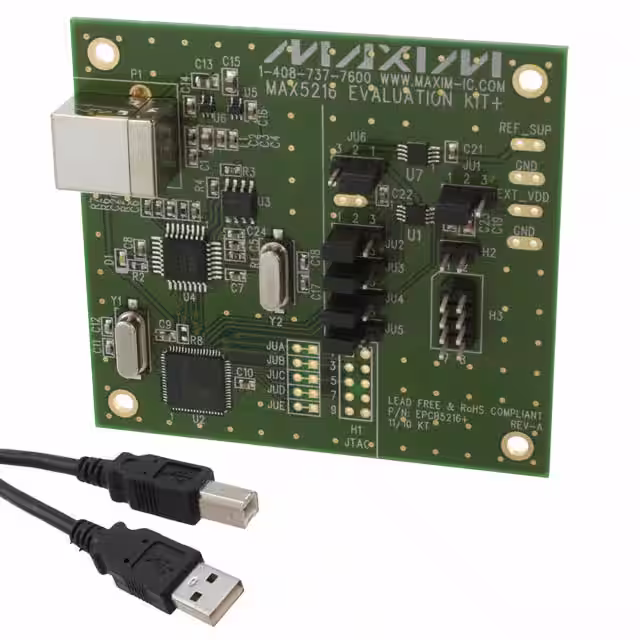

MAX5216EVKIT+EVAL BOARD FOR MAX5216 |
4,275 |
|
Datasheet |
- | Box | Active | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 14 µs | Voltage | - | MAX5216 | Board(s), Cable(s) |
.jpg)
|

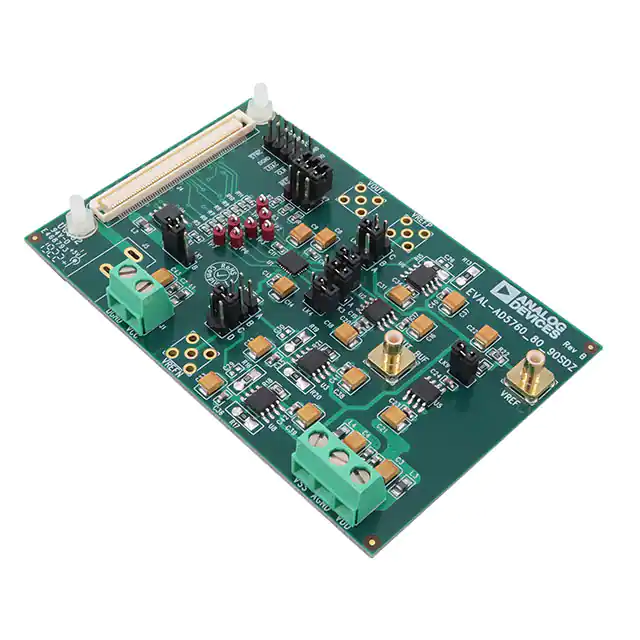

EVAL-AD5760SDZEVAL BOARD FOR AD5760 |
1,253 |
|
Datasheet |
- | Box | Active | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 2.5 µs | Voltage | - | AD5760 | Board(s) |
|
EVAL-AD5791SDZEVAL BOARD FOR AD5791 |
4,470 |
|
Datasheet |
- | Box | Active | 1 | 20 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | - | AD5791 | Board(s) |
|

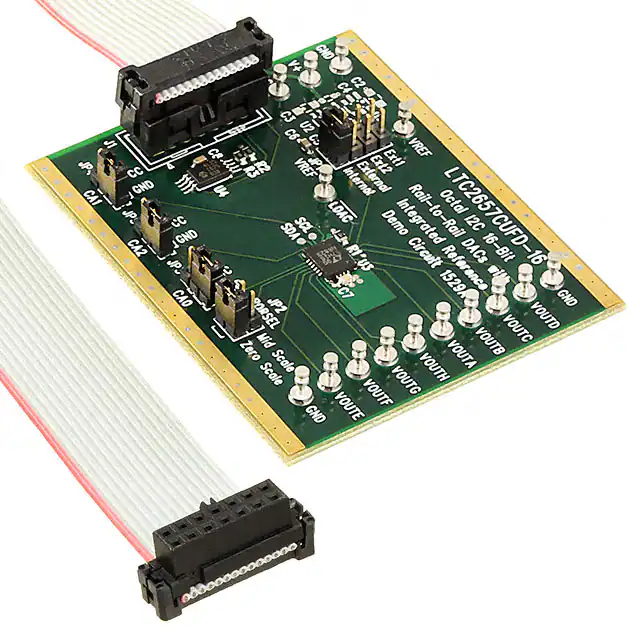

DC1529A-BEVAL BOARD FOR LTC2657-16 |
3,959 |
|
Datasheet |
- | Box | Active | 8 | 16 | I2C, Serial | 9.1 µs | Voltage | - | LTC2657-16 | Board(s) |
|

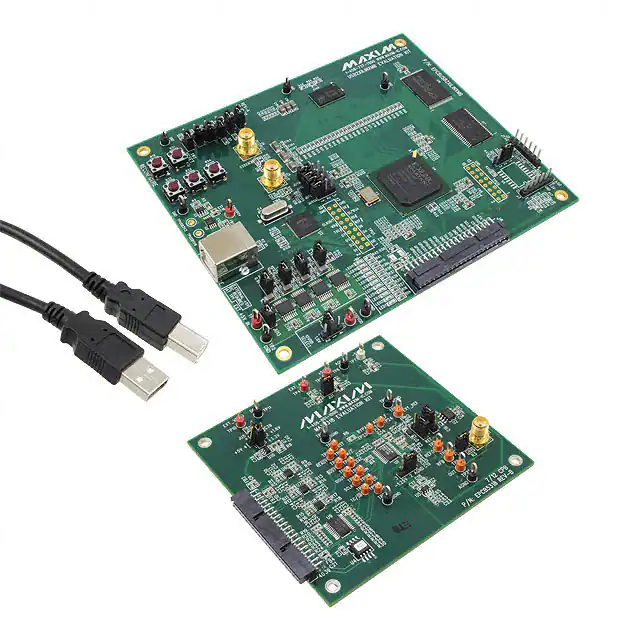

MAX5318EVSYS#EVAL BOARD FOR MAX5318 |
1,590 |
|
Datasheet |
- | Box | Active | 1 | 18 | SPI | 3 µs | Voltage | - | MAX5318 | Board(s), Cable(s) |
|
|
CDB4364EVAL BOARD FOR CS4364 |
1,544 |
|
Datasheet |
- | Bulk | Obsolete | 6 | 24 | Serial | - | Voltage | 192k | CS4364 | Board(s) |
|
|
CDB4392EVAL BOARD FOR CS4392 |
1,949 |
|
Datasheet |
- | Bulk | Not For New Designs | 2 | 24 | Serial | - | Voltage | 192k | CS4392 | Board(s) |
|
DC2085A-DEVAL BOARD FOR LTC2000A-16 |
1,969 |
|
Datasheet |
- | Box | Active | 1 | 16 | LVDS - Serial, SPI | 2.2 ns | Current | 2.7G | LTC2000A-16 | Board(s) |
|

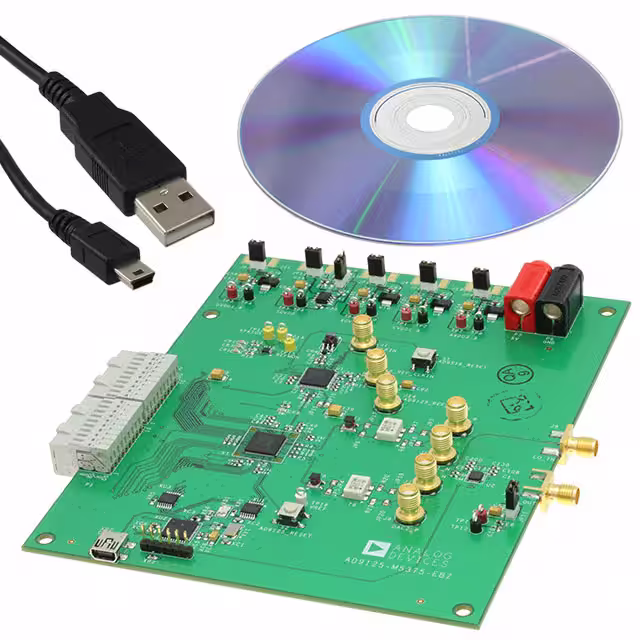

AD9125-M5375-EBZEVAL BOARD FOR AD9125 ADLM5375 |
4,969 |
|
Datasheet |
TxDAC+® | Bulk | Active | 2 | 16 | SPI | 20 ns | Current | 1G | AD9125, ADLM5375 | Board(s) |
