Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD9739-R2-EBZEVAL BOARD FOR AD9739 |
4,053 |
|
Datasheet |
- | Box | Active | 1 | 14 | SPI | - | Current | 2.5G | AD9739 | Board(s) |
|

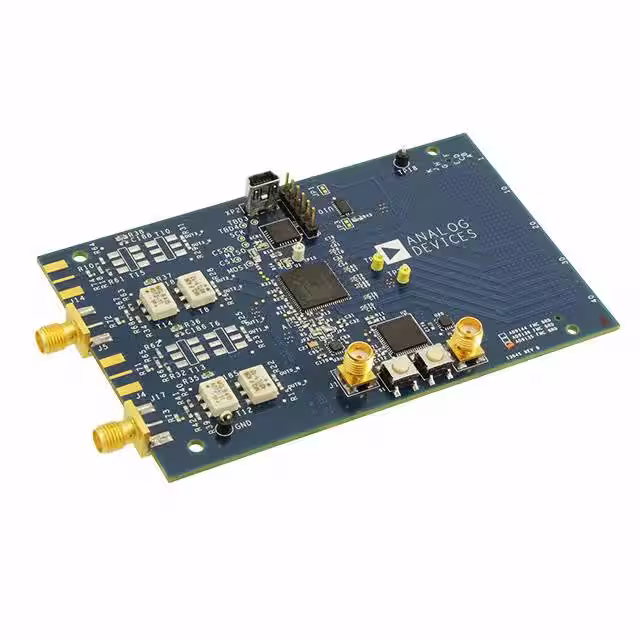

AD9135-FMC-EBZEVAL BOARD FOR AD9135 |
1,950 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 11 | JESD204B Serial | 20 ns | Current | 2.8G | AD9135 | Board(s) |
|

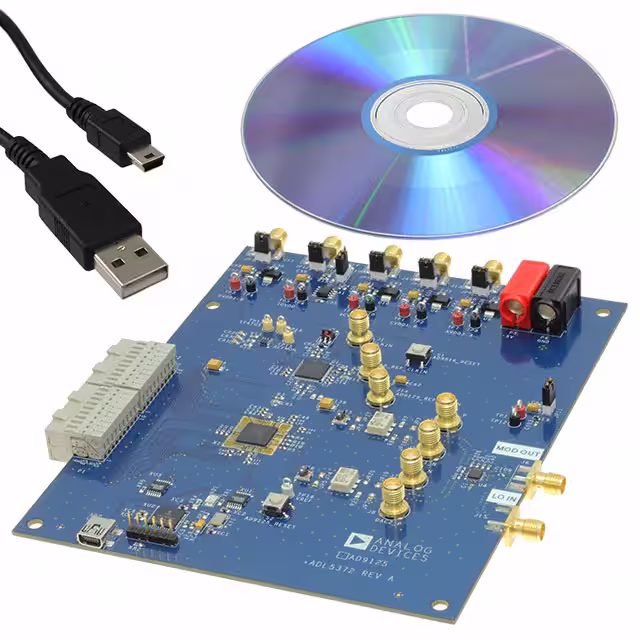

AD9125-M5372-EBZEVAL BOARD FOR AD9125 ADLM5372 |
4,233 |
|
Datasheet |
TxDAC+® | Bulk | Active | 2 | 16 | SPI | 20 ns | Current | 1G | AD9125, ADLM5372 | Board(s) |
|
AD9117-DPG2-EBZEVAL BOARD FOR AD9117 |
1,390 |
|
Datasheet |
TxDAC® | Bulk | Active | 2 | 14 | SPI | - | Current | 125M | AD9117 | Board(s) |
|

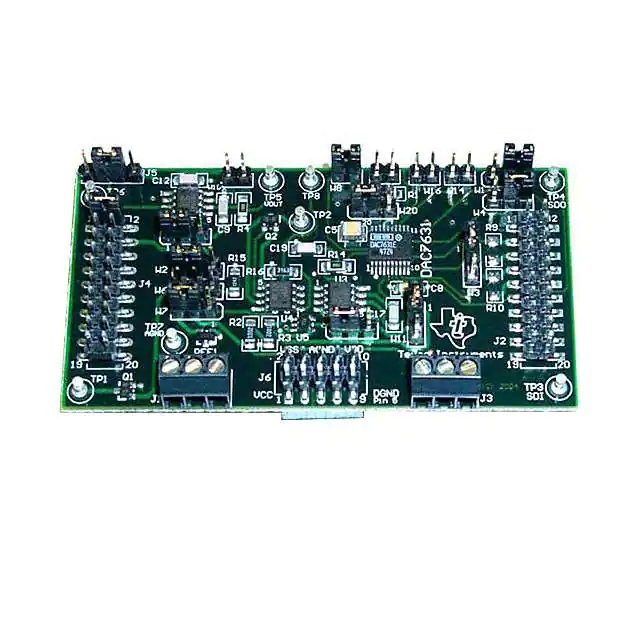

DAC7631EVMEVAL BOARD FOR DAC7631 |
3,160 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 16 | Serial | 8 µs | Voltage | - | DAC7631 | Board(s) |
|

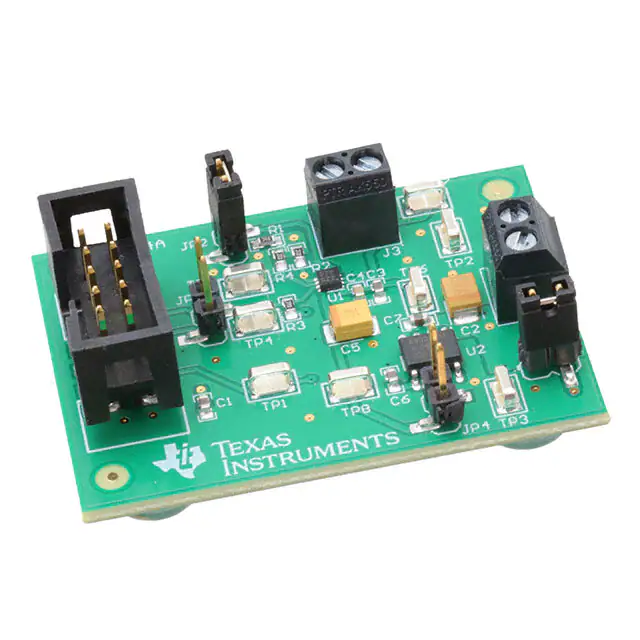

DAC80501EVMEVAL BOARD FOR DAC80501 |
1,403 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | Serial, SPI | - | Voltage | - | DAC80501 | Board(s) |
|

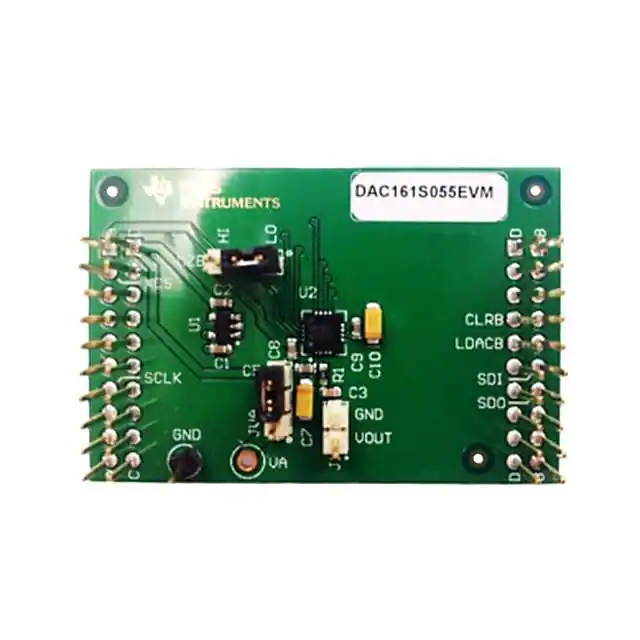

DAC161S055EVMEVAL BOARD FOR DAC161S055 |
3,958 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | SPI | 5 µs | Voltage | - | DAC161S055 | Board(s) |
|

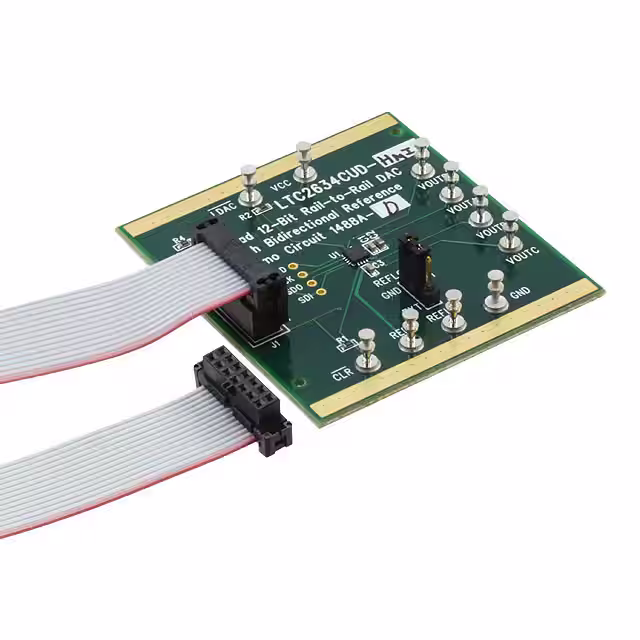

DC1488A-DEVAL BOARD FOR LTC2634-12 |
1,311 |
|
Datasheet |
- | Box | Active | 4 | 12 | MICROWIRE™, Serial, SPI™ | 4.2 µs | Voltage | - | LTC2634-12 | Board(s) |
|

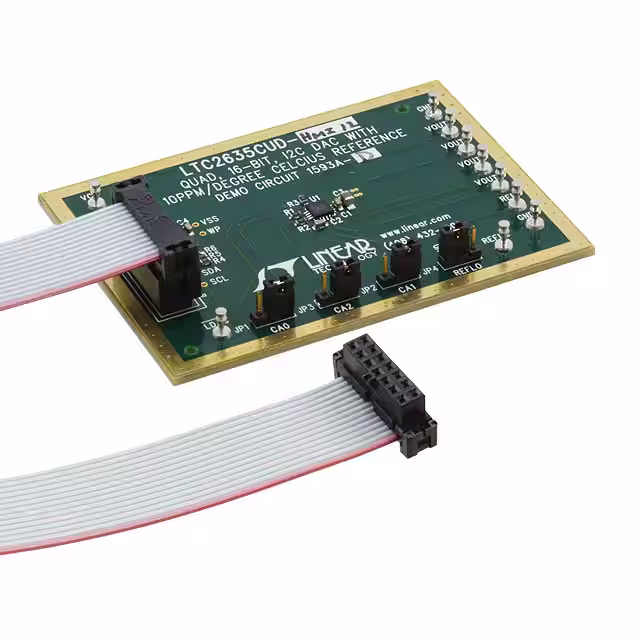

DC1593A-DEVAL BOARD FOR LTC2635-12 |
1,680 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C | 4.4 µs | Voltage | - | LTC2635-12 | Board(s) |
|

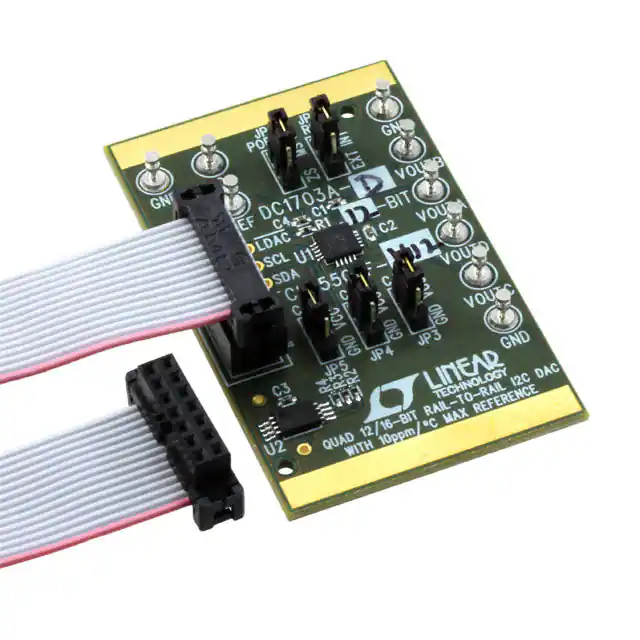

DC1703A-DEVAL BOARD FOR LTC2655-12 |
3,469 |
|
Datasheet |
- | Box | Active | 4 | 12 | I2C, Serial | 9.1 µs | Voltage | - | LTC2655-12 | Board(s) |
|
EVAL-AD5040SDZEVAL BOARD FOR AD5040 |
3,307 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 14 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 4 µs | Voltage | - | AD5040 | Board(s) |
|

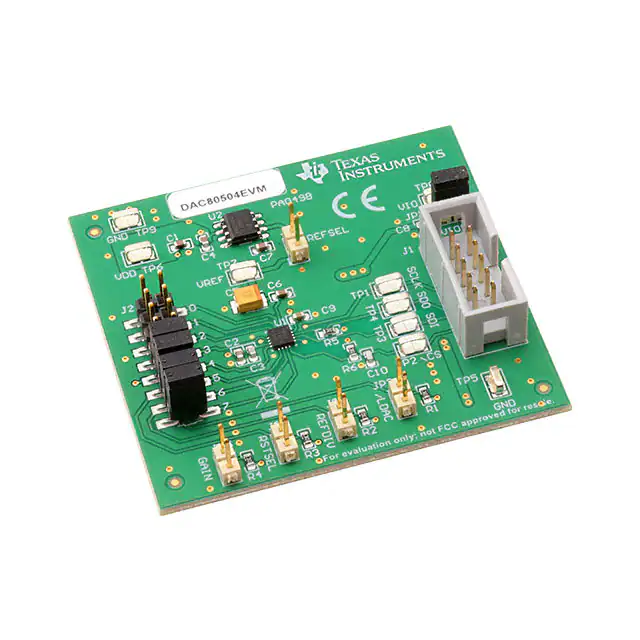

DAC80504EVMEVAL BOARD FOR DAC80504 |
2,383 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 16 | Serial, SPI | 5 µs | Voltage | - | DAC80504 | Board(s) |
|

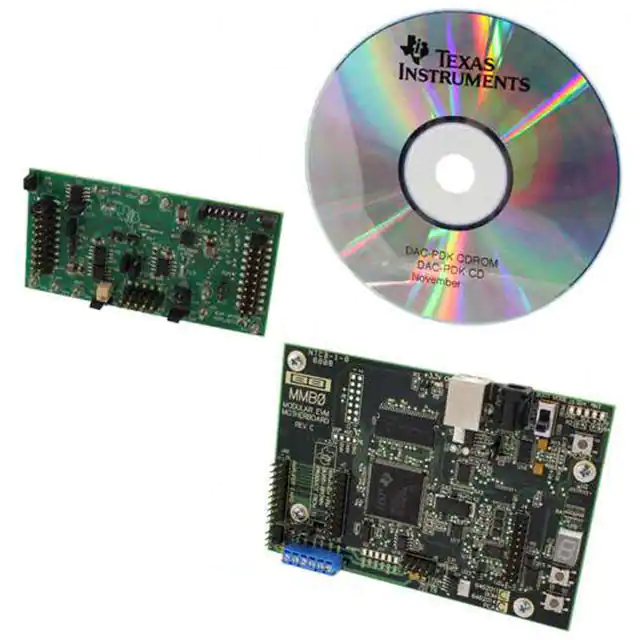

DAC8881EVM-PDKEVAL BOARD FOR DAC8881 |
1,126 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | Serial | 5 µs | Voltage | - | DAC8881 | Board(s) |
|

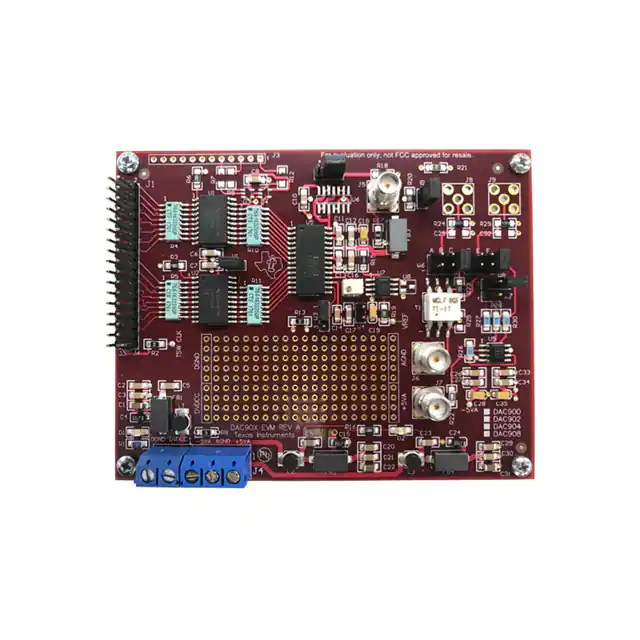

DAC900EVMEVAL BOARD FOR DAC900 |
2,712 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 10 | CMOS | 30 ns | Current | 165M | DAC900 | Board(s) |
|
DAC902EVMEVAL BOARD FOR DAC902 |
1,181 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 12 | CMOS | 30 ns | Current | 165M | DAC902 | Board(s) |
|

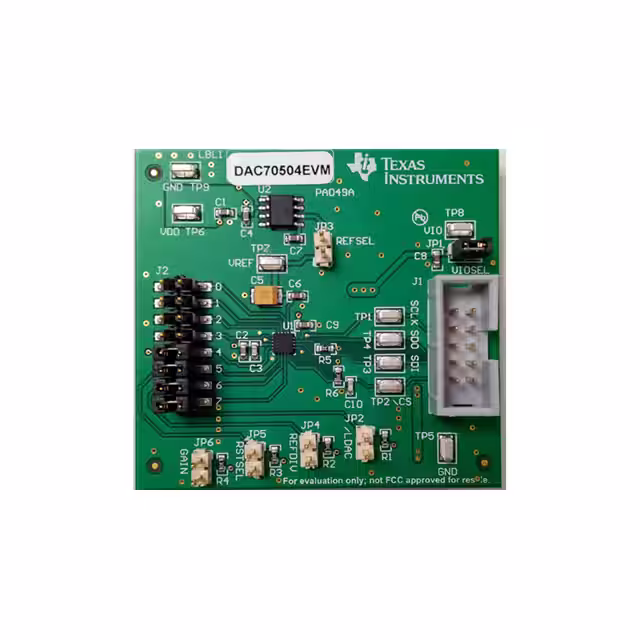

DAC70504EVMEVAL BOARD FOR DAC70504 |
4,771 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 14 | Serial, SPI | 5 µs | Voltage | - | DAC70504 | Board(s) |
|

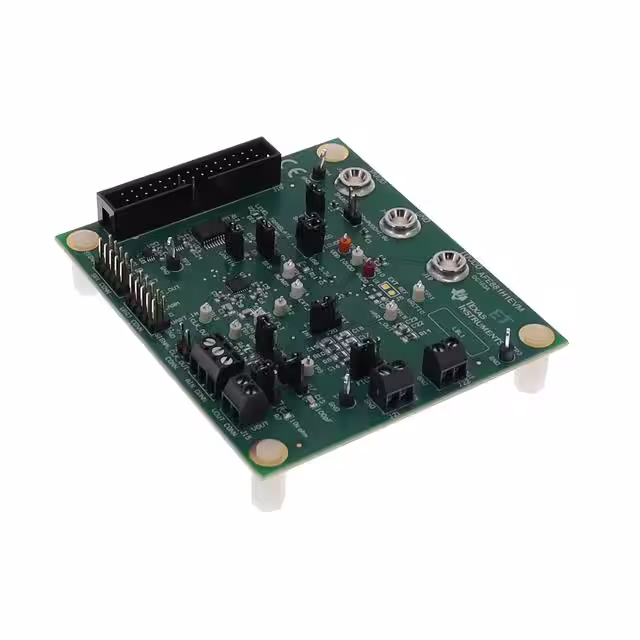

AFE881H1EVMEVAL BOARD FOR AFE881H1 |
3,313 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | SPI | - | Voltage | - | AFE881H1 | Board(s) |
|

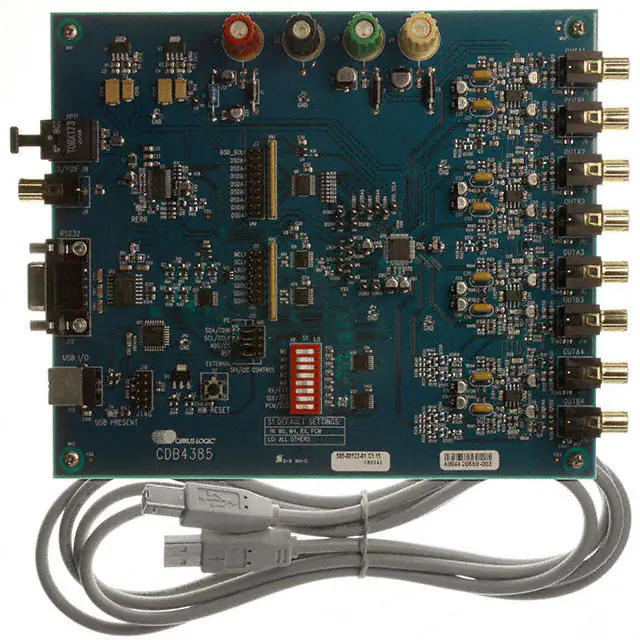

CDB4385EVAL BOARD FOR CDB4385 |
1,251 |
|
Datasheet |
- | Bulk | Obsolete | 8 | 24 | Serial | - | Voltage | 192k | CDB4385 | Board(s) |
|

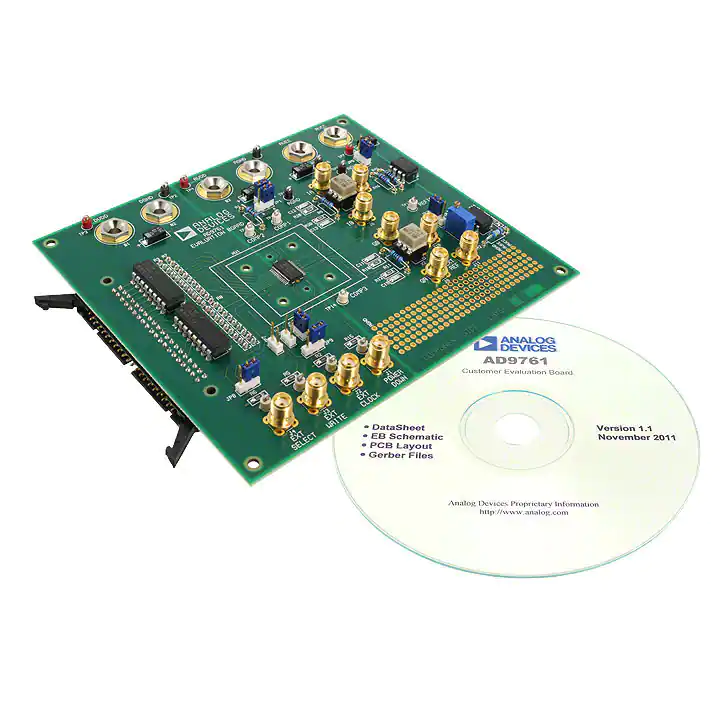

AD9761-EBZEVAL BOARD FOR AD9761 |
3,316 |
|
Datasheet |
TxDAC+® | Box | Active | 2 | 10 | Parallel | 35 ns | Current | 40M | AD9761 | Board(s) |
|

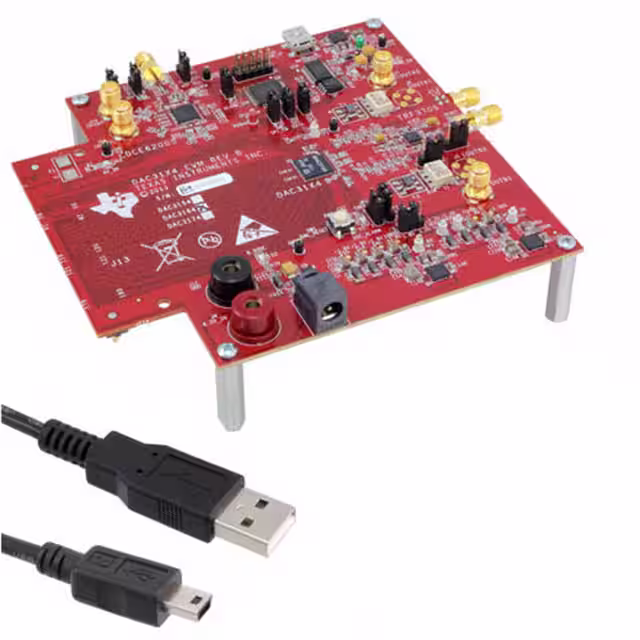

DAC3164EVMEVAL BOARD FOR DAC3164 |
3,828 |
|
Datasheet |
- | Box | Obsolete | 2 | 12 | CMOS, LVDS, Parallel | 11 ns | Current | 500M | DAC3164 | Board(s) |
