Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

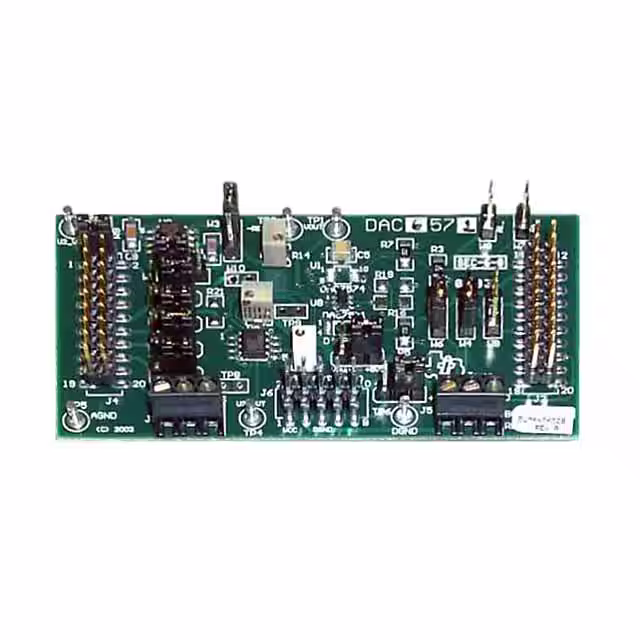

DAC6571EVMEVAL BOARD FOR DAC6571 |
1,771 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 10 | I2C | 7 µs | Voltage | 188k | DAC6571 | Board(s) |
|

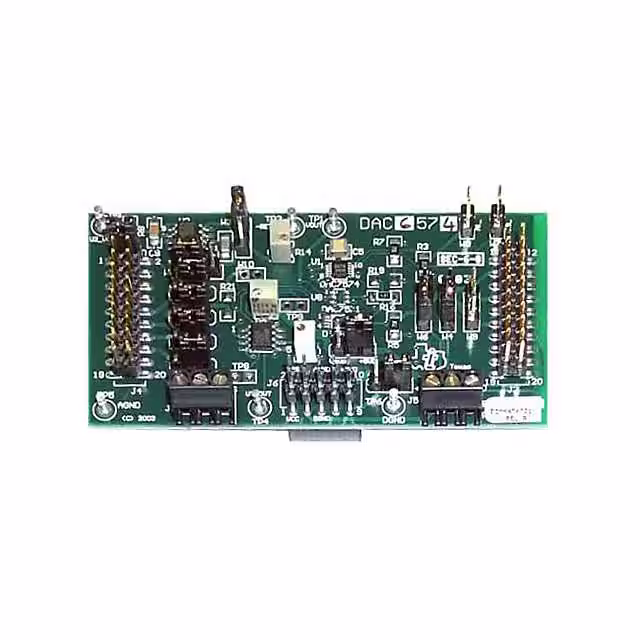

DAC6574EVMEVAL BOARD FOR DAC6574 |
2,604 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 10 | I2C | 7 µs | Voltage | 188k | DAC6574 | Board(s) |
|

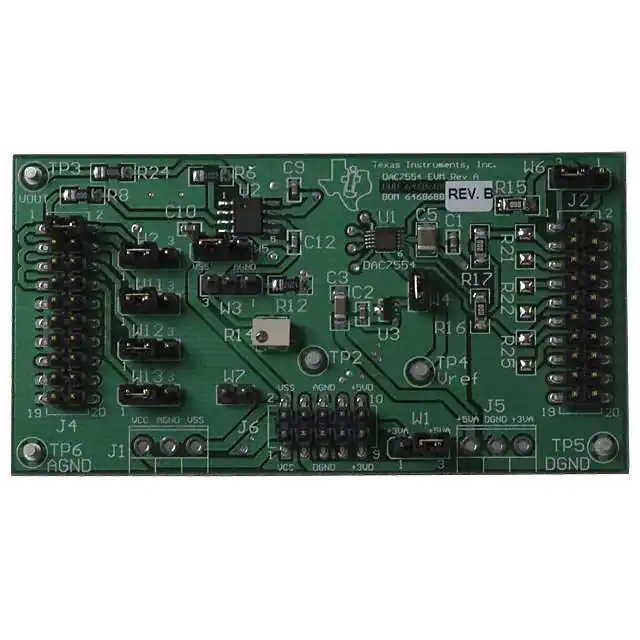

DAC7554EVMEVAL BOARD FOR DAC7554 |
2,709 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 12 | Serial | 8 µs | Voltage | 50M | DAC7554 | Board(s) |
|
DAC5573EVMEVAL BOARD FOR DAC5573 |
2,713 |
|
Datasheet |
- | Bulk | Obsolete | 4 | 8 | I2C | 6 µs | Voltage | 188k | DAC5573 | Board(s) |
|

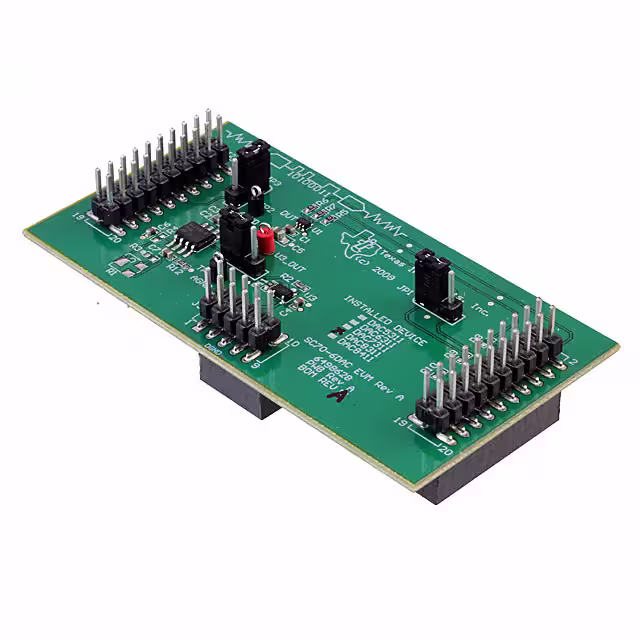

DAC8311EVMEVAL BOARD FOR DAC8311 |
4,733 |
|
Datasheet |
- | Box | Obsolete | 1 | 14 | Serial | 6 µs | Voltage | - | DAC8311 | Board(s) |
|

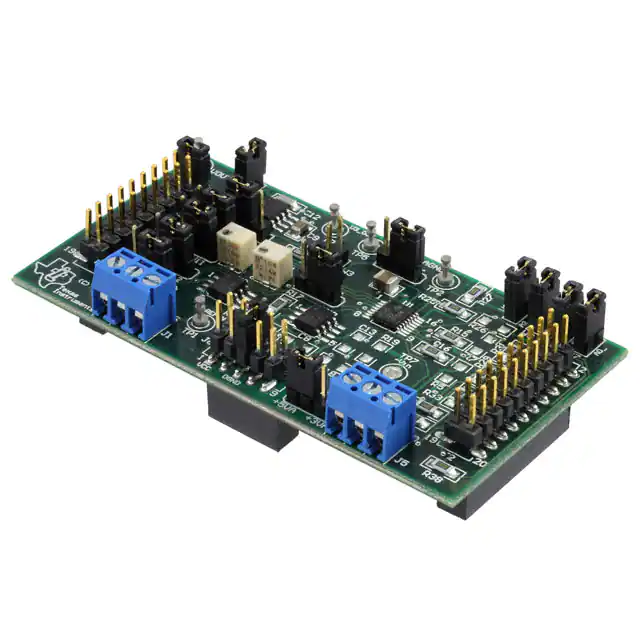

DAC8534EVMEVAL BOARD FOR DAC8534 |
2,756 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 16 | SPI, DSP | 8 µs | Voltage | 52k | DAC8534 | Board(s) |
|

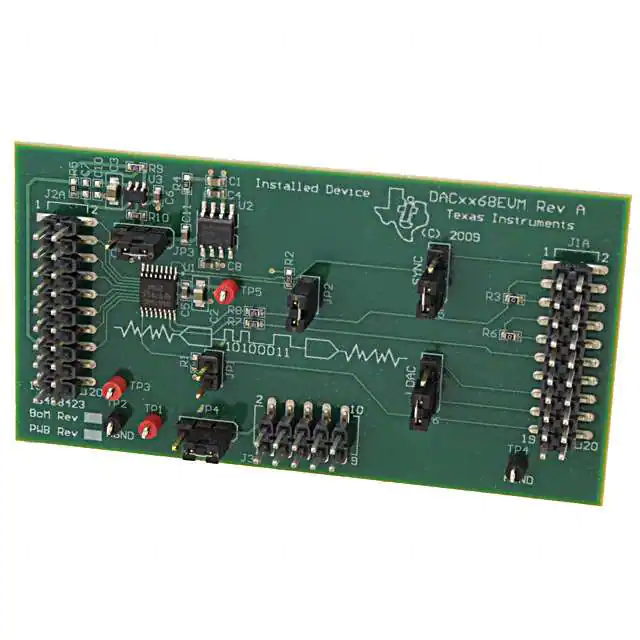

DAC8168EVMEVAL BOARD FOR DAC8168 |
4,639 |
|
Datasheet |
- | Box | Obsolete | 8 | 14 | Serial | 5 µs | Voltage | - | DAC8168 | Board(s) |
|

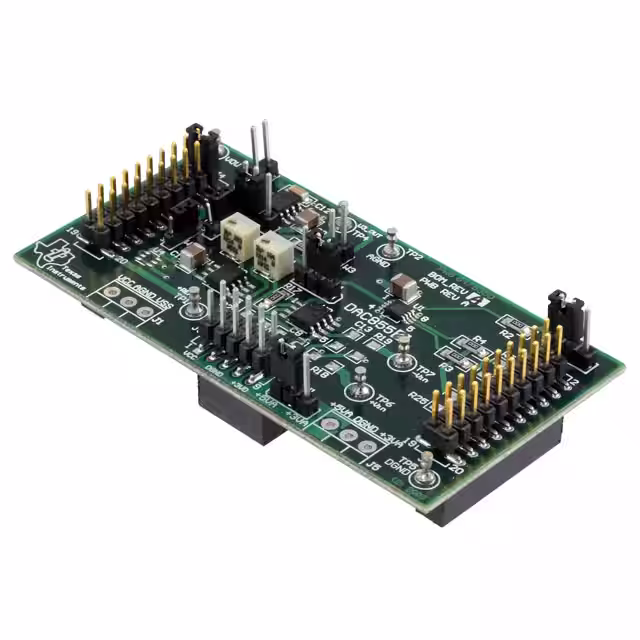

DAC8552EVMEVAL BOARD FOR DAC8552 |
2,540 |
|
Datasheet |
- | Box | Obsolete | 2 | 16 | Serial | 8 µs | Voltage | 1M | DAC8552 | Board(s) |
|
DAC8555EVMEVAL BOARD FOR DAC8555 |
1,501 |
|
Datasheet |
- | Box | Obsolete | 4 | 16 | Serial | 8 µs | Voltage | 1M | DAC8555 | Board(s) |
|

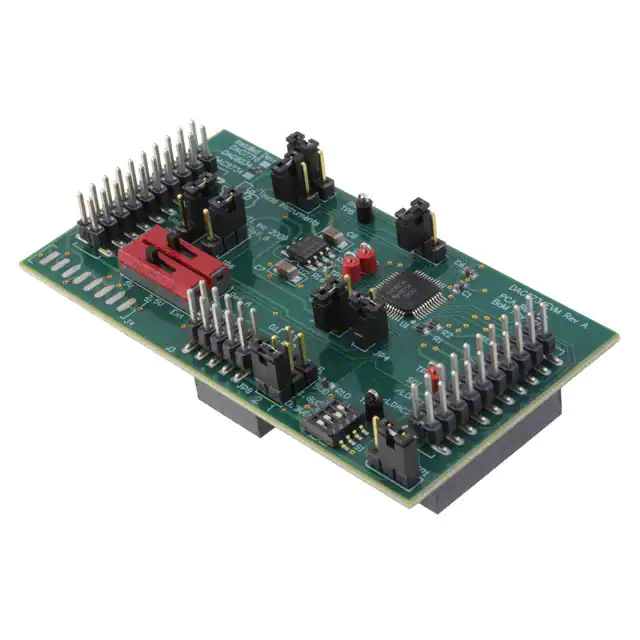

DAC8234EVMEVAL BOARD FOR DAC8234 |
2,885 |
|
Datasheet |
- | Box | Obsolete | 4 | 14 | SPI | 8 µs | Voltage | - | DAC8234 | Board(s) |
|
DAC7562EVMEVAL BOARD FOR DAC7562 |
4,923 |
|
Datasheet |
- | Box | Obsolete | 2 | 12 | Serial | 10 µs | Voltage | - | DAC7562 | Board(s) |
|

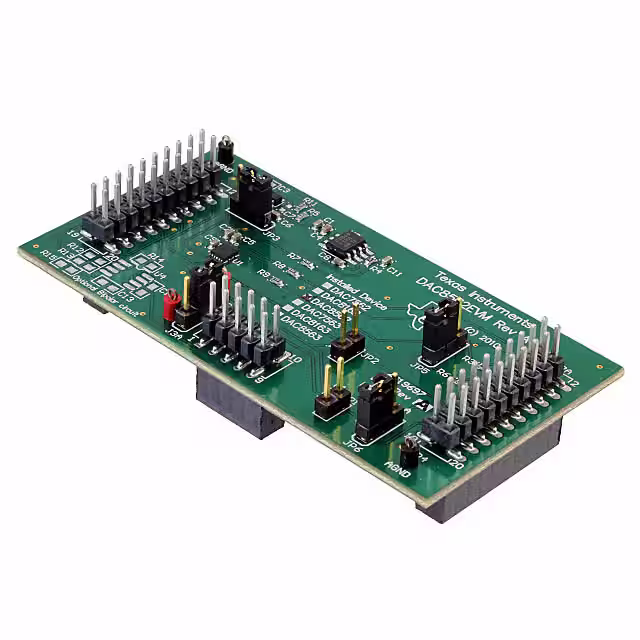

DAC8562EVMEVAL BOARD FOR DAC8562 |
2,958 |
|
Datasheet |
- | Box | Obsolete | 2 | 16 | Serial | 10 µs | Voltage | - | DAC8562 | Board(s) |
|

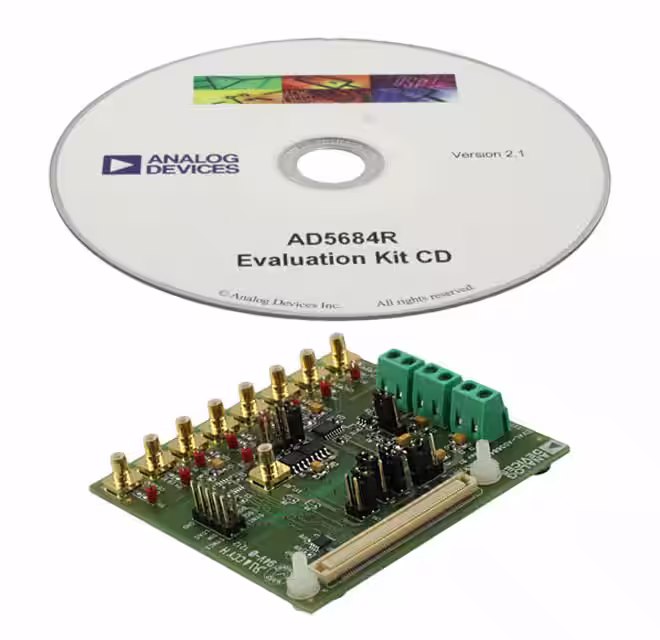

EVAL-AD5684RSDZEVAL BOARD FOR AD5684R |
3,024 |
|
Datasheet |
nanoDAC® | Box | Obsolete | 4 | 12 | SPI | 5 µs | Voltage | - | AD5684R | Board(s) |
|

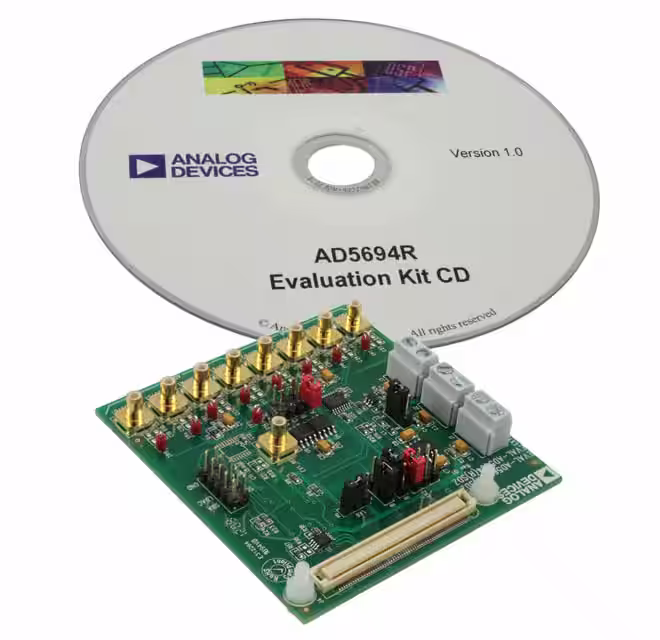

EVAL-AD5694RSDZEVAL BOARD FOR AD5694R |
1,245 |
|
Datasheet |
nanoDAC® | Box | Obsolete | 4 | 12 | I2C | 5 µs | Voltage | - | AD5694R | Board(s) |
|
|
MAX5876EVKIT+EVAL BOARD FOR MAX5876 |
4,155 |
|
Datasheet |
- | Bulk | Obsolete | 2 | 12 | Parallel | 14 ns | Current | 250M | MAX5876 | Board(s) |
|
DC1333A-BEVAL BOARD FOR LTC2640-12 |
4,040 |
|
Datasheet |
- | Box | Active | 1 | 12 | MICROWIRE™, Serial, SPI™ | 4.1 µs | Voltage | - | LTC2640-12 | Board(s) |
|
EVAL-AD5310RDBZEVAL BOARD FOR AD5310R |
2,737 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 10 | Serial, SPI | 6 µs | Voltage | - | AD5310R | Board(s) |
|

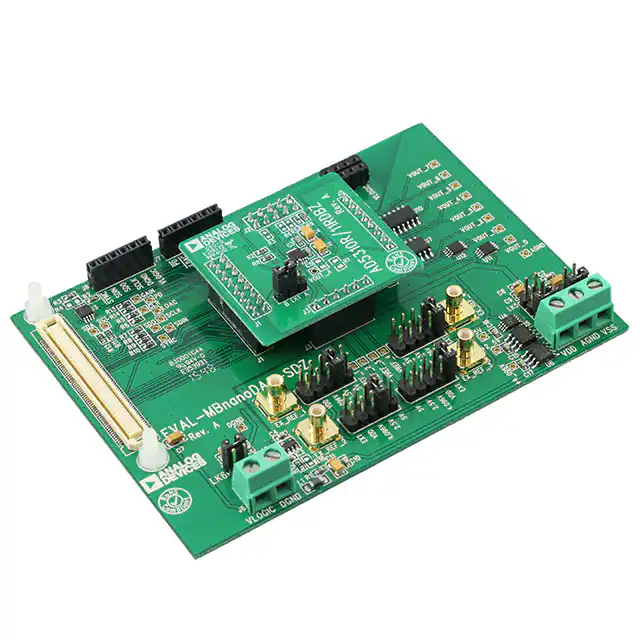

EVAL-AD5311RDBZEVAL BOARD FOR AD5311R |
4,566 |
|
Datasheet |
nanoDAC® | Bulk | Active | 1 | 10 | I2C, Serial, SPI | 5 µs | Voltage | - | AD5311R | Board(s) |
|

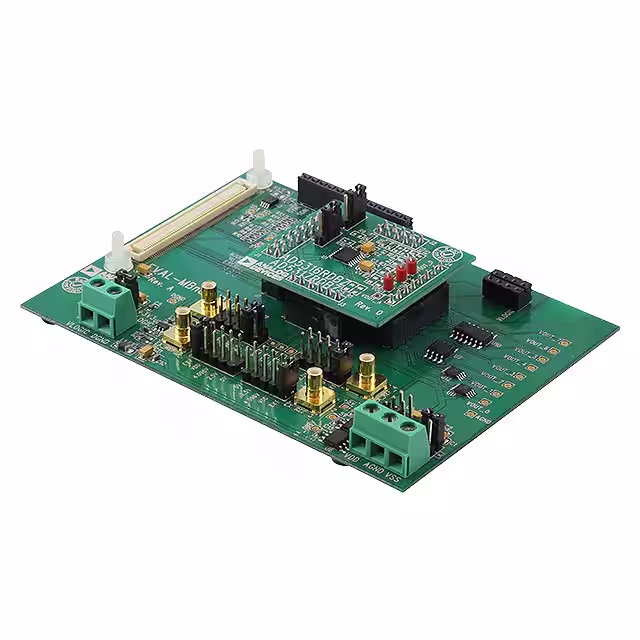

EVAL-AD5317RDBZEVAL BOARD FOR AD5317R |
1,621 |
|
Datasheet |
nanoDAC® | Bulk | Active | 4 | 10 | Serial, SPI | 5 µs | Voltage | - | AD5317R | Board(s) |
|
EVAL-AD5313RDBZEVAL BOARD FOR AD5313R |
1,404 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 10 | Serial, SPI | 5 µs | Voltage | - | AD5313R | Board(s) |
