Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of DAC's | Number of Bits | Data Interface | Settling Time | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

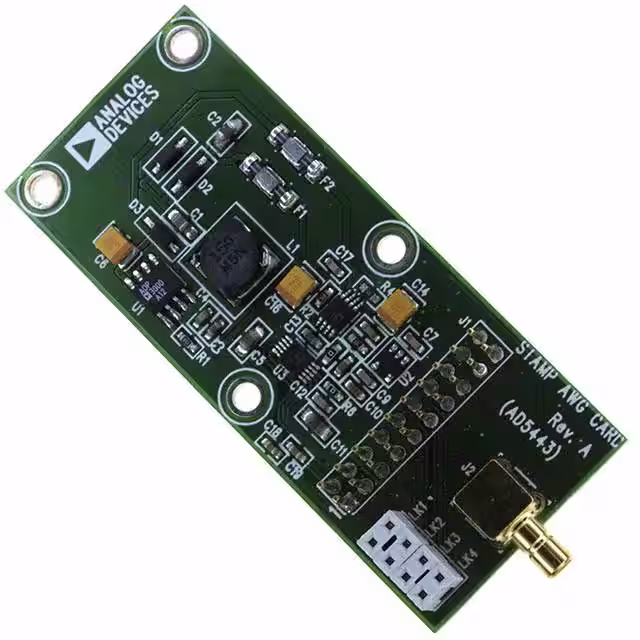

EVAL-AD5443-DBRDZEVAL BOARD FOR AD5443 |
1,992 |
|
Datasheet |
- | Box | Active | 1 | 12 | Serial | 50 ns | Current | 2.5M | AD5443 | Board(s) |
|

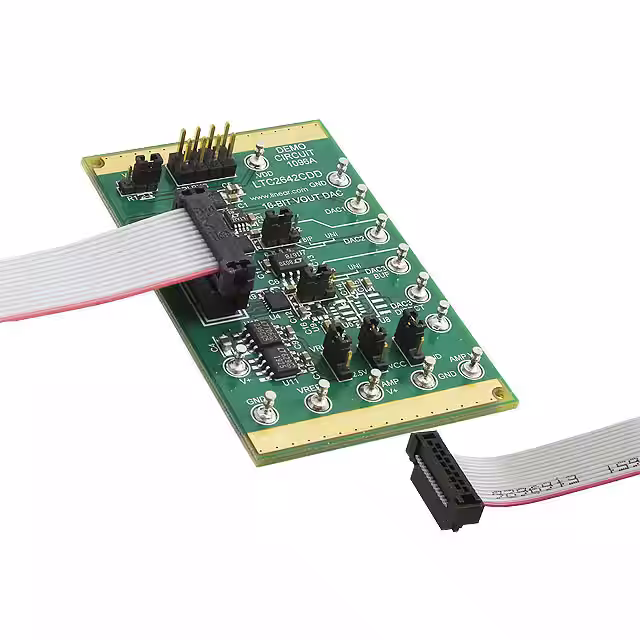

DC1096AEVAL BOARD FOR LTC2642-16 |
2,220 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | - | LTC2642-16 | Board(s) |
|

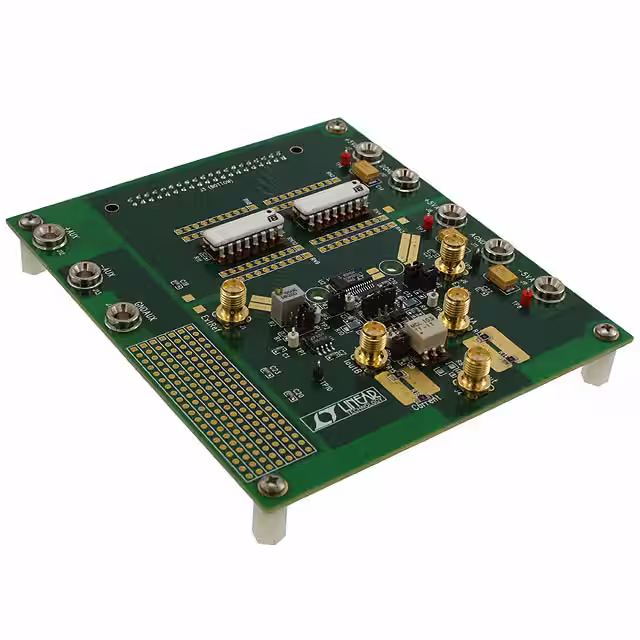

DC245A-AEVAL BOARD FOR LTC1668 |
4,127 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | Parallel | 20 ns | Current | 50M | LTC1668 | Board(s) |
|
EVAL-AD5322DBZEVAL BOARD FOR AD5322 |
4,973 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 12 | Serial, SPI | 8 µs | Voltage | - | AD5322 | Board(s) |
|

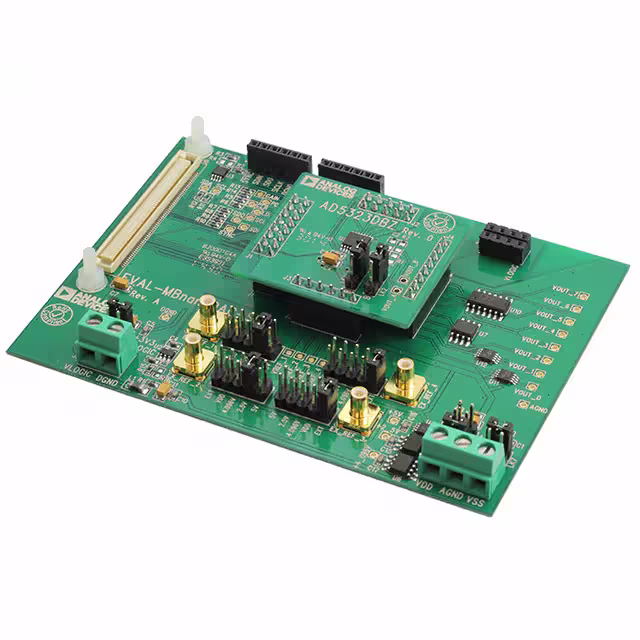

EVAL-AD5323DBZEVAL BOARD FOR AD5323 |
3,485 |
|
Datasheet |
nanoDAC® | Bulk | Active | 2 | 12 | Serial, SPI | 8 µs | Voltage | - | AD5323 | Board(s) |
|

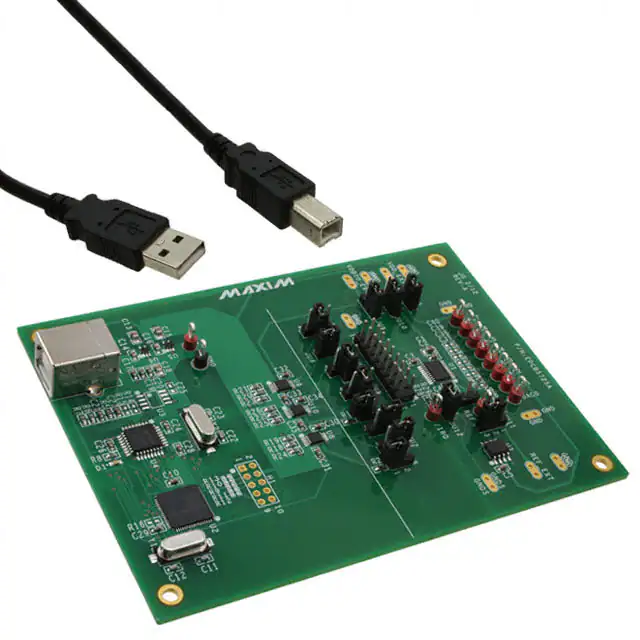

MAX5725AEVKIT#EVAL BOARD FOR MAX5725A |
1,505 |
|
Datasheet |
- | Box | Obsolete | 1 | 12 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 4.5 µs | Current | - | MAX5725A | Board(s), Cable(s) |
|

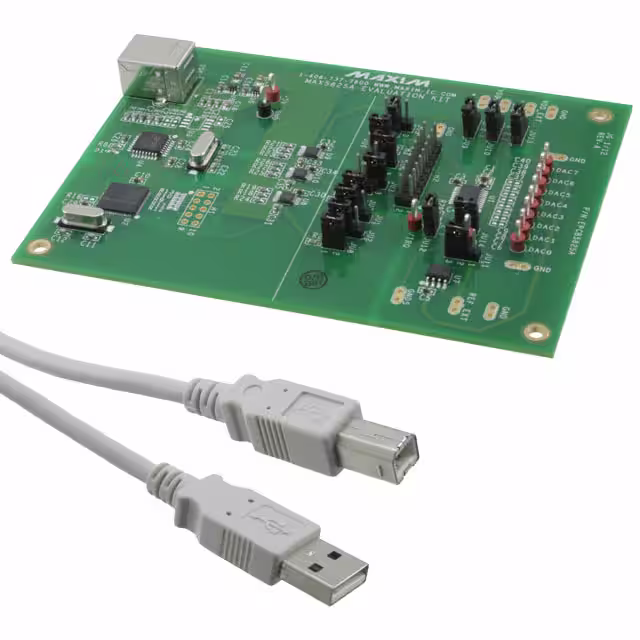

MAX5825AEVKIT#EVAL BOARD FOR MAX5825A |
4,074 |
|
Datasheet |
- | Box | Obsolete | 8 | 12 | I2C, Serial | 4.5 µs | Voltage | - | MAX5825A | Board(s), Cable(s) |
|
MAX5715AEVKIT#EVAL BOARD FOR MAX5715A |
2,852 |
|
Datasheet |
- | Box | Obsolete | 4 | 12 | SPI | 4.5 µs | Voltage | - | MAX5715A | Board(s), Cable(s) |
|
|
MAX5X05EVKIT#EVAL BOARD FOR MAX5X05 |
1,041 |
|
Datasheet |
- | Box | Active | 1 | 12 | I2C, SPI | 6.3 µs | - | - | MAX5X05 | Board(s), Cable(s) |
|
|
MAX5X02EVKIT#EVAL BOARD FOR MAX5X02 |
3,647 |
|
Datasheet |
- | Box | Active | 2 | 12 | I2C, SPI | 4.5 µs | Voltage | - | MAX5X02 | Board(s), Cable(s) |
|
|
MAX5661EVKIT+EVAL BOARD FOR MAX5661 |
2,113 |
|
Datasheet |
- | Box | Obsolete | 1 | 16 | Serial | - | Current/Voltage | - | MAX5661 | Board(s) |
|

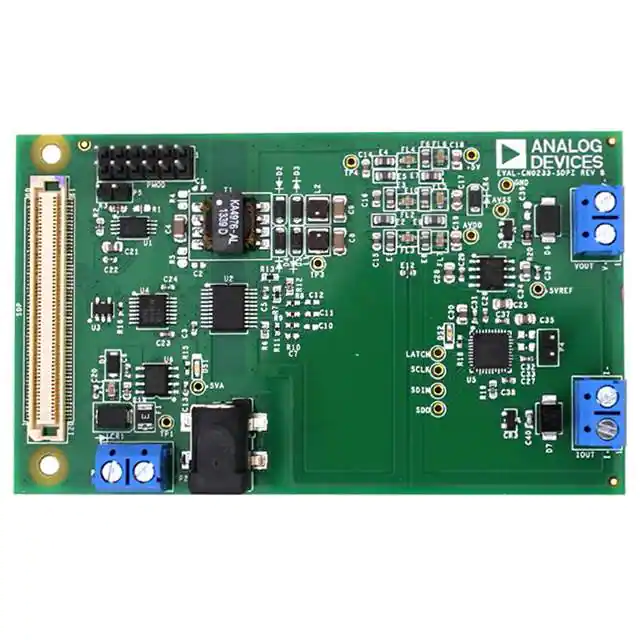

EVAL-CN0233-SDPZEVAL BOARD FOR AD5422 ADR445 |
2,623 |
|
Datasheet |
Circuits from the Lab™ | Box | Obsolete | 1 | 16 | Serial | 32 µs | Current/Voltage | 40k | AD5422, ADR445, ADuM3471 | Board(s) |
|

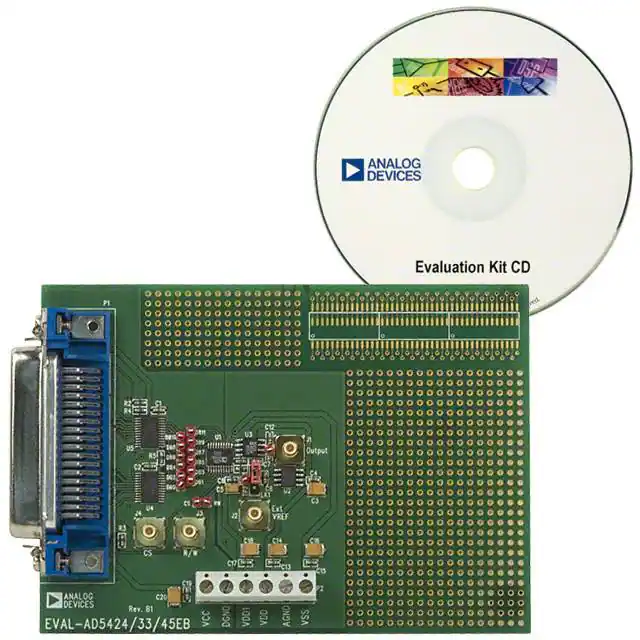

EVAL-AD5445EBZEVAL BOARD FOR AD5445 |
1,780 |
|
Datasheet |
- | Bulk | Obsolete | 1 | 12 | Parallel | 30 ns | Current | 20M | AD5445 | Board(s) |
|

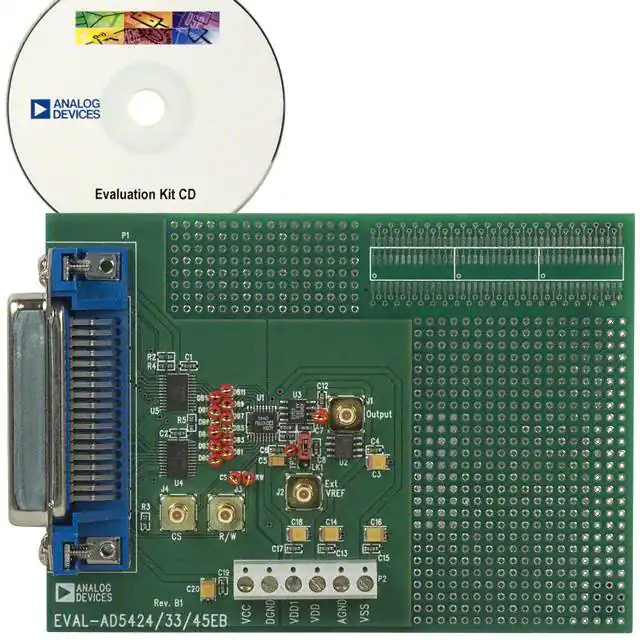

EVAL-AD5424EBZEVAL BOARD FOR AD5424 |
4,030 |
|
Datasheet |
- | Box | Obsolete | 1 | 8 | Parallel | 30 µs | Current | 20.4M | AD5424 | Board(s) |
|

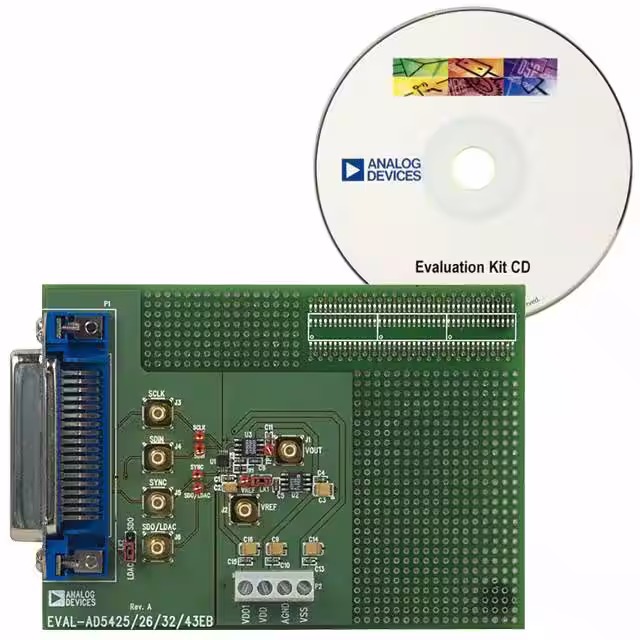

EVAL-AD5425EBZEVAL BOARD FOR AD5425 |
1,809 |
|
Datasheet |
- | Box | Obsolete | 1 | 8 | Serial | 15 ns | Current | 2.47M | AD5425 | Board(s) |
|
|
EVAL-AD5433EBZEVAL BOARD FOR AD5433 |
3,955 |
|
Datasheet |
- | Box | Obsolete | 1 | 10 | Parallel | 35 ns | Current | 20.4M | AD5433 | Board(s) |
|
|
EVAL-AD5663REBZEVAL BOARD FOR AD5663 |
1,348 |
|
Datasheet |
nanoDAC® | Box | Obsolete | 2 | 16 | Serial | 4 µs | Voltage | 220k | AD5663 | Board(s) |
|
|
EVAL-AD5453EBZEVAL BOARD FOR AD5453 |
1,877 |
|
Datasheet |
- | Box | Obsolete | 1 | 14 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 180 ns | Current | 2.7M | AD5453 | Board(s) |
|
|
EVAL-AD5061EBZEVAL BOARD FOR AD5061 |
4,340 |
|
Datasheet |
nanoDAC® | Box | Obsolete | 1 | 16 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 4 µs | Voltage | 1.3M | AD5061 | Board(s) |
|

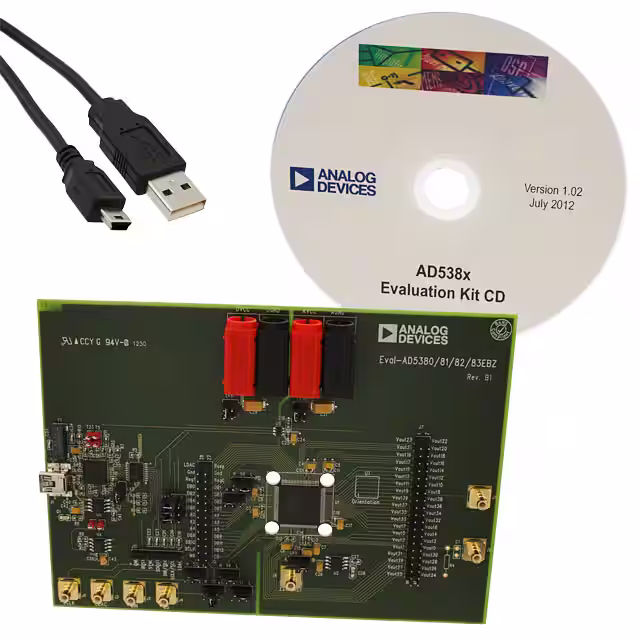

EVAL-AD5380EBZEVAL BOARD FOR AD5380 |
3,072 |
|
Datasheet |
- | Box | Obsolete | 40 | 14 | DSP, I2C, SPI | 8 µs | Voltage | 125k | AD5380 | Board(s) |
