| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WPA0412H6001FAN AXIAL 40X20MM 12VDC WIRE |
2,999 |
|
Datasheet |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 900 mW | 8800 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|

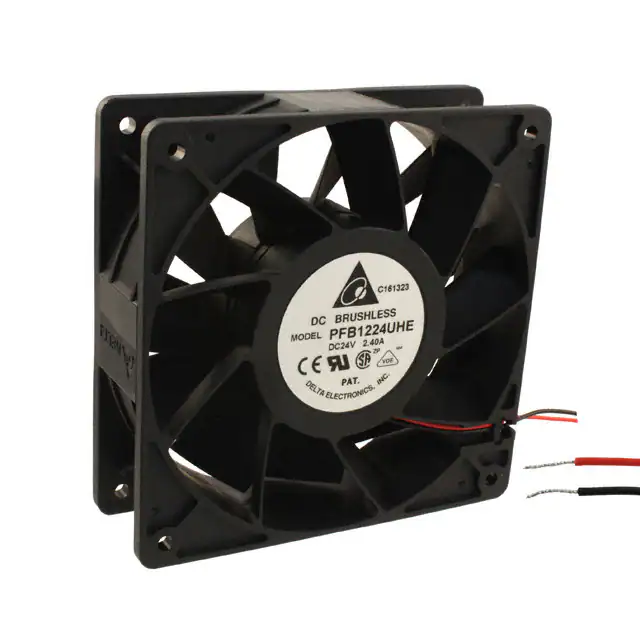

PFB1224UHEFAN AXIAL 120X38MM 24VDC WIRE |
4,323 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 48 W | 5500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.838 lb (380.11 g) |
|

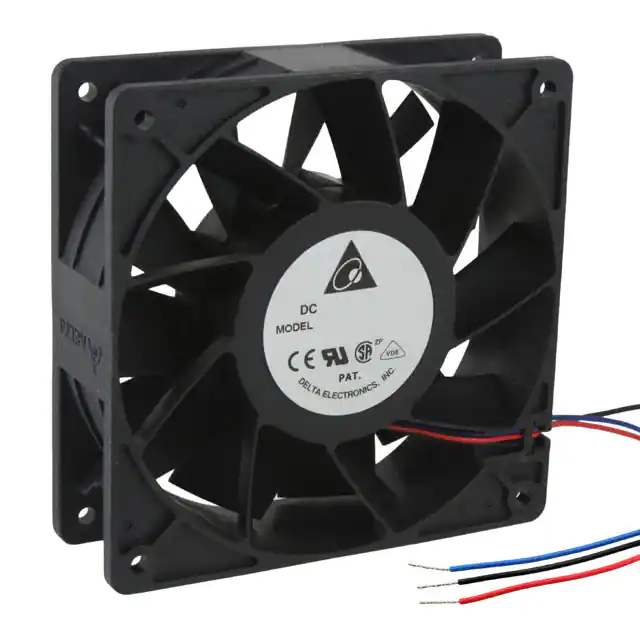

PFB1224UHE-R00FAN AXIAL 120X38MM 24VDC WIRE |
3,616 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 66.5dB(A) | 48 W | 5500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.838 lb (380.11 g) |
|
9BFB24P2H003FAN BLOWER 120X32MM 24VDC WIRE |
4,112 |
|
Datasheet |
San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 56.5 CFM (1.58m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 26.4 W | 3750 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.75 lb (340.19 g) |
|
|
9WPA0612P4G001FAN AXIAL 60X25MM 12VDC WIRE |
4,711 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 11.16 W | 12000 RPM | - | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
9TD12P6G001FAN IMP MTRZD 70X20MM 12VDC |
2,221 |
|
Datasheet |
San Ace C70 | Bulk | Active | 12VDC | Round - 70mm Dia | 39.9 CFM (1.12m³/min) | 2.240 in H2O (557.9 Pa) | Ball | 20.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 12 W | 9200 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
3214JHFAN AXIAL 92X38MM 24VDC WIRE |
3,974 |
|
Datasheet |
3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 55.0dB(A) | 9 W | 6800 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
|
MA1751H24B1+6-FSRFAN AXIAL 172X50.8MM 24VDC WIRE |
4,205 |
|
Datasheet |
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 243.6 CFM (6.82m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 50.80mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 58.4dB(A) | - | 2850 RPM | cUL, TUV, UL | 4 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
634NU-004FAN AXIAL 60X25.4MM 24VDC WIRE |
4,106 |
|
Datasheet |
630U | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 34.0dB(A) | 1.6 W | 5900 RPM | UL | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.154 lb (69.85 g) |
|
9GT0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
2,913 |
|
Datasheet |
San Ace 40T | Box | Active | 12VDC | Square - 40mm L x 40mm H | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 3.72 W | 11700 RPM | CSA, TUV, UL | 4 Wire Leads | -40 ~ 185°F (-40 ~ 85°C) | - | 0.121 lb (54.88 g) |
|
9CRJ0412P5J001FAN AXIAL DUAL 40X56MM 12VDC |
1,248 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 37.4 CFM (1.05m³/min) | 9.640 in H2O (2401.2 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 37.2 W | 36200 Front, 3200 Rear | - | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
9LG0648P4S001FAN AXIAL 60X25MM 48VDC WIRE |
4,500 |
|
Datasheet |
San Ace 60L | Box | Active | 48VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.224 in H2O (304.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.64 W | 11000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
9GA1224P4G0011FAN AXIAL 120X25.4MM 24VDC WIRE |
1,758 |
|
Datasheet |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 25.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 11.28 W | 6400 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (280.00 g) |
|
|
9LG0924P1F001FAN AXIAL 92X38MM 24VDC WIRE |
2,291 |
|
Datasheet |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 7000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.604 lb (273.97 g) |
|
|
9WPA0924S400192X25MM 24VDC IP68 HIGH PERF TAC |
1,182 |
|
Datasheet |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | cURus, TUV | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|

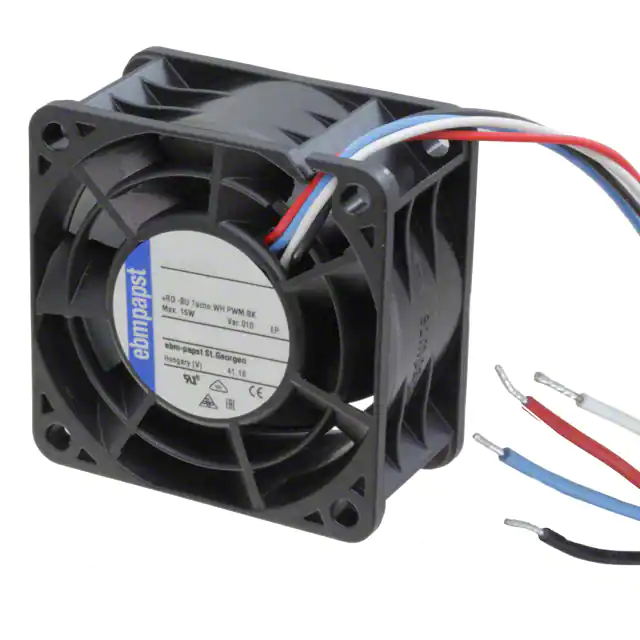

614J/2HHPR-010FAN AXIAL 60X32MM 24VDC WIRE |
2,036 |
|
Datasheet |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 48.9 CFM (1.37m³/min) | 2.288 in H2O (570.0 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 14.2 W | 15000 RPM | CE, UL, VDE | 4 Wire Leads | -40 ~ 172°F (-40 ~ 78°C) | - | - |
|
9WL0612P4J001FAN AXIAL 60X25MM 12VDC WIRE |
1,634 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.68 W | 8650 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.243 lb (110.22 g) |
|
EFB1548VHG-TP14FAN AXIAL 172X50.8MM 48VDC WIRE |
1,061 |
|
Datasheet |
EFB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 23.52 W | 4000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
|
8315100162FAN AXIAL 80X38MM 24VDC WIRE |
3,407 |
|
Datasheet |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 126.5 CFM (3.54m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 44 W | 16500 RPM | - | 4 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | - |
|
|
8315100165FAN AXIAL 80X38MM 24VDC WIRE |
4,852 |
|
Datasheet |
AxiForce | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 103.0 CFM (2.88m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 25 W | 13200 RPM | - | 4 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | - |
