| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06025SA-24L-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
3,169 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 23.5dB | 1 W | 3500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-2510B-1130-275FAN AXIAL 25X10MM 12VDC WIRE |
1,319 |
|
Datasheet |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.5 CFM (0.070m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart | 27.5dB(A) | 1.32 W | 13000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06025SA-24Q-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,857 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 35.0dB | 2.4 W | 5300 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
ASB0312MA-DF00FAN AXIAL 30X10MM 12VDC WIRE |
4,328 |
|
Datasheet |
ASB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 720 mW | 9000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.017 lb (7.71 g) |
|
|
08025SA-24N-AA-D0FAN AXIAL 80X25MM 24VDC WIRE |
3,070 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB | 1.92 W | 3100 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CBM-4007C-165-295-22DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
1,366 |
|
Datasheet |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | 7.00mm | Blower | - | 29.5dB(A) | 1.68 W | 6500 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12Q-AL-D0FAN AXIAL 60X25MM 12VDC WIRE |
4,621 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB | 3.4 W | 5300 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-4020BF-095-342-20FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,007 |
|
Datasheet |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 2.25 W | 9500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
4550HQ/EG50060S1-C391-S9AFAN BLOWER 81.8X17.2MM 5VDC RECT |
4,748 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 81.8mm L x 81.3mm H | 6.3 CFM (0.176m³/min) | 0.820 in H2O (204.3 Pa) | Sleeve | 17.20mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.2dB(A) | 1.9 W | 3700 RPM | CE, CSA, CUR, TUV, UL | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.101 lb (45.81 g) |
|
AUB0912HH-CF00FAN AXIAL 92X25.4MM 12VDC |
1,860 |
|
Datasheet |
AUB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.216 in H2O (53.9 Pa) | Superflo | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 3.96 W | 3200 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.231 lb (104.78 g) |
|

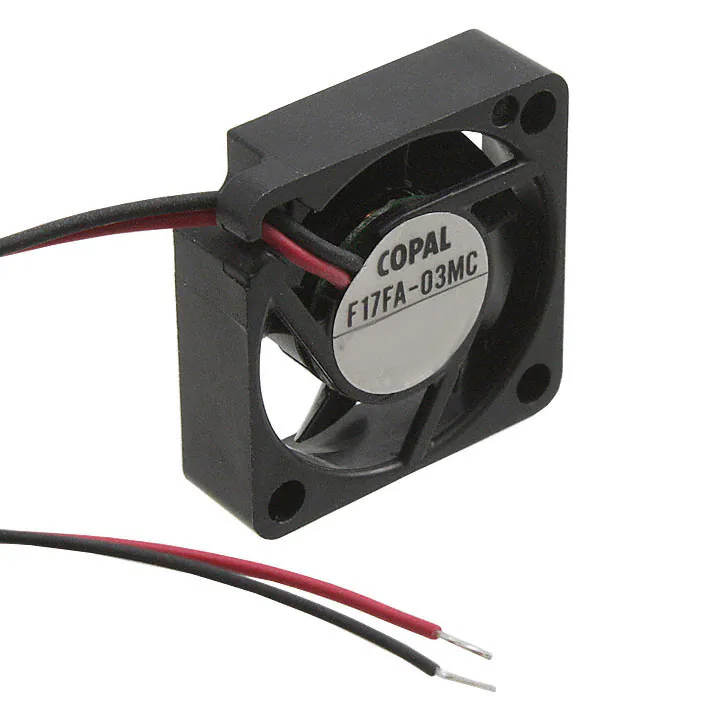

F17FA-03MCFAN AXIAL 17X5MM 3.3VDC WIRE |
3,215 |
|
Datasheet |
F17FA | Tray | Active | 3.3VDC | Square - 17mm L x 17mm H | 0.353 CFM (0.010m³/min) | 0.024 in H2O (6.0 Pa) | Sleeve | 5.00mm | Tubeaxial | - | 5.0dB(A) | - | 7000 RPM | - | 2 Wire Leads | 32 ~ 140°F (0 ~ 60°C) | - | - |
|
F8025X24B-FSR-TEFFAN AXIAL 80X25MM 24VDC WIRE |
3,172 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 51.0 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 35.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.174 lb (78.93 g) |
|
CFM-A225B-120-350FAN AXIAL 120X25.4MM 12VDC WIRE |
4,840 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart | 37.8dB(A) | 2.76 W | 2000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06015KA-12M-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
2,723 |
|
Datasheet |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.9 CFM (0.445m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 31.0dB | 1.6 W | 4100 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
BFB0305HA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
1,684 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 650 mW | 7500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
|
DB0751512M2B-2T0FAN BLOWER 77X15.5MM 12VDC WIRE |
4,899 |
|
Datasheet |
DB | Box | Active | 12VDC | Rectangular/Rounded - 77mm L x 75mm H | 9.7 CFM (0.272m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 15.50mm | Blower | Locked Rotor Protection | 47.0dB(A) | 3.84 W | 4500 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
CBM-5015BF-175-459-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,446 |
|
Datasheet |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 4.8 CFM (0.134m³/min) | 1.240 in H2O (308.9 Pa) | Ball | 15.00mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.9dB(A) | 3.96 W | 7500 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08020SA-12L-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
4,532 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 20.00mm | Tubeaxial | - | 34.0dB | 1.08 W | 3300 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (79.83 g) |
|
DC0601512U2B-2T0FAN AXIAL 60X15MM 12VDC WIRE |
2,325 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.04 W | 5000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04020VA-12M-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
1,028 |
|
Datasheet |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 29.0dB | 1 W | 7500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
