| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0624D4D01FAN AXIAL 60X25MM 24VDC WIRE |
3,539 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.88 W | 5150 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612S4D01FAN AXIAL 60X25MM 12VDC WIRE |
1,831 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.04 W | 4600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
AFB0824HHFAN AXIAL 80X25.4MM 24VDC WIRE |
1,538 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3250 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
F6025X24B1-FHR-WS-EMFAN AXIAL 60X25MM 24VDC WIRE |
1,197 |
|
Datasheet |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 25.00mm | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.139 lb (63.05 g) |
|
ODB5115-12LBFAN BLOWER 51.11X15MM 12VDC WIRE |
4,370 |
|
Datasheet |
ODB5115 | Bulk | Active | 12VDC | Rectangular/Rounded - 51.11mm L x 47.76mm H | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 15.00mm | Blower | - | 32.0dB | 840 mW | 3500 RPM | CE, cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.059 lb (26.76 g) |
|
11925SA-12N-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
1,263 |
|
Datasheet |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 37.0dB | 2.88 W | 2500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04028VE-24N-CT-00FAN AXIAL 40X28.1MM 24VDC WIRE |
3,953 |
|
Datasheet |
04028VE | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 14.5 CFM (0.406m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 28.10mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 2.4 W | 13000 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
04028VE-12N-CT-00FAN AXIAL 40X28.1MM 12VDC WIRE |
4,206 |
|
Datasheet |
04028VE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.5 CFM (0.406m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 28.10mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 2.76 W | 13000 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
G9225E24B1-FSR-TTL-EMFAN AXIAL 92X25MM 24VDC WIRE |
4,238 |
|
Datasheet |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.218 lb (98.88 g) |
|
MS8038H48B-FHR-2EMFAN AXIAL 80X38MM 48VDC WIRE |
3,576 |
|
Datasheet |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 77.0dB(A) | - | 10000 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 0.391 lb (177.35 g) |
|
F1238X24BT-FSRFAN AXIAL 119X38MM 24VDC TERM |
4,165 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | - | 3100 RPM | CE, cUL, TUV, UL | 2 Terminals | - | - | 0.536 lb (243.13 g) |
|
9GA0412P3J011FAN AXIAL 40X28MM 12VDC WIRE |
1,098 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.664m³/min) | 2.150 in H2O (535.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 5.88 W | 18000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
9RA0612J40011FAN AXIAL 60X25MM 12VDC WIRE |
3,996 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.2 W | 7700 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

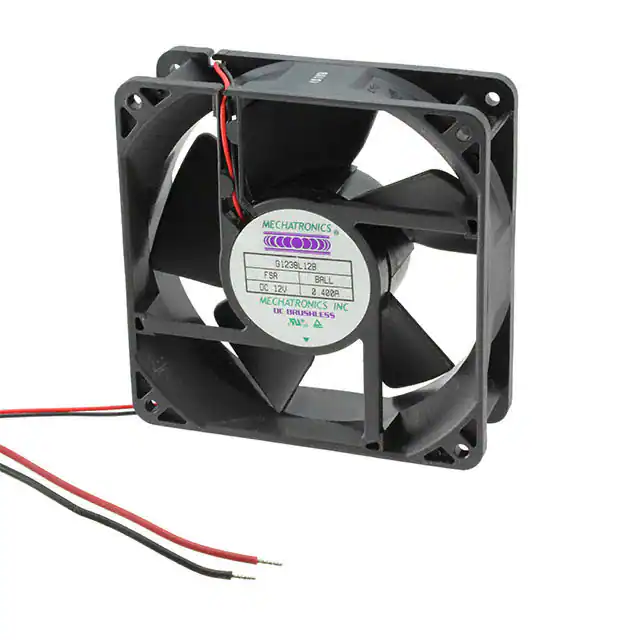

G1238L12B-FSRFAN AXIAL 119X38MM 12VDC WIRE |
3,685 |
|
Datasheet |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.74 lb (335.66 g) |
|
CBM-A232B-230-521-20FAN BLOWER 119.3X32MM 24VDC WIRE |
1,438 |
|
Datasheet |
CBM-120B-2 | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 27.7 CFM (0.776m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 32.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 52.1dB(A) | 12.96 W | 3000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9RA0612P4J0011FAN AXIAL 60X25MM 12VDC WIRE |
3,137 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 4.2 W | 7700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9G0612G101FAN AXIAL 60X38MM 12VDC WIRE |
2,369 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 18.5 W | 11800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
AFC0712DB-F00FAN AXIAL 70X15MM 12VDC WIRE |
1,437 |
|
Datasheet |
AFC | Box | Active | 12VDC | Square - 70mm L x 70mm H | 42.0 CFM (1.18m³/min) | 0.327 in H2O (81.4 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 4.2 W | 6000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.104 lb (47.17 g) |
|
|
11938KA-24N-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,432 |
|
Datasheet |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 129.9 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 38.40mm | Tubeaxial | Auto Restart | 50.0dB | 12 W | 3600 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9GA0424P6G001FAN AXIAL 40X20MM 24VDC WIRE |
3,077 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 1.280 in H2O (318.0 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 3.12 W | 16000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.078 lb (35.38 g) |
