| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0624P1J03FAN AXIAL 60X38MM 24VDC WIRE |
3,670 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.330 in H2O (829.5 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.287 lb (130.18 g) |
|
GF92251B1-000U-SC9FAN AXIAL 92X25MM 12VDC WIRE |
1,038 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.72 W | 4500 RPM | CE, CUR, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP56 - Dust Protected, Water Resistant | 0.249 lb (112.94 g) |
|
9RA0824G10011FAN AXIAL 80X38MM 24VDC WIRE |
1,182 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 9.84 W | 6750 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
(8020BF)(8038BF).jpg)
|
CFM-8038BF-1150-662-22FAN AXIAL 80X38MM 12VDC WIRE |
2,218 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 114.3 CFM (3.20m³/min) | 3.640 in H2O (906.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.3dB(A) | 36.48 W | 15000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9GV0624G1D01FAN AXIAL 60X38MM 24VDC WIRE |
1,795 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 66.0dB(A) | 33.6 W | 16000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
9RA1212P4G0011FAN AXIAL 120X25MM 12VDC WIRE |
4,429 |
|
Datasheet |
San Ace 120 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6.6 W | 4500 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
PFB0824UHEFAN AXIAL 80X38MM 24VDC WIRE |
3,762 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.48 W | 7500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.441 lb (200.03 g) |
|
9L0412M301FAN AXIAL 40X28MM 12VDC WIRE |
4,521 |
|
Datasheet |
San Ace 40L | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.7 CFM (0.160m³/min) | 0.096 in H2O (23.9 Pa) | Ball | 28.00mm | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 540 mW | 4000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
9G0848G102FAN AXIAL 80X38MM 48VDC WIRE |
2,320 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 13 W | 6300 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9GA0812P2S001FAN AXIAL 80X32MM 12VDC WIRE |
1,038 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 32.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 9.96 W | 9700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 131°F (-20 ~ 55°C) | - | 0.298 lb (135.17 g) |
|
|
9WP0924G401FAN AXIAL 92X25MM 24VDC WIRE |
1,229 |
|
Datasheet |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 62.2 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 4.56 W | 3900 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.265 lb (120.2 g) |
|
9G0848H101FAN AXIAL 80X38MM 48VDC WIRE |
2,033 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 9.6 W | 5700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
08038RA-24Q-GA-00FAN AXIAL 80X38MM 24VDC WIRE |
1,477 |
|
Datasheet |
08038RA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 91.8 CFM (2.57m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 56.0dB | 14.4 W | 6500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - |
|
|
9GA0924H1D01FAN AXIAL 92X38MM 24VDC WIRE |
1,180 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 63.0dB(A) | 26.4 W | 9700 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.529 lb (239.95 g) |
|

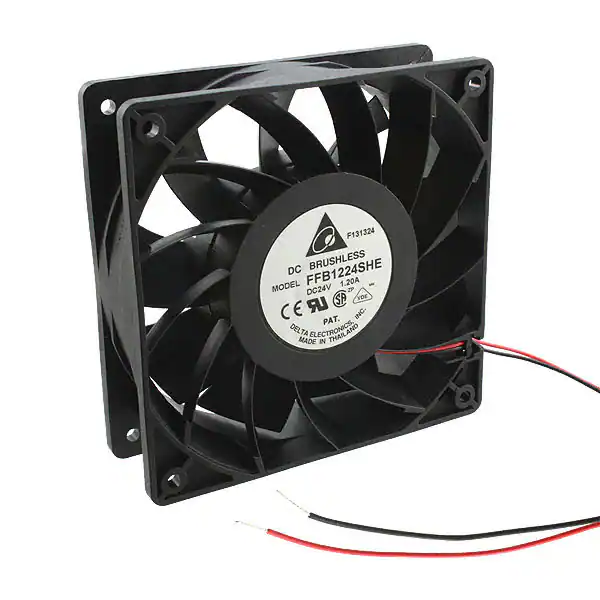

FFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE |
4,287 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 19.2 W | 3600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.816 lb (370.13 g) |
|
BFB1224VHFAN BLOWER 120X32MM 24VDC WIRE |
4,006 |
|
Datasheet |
BFB | Bulk | Not For New Designs | 24VDC | Square/Rounded - 120mm L x 120mm H | 39.5 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection | 56.5dB(A) | 14.4 W | 3100 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.507 lb (229.97 g) |
|
|
04056DA-12T-E6E-840X40X56MM, 12VDC, 29,000 RPM, 2 |
2,171 |
|
Datasheet |
04056DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 29.8 CFM (0.834m³/min) | 6.000 in H2O (1510.0 Pa) | Ball | 56.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.0dB | 15.6 W | 29000 RPM | CE, cULus, TUV | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
9GV0812P1G031FAN AXIAL 80X38MM 12VDC WIRE |
1,835 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 45.6 W | 10200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
|
|
9RA1224P1K001120X38MM 24VDC TACH/PWM |
1,661 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 11.5 W | 4700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1212P1K001120X38MM 12VDC TACH/PWM |
1,804 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 11.5 W | 4700 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
