| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB03512LA-CFAN BLOWER 35X10MM 12VDC WIRE |
4,276 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 24.0dB(A) | 600 mW | 5500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
08025SS-12N-AT-D0FAN AXIAL 80X25MM 12VDC WIRE |
3,698 |
|
Datasheet |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.5 Pa) | Sleeve | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB | 1.92 W | 3100 RPM | - | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
06025SA-24N-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
4,659 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.0dB | 1.9 W | 4700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

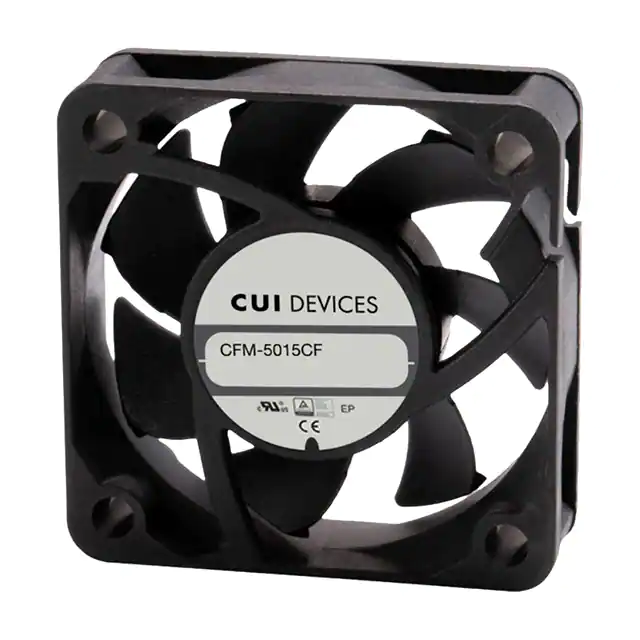

CFM-5015CF-160-374-22FAN AXIAL 50X15.5MM 12VDC WIRE |
3,181 |
|
Datasheet |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.6 CFM (0.437m³/min) | 0.200 in H2O (49.8 Pa) | omniCOOL™ Magnetic Sleeve | 15.50mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 37.4dB(A) | 1.8 W | 6000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-6020V-237-280-20FAN AXIAL 60X20MM 24VDC WIRE |
2,249 |
|
Datasheet |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | 20.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 1.35 W | 4200 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.112 lb (50.8 g) |
|
02510SS-05M-AA-00FAN AXIAL 25X10MM 5VDC WIRE |
3,202 |
|
Datasheet |
02510SS | Box | Active | 5VDC | Square - 25mm L x 25mm H | - | - | Sleeve | 10.00mm | Tubeaxial | Auto Restart | - | - | - | - | 2 Wire Leads | - | - | - |
|
|
06025SA-12M-AT-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,033 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.5dB | 1.2 W | 4000 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

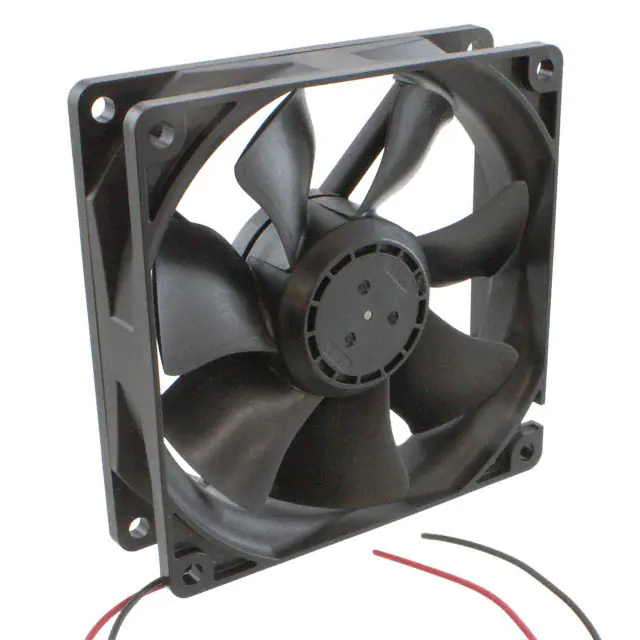

09225SA-12L-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
4,796 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | - | 28.0dB | 1.2 W | 2400 RPM | CE, UR, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.209 lb (94.8 g) |
|
|
09225SA-24L-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,560 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 39.9 CFM (1.12m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 25.0dB | 1.2 W | 2400 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-4020BF-275-306FAN AXIAL 40X20MM 24VDC WIRE |
4,701 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 30.6dB(A) | 1.44 W | 7500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
4558HQ/EG50060S1-C322-S9AFAN BLOWER 84.8X8.8MM 5VDC RECT |
2,825 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 84.8mm L x 71.9mm H | 5.9 CFM (0.165m³/min) | 0.670 in H2O (166.9 Pa) | Sleeve | 8.80mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 44.2dB(A) | 1.8 W | 4800 RPM | CE, CSA, CUR, TUV, UL | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.091 lb (41.28 g) |
|
|
4552HQ/EG75050S1-C070-S9AFAN BLOWER 82.8X7.5MM 5VDC RECT |
3,306 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 82.8mm L x 80.9mm H | 4.3 CFM (0.120m³/min) | 0.510 in H2O (127.0 Pa) | Sleeve | 7.50mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.4dB(A) | 1.35 W | 4000 RPM | CE, CUR, TUV, UL | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.098 lb (44.45 g) |
|
|
4557HQ/EG50050S1-C711-S9AFAN BLOWER 66.9X5.6MM 5VDC RECT |
1,887 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 66.9mm L x 65mm H | 3.4 CFM (0.095m³/min) | 0.500 in H2O (124.5 Pa) | Sleeve | 5.60mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.7dB(A) | 2 W | 4000 RPM | CE, CUR, TUV, UL | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.042 lb (19.05 g) |
|
CFM-8015BF-130-301-20FAN AXIAL 80X15.4MM 12VDC WIRE |
2,093 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 15.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.1dB(A) | 3.12 W | 3000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-8015BF-120-213-20FAN AXIAL 80X15.4MM 12VDC WIRE |
2,926 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | 15.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.3dB(A) | 1.08 W | 2000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-8015BF-240-363-20FAN AXIAL 80X15.4MM 24VDC WIRE |
3,024 |
|
Datasheet |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 46.5 CFM (1.30m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 15.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.3dB(A) | 5.04 W | 4000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06020SA-12T-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
3,957 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 42.5dB | 2.88 W | 6400 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-7015B-150-406-20FAN AXIAL 70X15.5MM 12VDC WIRE |
1,645 |
|
Datasheet |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 15.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.6dB(A) | 3.96 W | 5000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
AFB02505LA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE |
1,240 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 0.900 CFM (0.025m³/min) | 0.045 in H2O (11.2 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 200 mW | 5000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
06015KA-12K-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
2,152 |
|
Datasheet |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 11.7 CFM (0.328m³/min) | 0.094 in H2O (23.4 Pa) | Ball | 15.00mm | Tubeaxial | Auto Restart | 25.0dB | 840 mW | 3100 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
