| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0912S4001FAN AXIAL 92X25MM 12VDC WIRE |
1,045 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3850 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
12032GA-24M-AA-00FAN BLOWER 120X32MM 24VDC WIRE |
1,058 |
|
Datasheet |
12032GA | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 28.2 CFM (0.790m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 32.00mm | Blower | Auto Restart | 48.5dB | 7.2 W | 2250 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
ODB7530-12HBFAN BLOWER 75X30MM 12VDC WIRE |
1,156 |
|
Datasheet |
ODB7530 | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 13.8 CFM (0.386m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 30.00mm | Blower | - | 41.7dB(A) | 4.32 W | 3400 RPM | cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MQ6038H12B-FSR-EMFAN AXIAL 60X38MM 12VDC WIRE |
1,604 |
|
Datasheet |
MQ6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 57.0 CFM (1.60m³/min) | 1.430 in H2O (356.2 Pa) | Ball | 38.00mm | Tubeaxial | - | 65.0dB(A) | - | 10000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.234 lb (106.14 g) |
|
9G1248G401FAN AXIAL 119X25MM 48VDC WIRE |
3,552 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 11.04 W | 4100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9GA0812A2D001FAN AXIAL 80X32MM 12VDC WIRE |
3,951 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | - | 3.72 W | - | - | 3 Wire Leads | - | - | - |
|
9GA0812P2M001FAN AXIAL 80X32MM 12VDC WIRE |
4,098 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 59.7 CFM (1.67m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 32.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.2 W | 6700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 131°F (-20 ~ 55°C) | - | 0.287 lb (130.18 g) |
|
|
9GV0812P1M031FAN AXIAL 80X38MM 12VDC WIRE |
3,639 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 81.0 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 9 W | 6000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.485 lb (220.00 g) |
|
9RA1224E4001FAN AXIAL 120X25MM 24VDC WIRE |
4,899 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 5.28 W | 4000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0812P1G001FAN AXIAL 80X38MM 12VDC WIRE |
4,579 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 9.84 W | 6750 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0812P1G0011FAN AXIAL 80X38MM 12VDC WIRE |
3,199 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 9.84 W | 6750 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9GA0812P2S0011FAN AXIAL 80X32MM 12VDC WIRE |
1,258 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 32.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 9.96 W | 9700 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 131°F (-20 ~ 55°C) | - | 0.287 lb (130.18 g) |
|

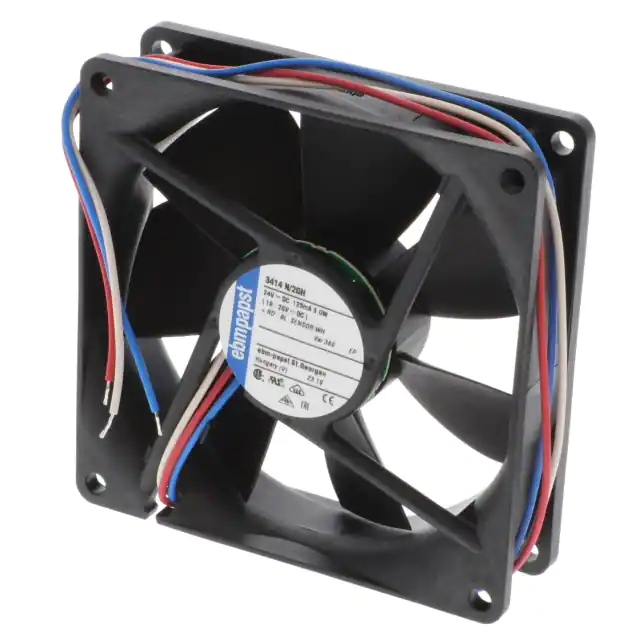

3414N/2GHFAN AXIAL 92X25.4MM 24VDC WIRE |
2,704 |
|
Datasheet |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 55.4 CFM (1.55m³/min) | - | Sintec | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 3 W | 3000 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9G1212F401FAN AXIAL 119X25MM 12VDC WIRE |
3,692 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 2.28 W | 2250 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9CRA0312P4J03FAN AXIAL DUAL 38X48MM 12VDC |
1,689 |
|
Datasheet |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 24.7 CFM (0.692m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 48.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 13.2 W | 16000 Front, 13200 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|

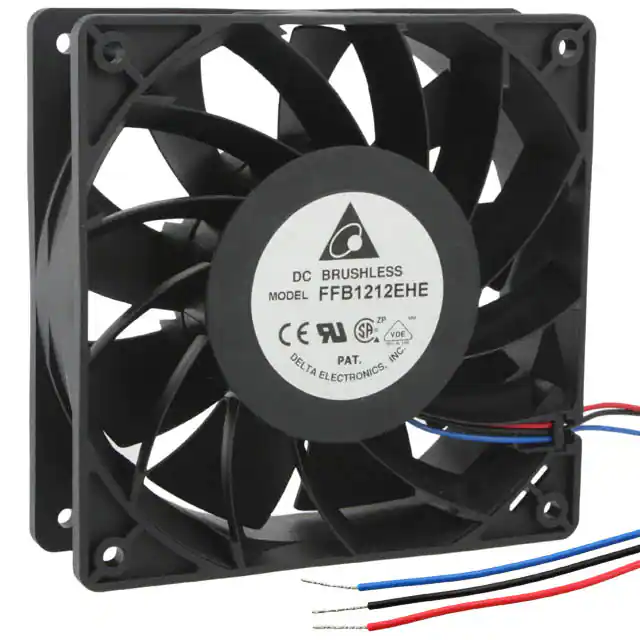

FFB1212EHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
4,367 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 24 W | 4000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.816 lb (370.13 g) |
|
BFB1012EH-AF00FAN BLOWER 97.2X33MM 12VDC WIRE |
3,771 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 46.0 CFM (1.29m³/min) | 2.814 in H2O (701.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 29.4 W | 5300 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.397 lb (180.08 g) |
|
9GA0848P2S001FAN AXIAL 80X32MM 48VDC WIRE |
1,738 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 10.56 W | 9700 RPM | CSA, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
|
12038VA-24R-EL-00FAN AXIAL 120X38MM 24VDC WIRE |
4,754 |
|
Datasheet |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.6 CFM (6.82m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 64.0dB | 35.5 W | 6400 RPM | - | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|

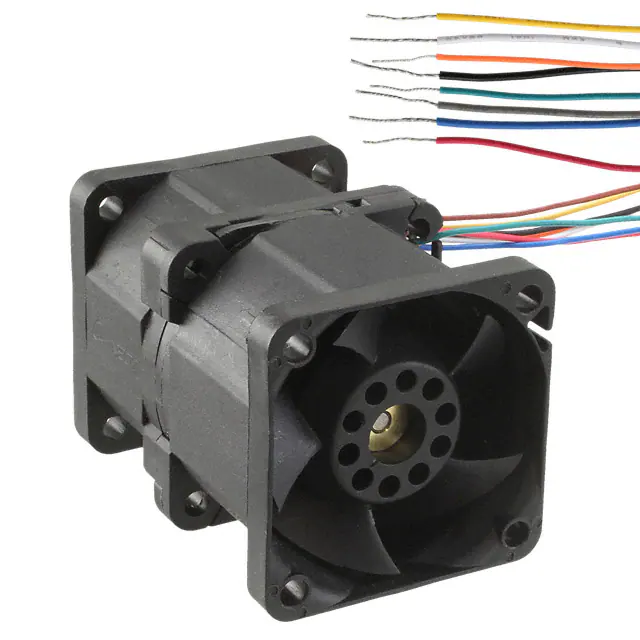

GFC0412DS-DV17FAN AXIAL DUAL 40X56MM 12VDC |
3,456 |
|
Datasheet |
GFC | Box | Active | 12VDC | Square - 40mm L x 40mm H | 33.2 CFM (0.930m³/min) | 3.330 in H2O (829.5 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 18 W | 20500 Front, 17600 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 140°F (-10 ~ 60°C) | - | 0.183 lb (83.01 g) |
