| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE60251B2-000U-999FAN AXIAL 60X25MM 12VDC WIRE |
4,313 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | - | 30.0dB(A) | 940 mW | 3800 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
FAD1-04020BBMW11FAN AXIAL 40X20MM BALL 5VDC WIRE |
2,793 |
|
Datasheet |
FAD1-04020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | - | 33.0dB(A) | 800 mW | 6900 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.062 lb (28.12 g) |
|
|
06025SA-24L-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
2,280 |
|
Datasheet |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 23.5dB | 1 W | 3500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
BFB0312MA-CR00FAN BLOWER 30X10MM 12VDC WIRE |
2,782 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | 10.00mm | Blower | Locked Rotor Sensor | 26.0dB(A) | 600 mW | 6500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
|
BFB03512HA-CFAN BLOWER 35X10MM 12VDC WIRE |
1,460 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 29.0dB(A) | 960 mW | 7500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
F8025M12B-FHRFAN AXIAL 80X25MM 12VDC WIRE |
3,460 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 35.0 CFM (0.980m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.182 lb (82.55 g) |
|

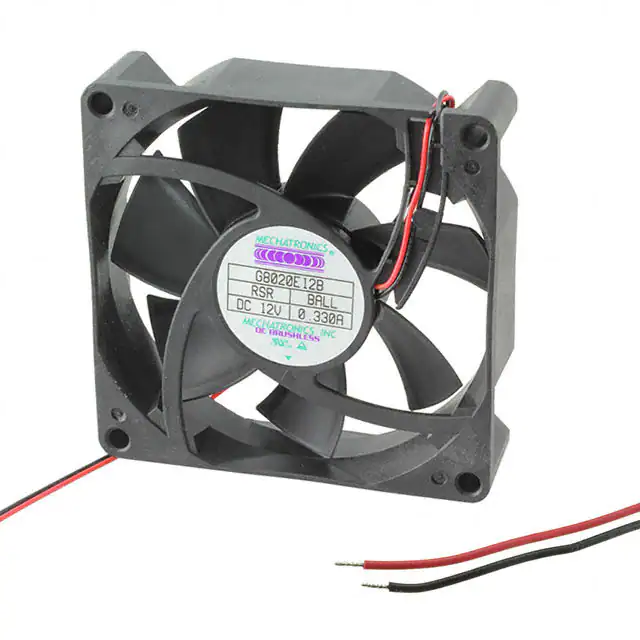

G8020E12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
4,439 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.80mm | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.185 lb (83.91 g) |
|
G4020H12B1-RSR-L18FAN AXIAL 40X20MM 12VDC WIRE |
3,921 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.062 lb (28.12 g) |
|
|
BFB03505MA-CR00FAN BLOWER 35X10MM 5VDC WIRE |
1,942 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 10.00mm | Blower | Locked Rotor Sensor | 26.0dB(A) | 600 mW | 6500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|
|
MD6020M24B-FSRFAN AXIAL 60X20.2MM 24VDC WIRE |
4,225 |
|
Datasheet |
MD6020 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.9 CFM (0.473m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 20.20mm | Tubeaxial | Thermal Overload Protector (TOP) | 27.5dB(A) | - | 3200 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.094 lb (42.64 g) |
|
|
AFB02512HA-CFAN AXIAL 25X10MM 12VDC WIRE |
4,666 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | - | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | - | 720 mW | 10000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | - | - | 0.024 lb (10.89 g) |
|
FAD1-06025DHHW12-AFAN AXIAL 60X25MM 24VDC WIRE |
4,364 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Hydrodynamic | 25.00mm | Tubeaxial | - | 33.1dB(A) | 2.88 W | 4500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
G4010H05B1-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE |
4,145 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 10.30mm | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.026 lb (11.79 g) |
|
B7025M12B-BSRFAN BLOWER 69X25MM 12VDC WIRE |
2,316 |
|
Datasheet |
B7025 | Bulk | Active | 12VDC | Square/Rounded - 69mm L x 66mm H | 7.8 CFM (0.218m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 25.00mm | Blower | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 2600 RPM | - | 2 Wire Leads | - | - | 0.121 lb (54.88 g) |
|
F6025X12B1-RSR-TTLFAN AXIAL 60X25MM 12VDC WIRE |
2,632 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | - | 5200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.156 lb (70.76 g) |
|

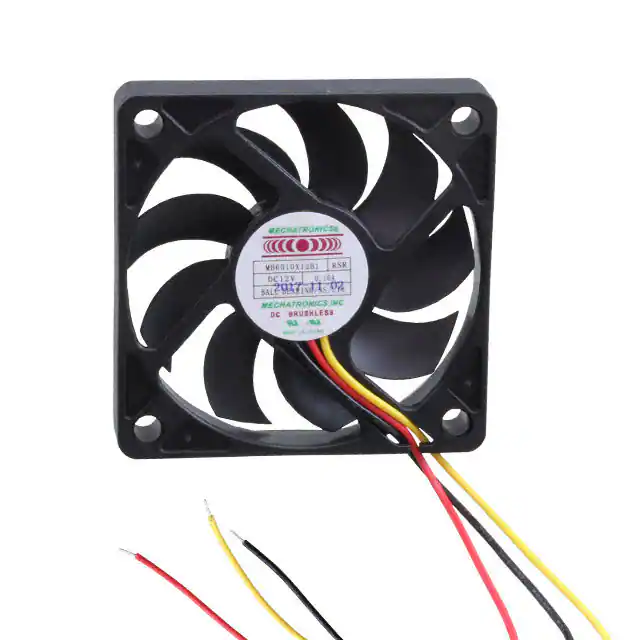

MB6010X12B1-RSR-NS-L18FAN AXIAL 60X10.2MM 12VDC WIRE |
3,726 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 10.20mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5300 RPM | cUL, UL | 3 Wire Leads | - | - | 0.059 lb (26.76 g) |
|
|
F6025L05B-RSRFAN AXIAL 60X25MM BALL 5VDC WIRE |
1,850 |
|
Datasheet |
F6025 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 24.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.139 lb (63.05 g) |
|
|
MA3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
4,609 |
|
Datasheet |
MA3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 28.0dB(A) | - | 9000 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 0.018 lb (8.16 g) |
|
|
4549HQ/EG50060S1-C331-S9AFAN BLOWER 96.63X9.15MM 5VDC |
3,753 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 96.63mm L x 75.66mm H | 5.7 CFM (0.157m³/min) | 0.630 in H2O (156.9 Pa) | Sleeve | 9.15mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 44.4dB(A) | 1.9 W | 4800 RPM | CE, CSA, CUR, TUV, UL | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.098 lb (44.45 g) |
|
|
4551HQ/EG75050S1-C031-S9AFAN BLOWER 84X7.5MM 5VDC RECT |
1,679 |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 84mm L x 80.9mm H | 4.4 CFM (0.123m³/min) | 0.510 in H2O (127.0 Pa) | Sleeve | 7.50mm | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.9dB(A) | 1.35 W | 4000 RPM | CE, CUR, TUV, UL | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.098 lb (44.45 g) |
