| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR9232H24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
4,798 |
|
Datasheet |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 85.0 CFM (2.38m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 49.7dB(A) | - | 4400 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.331 lb (150.14 g) |
|
F8025E24B-FHR-EM-L19FAN AXIAL 80X25MM 24VDC WIRE |
2,579 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.182 lb (82.55 g) |
|
MQ8038L24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
4,588 |
|
Datasheet |
MQ8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 61.5 CFM (1.72m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 4500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
F1238E12B1-FSR-L24FAN AXIAL 119X38MM 12VDC WIRE |
3,549 |
|
Datasheet |
F1238-S | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 126.0 CFM (3.53m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.536 lb (243.13 g) |
|

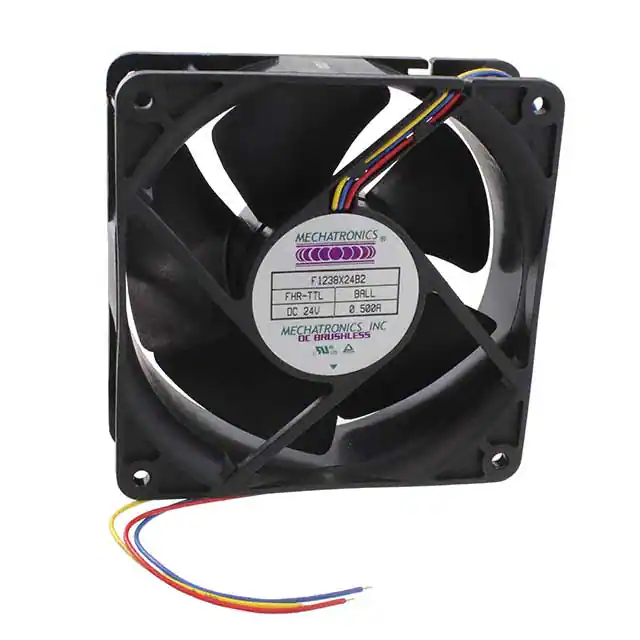

F1238X24B2-FHR-TTLFAN AXIAL 119X38MM 24VDC WIRE |
2,980 |
|
Datasheet |
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 130.0 CFM (3.64m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 47.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.59 lb (267.62 g) |
|
G8032H12B1-RSR-EMFAN AXIAL 80X32MM 12VDC WIRE |
3,254 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 48.0 CFM (1.34m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 32.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 4000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.286 lb (129.73 g) |
|
109P0412K301FAN AXIAL 40X28MM 12VDC WIRE |
2,330 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 15500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.115 lb (52.16 g) |
|

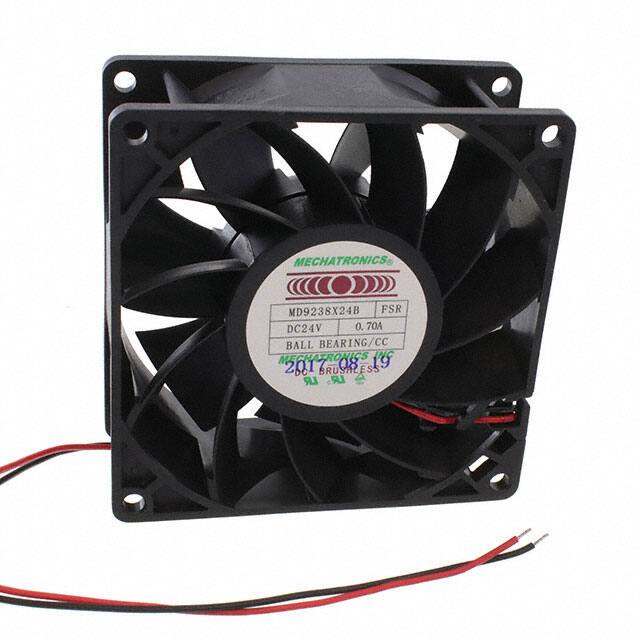

MD9238X24B-FSR-CCFAN AXIAL 92X38MM 24VDC WIRE |
4,888 |
|
Datasheet |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 38.00mm | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 58.4dB(A) | - | 5400 RPM | CE, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
DC0803812M2B-2T0FAN AXIAL 80X38MM 12VDC WIRE |
4,450 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.0 CFM (2.21m³/min) | 0.760 in H2O (189.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 9.12 W | 5600 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9RA0912S40011FAN AXIAL 92X25MM 12VDC WIRE |
2,585 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3850 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
MD4028X24B-RSR-CCFAN AXIAL 40X28MM 24VDC WIRE |
4,174 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 28.00mm | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
G9225H12B6-FSR-EMFAN AXIAL 92X25MM 12VDC WIRE |
2,579 |
|
Datasheet |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.218 lb (98.88 g) |
|
E1225E12B1+3-FSRFAN AXIAL 120X25MM 12VDC WIRE |
4,139 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP), Thermistor | 44.0dB(A) | - | 3000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.434 lb (196.86 g) |
|

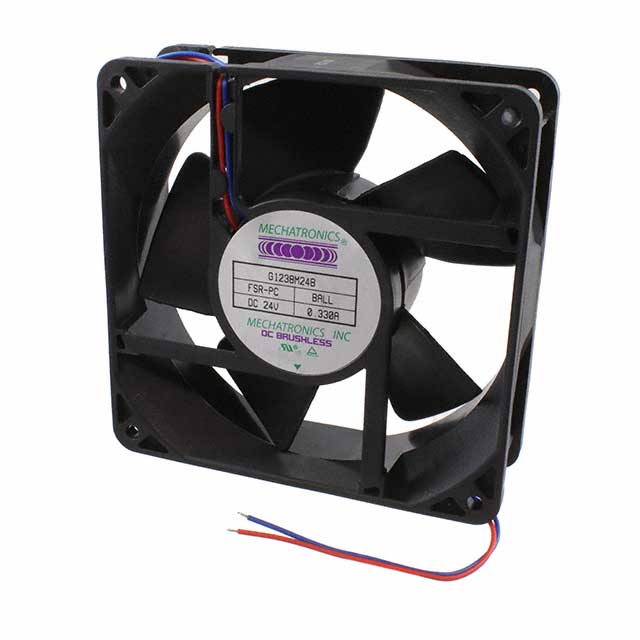

G1238M24B-FSR-PCFAN AXIAL 120X38MM 24VDC WIRE |
3,961 |
|
Datasheet |
G1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 125.0 CFM (3.50m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | Parylene Coating, Thermal Overload Protector (TOP) | 43.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.74 lb (335.66 g) |
|
G1225L12B2-FSRFAN AXIAL 120X25MM 12VDC WIRE |
3,395 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 66.0 CFM (1.85m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 1800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.436 lb (197.77 g) |
|

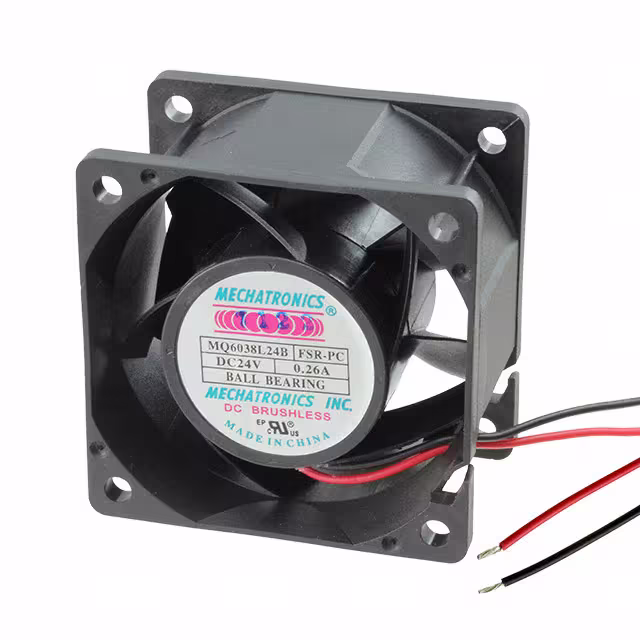

MQ6038L24B-FSR-PCFAN AXIAL 60X38MM 24VDC WIRE |
2,385 |
|
Datasheet |
MQ6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.910 in H2O (226.7 Pa) | Ball | 38.00mm | Tubeaxial | - | 53.0dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.234 lb (106.14 g) |
|
G8025H12B2-RSRFAN 80X25MM BALL 12VDC WIRE |
2,388 |
|
Datasheet |
G8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.00mm | - | Locked Rotor Sensor | - | - | - | CE, cUL, TUV, UL | 3 Wire Leads | - | - | - |
|
BFB0724LFAN BLOWER 75.7X30MM 24VDC WIRE |
2,149 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 7.0 CFM (0.196m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 30.00mm | Blower | Locked Rotor Protection | 26.0dB(A) | 1.2 W | 1900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.211 lb (95.71 g) |
|

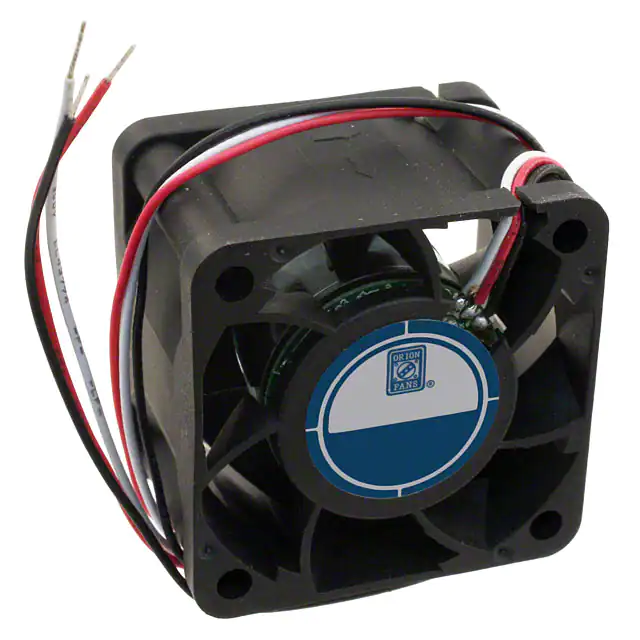

OD4028-12HBXC01AFAN AXIAL 40X28MM 12VDC WIRE |
3,043 |
|
Datasheet |
OD4028 XC | Box | Active | 12VDC | Square - 40mm L x 40mm H | 26.5 CFM (0.742m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 57.0dB | 9.5 W | 16000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
EEC0254B2-000U-A99FAN AXIAL 120X25MM 48VDC WIRE |
3,063 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 40.5dB(A) | 3.8 W | 2700 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.346 lb (156.94 g) |
