| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0812B2001FAN AXIAL 80X32MM 12VDC WIRE |
3,701 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.56 W | - | - | 3 Wire Leads | - | - | - |
|
9GA0812B20011FAN AXIAL 80X32MM 12VDC WIRE |
3,303 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.56 W | - | - | 3 Wire Leads | - | - | - |
|
9RA0924M40011FAN AXIAL 92X25MM 24VDC WIRE |
4,413 |
|
Datasheet |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 960 mW | 2450 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

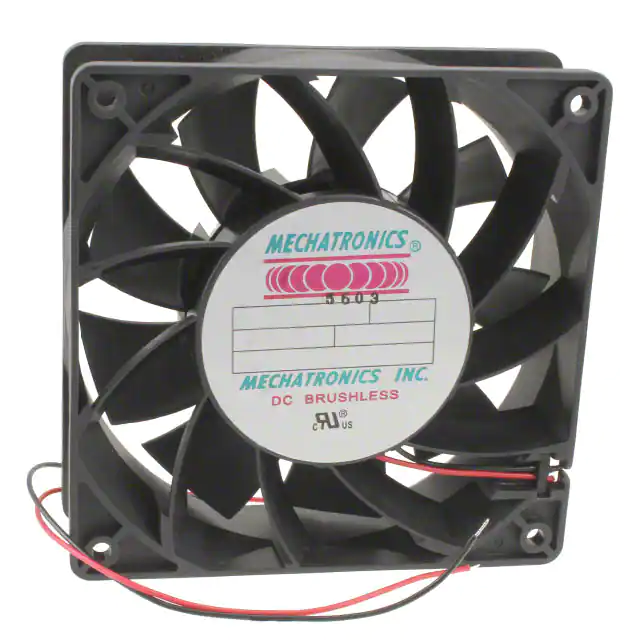

MQ1238E48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
2,321 |
|
Datasheet |
MQ1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.772 lb (350.17 g) |
|

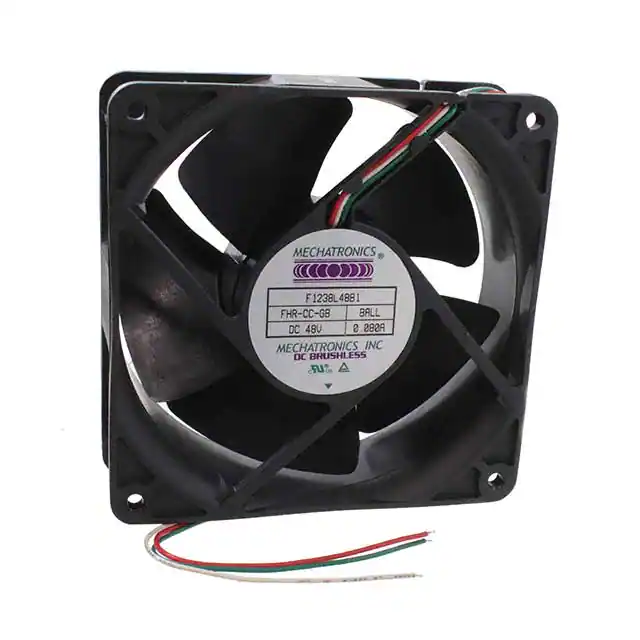

F1238L48B1-FHR-CC-GBFAN AXIAL 119X38MM 48VDC WIRE |
3,154 |
|
Datasheet |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 93.0 CFM (2.60m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Conformal Coating, Speed Sensor (Tach) | 35.0dB(A) | - | 2400 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.59 lb (267.62 g) |
|
612F/2-638FAN AXIAL 60X15MM 12VDC RECT |
1,534 |
|
Datasheet |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.9 CFM (0.445m³/min) | - | Sintec | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1 W | 3900 RPM | - | 3 Position Rectangular Connector | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
MXB9733M12B6-BSRFAN BLOWER 97X33MM 12VDC WIRE |
2,349 |
|
Datasheet |
MXB9733 | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 24.0 CFM (0.672m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 33.00mm | Blower | PWM Control, Thermal Overload Protector (TOP) | 51.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
9G1212M4021FAN AXIAL 119X25MM 12VDC WIRE |
1,210 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 59.0 CFM (1.65m³/min) | 0.124 in H2O (30.9 Pa) | Ball | 25.00mm | Tubeaxial | - | 29.0dB(A) | 1.68 W | 1950 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|

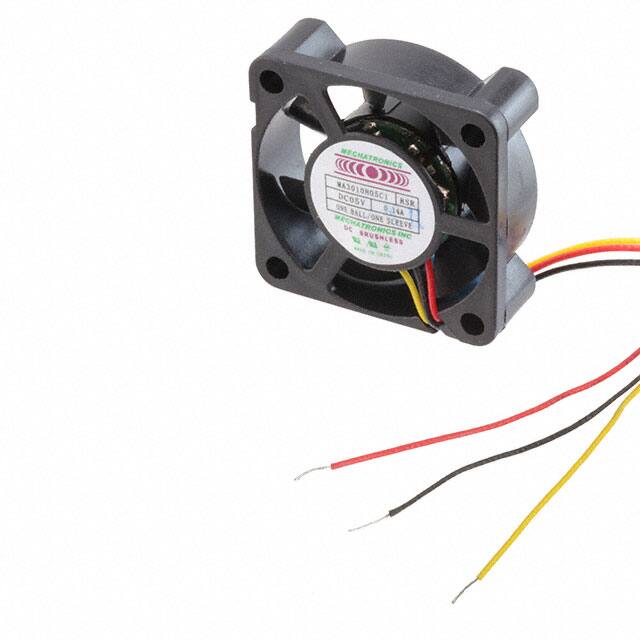

MA3010H05C1-RSRFAN AXIAL 30X10MM 5VDC WIRE |
4,068 |
|
Datasheet |
MA3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.150 in H2O (37.3 Pa) | 1 Ball/1 Sleeve | 10.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.0dB(A) | - | 9000 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 0.018 lb (8.16 g) |
|
9G1212L401FAN AXIAL 119X25MM 12VDC WIRE |
4,445 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | - | 1400 RPM | CSA, TUV, UR | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.529 lb (240.00 g) |
|
|
612F/2HFAN AXIAL 60X15MM 12VDC WIRE |
1,597 |
|
Datasheet |
600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | - | Sintec | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 1.5 W | 4500 RPM | - | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|
614N/2GHHFAN AXIAL 60X25.4MM 24VDC WIRE |
1,650 |
|
Datasheet |
600NG | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Sintec | 25.40mm | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 3.8 W | - | - | 3 Wire Leads | 158°F (70°C) | - | 0.19 lb (86.18 g) |
|
FFB0948VH-F00FAN AXIAL 92X25.4MM 48VDC WIRE |
2,458 |
|
Datasheet |
FFB | Box | Active | 48VDC | Square - 92mm L x 92mm H | 82.0 CFM (2.30m³/min) | 0.319 in H2O (79.5 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.2dB(A) | 8.16 W | 3700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.286 lb (129.73 g) |
|
|
9WP0612G4D01FAN AXIAL 60X25MM 12VDC WIRE |
2,343 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 2.52 W | 5600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | IP68 - Dust Tight, Waterproof | 0.243 lb (110.22 g) |
|
9RA0648J40011FAN AXIAL 60X25MM 48VDC WIRE |
3,339 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 7700 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0648G4001FAN AXIAL 60X25MM 48VDC WIRE |
4,666 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.88 W | 5600 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9GL1212F101FAN AXIAL 119X38MM 12VDC WIRE |
4,315 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 3.36 W | 2280 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.816 lb (370.13 g) |
|

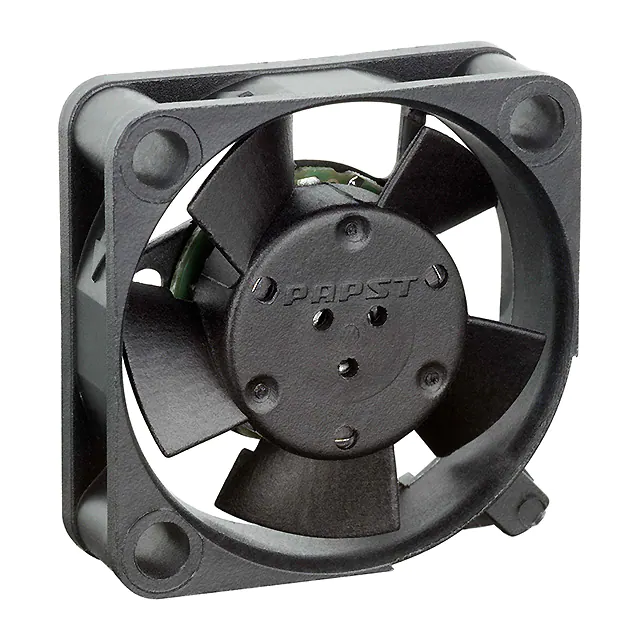

255/2NFAN AXIAL 25X8MM 5VDC WIRE |
2,578 |
|
Datasheet |
250 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | 8.00mm | Tubeaxial | Speed Sensor (Tach) | 16.0dB(A) | 400 mW | 9600 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
_Series.jpg)
|
3412NHFAN AXIAL 92X25.4MM 12VDC WIRE |
2,947 |
|
Datasheet |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 36.0dB(A) | 2.5 W | 3000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
|
9G1212F101FAN AXIAL 119X38MM 12VDC WIRE |
1,999 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 3.36 W | 2280 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.728 lb (330.22 g) |
