| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0501512U2B-2T0FAN AXIAL 50X15MM 12VDC WIRE |
3,113 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | - | - | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

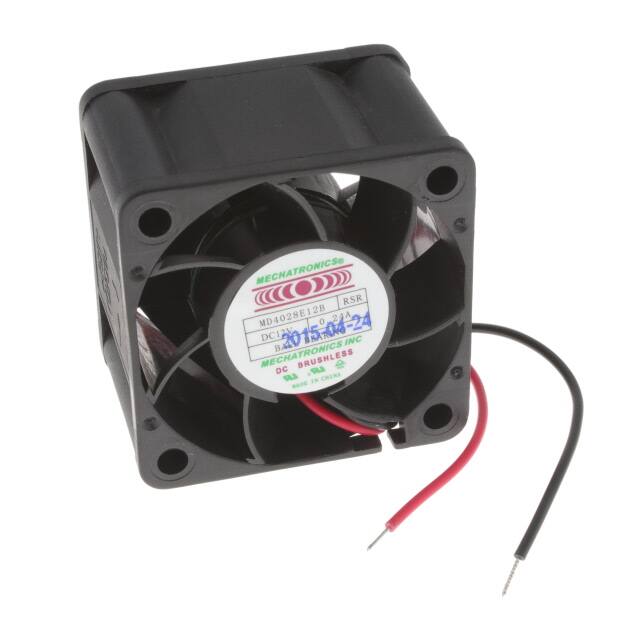

MD4028E12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
1,734 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 10300 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
MD4028X24B-RSR-L24FAN AXIAL 40X28MM 24VDC WIRE |
4,494 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 28.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
E9225H12B3-FSRFAN AXIAL 92X25MM 12VDC WIRE |
2,222 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 36.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.245 lb (111.13 g) |
|
G8015X12B1-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
4,267 |
|
Datasheet |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 15.30mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.128 lb (58.06 g) |
|
E9225E24B-FSR-L22FAN AXIAL 92X25MM 24VDC WIRE |
2,855 |
|
Datasheet |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.245 lb (111.13 g) |
|
G5015E12B1-RSRFAN AXIAL 50X15MM 12VDC WIRE |
4,474 |
|
Datasheet |
G5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 16.0 CFM (0.448m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 15.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 34.0dB(A) | - | 6500 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.077 lb (34.93 g) |
|
G9225X12B-FSR-TFFAN AXIAL 92X25MM 12VDC WIRE |
4,807 |
|
Datasheet |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.218 lb (98.88 g) |
|
F8025H24B-FHR-EM-L17FAN AXIAL 80X25MM 24VDC WIRE |
3,999 |
|
Datasheet |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.182 lb (82.55 g) |
|
MD4028E12B2-FSR-V10FAN AXIAL 40X28MM 12VDC WIRE |
1,611 |
|
Datasheet |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 44.0dB(A) | - | 10300 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
MB6010H12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
4,637 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 10.20mm | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 3900 RPM | cUL, UL | 2 Wire Leads | - | - | 0.059 lb (26.76 g) |
|
9A0612H4D011FAN AXIAL 60X25MM 12VDC WIRE |
1,350 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.32 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
9A0624M4D01FAN AXIAL 60X25MM 24VDC WIRE |
3,841 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 960 mW | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
G8020M12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
2,157 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 20.80mm | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 3000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.185 lb (83.91 g) |
|
G8032X24B-RSR-EM3FAN AXIAL 80X32MM 24VDC WIRE |
4,771 |
|
Datasheet |
G8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.286 lb (129.73 g) |
|
109P0624H601FAN AXIAL 60X20MM 24VDC WIRE |
2,261 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.68 W | 4200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
F6025E12B-FHR-EM3FAN AXIAL 60X25MM 12VDC WIRE |
3,836 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.139 lb (63.05 g) |
|
|
E9225E12B-FSR-EMFAN AXIAL 92X25MM 12VDC WIRE |
3,397 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.245 lb (111.13 g) |
|
|
MD4028X24B1-RSR-CCFAN AXIAL 40X28MM 24VDC WIRE |
4,476 |
|
Datasheet |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 28.00mm | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | cUL, TUV, UL | 3 Wire Leads | - | - | 0.111 lb (50.35 g) |
|
|
F6025S12B1+6-RHR-WSFAN AXIAL 60X25MM 12VDC WIRE |
3,192 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 25.00mm | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 22.0dB(A) | - | 2400 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.139 lb (63.05 g) |
