| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-06025CBHW12-AFAN AXIAL 60X25MM 12VDC WIRE |
1,164 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 25.00mm | Tubeaxial | - | 33.1dB(A) | 2.76 W | 4500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
CFM-6025BF-190-479FAN AXIAL 60X25.4MM 12VDC WIRE |
1,738 |
|
Datasheet |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.720 in H2O (179.3 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart | 47.9dB(A) | 8.28 W | 9000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4132/MF30100V1-1000U-A99FAN AXIAL 30X10MM VAPO 5VDC |
4,199 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 23.0dB(A) | 600 mW | 11000 RPM | cURus, TUV | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.018 lb (8.16 g) |
|
|
06025SA-12S-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
2,779 |
|
Datasheet |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 42.5dB | 4.1 W | 7000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
AFB0824VHFAN AXIAL 80X25.4MM 24VDC WIRE |
4,301 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3.36 W | 3600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
|
06025SE-24R-FT-DWFAN AXIAL 60X25MM 24VDC WIRE |
4,168 |
|
Datasheet |
06025SE | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 30.0 CFM (0.840m³/min) | 0.405 in H2O (100.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.5dB(A) | 2.4 W | 6000 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP55 - Dust Protected, Water Resistant | - |
|
9A0624H402FAN AXIAL 60X25MM 24VDC WIRE |
2,937 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 3800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.176 lb (80.00 g) |
|
109P0424H701FAN AXIAL 40X15MM 24VDC WIRE |
1,181 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.92 W | 7700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.071 lb (32.21 g) |
|
G8032M12B-RSR-L15FAN AXIAL 80X32MM 12VDC WIRE |
4,095 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 32.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.286 lb (129.73 g) |
|
|
9GA0412G7002FAN AXIAL 40X15MM 12VDC WIRE |
3,933 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 2.04 W | 13100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.062 lb (28.12 g) |
|

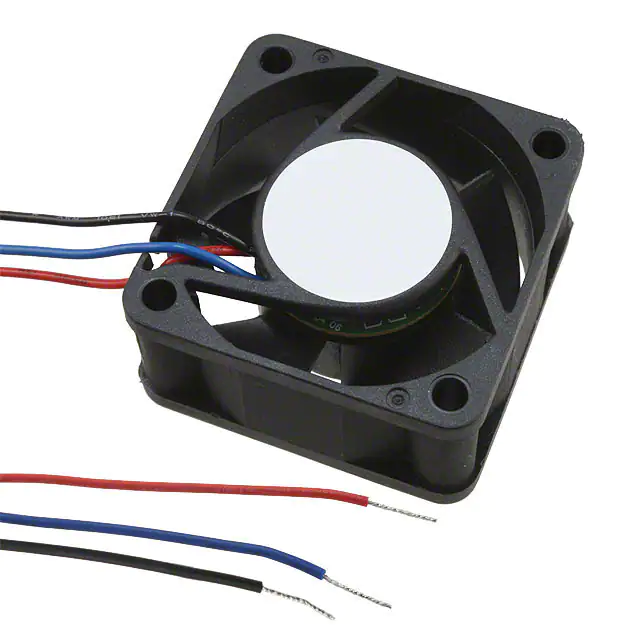

EFB0412MD-R00FAN AXIAL 40X20MM 12VDC WIRE |
2,968 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 720 mW | 6300 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
9GA0612H9001FAN AXIAL 60X10MM 12VDC WIRE |
2,382 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 17.6 CFM (0.493m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 10.00mm | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.68 W | 5000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.077 lb (34.93 g) |
|
109P0624W601FAN AXIAL 60X20MM 24VDC WIRE |
3,110 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.68 W | 4200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109P0412H3D013FAN AXIAL 40X28MM 12VDC WIRE |
3,406 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.34 W | 8700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.115 lb (52.16 g) |
|
07530GA-12M-AA-00FAN BLOWER 75.7X30MM 12VDC WIRE |
3,926 |
|
Datasheet |
07530GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 10.5 CFM (0.294m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 30.00mm | Blower | Auto Restart | 38.5dB | 3.48 W | 3000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9S0912P4F011FAN AXIAL 92X25MM 12VDC WIRE |
2,699 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | 1.68 W | 2650 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
|
109R0605M402FAN AXIAL 60X25MM BALL 5VDC WIRE |
2,278 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 650 mW | 2600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612G402FAN AXIAL 60X25MM 12VDC WIRE |
2,293 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2.88 W | 5600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
MC8038U24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
3,633 |
|
Datasheet |
MC8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 95.6 CFM (2.68m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 60.2dB(A) | - | 6800 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
MC8038U12B-FSRFAN AXIAL 80X38MM 12VDC WIRE |
2,288 |
|
Datasheet |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 95.6 CFM (2.68m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 60.2dB(A) | - | 6800 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
